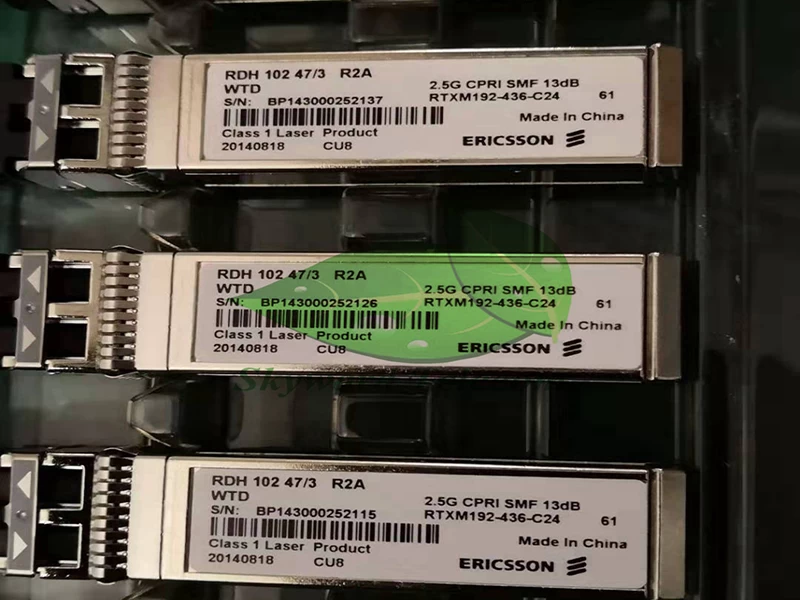

Overview Ericsson RDH 102 47/3 2.5Gbps 1310nm 15km SFP Fiber Optic Module
Ericsson 155M ~ 2.67Gbps Spring-latch SFP transceiver is high performance, cost effective module that supports data-rate up to 2.67Gbps and transmission distance from 2km to 15km.
The transceiver consists of two sections: The transmitter section incorporates a FP or uncooled DFB laser, and the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.
Brand: Ericsson
MPN: RDH 102 47/3
Type: OPTICAL TRANSCEIVER MODULE
Discription: Ericsson RDH 102 47/3 Optical Transceiver Module 2.5Gbit/s 15Km SPF; RDH 102 47/3, SFP, TRX SM CPRI 614.4-2457.6 MBIT/S 20KM/GBE 10KM DFB LC-SFP RECEPTACLE -40/+85C 3.3V
