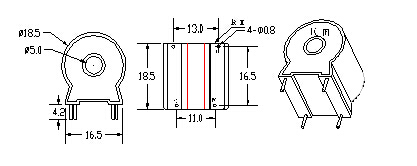

1.The appearance of the structure parameters:
2.Electrical characteristics：
Type
Parameters
|
CT103（Survey）
|
Unit
|
|
Rated
|
Max
|
|
|
5
|
15
|
Aac
|
|
Output Current
|
5
|
15
|
mA
|
|
Phase Shift
|
15
|
δ
|
|
Load Resistance
|
<50\<100(0-24A时)
|
Ω
|
|
Accuracy class
|
0.2
|
%
|
|
Linearity
|
0.1
|
%
|
|
Click to bear
|
4000（1min）
|
Vac
|
|
Temperature Coefficient
|
50
|
ppm/℃
|
|
|
-35～+70
|
°C
|
|
|
-40～+75
|
°C
|
|
Frequency Range
|
50-60
|
kHz
|
|
Packaging Materials
|
Epoxy
|
|
Installation
|
PCB printed circuit board
|
