Recyclable Plastic HDPE Grass Paver Grid

Grass grid is made of HDPE with fiber and age resistor,using high pressure to inject plastic to form bee nest-like shaped shell,with stereo space and support level.It’s widely used in parking lot,pavement ect.It can protect the grass and it is also known as the green grass protection mat


  • Press Strength180ton/sqm
  • Total Volume12.43875CBM
  • Size465*535*50mm
  • ColorGreen
  • MaterialHDPE

Recyclable Plastic HDPE Grass Paver Grid

Product Details

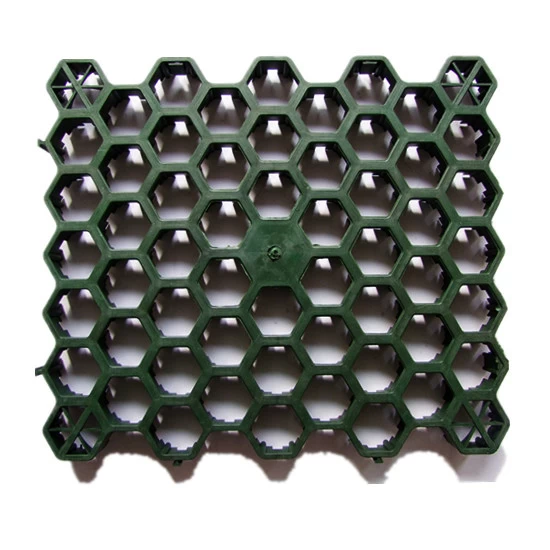

Introduction of  Recyclable HDPE Plastic Grass Paver Grid
Grass grid is made of HDPE with fiber and age resistor,using high pressure to inject plastic to form bee nest-like shaped shell,with stereo space and support level.It’s widely used in parking lot,pavement ect.It can protect the grass and it is also known as the green grass protection mat.
grass grid

SPECIFICATION

Item No.

MZ-438

MZ-450

MW-438

MW-450

Size

465x535x38mm

465x535x50mm

465x535x38mm

465x535x50mm




Apply Place

pedestrian areas;

 on verges;

 footpaths;

 access roads;
 emergency access lanes;
 car parks;
 vehicle hardstandings;

 Gravel Road(light vehicle);
 pedestrian areas;
 on verges;

 Gravel Road;
 access roads;
 emergency access lanes;
 car parks;
 vehicle hardstandings;

Pressure Strength

 1176KN/sqm(120ton/sqm)

 1764KN/sqm(180ton/sqm)

 1584KN/sqm(160ton/sqm)

 1964KN/sqm(200ton/sqm)

Weight

 3.65kg/sqm

 4.55kg/sqm

 4.05kg/sqm

 5.5kg/sqm

Material

 HDPE(high-density polyethylene)

 HDPE(high-density polyethylene)

 HDPE(high-density polyethylene)

 HDPE(high-density polyethylene)

Durability

 durability of at least 8 years in neutral ground of 4 < pH < 9

 durability of at least 8 years in neutral ground of 4 < pH < 9

 durability of at least 8 years in neutral ground of 4 < pH < 9

 durability of at least 8 years in neutral ground of 4 < pH < 9

Working Temterature

 Apply in temperature of -40 to 90

 Apply in temperature of -40 to 90

 Apply in temperature of -40 to 90

 Apply in temperature of -40 to 90

Anti HCL

 According to GB4218-1984, 30%x24h, no visible change

 According to GB4218-1984, 30%x24h, no visible change

 According to GB4218-1984, 30%x24h, no visible change

 According to GB4218-1984, 30%x24h, no visible change

Anti NaOH

 According to GB4218-1984, 40%x24h, no visible change

 According to GB4218-1984, 40%x24h, no visible change

 According to GB4218-1984, 40%x24h, no visible change

 According to GB4218-1984, 40%x24h, no visible change

Thermal Aging

 According to GB/T 7141-1999, 70ICx24h, no visible change

 According to GB/T 7141-1999, 70ICx24h, no visible change

 According to GB/T 7141-1999, 70ICx24h, no visible change

 According to GB/T 7141-1999, 70ICx24h, no visible change

Anti UV

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

Package

 Bundle, 8pcs=2sqm=1bundle

 Bundle, 8pcs=2sqm=1bundle

 Bundle, 8pcs=2sqm=1bundle

 Bundle, 8pcs=2sqm=1bundle

Loading Capacity

940sqm=1x20ft container
1910sqm=1x40ft container
2160sqm=1x40HC container

700sqm=1x20ft container

1420sqm=1x40ft container

1628sqm=1x40HC container

940sqm=1x20ft container
1910sqm=1x40ft container
2160sqm=1x40HC container

700sqm=1x20ft container

1420sqm=1x40ft container

1628sqm=1x40HC container






FEATURES


  1. Perfect greening: cover more than95%grass area with complete green effect,it can absorb noise,dust,heat byground reflection.
  2. Save investment:Grass grids bombinedparking garage and greening,saving land.
  3. High strength and durability: Grass gridusing patented technology, the maximum compression capacity is 200 tons/sqm,greater than regulatory requirements of the saving fire plane 32 tons/sqm. Itsstable performance, anti-UV, anti acid corrosion, and anti-wear pressure makethe fire exits, fire climb surface into a green surface.
  4. Weather resistance: it could work from-40°C~90°C
  5. Protection of grass: load-bearing layerof gravel to provide a certain amount of water features, enabling the growth ofgrass, grass can grow to the gravel layer.
  6. Formation integrity: a unique and stronggrass grid snap-lap the whole pavement together into a flat overall, to avoidlocal depression, suitable for exercise, entertainment and leisure


APPLICATION


  • Parking Lot
  • Gravel Road
  • Access Road
  • Car Parks
  • Footpaths
  • Pathways&Driveways
  • Green Spaces& Landspaces

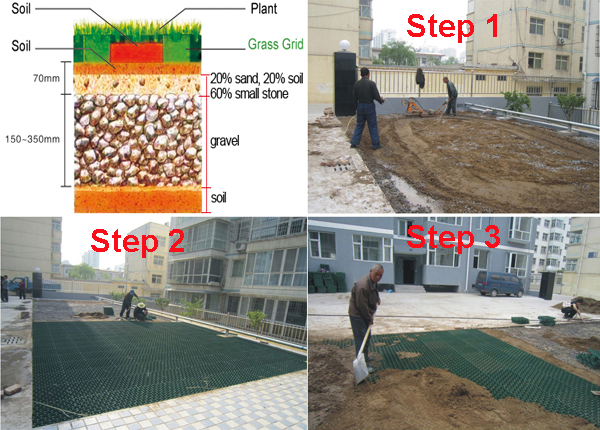

INSTALLATION


Step 1:Pave leveling layer

Step 2:Pave grass grid

Step 3:Backfill soil

grass grid

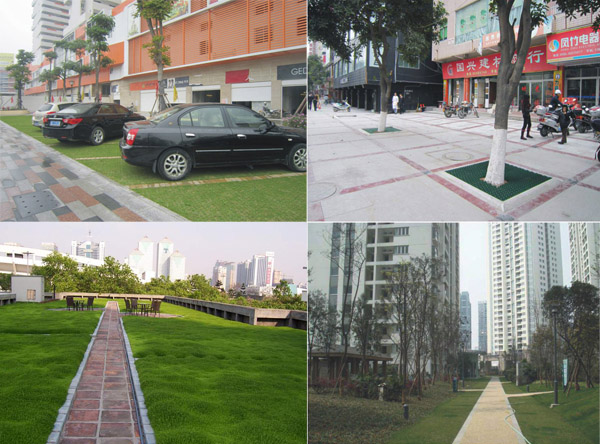

PROJECT


grass grid


PACKAGING&SHIPPING


Package Detail: Bundle or Carton for Hdpe Grass Paving Grid
Delivery Detail: Within 20 days upon receiving the deposit
grass grid
