Refrigerator Air Cooler Exhaust Axial Fan with Fg/Rd/PWM

120x120x25mm high performance compact axial fans are often used for cooling computers, copy machines, electronic instruments, machine tool equipment, and refrigeration systems.

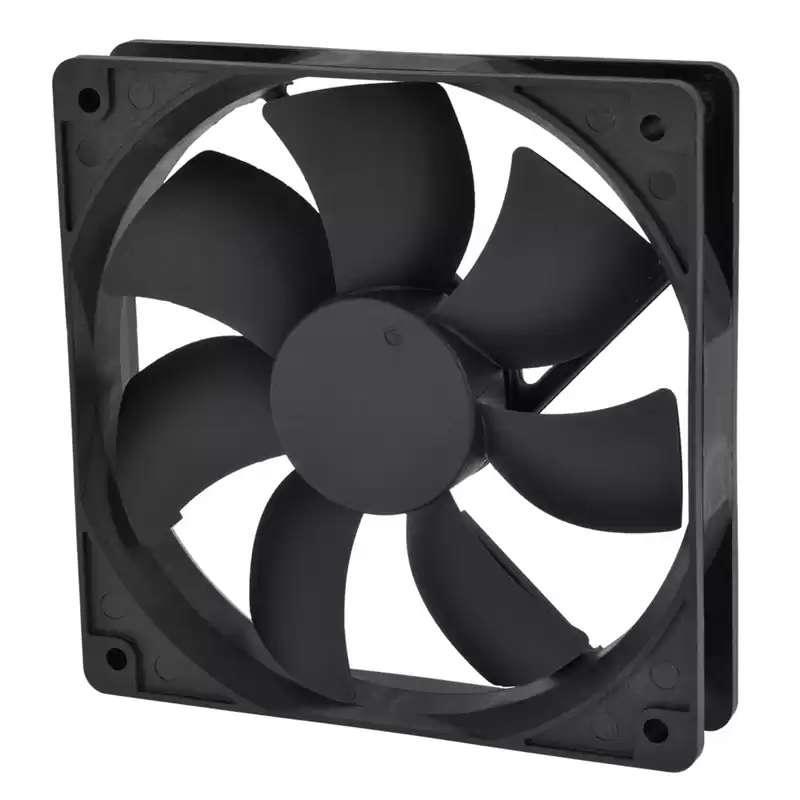

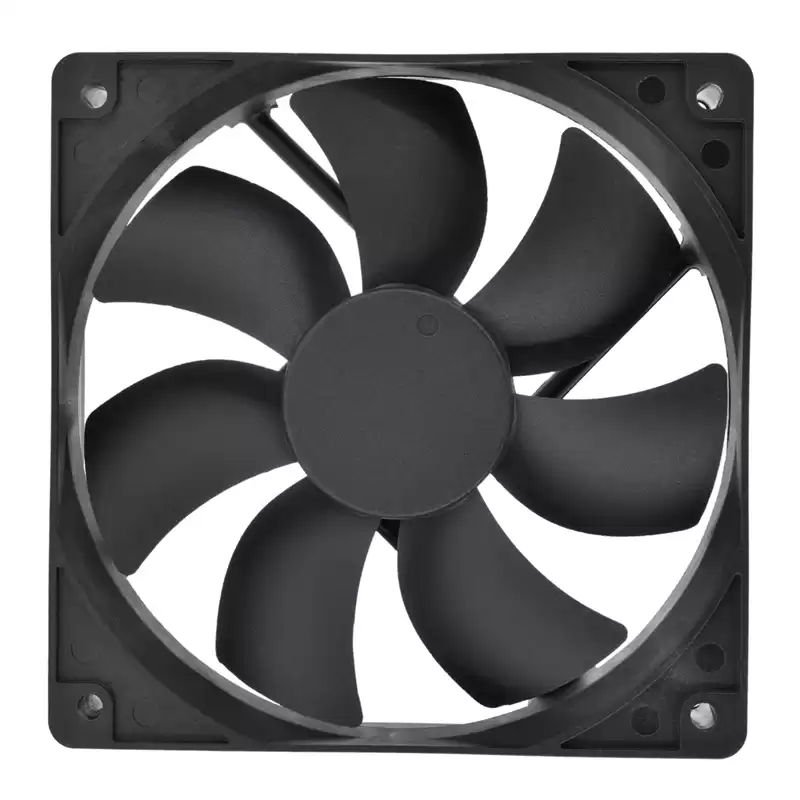

120mm x 120mm x 25mm Lower Noise Axial Ventilation Fan with CE, UL, RoHS. The axial ventilator fan is designed with 7 blades to provide high airflow and good cooling capacity.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

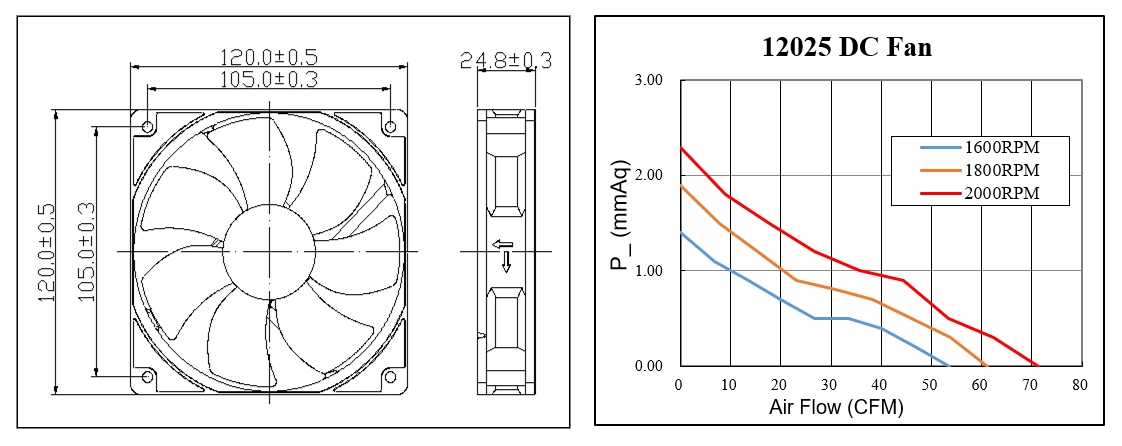

  • Dimension of outer the frame is 120 mm(L) x 120 mm(W) x 25 mm(H) / The size of fan in inch is 4.72 in(L) x 4.72 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 105.0 ± 0.3 mm / 4.13 in.

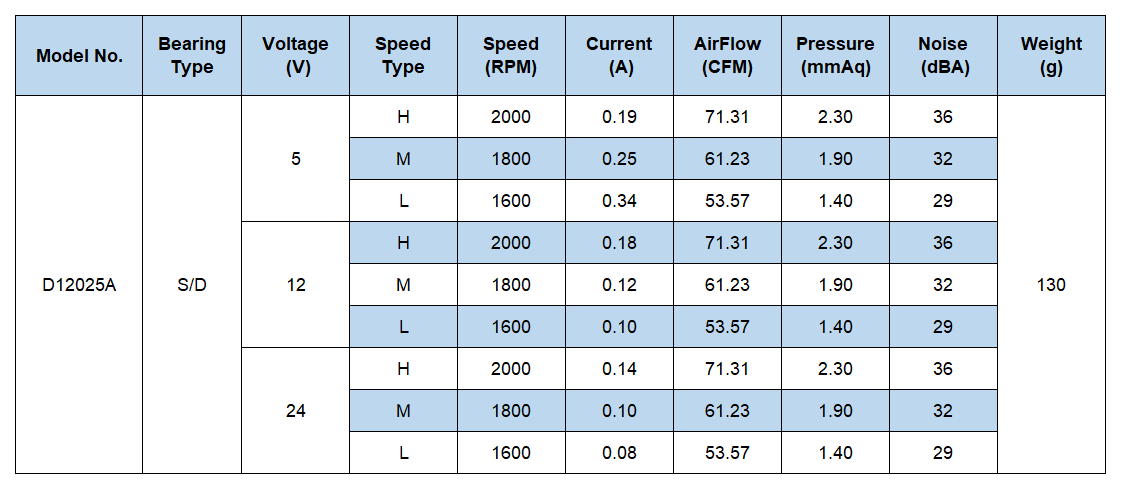

  • Operating Voltage Range: DC 5V/12V/24V | Current: 0.10 ~ 0.34 Amp | Speed: 1600 ~ 2000 RPM | Airflow: 53.57 ~ 71.31 CFM | Noise: 29 ~ 36 dBA | Pressure: 1.40 ~ 2.30 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.




DC AXIAL FAN 120x120x25mm(4.72"x4.72"x0.98")


 4 inch cabinet axial ventilation fan Plastic DC Axial Cooling fans


General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection:  Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


5v 12v 24v brushless dc axial fan

    waterproof dc cooling fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Thermoplastic impeller has high flammability resistance;
  • It's approved by UL/CE, as well as in compliance with RoHS requirement;
  • Compact design, they can easily be accommodated in various devices;
  • High performance DC brushless designed to maximize airflow CFM to noise dBA ratio;
  • Bearing type is Dual Ball Bearing , that is to say the fan has a long lifespan, which is 67,000 hours at 25 ℃.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type

Model

Size

Type

Model

Size

DC Axial Fan

D02507

25x25x7mm(0.98"x0.98"x0.27")

DC Axial Fan

D06025

60x60x25mm(2.36"x2.36"x0.98")

D02510

25x25x10mm(0.98"x0.98"x0.39")

D07015

70x70x15mm(2.75"x2.75"x0.59")

D03007

30x30x7mm(1.18"x1.18"x0.27")

D07025

70x70x25mm(2.75"x2.75"x0.98")

D03010

30x30x10mm(1.18"x1.18"x0.39")

D08010A

80x80x10mm(3.15"x3.15"x0.39")

D03015

30x30x15mm(1.18"x1.18"x0.59")

D08010B

D03510

35x35x10mm(1.37"x1.37"x0.39")

D08015

80x80x15mm(3.15"x3.15"x0.59")

D04007

40x40x7mm(1.57"x1.57"x0.27")

D08020

80x80x20mm(3.15"x3.15"x0.78")

D04010A

40x40x10mm(1.57"x1.57"x0.39")

D08025A

80x80x25mm(3.15"x3.15"x0.98")

D04010B

D08025B

D04010C

D08025C

D04015

40x40x15mm(1.57"x1.57"x0.59")

D08038

80x80x38mm(3.15"x3.15"x1.5")

D04020

40x40x20mm(1.57"x1.57"x0.78")

D09025A

92x92x25mm(3.62"x3.62"x0.98")

D04028

40x40x28mm(1.57"x1.57"x1.10")

D09025B

D05010A

50x50x10mm(1.96"x1.96"x0.39")

D09025C

D05010B

50x50x15mm(1.96"x1.96"x0.59")

D09232

92x92x32mm(3.62"x3.62"x1.26")

D05015

50x50x15mm(1.96"x1.96"x0.59")

D09238

92x92x38mm(3.62"x3.62"x1.5")

D05020

50x50x20mm(1.96"x1.96"x0.78")

D11335

113x113x35mm(4.46"x4.46"x1.38")

D05025

50x50x25mm(1.96"x1.96"x0.98")

D12025A

120x120x25mm(4.72"x4.72"x0.98")

D06010

60x60x10mm(2.36"x2.36"x0.39")

D12025C

D06015

60x60x15mm(2.36"x2.36"x0.59")

D12038

120x120x38mm(4.72"x4.72"x1.5")

D06020

60x60x20mm(2.36"x2.36"x0.78")

D12539

125x125x39mm(4.93"x4.93"x1.54")

D06025

60x60x25mm(2.36"x2.36"x0.98")

D13538

135x135x38mm(5.31"x5.31"x1.49")



Application

DC/AC axial fans are widely used in welding machine, electronic, electrical, Medical, purge, refrigeration, chemical, variable frequency motor, electric stove etc.

Industrial DC Axial Cooling Fan


DC Exhaust Brushless Cooling Fan

  • Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
  • Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
