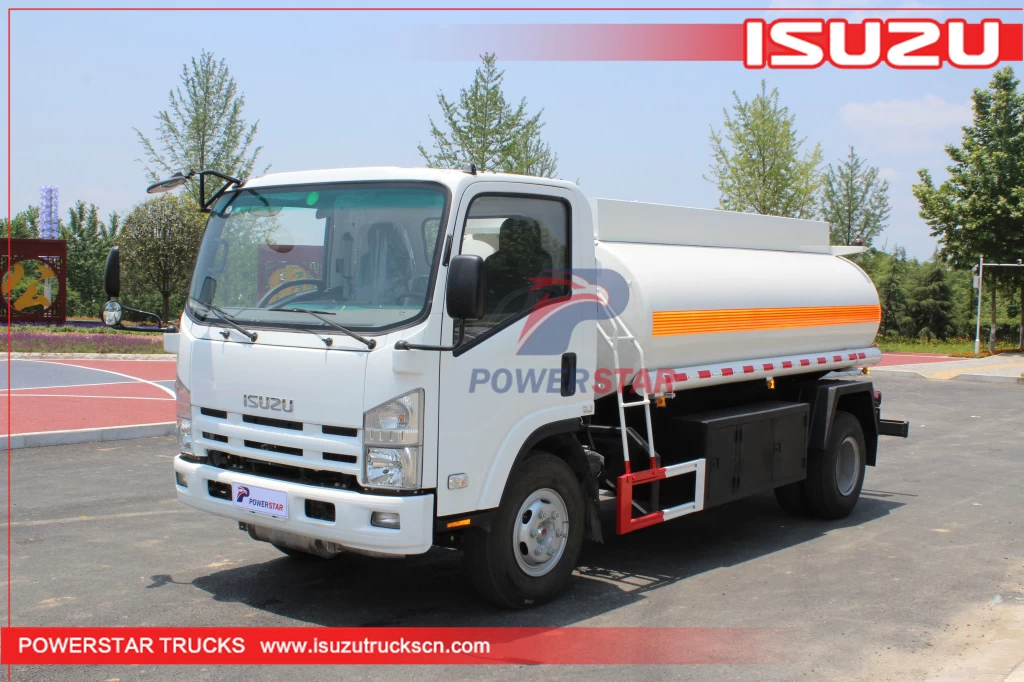

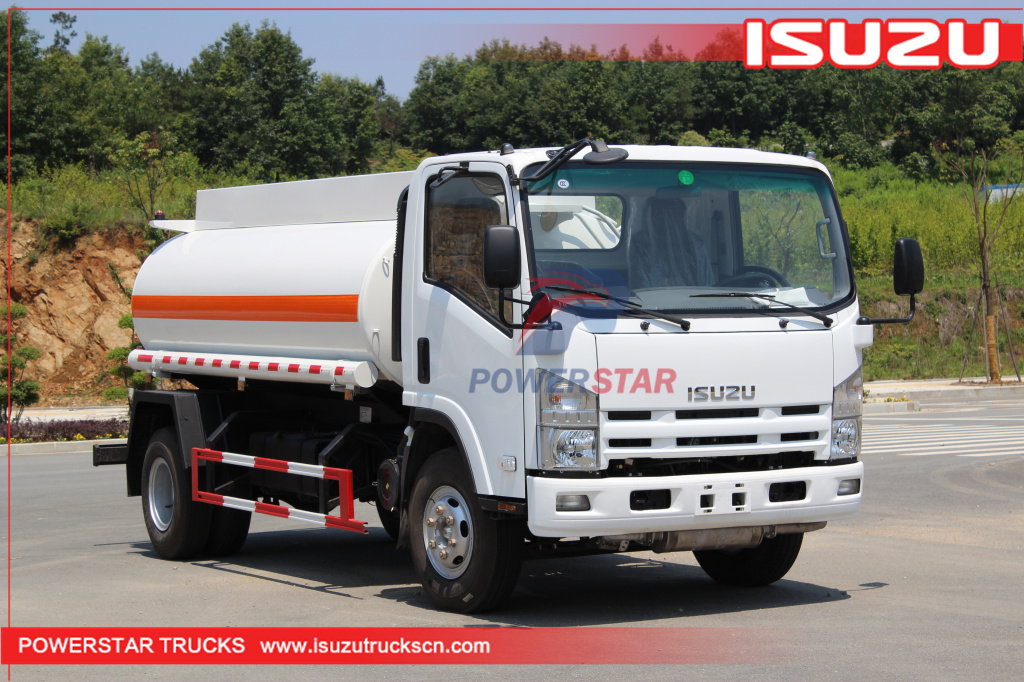

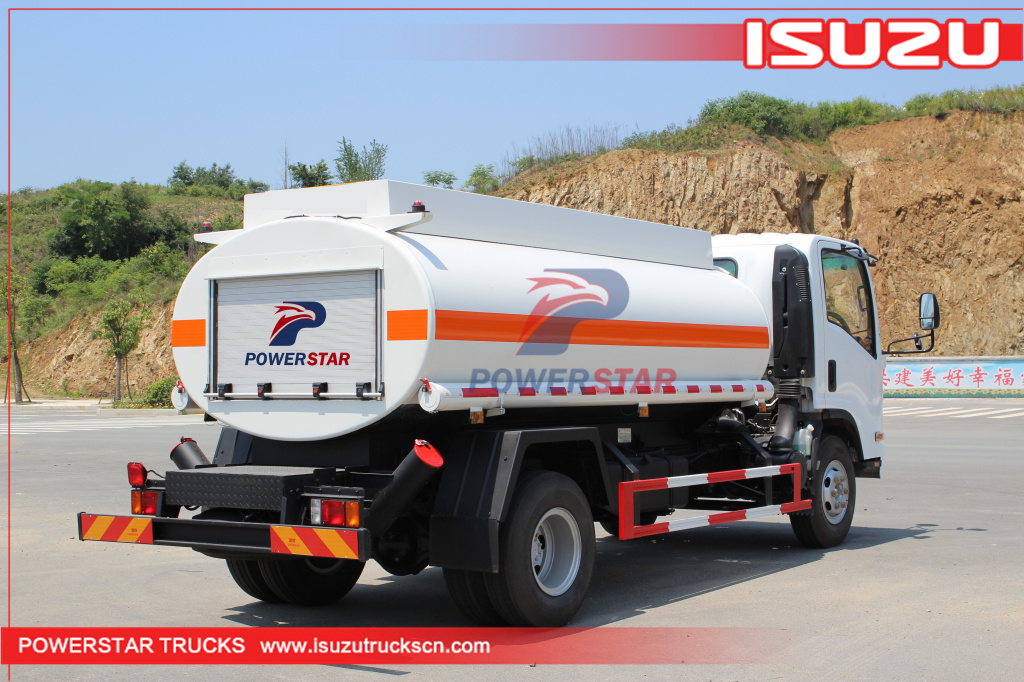

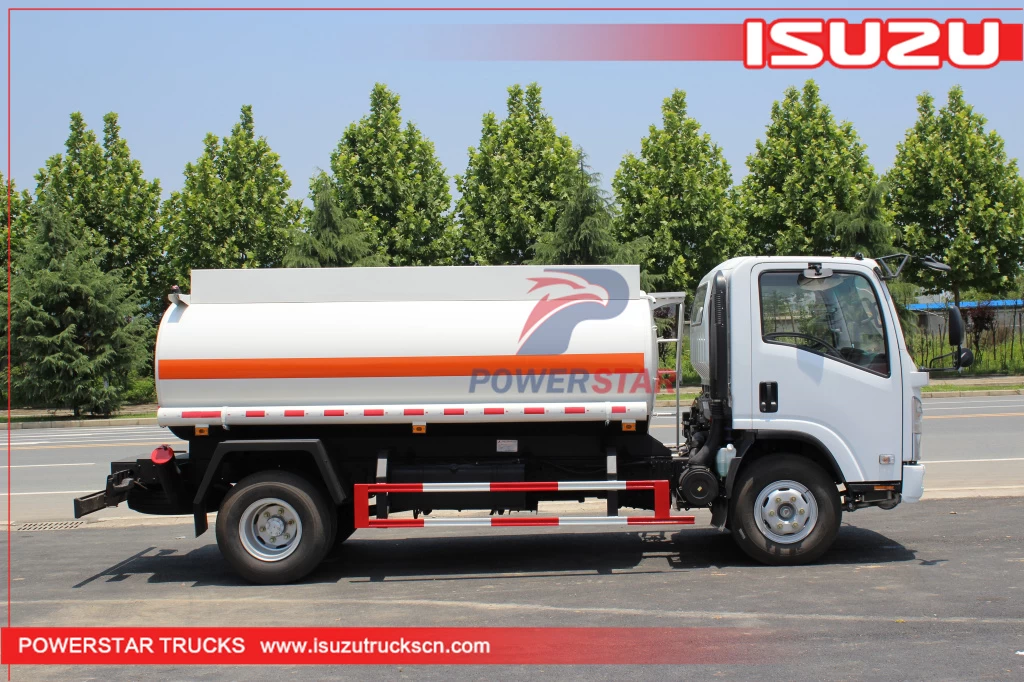

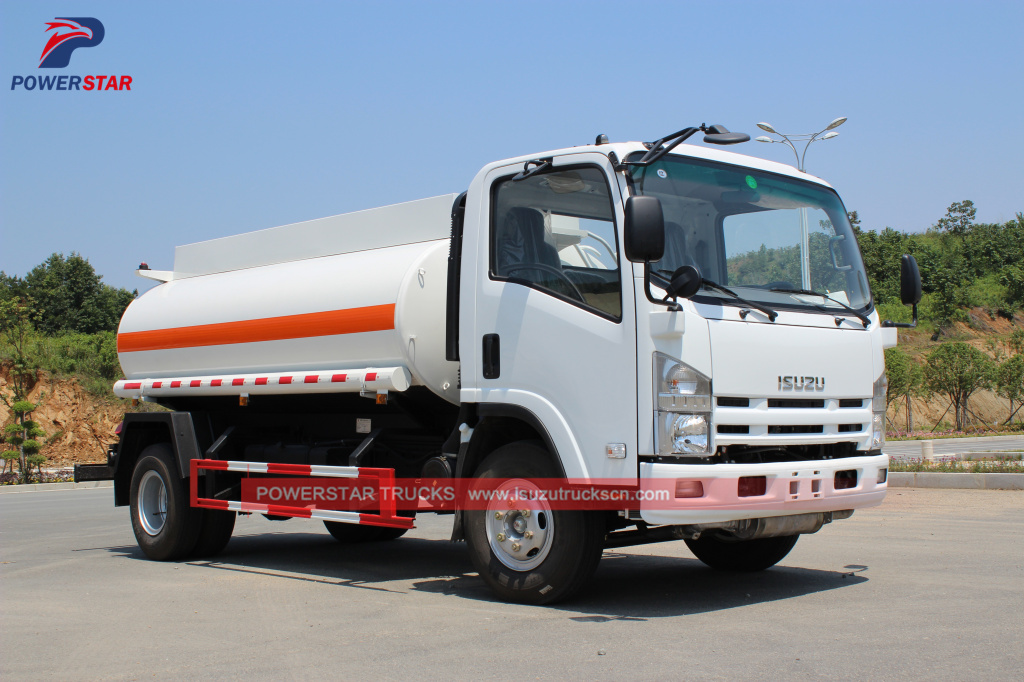

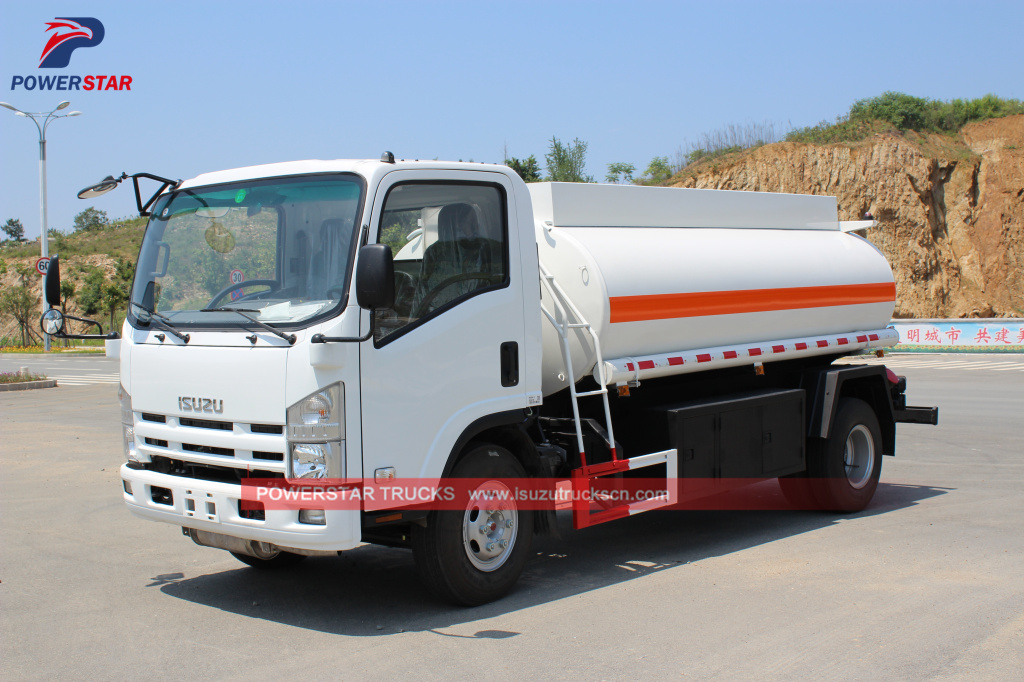

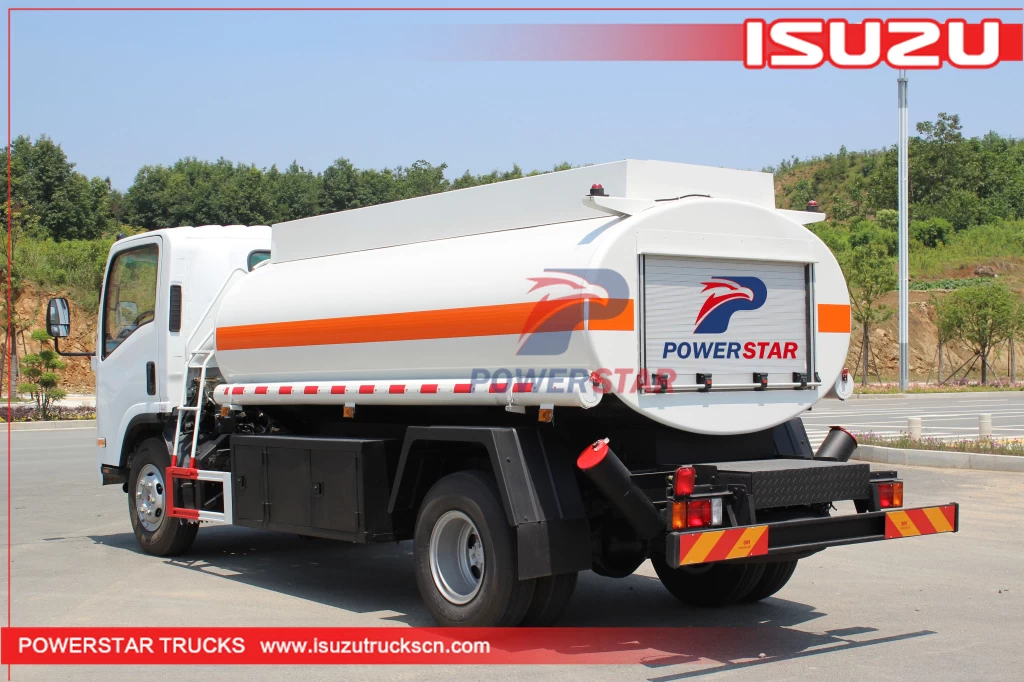

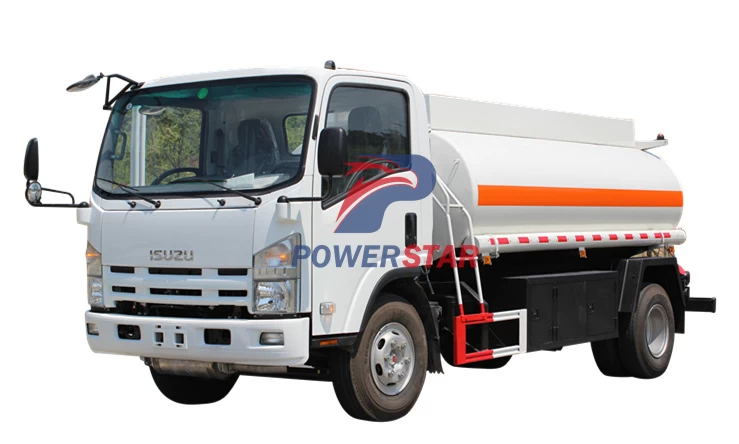

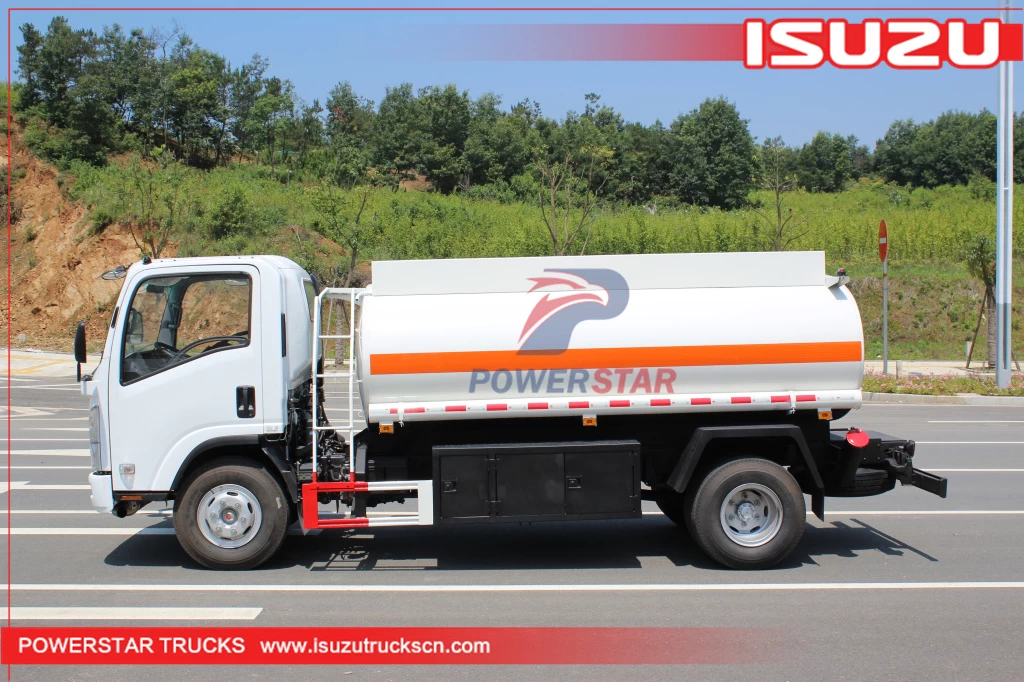

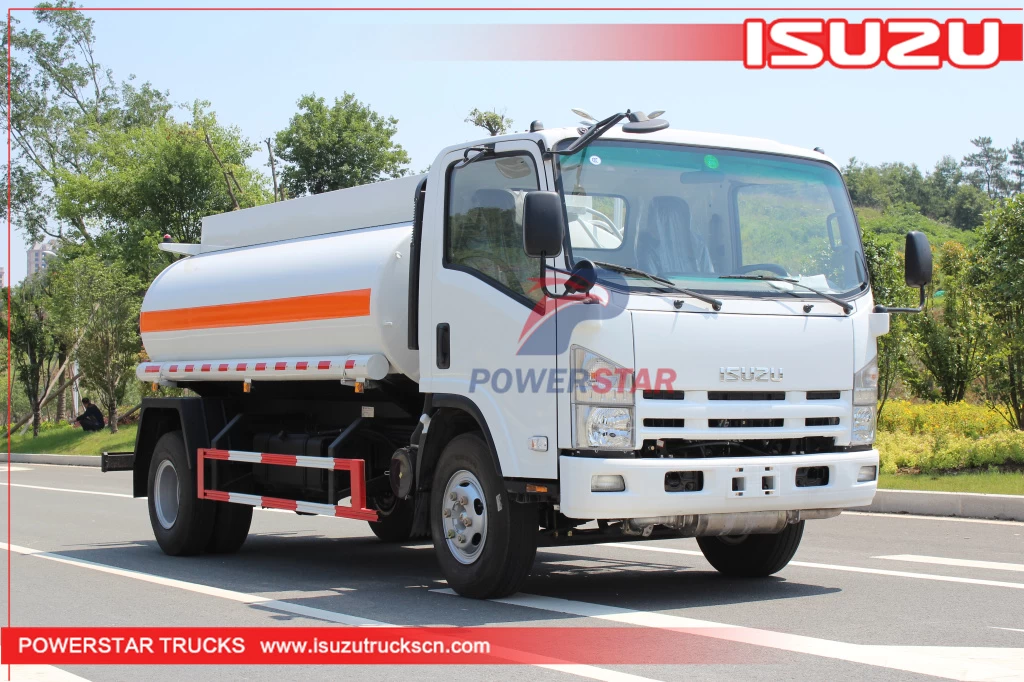

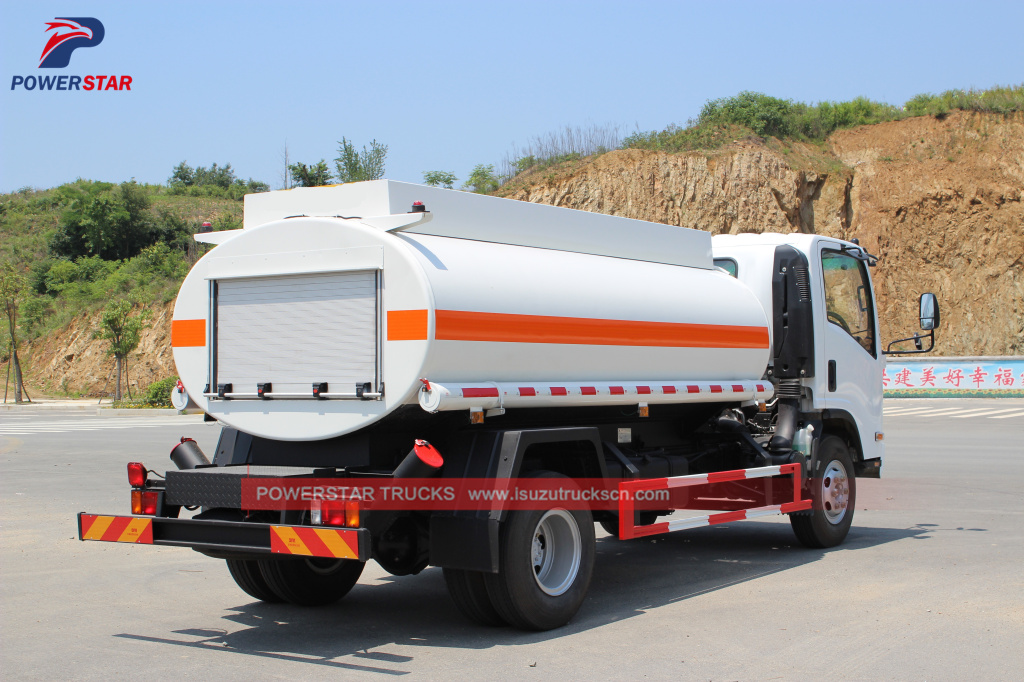

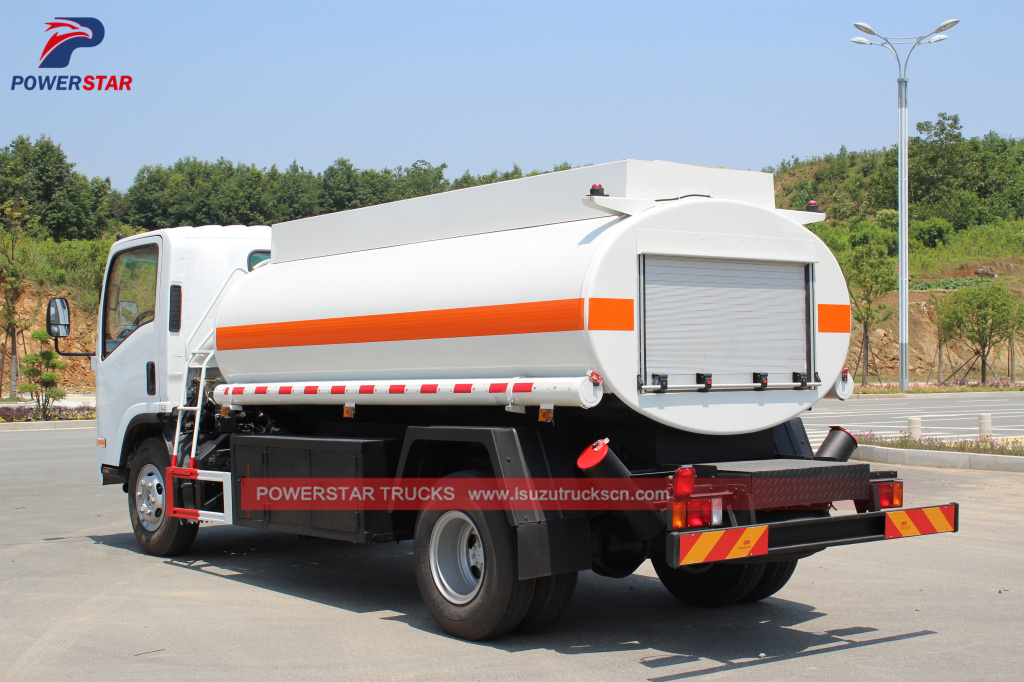

Oil Tank Truck ISUZU Fuel Bowser 5,000L
Applications:
Fuel Tanker Trucks Isuzu (also called Fuel bowser, Oil tank truck, Fiscal Refuel tank truck, Light diesel delivery tank truck, Mobile refueling truck) is designed for the transport and storage of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc. It has found a wide range of applications.
For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers.
ISUZU oil tanker truck based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Fuel pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
|
Refuelling Tanker Trucks Isuzu (5,000L)
|
|
General
|
Vehicle Brand
|
POWERSTAR
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
6360 * 2210 * 2340 mm
|
|
GVW / Kerb Weight
|
10,000kg / 4,350kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
190 HP (139 KW)
|
|
Displacement
|
5199 ml
|
|
Emission Standard
|
Euro IV or V
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
ISUZU MLD 6 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
3815 mm / 2
|
|
Tire Specification
|
8.25-16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|

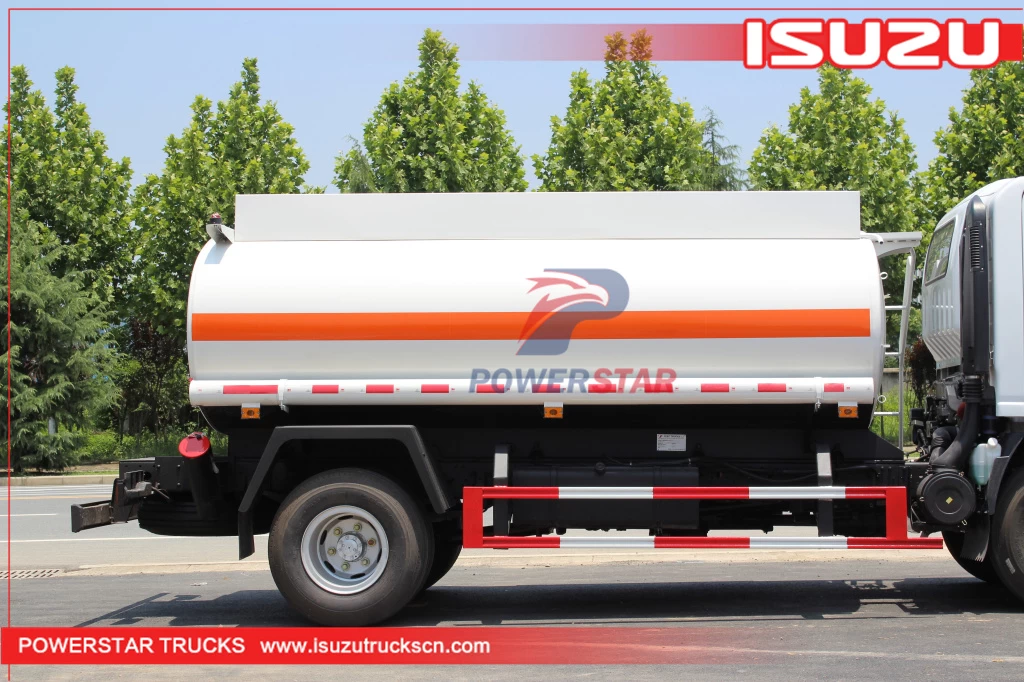

Tank Capacity
|
5,000 Liters
|
|
Material
|
Carbon steel, 4mm
|
|
Fuel pump
|
60m3/h ARC gear pump (Famous brand)
|
|
Fuel drain valve
|
Aluminum alloy, DN50 (2")
|
|

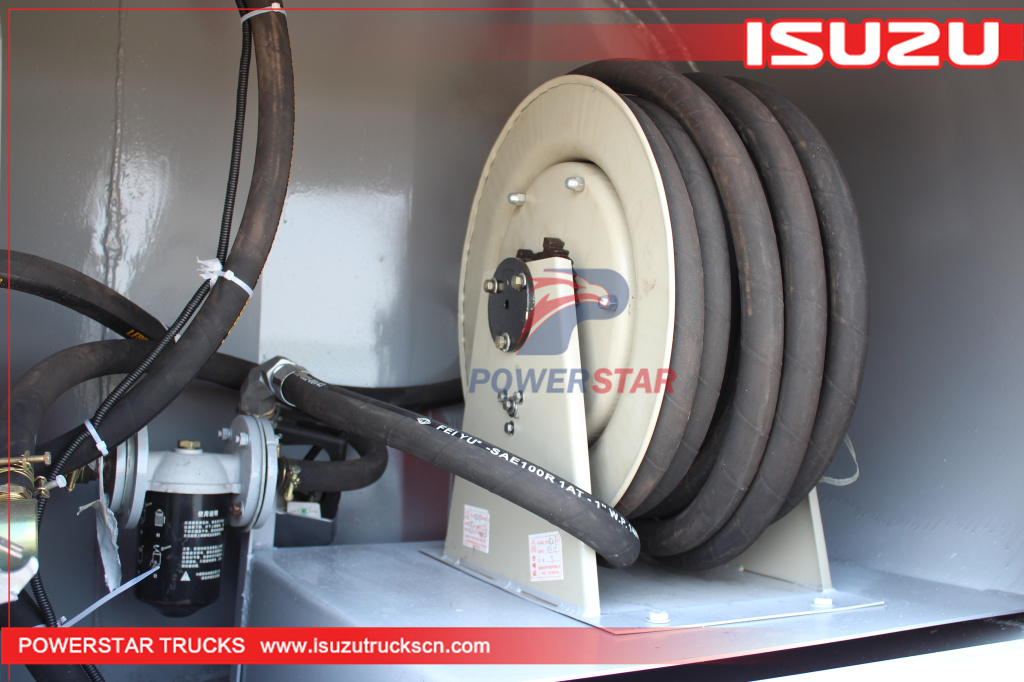

Fuel drain hose
|
2 sets, 3.5m length,
|
|

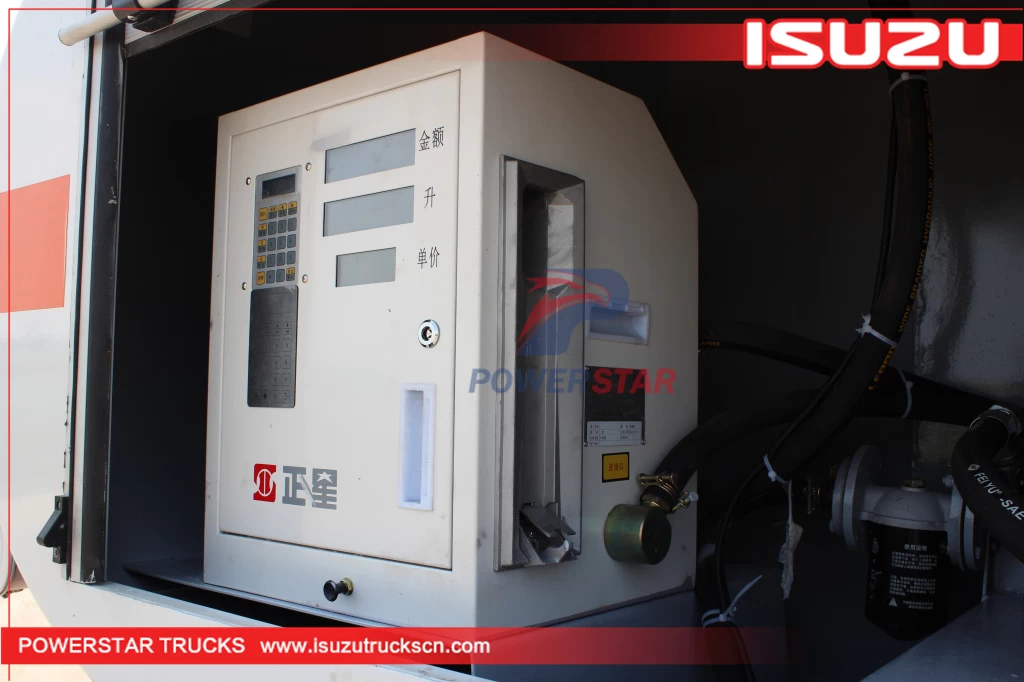

Refuelling machine
|
CENSTAR (optional)
|
|
Control panel
|
English or Your language
|
|

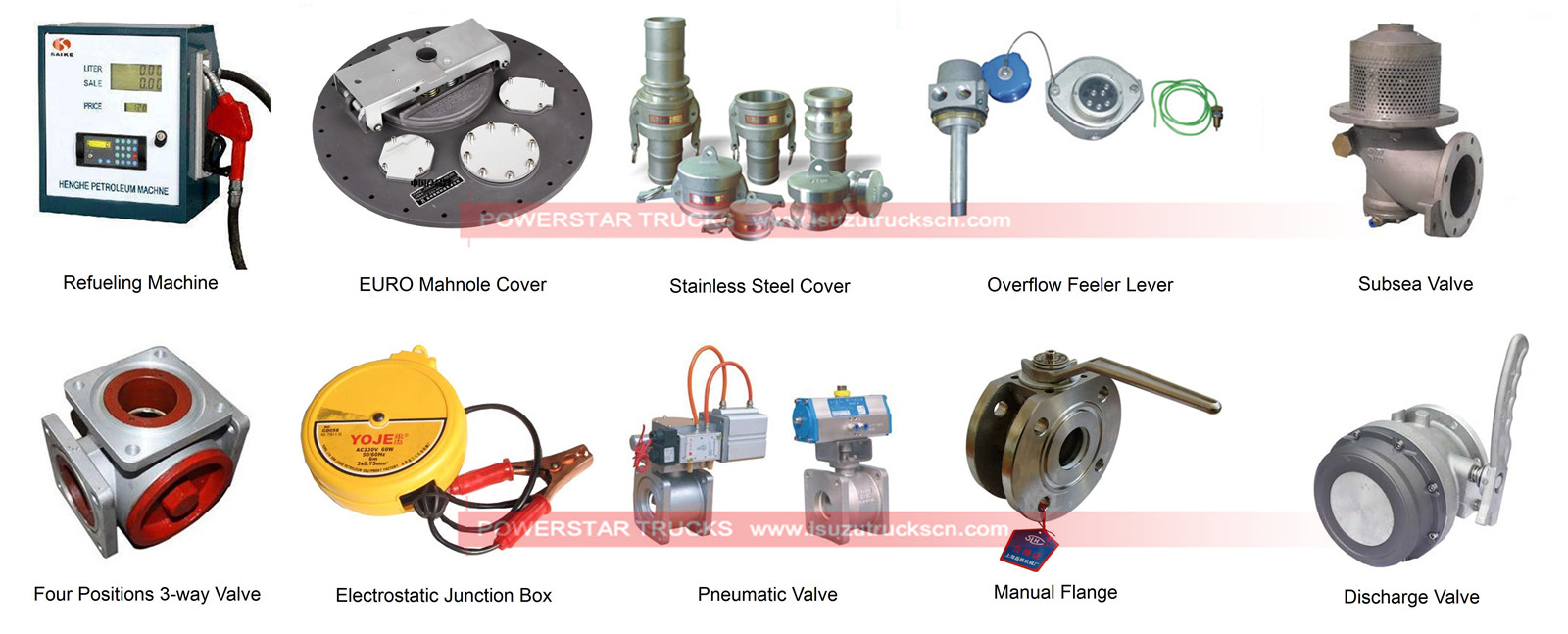

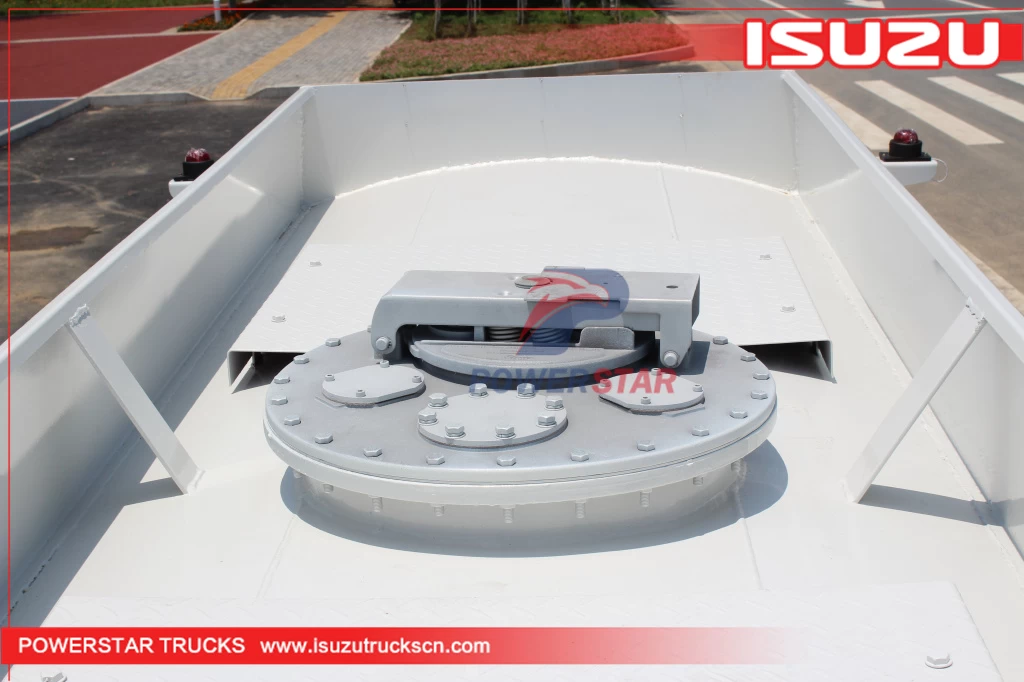

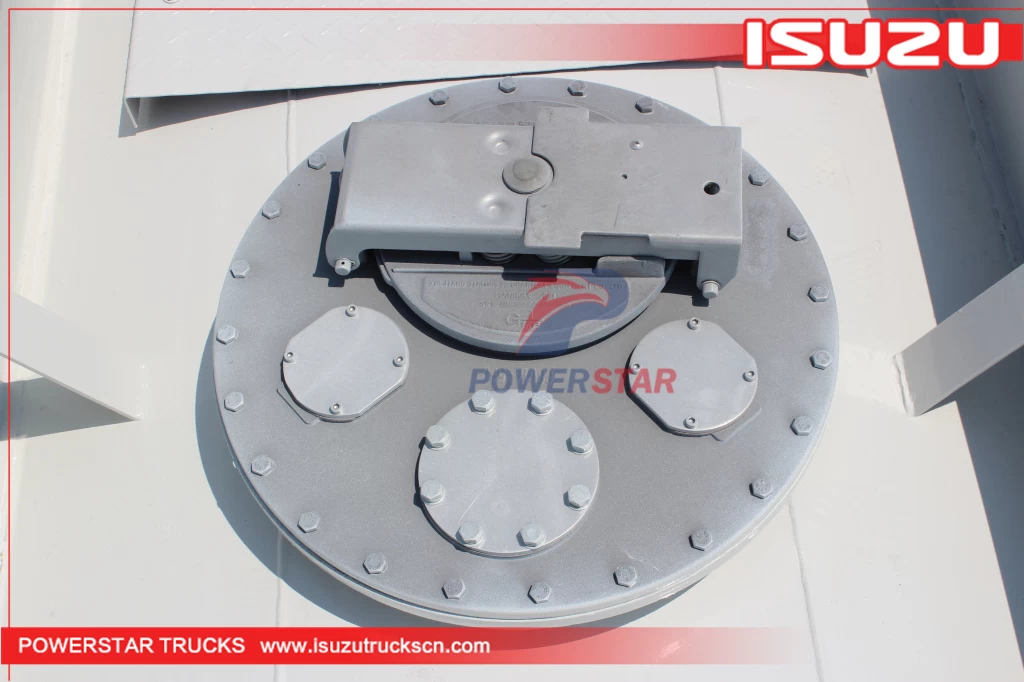

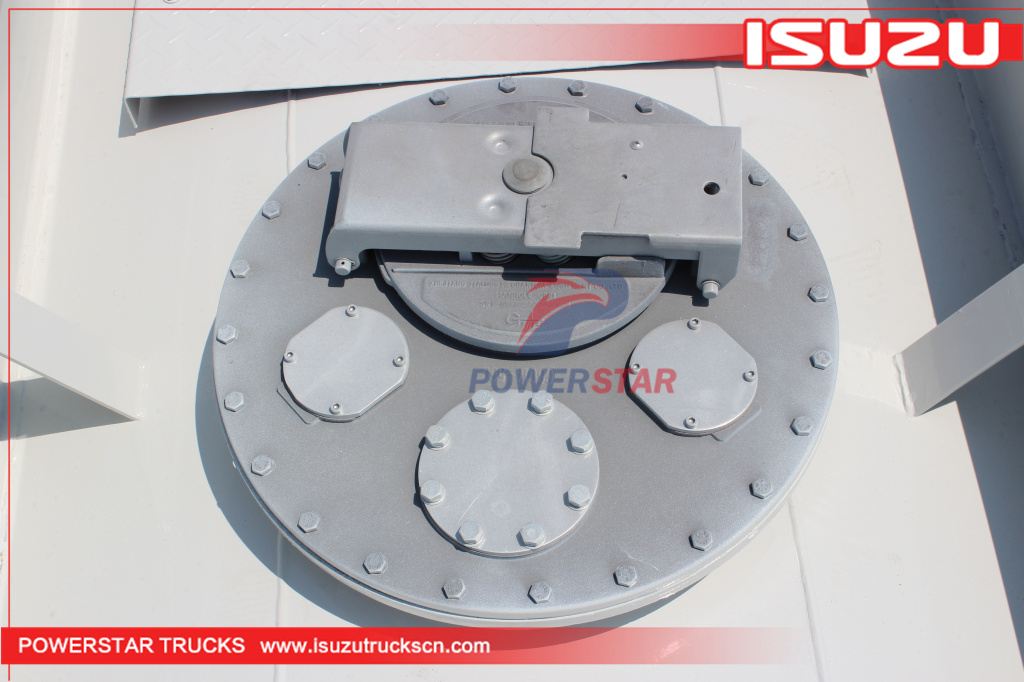

All standard accessories: Manhole,Ladder, anti-static belt, anti-slip walkway,
handrail, fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Tanker material could be: Aluminum ally, Stainless steel.
** The tank could be divided into many compartments.
** Bottom loading system and Vapor recovery system can be equipped.
** More devices: Fuel counter, GPS, Remote monitoring system.
|
---- SGS, BV, CONTECNA, CE Qualified.

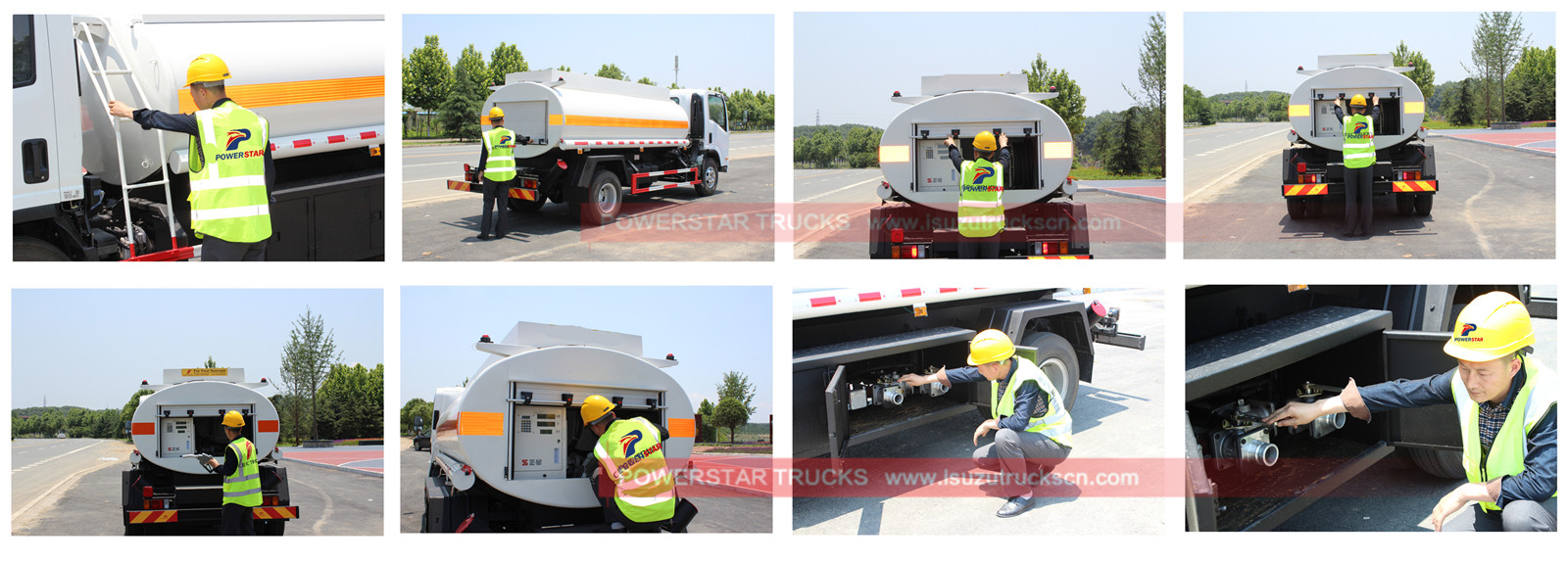

---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual |
Chassis parts |
Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.

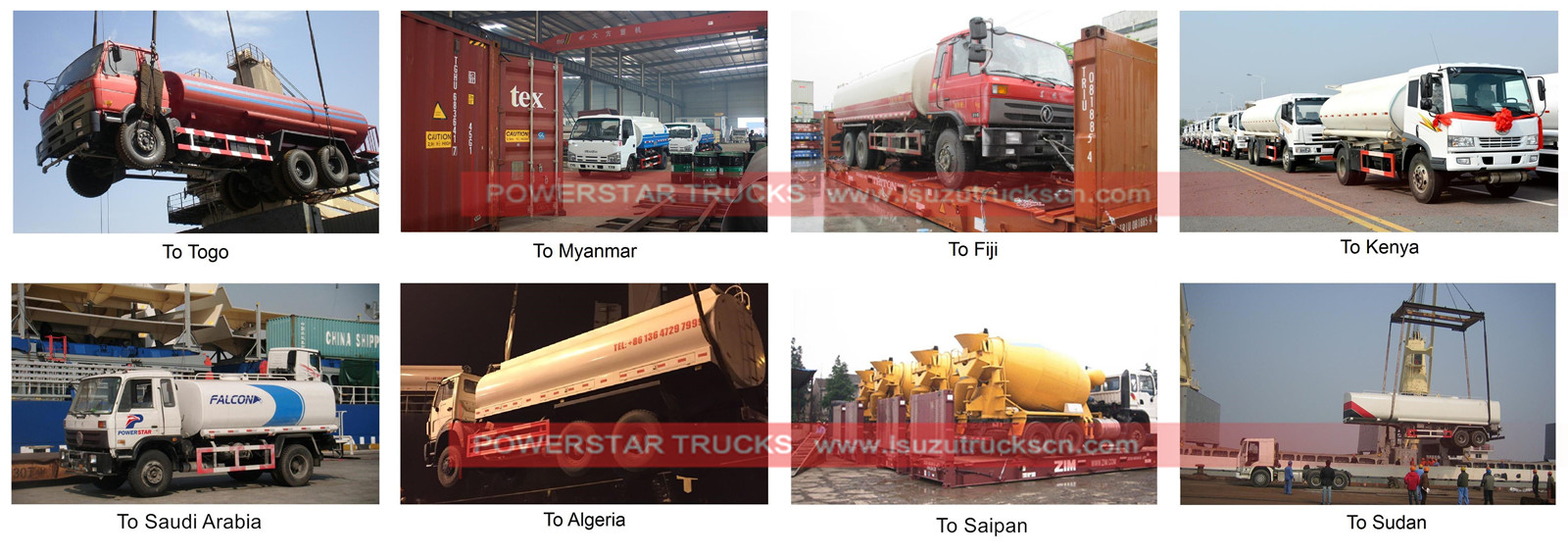

---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
