Refueling Truck Isuzu (3,000L)
Function:
Refueling truck Isuzu (also called Fuel tank truck, fuel dispenser tank trucks,Isuzu mini oil tank truck, oil transport truck, waste oil truck, oil bowser, tanker truck, Road fuel tanker truck,Japan fuel truck) is used to transport oil, diesel, gasoline, kerosene, etc.
Our range of refueling tank truck is designed for the transport and storage of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc. It has found a wide range of applications. For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers. Hence, our refueling tank truck is commonly seen in filling stations and transport companies.
The refueling tank truck manufactured by PowerStar Trucks is designed based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
Specification:
Similar Key Words: oil bowser Isuzu, diesel tank truck, Petrol tank truck, oil tank truck, Isuzu tanker with refueling equipment, light fuel tank truck
| Fuel Tanker Truck ISUZU (3,000 Litres) |
| General |
Vehicle Brand |
POWERSTAR |
| Chassis Brand |
ISUZU |
| Overall Dimension |
5300 * 1880 * 2200 mm |
| GVW / Kerb Weight |
4,490 kg / 2,690 kg |
| Cab |
Cab Capacity |
2 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine, 4HK1 |
| Power |
98 Ps (72 KW) |
| Displacement |
2771 ml |
| Emission Standard |
Euro IV |
| Chassis |
Drive Type |
4X2, left hand drive |
| Transmission |
ISUZU gear box, no overhaul within 500,000km |
| Wheelbase/No. of axle |
2765 mm / 2 |
| Tyre Specification |
6.50R15 10PR |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
98 km/h |
| Paint |
Metallic paint |
| Superstructure |
Tank Capacity |
3,000 Litres (About 790 gallons) |
| Tank Material |
Carbon steel |
| Pump |
Equipped for overhead delivery, 1000 litres / min |
| Suction Head |
6 m |
| Hose |
High quality, wire strengthened hose, with cooper wire, anti-static |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. |
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped. |
Detail picture:

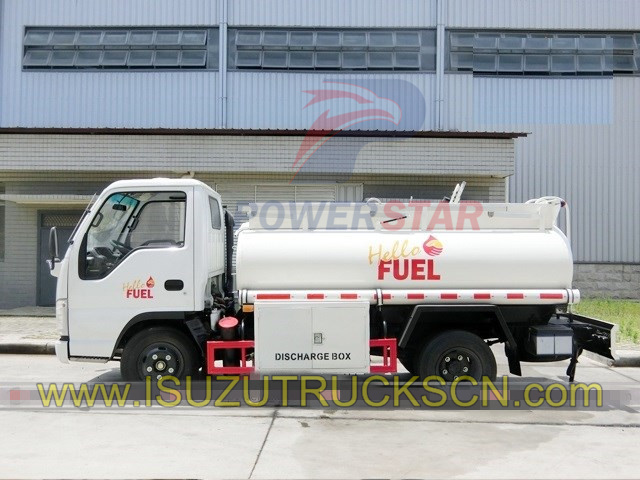

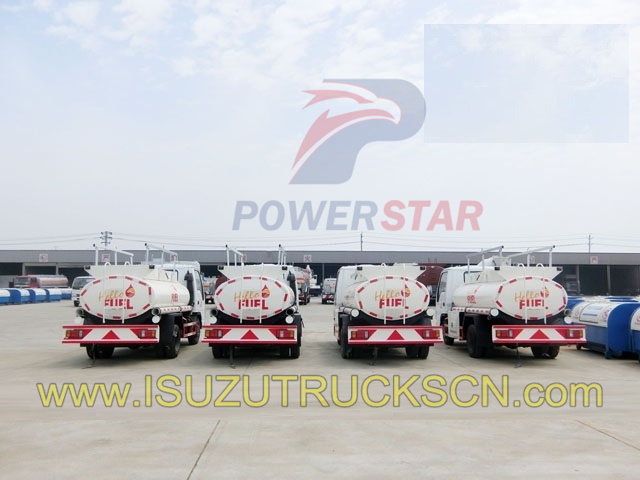

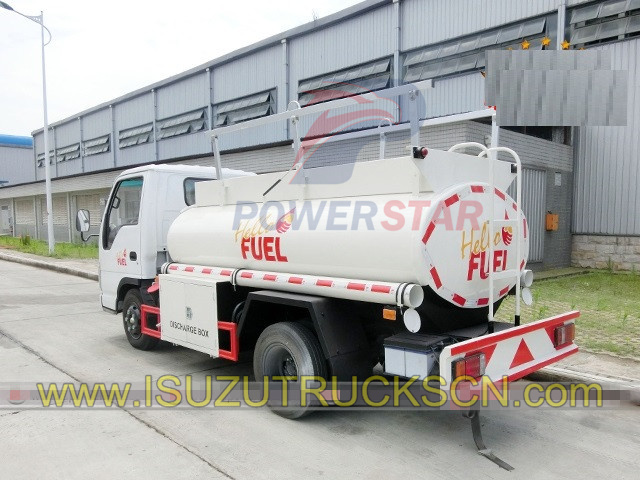

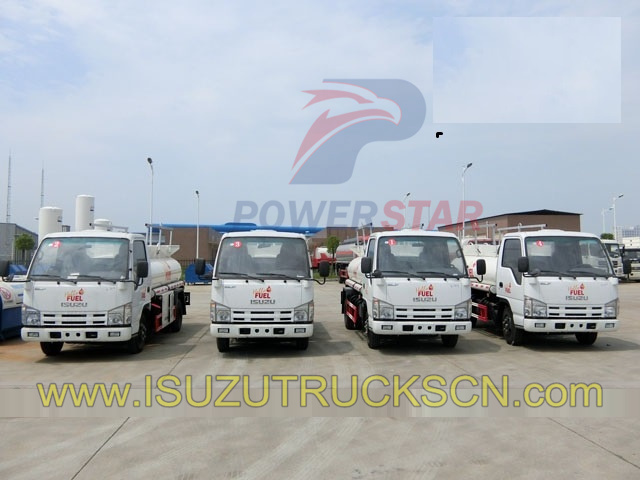

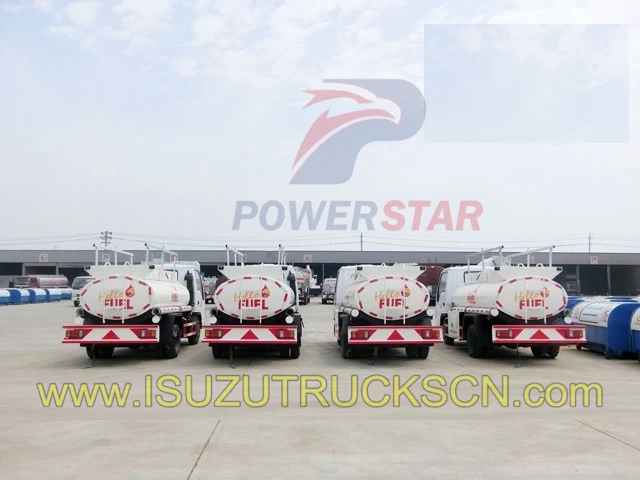

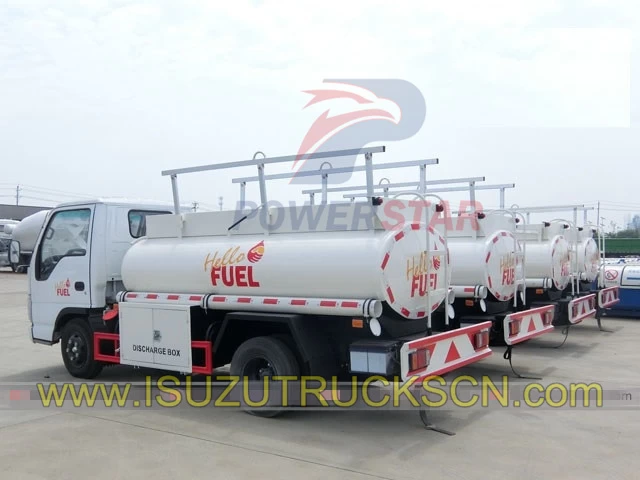

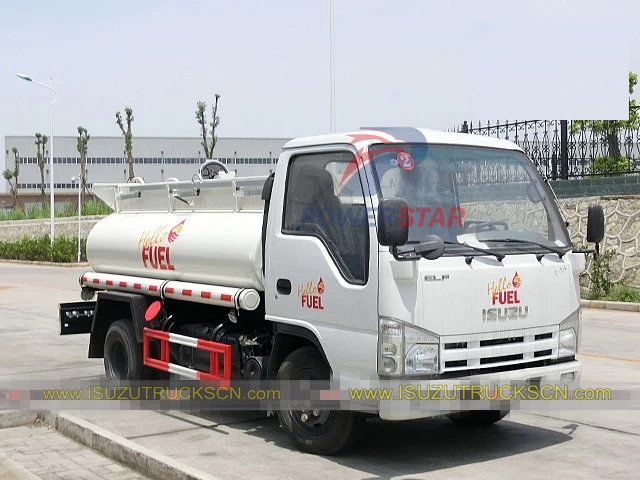

picture for Refueling truck Isuzu oil tanker
picture for Refueling truck Isuzu oil tanker
picture for Refueling truck Isuzu oil tanker
picture for Refueling truck Isuzu oil tanker
picture for Refueling truck Isuzu oil tanker
Fuel Tank Body Work:
Optional Equipment of ISUZU Fuel Tanker Truck
