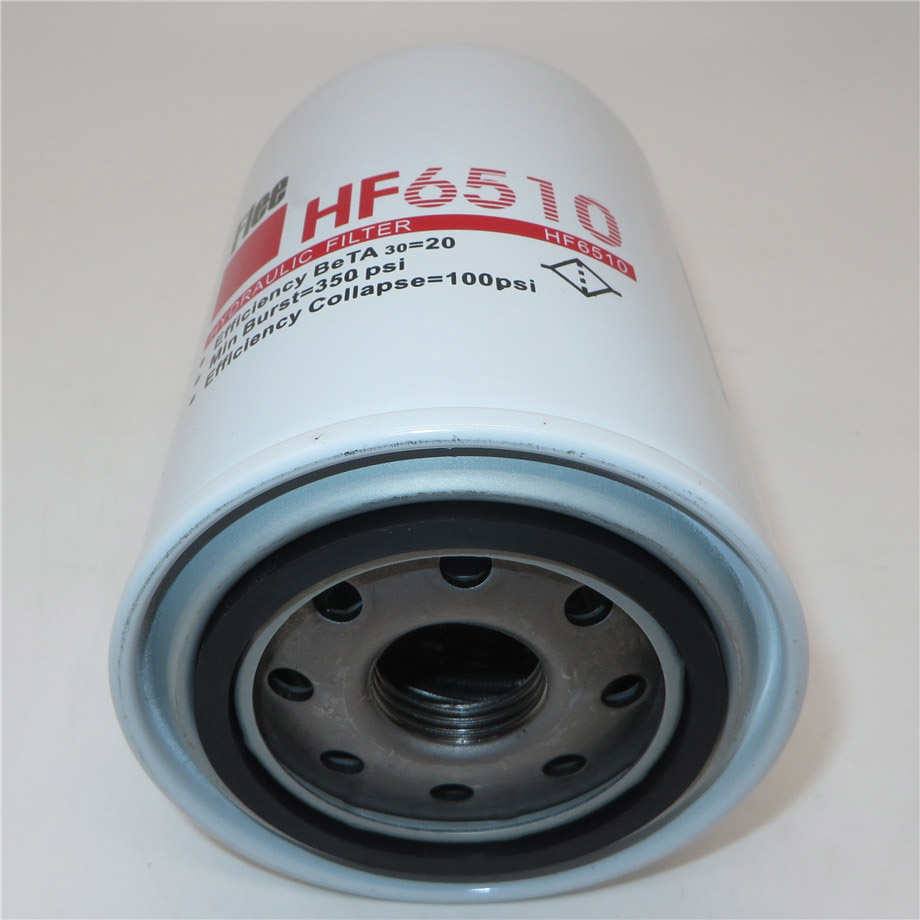

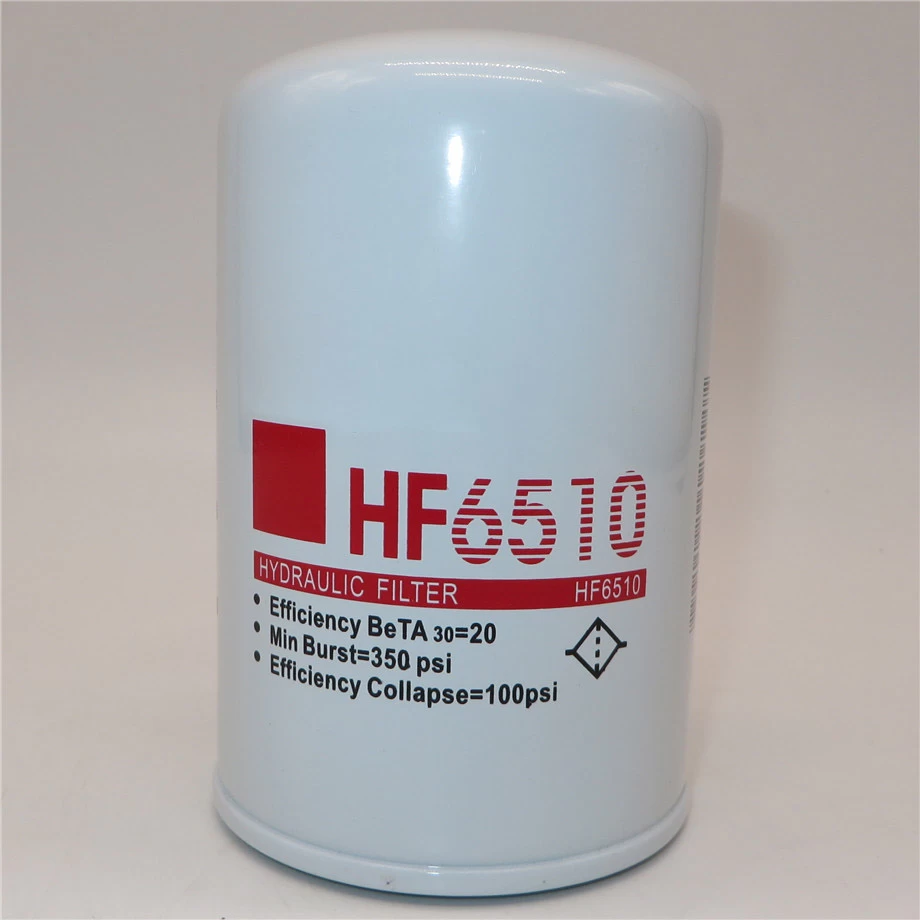

Replacement Fleetguard Hydraulic Filter HF6510
Cross Reference:
Donaldson P551551, Baldwin BT8309-10, Cross 1A9023, Gresen 8057000, Michigan Fluid Power 201026
The HF6510 Parameter：
|
Part Number
|
HF6510
|
|
Parts Name
|
Hydraulic Filter
|
|
Brand
|
Fleetguard
|
|
Overall Height
|
146.30 mm
|
|
Largest OD
|
93.22 mm
|
|
Seam OD
|
93.73 mm
|
|
Gasket OD
|
71.88 mm
|
|
Gasket ID
|
62.48 mm
|
|
Thread Size
|
1-12 UNF-2B
|
The HF6510 Advantage：
The function of hydraulic filter is to filter various impurities in hydraulic system. The main sources are the mechanical impurities remaining in the hydraulic system after cleaning, such as water rust, cast sand, welding slag, iron chips, coatings, paint skins and cotton chips, and impurities that enter the hydraulic system externally. Such as dust entering through the refueling port and dust ring; impurities produced by the working process, such as fragments formed by the hydraulic action of the seal, metal powder caused by relative wear by movement, colloid and asphaltene produced by the oxidation modification of the oil, Charcoal residue, etc.
