Replacement Perkins Full-Flow Lube Spin-on 2654403
Cross Reference :
Fleetguard LF701, Baldwin BT216, Donaldson P554403
The 2654403 Parameter:
|
Part Number
|
2654403
|
|
Parts Name
|
Oil Filter
|
|
Brand
|
Perkins
|
|
Overall Height
|
130.90 mm
|
|
Largest OD
|
96.00 mm
|
|
Seal OD
|
71.60 mm
|
The 2654403 Details:

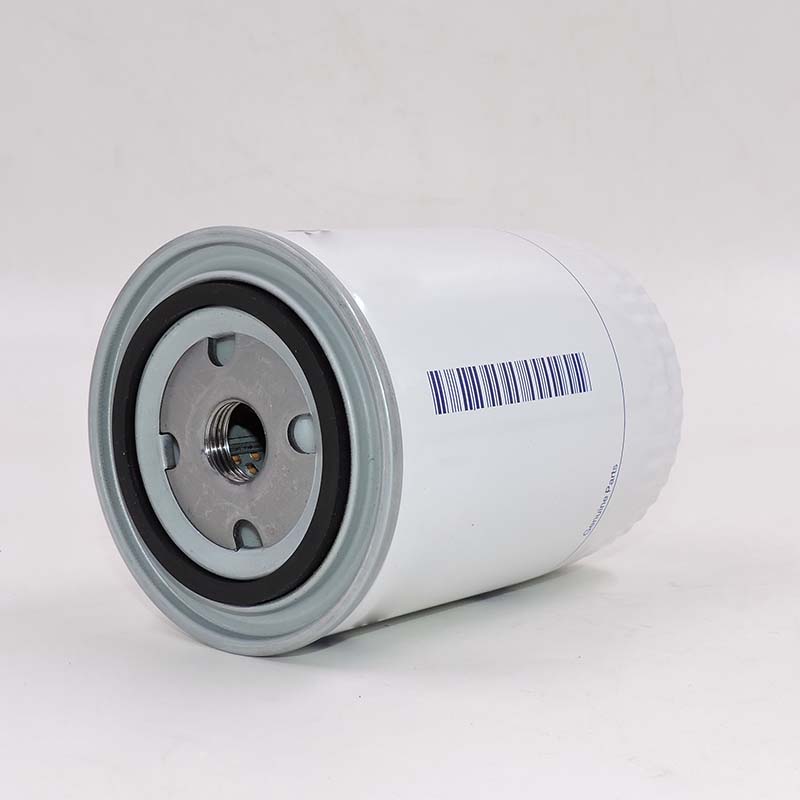

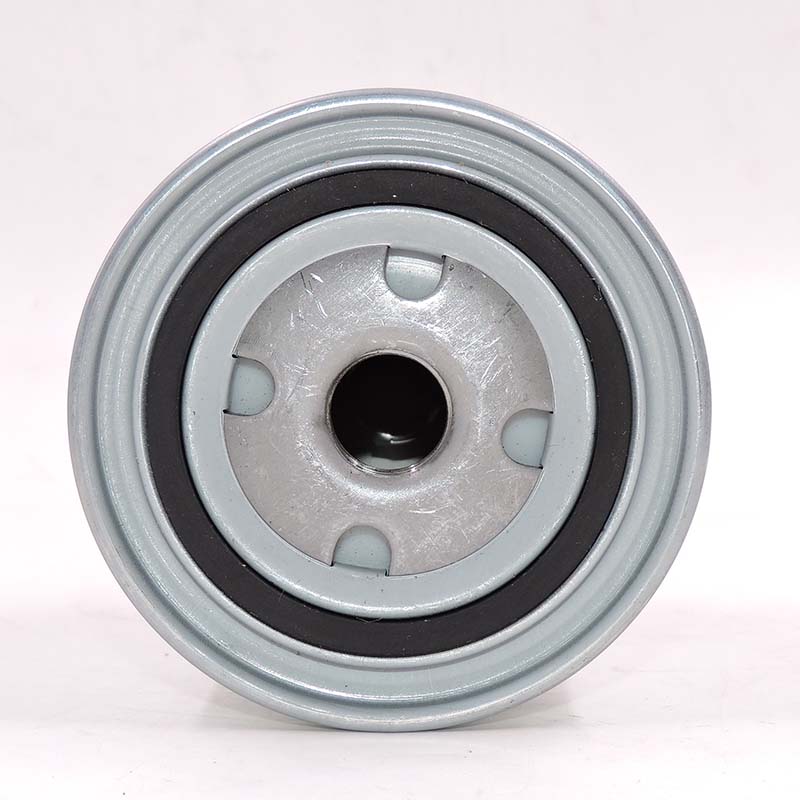

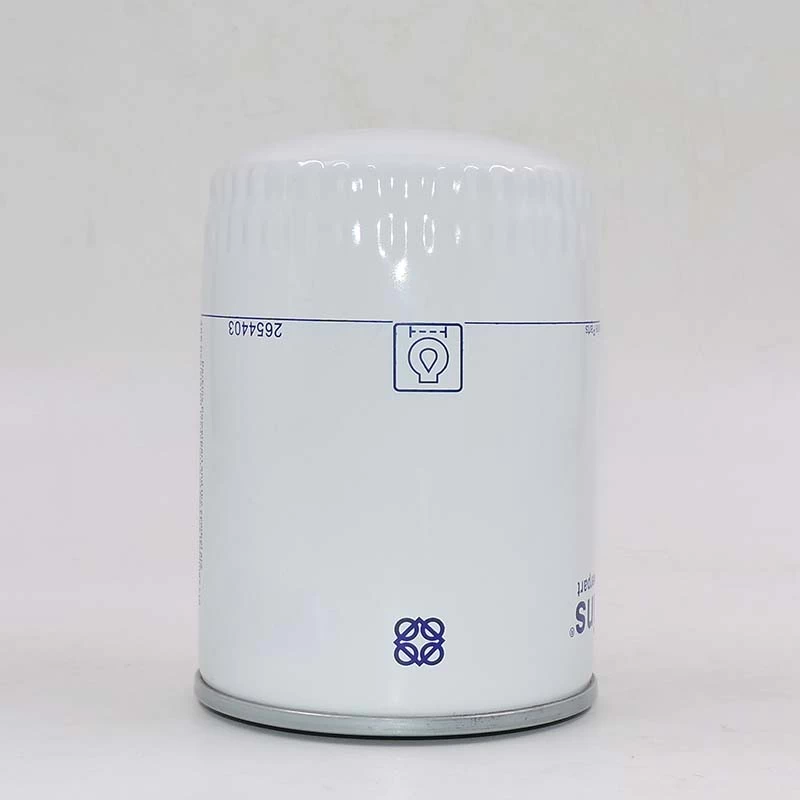

Spin on oil filter 2654403 for Perkins engines, designed to meet the needs of Perkins engines by providing superior protection against particles that can make their way into the lubrication system during service or from component wear.
Increasing emissions levels has resulted in more precise engineering tolerances in channels and galleries leaving less room between engine components than before, so choosing a genuine Perkins filter is more important than ever to ensure effective cooling and lubrication.
Designed to maximize filter efficiency while reducing resistance to oil flow and provide protection to the recommended oil service interval in the Operation and Maintenance Manual. Typically fitted with by-pass valve and anti-drain back valve to ensure the engine oil is in the right place during starting and operation. Supplied complete with sealing ring.
The 2654403 Contains:Anti-Drainback Valve;8 PSID By-Pass Valve;Standpipe
The 2654403 Application:
|
1000 Series
|
1004 Fed.CC, 1004-4, 1004-40, 1004-40S, 1004-40T, 1004-40TA, 1004-42, 1004-4T,
1004e-4TW, 1006-6, 1006-60, 1006-60T, 1006-60TA, 1006-60TW, 1006-6T, 1006e-6TW
|
|
1100 series
|
1103A-33, 1103A-33T, 1103B-33, 1103B-33T, 1103C - 33TA, 1103C-33, 1103C-33T,
1103C-33TA, 1103D-33, 1103D-33G, 1103D-33T, 1103D-33TA, 1106C-E60TA
|
|
4.108 Series
|
4.108
|
|
4.165 Series
|
4.165
|
|
4.236 Series
|
4.212, 4.236, 4.248, 4.2482, 4.41, C4.236, G4.236, T4.236
|
|
4.318 Series
|
4.318, 4.3182
|
|
6.247 Series
|
6.247
|
|
6.354 Series
|
6.354, 6.3544, C6.3544, T6.3544
|
|
900 Series
|
903-27, 903-27S, 903-27T
|
