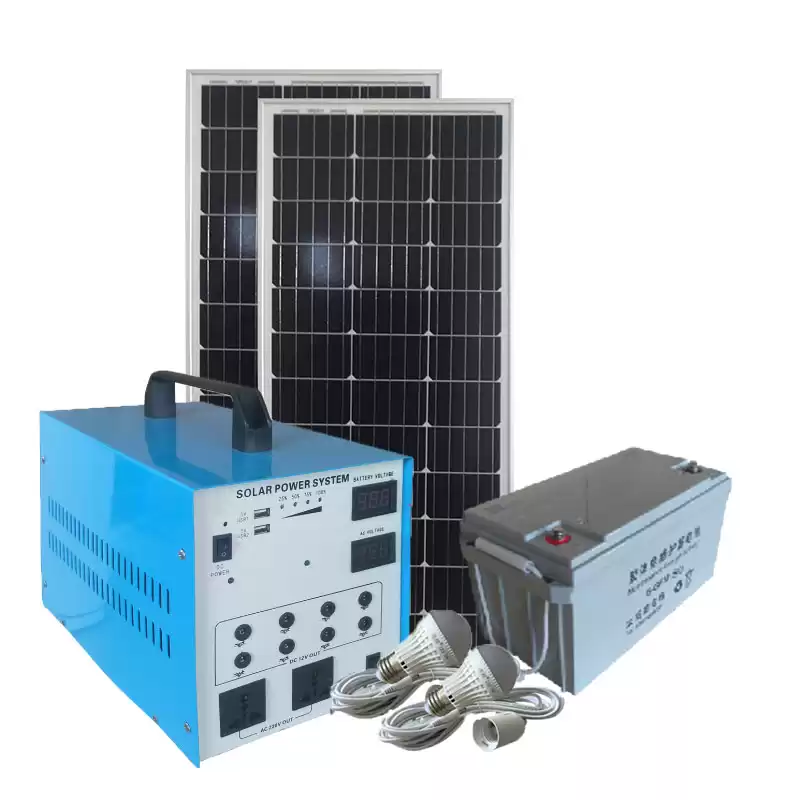

Residential Solar Energy Systems 200W 12V
12V 200W Residential Solar Energy Systems Specifications:
|
Controller System Host*1
|
Input voltage
|
DC12V
|
|
Maximum charging current
|
15A
|
|
Maximum discharge current
|
25A
|
|
USB
|
1A/5V
|
|
LED indicator
|
Switch, battery
|
|
AC220V output interface
|
2 pcs
|
|
DC12V output interface
|
8
|
|
Charging control
|
PWM controller
|
|
Temperature difference supplement
|
-4MV/0°/2V
|
|
Load protection
|
Overcharge, overdischarge, overload, short circuit
|
|
Size
|
345*210*245mm
|
|
Weight
|
About 4.03KG
|
|
Built-in inverter
|
300W
|
|
Solar Panel*2
|
Maximum output power (Pm)
|
100W
|
|
Optimal power voltage (Vmp)
|
17.6V
|
|
Optimal power current (Imp)
|
5.71A
|
|
Open circuit voltage (Voc)
|
21V
|
|
Short circuit current (Isc)
|
6.4A
|
|
Size
|
1200*540*30mm
|
|
Weight
|
About 7KG
|
|
Conversion efficiency
|
18%
|
|
Power deviation
|
3%
|
|
Cell
|
Monocrystalline silicon
|
|
Service life
|
More than 25 years
|
|
Battery*1
|
Battery Type
|
Valve-controlled maintenance-free gel battery
|
|
Voltage
|
12V
|
|
Capacity
|
80AH
|
|
Size
|
324*200*230mm
|
|
Weight
|
About 24.5KG
|
|
Accessories
|
LED light*2
|
12V/3W
|
|
LED light line*2
|
5M
|
12V 200W Residential Solar Energy Systems Feature:
-
Easy to install
-
The kit mainly includes a controller that can help effectively monitor the solar panels, and the negative grounding controller can ensure safety.
-
With the charge controller, you will be able to see the LED indicator and the fully charged battery. Battery protection.
-
It can charge any other household appliances by providing a voltage of up to 12V.
-
Can bring electrical appliances within 300W
TV (150W): Use alone for about 6 hours
Fan (50W): Use alone for about 19 hours
Bulb (5W): about 190 hours of stand-alone use
-
User manual with detailed installation instructions
-
Accessories such as brackets and connecting wires can be configured according to personal installation environment requirements
