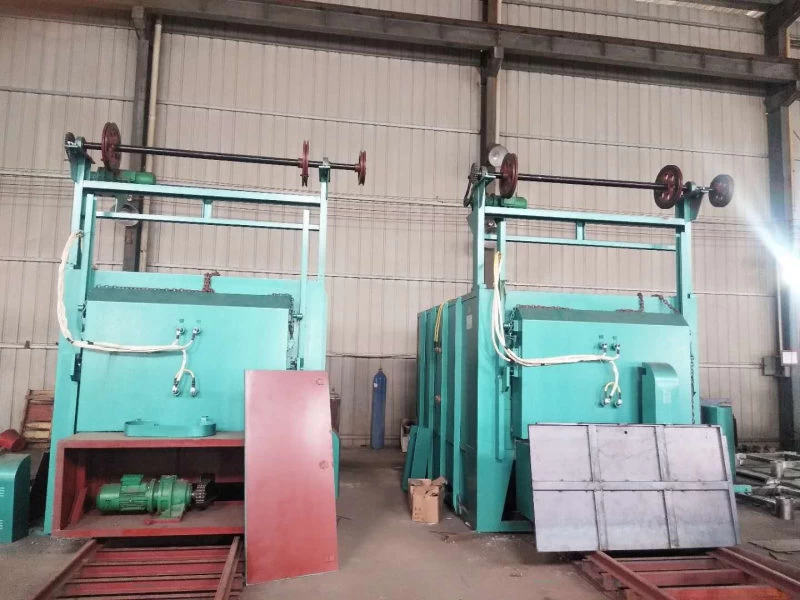

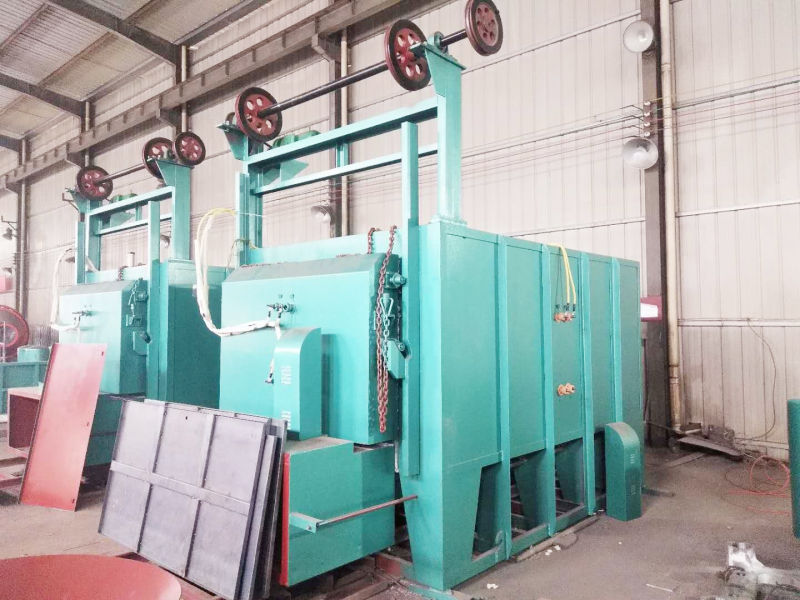

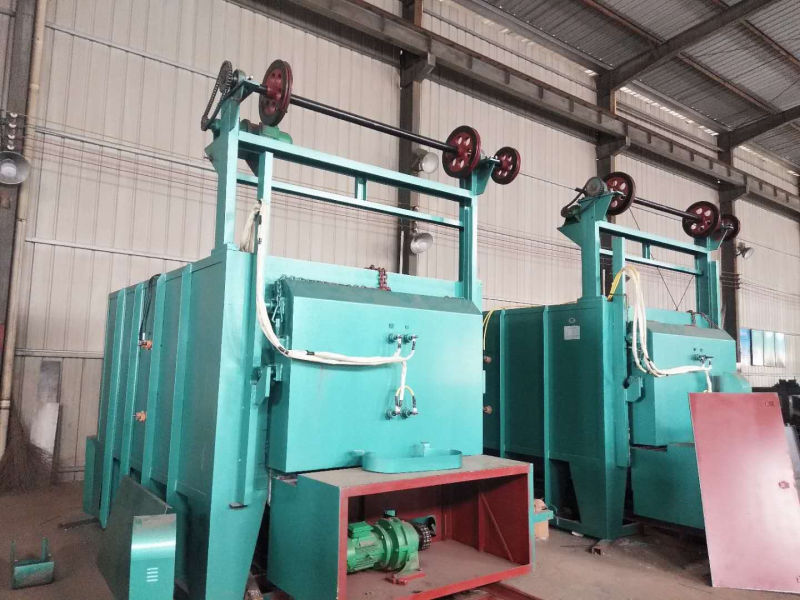

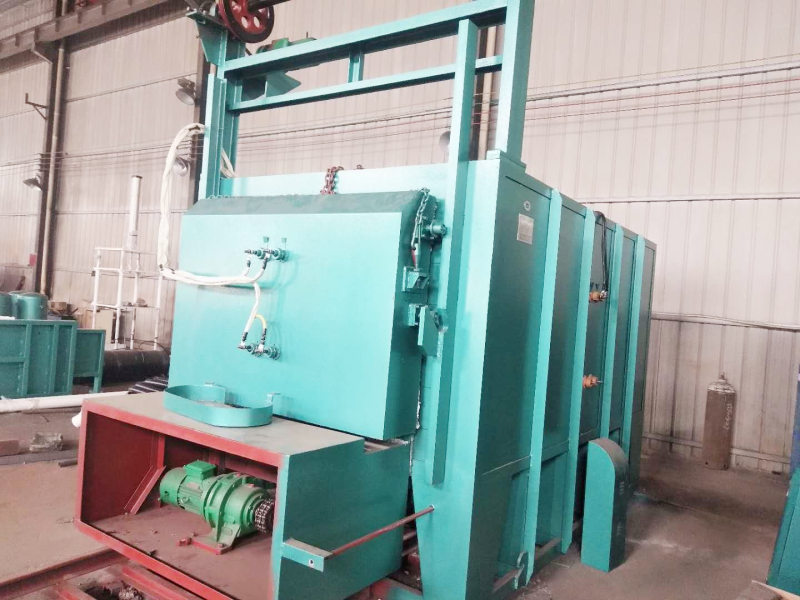

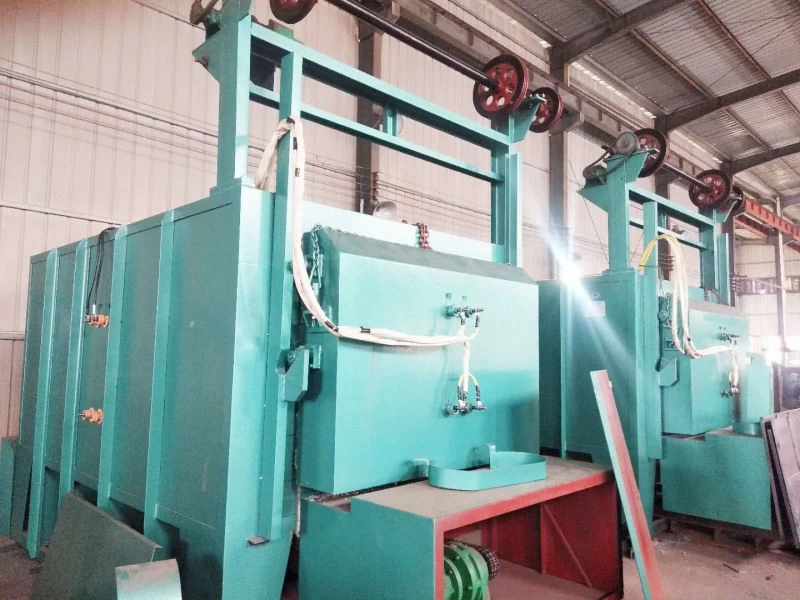

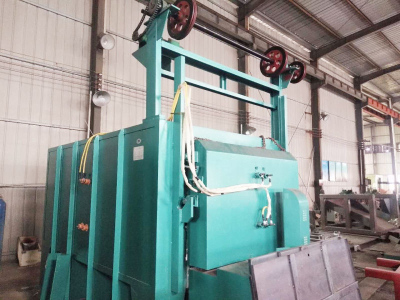

Electric resistance furnace for grinding media ball

Function:

Car type resistance furnace is used for quenching,tempering and annealing for low chrome casting balls,high chrome casting balls,high manganese steel and other other parts.The advantage is getting heat fast and keep heating good.These resistance furnace is suitable middle and small-sized producer of grinding balls.For big capacity grinding ball manufacturer,please reference Automatic Continuous grinding ball quenching and tempering furnace.


Capacity:from 3 ton to 6 ton per day.

Brief induction about this furnace:

1.The bottom of this furnace is controlled by electric.It is very easy to operate.

2.The heating element material is 0Cr25A15 or 0Cr27A17Mo2

3.The bottom plate of this furnace is heat-resisting steel casting,this heat-resisting steel casting can normally work in the temperature of 1200℃

About electricity

This grinding ball resistance furnace has automatic temperature control system.

The control and execution system adopts high-power relay.

There is warning device when it is over temperature

We can also customize according to your requirements.
