Reverse osmosis water filtration system reverse osmosis filter

Stainless Steel Reverse Osmosis System can be widely used in the industrial area, such as medicine, electronics, electric power and surface cleaning and preparation of high-pressure boiler make-up water in thermal power plant.



Reverse osmosis water filtration system reverse osmosis filter

Customized And OEM Service Available

 Reverse Osmosis System

DESCRIPTION


Ultra-pure Water System,Best Reverse Osmosis System through two times reverse osmosis system make the water quality reach standard of purified water. Ultra-pure water conductivity will less than 1 us, resistivity of 1.0-10x106,salinity<1mgk/L,stainless steel material,easy to operate..



STANDARD CONFIGURATION


Dow membrane

Nanfang high-pressure pump

Korean imported pressure switch

Imported electromagnetic valve, pressure Gage

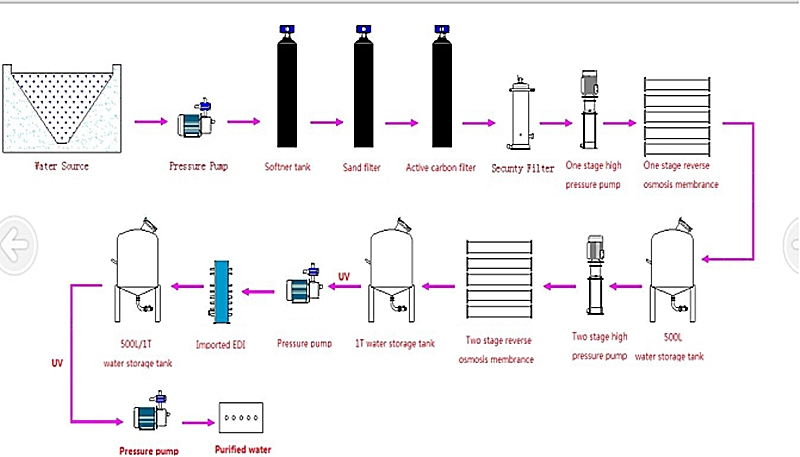

 Wastewater Treatment Plant


(Two stage working progress)



EDI working principle


1. For pure water flow into the EDI system, the main part of the inflow of resin / membrane, and the other part along the lateral membrane and plate flow

2. Wash away with the ion which is outside of the membrane

3. The resin can interception the ion in the water

4. The ion which is being intercepted, under the electrode, the anion move towards the positive direction, the cation move towards the negative direction.

5. Cation through the cation membrane, discharge resin/film

6. Anion through the anion membrane, discharge resin/film

7. The concentrated ion will discharge from the waste water

8. Deionized water flows in from the resin / membrane


EDI advantage


1. The water quality has the best stability.

2. able to produce the ultra pure water which meet the user requirements continuously.

3. The modular production, and can realize the automatic control

4. No need acid-base regeneration, no sewage discharge

5. Will not need to shut down due to the regeneration

6. Don't need the regeneration equipment , storage and transport the chemicals.

7. The device has the advantages of compact structure and has small landing area.

8. Low operation cost and low repair cost

9. Simple operation, and low labor intensity



TECHNICAL SPECIFICATIONS


Model

Productivity

Power

Recycle Rate(%)

Purified WaterProductivity(us/cm)

FeedWaterProductivity(us/cm)

RO-0.25-S

0.25T/H

1.3kw

50

3-8

≤300

RO-0.5-S

0.5T/H

1.3kw

50

3-8

≤300

RO-1-S

1T/H

1.5kw

65

3-8

≤300

RO-2-S

2T/H

2.0kw

65

3-8

≤300

RO-3-S

3T/H

4.0kw

75

3-8

≤300

RO-6-S

6T/H

5.5kw

75

3-8

≤300

RO-10-S

10T/H

7.5kw

75

3-8

≤300

RO-30-S

30T/H

11kw

75

3-8

≤300

RO-60-S

60T/H

18.5kw

75

3-8

≤300
