Product Name

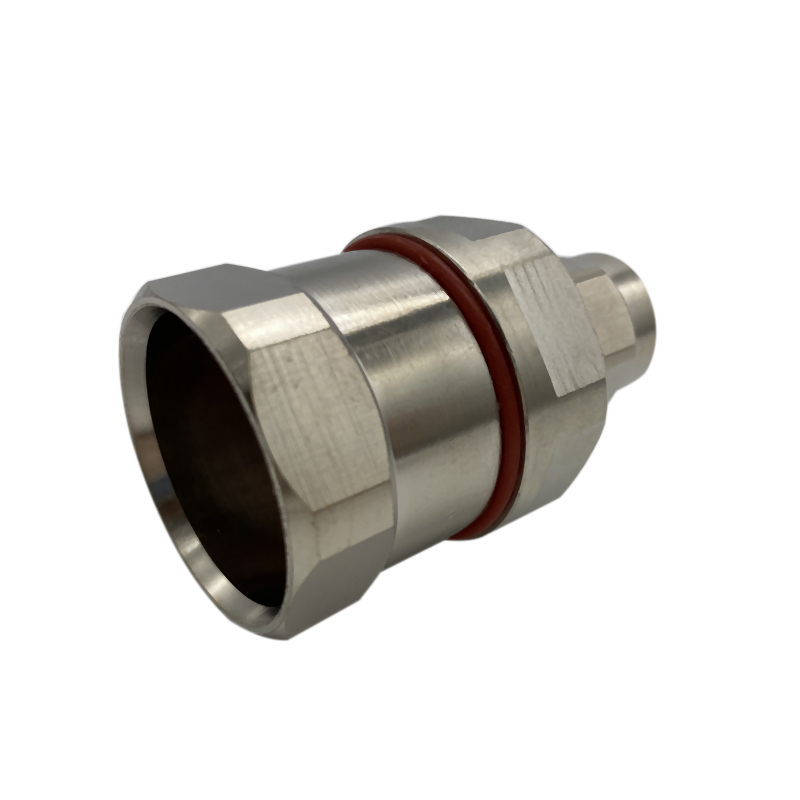

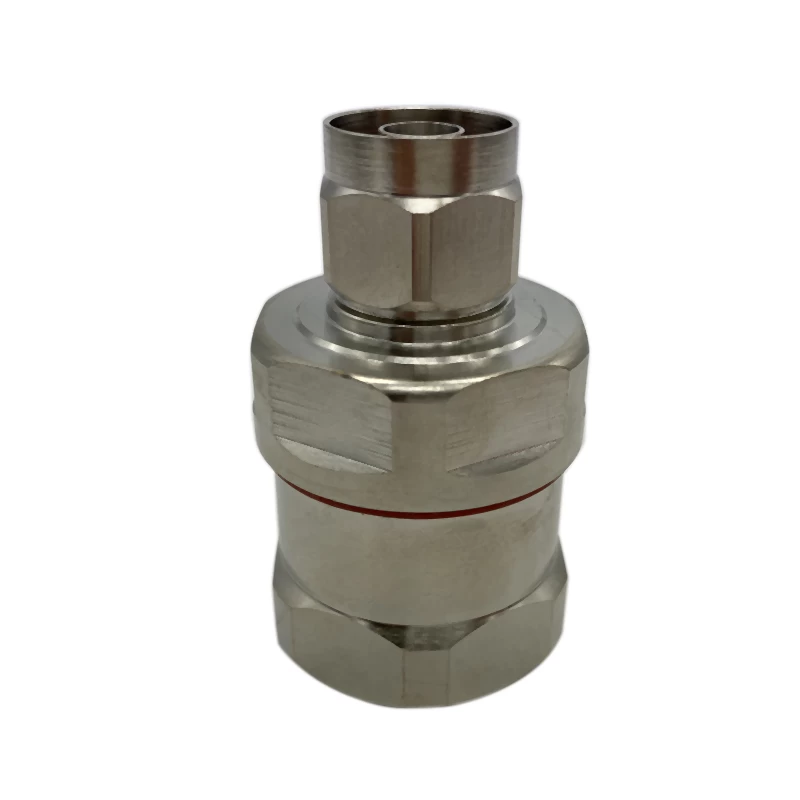

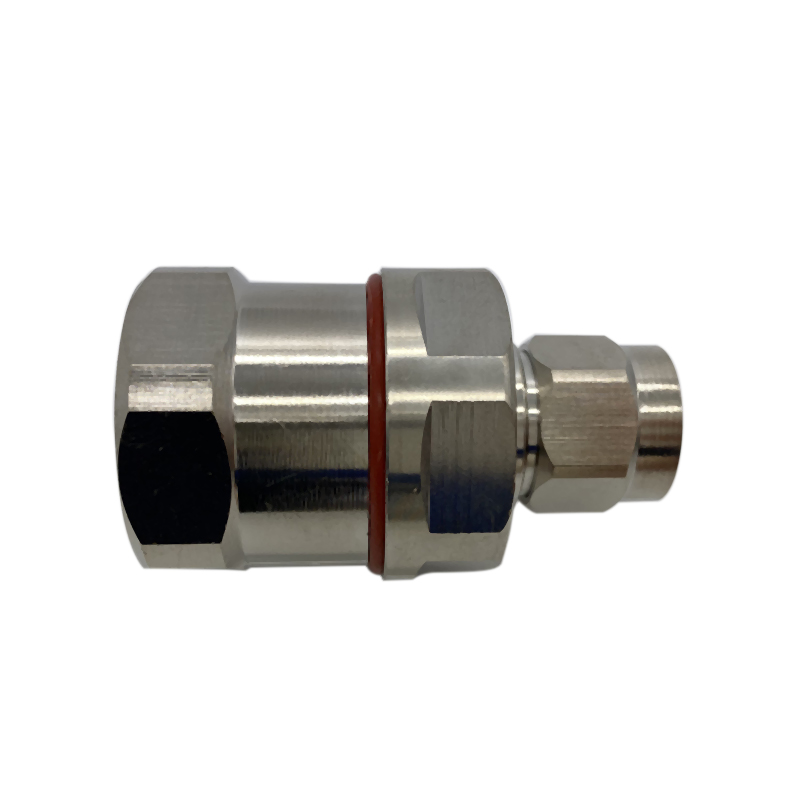

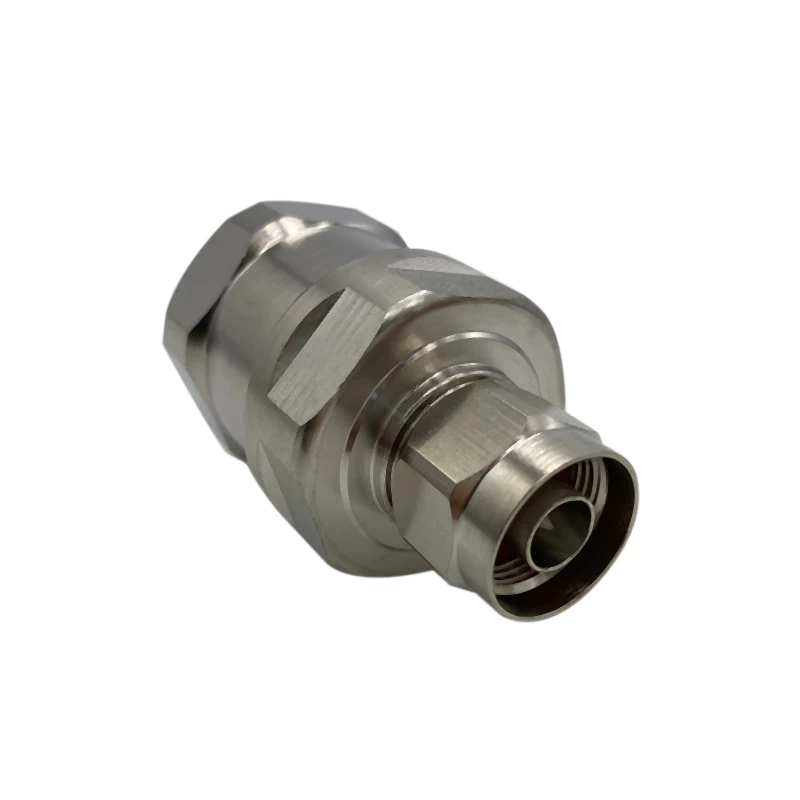

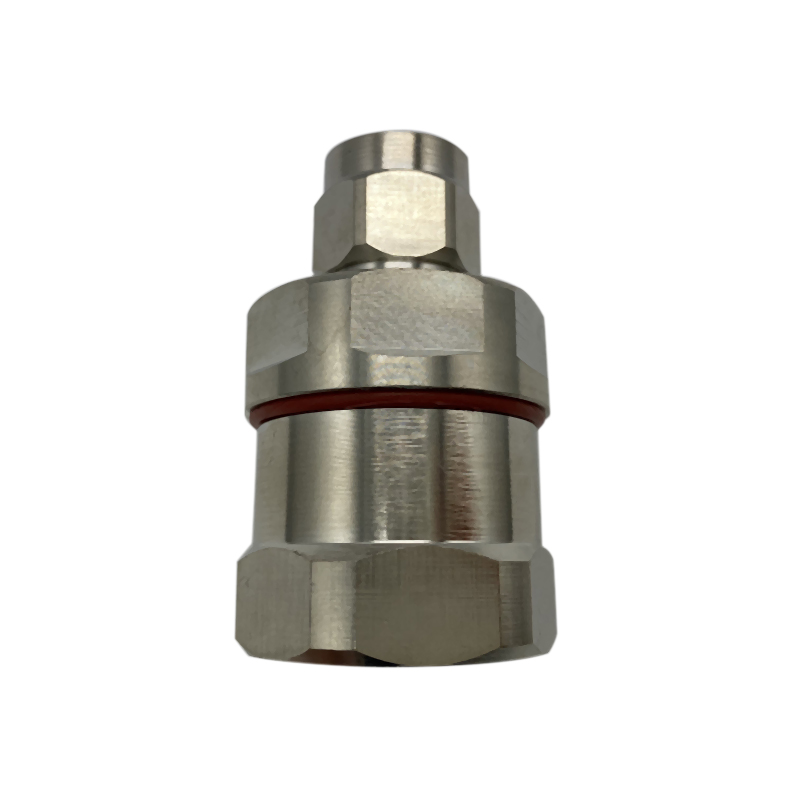

The N-type male 7/8 connector, also known as the feeder connector, conforms to the IEC 61169-16 standard and is suitable for 7/8-inch foamed cable. It is a core component widely used in communication engineering construction and network optimization.
The N-type Male connector has the characteristics of small size and convenient installation. The interface is threaded, and the clamp design facilitates on-site installation in the construction site.
The Low PIM N straight connector can be plated with ternary alloy or nickel plating on the main casing, silver plated inner conductor, good corrosion resistance, IP67 waterproof rating, low standing wave (1.10), low intermodulation (-150dbc) The characteristics can meet the performance requirements of communication network construction.
We can provide a variety of N-type 7/8" connectors with clamp and soldering type, the length can be designed according to customer requirements.
Product Features
RF N Straight Male connector for 7/8' Flexible Cable is Low VSWR and excellent impedance matching,supports-105/-120/-150dBc PIM Rating.High Reliability,IP65&IP67 waterproof.
Technical &Mechanical Specifications
|
Model No.
|
MN-C-NM-7/8
|
|
Interface
|
According to IEC 60169-4
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-3GHz
|
|
Dielectric Withstanding Voltage
|
≥4000V RMS,50Hz,at sea level
|
|
Dielectric Resistance
|
≥10000M ohms
|
|
Contact Resistance
|
Center Contact≤1.0M ohms
Outer Contact≤0.3M ohms
|
|
VSWR
|
≤1.10
|
|
Mechanical
|
Durability
|
Mating cycles≥500
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-40~+85
|
Mechanical Drawing (mm)
