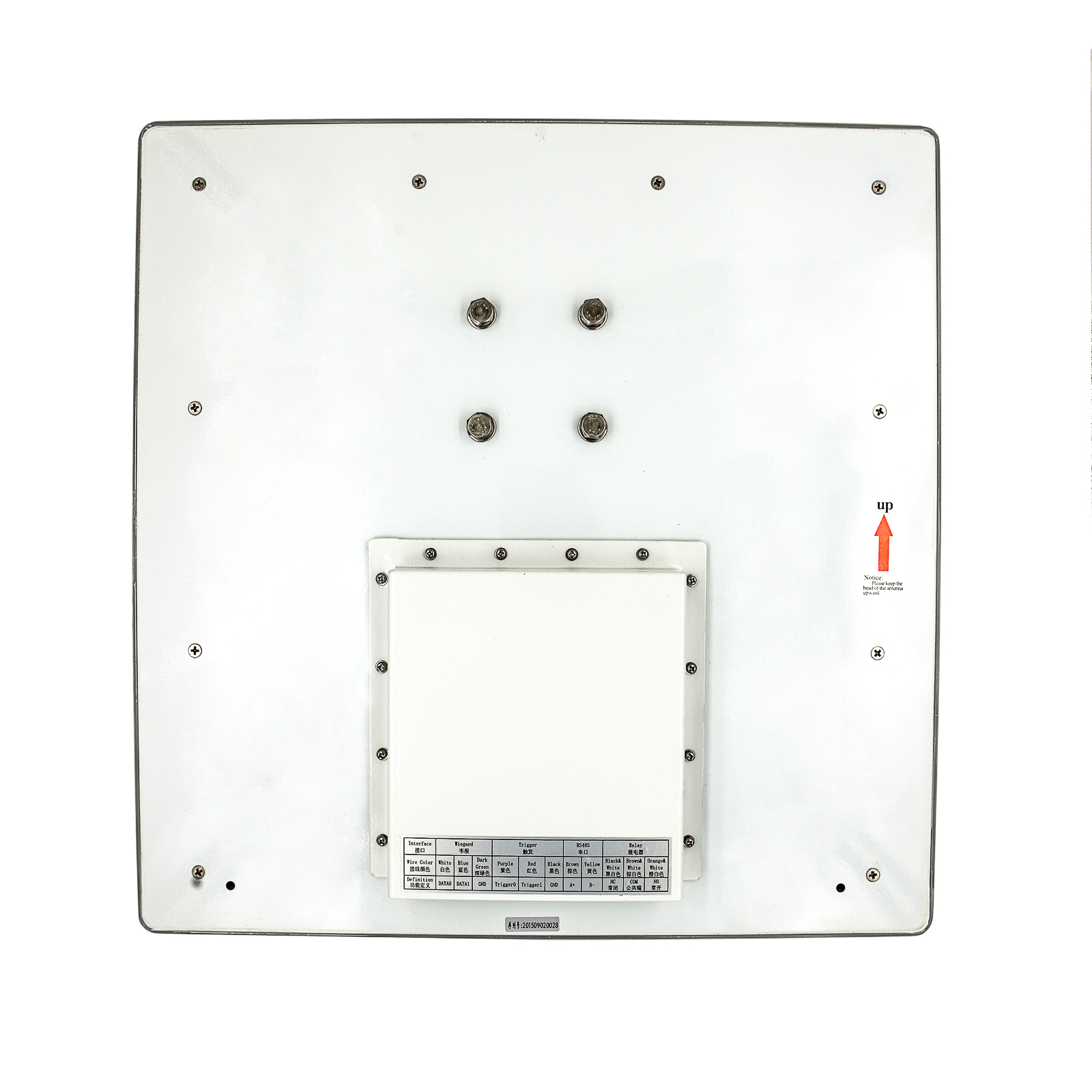

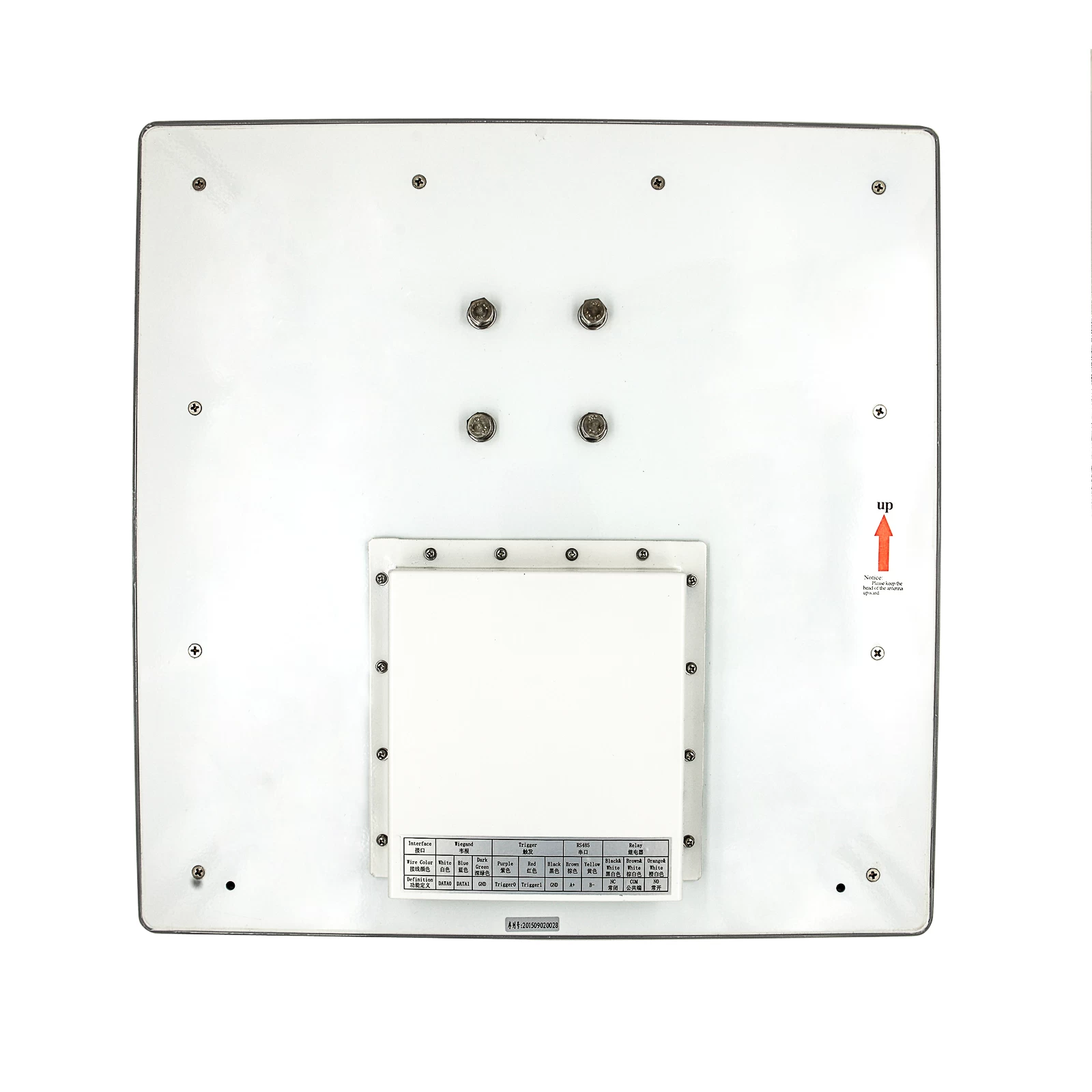

Product Name：RFID UHF Long Range Integrated Reader
MODEL NO:：MR6211E
Key Features:
High performance, easy installation
Built-in 12 dBi antenna ensures long range reading
Provides all kinds of communication interfaces
Waterproof and sunshine defending, idea for outdoor applications
1 Introduction
MR6211E UHF RFID Reader base on new generation reader technology platform development which is combine UHF RFID advanced technology and many years reader application base experience. This reader is more stable and can use in various applications
2 Supported RFID Tag Protocols
EPC Class1 Gen 2; ISO 18000-6C
3 Parameter
|
Items
|
Parameter
|
|
Frequency
|
US（902～928MHz）, China（920～925MHz）, EU（865～868MHz）, other frequency select.
E. g. Malaysia ISM919-923MHz,
Philippines ISM918-920MHz
Morocco ISM867.6-868MHz
|
|
Supported RFID Tag Protocols
|
ISO18000-6C, EPC Class1 Gen2
|
|
Reader Protocols
|
MarktraceRFID reader protocol, firmware upgradable
|
|
RF Power
|
0～31dBm adjustable
|
|
Sensitivity
|
-80dBm
|
|
Antenna
|
12dBi linear polarization antenna
|
|
Read Speed
|
Multi tag-200pcs/second, single tag 2000 times/minute
|
|
Reading Range
|
Up to 12 m (adjustable on Testing Demo software)
|
|
Processor
|
ARM CORTEX M3 100M CPU
|
|
Memory
|
16KB tag data memory
|
|
Data Interface
|
100M Ethernet Interface (TCP/IP)
|
|
RS232,RS485, Wiegand 26/34
|
|
1 set input and 1 set output（TTL),1 set relay
|
|
Software SDK
|
C# and C++
|
|
Power Supply
|
DC +9V～+15V
|
|
Indicators
|
Buzzer
|
|
Working Temp.
|
-20～60℃
|
|
Weight
|
2kg
|
|
Dimensions
|
440*440*68.6mm
|
|
Certifications
|
FCC, CE
|
|
Color
|
Gray
|
|
Housing
|
ABS
|
4 Functional Description
4.1 ISO18000-6C / EPC G2 Tag operation
Reader Support ISO18000-6C, EPC G2 tag, It support Multi tag query, read, write, selection, Single tag read, write, lock, kill
4.2 Working Parameter Setting
User can set the parameter of interface, IP address, Jump Frequency point, output power, reading indication, working mode etc; When in Timing or Trigger mode, can set the parameter of reading card type, read area, address, length, output method, output interface
4.3 Communication Function
Support Ethernet, RS232 and RS485 both-way communication interface, protocol compliant to《UHF RFID reader and PC communication protocol V2.0》；Also reader support Weigand single way data transmission interface, format compliant to Wiegand 26 and Wigand 34 interface protocol
4.4 Off-line working mode
Support timing read or trigger read working mode，all tags in query area can be read according to set address and length，read data direct output. Read data can selected for filtering same tag. Output data interface can be any one of interface or multiple interface，meanwhile can configure relay
4.5 Maintain and update functions
Support web network server function, can set working parameter on Web page, reader also support Serial port and RJ45 port upgrade in the application firmware

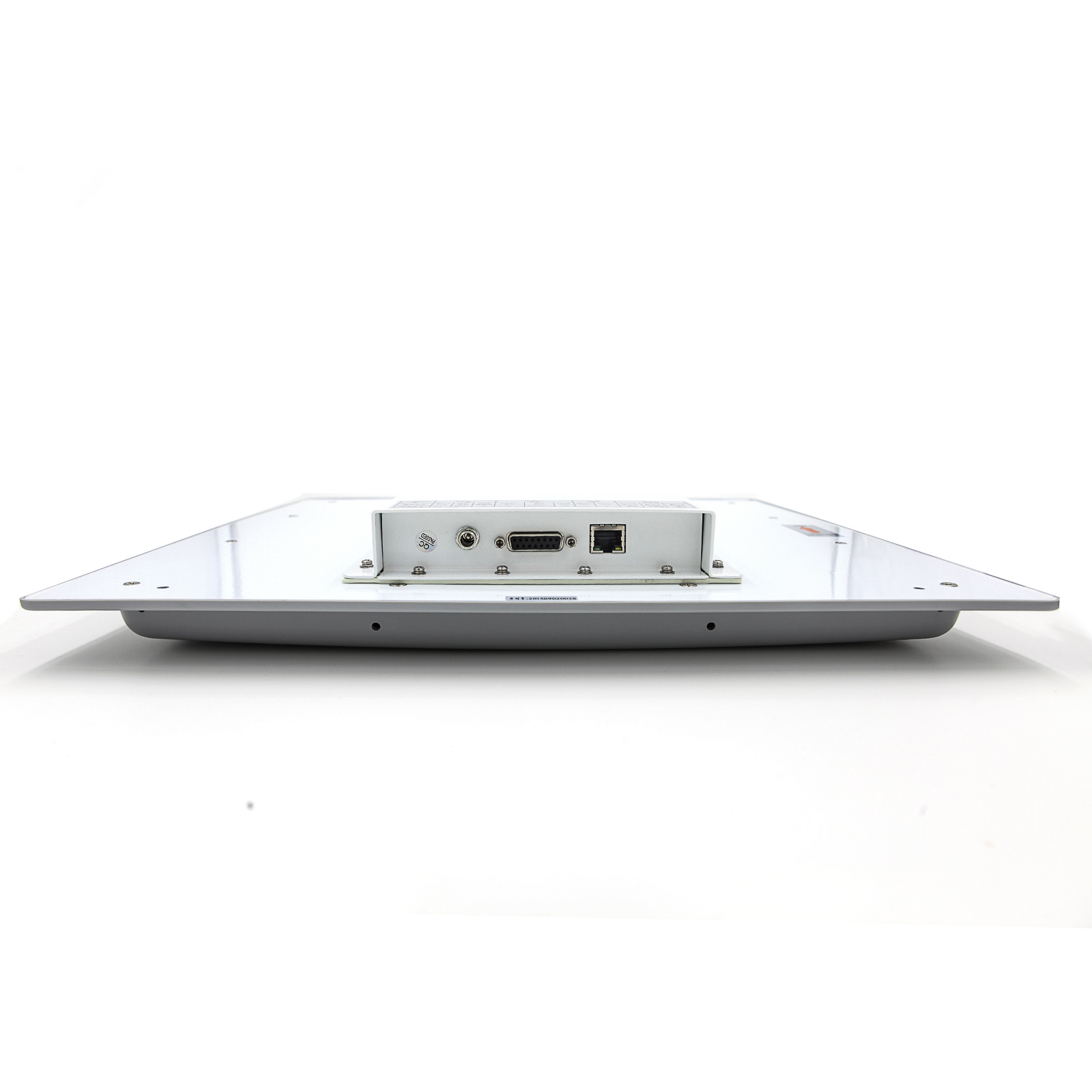

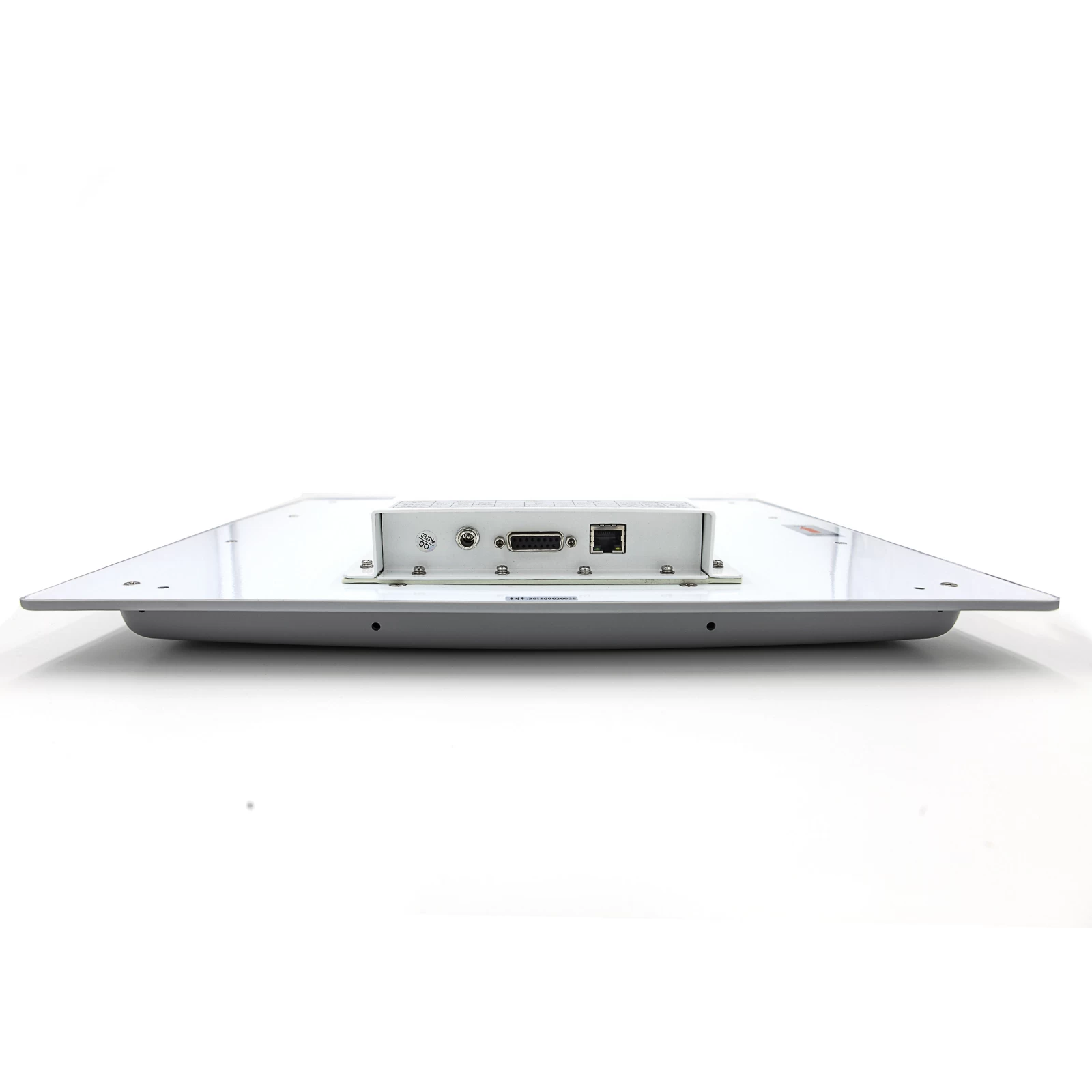

5 Interface Definition
DB15 Pin Diagram
|
Pin number
|
Pin function
|
|
1
|
GPIO signal output2
|
|
2
|
GPIO signal output1
|
|
3
|
Signal Ground
|
|
4
|
RX(RS232)
|
|
5
|
TX(RS232)
|
|
6
|
Signal Ground
|
|
7
|
GPIO signal input 2(closed)
|
|
8
|
GPIO signal input 1
|
|
9
|
Signal Ground
|
|
10
|
A+ (RS485)
|
|
11
|
B- (RS485)
|
|
12
|
Signal Ground
|
|
13
|
Relay normal close port
|
|
14
|
Relay common port
|
|
15
|
Relay normal open port
|
6 Applications
1, Intelligent traffic management such as ETC, custom clearance, parking lot, and automatic weighing
2,Logistics such as container management, pallet management, and asset tracking
3,Ticket business and access control
7 Typical Projects
1, Pakistan Safe City System government project since 2015
2, Parking lot of Turkey government buildings
3,Parking lot of Thailand MAHANAKHON building

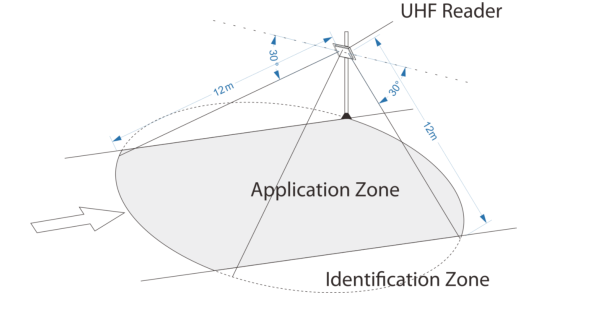

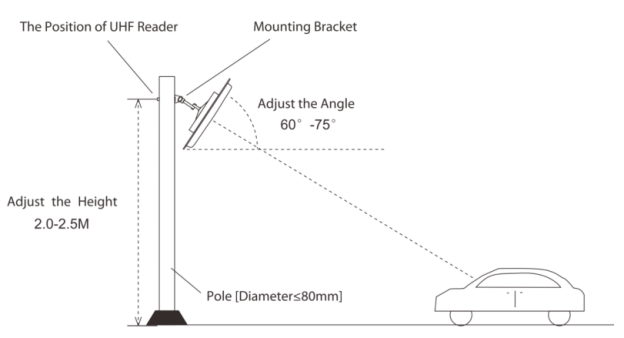

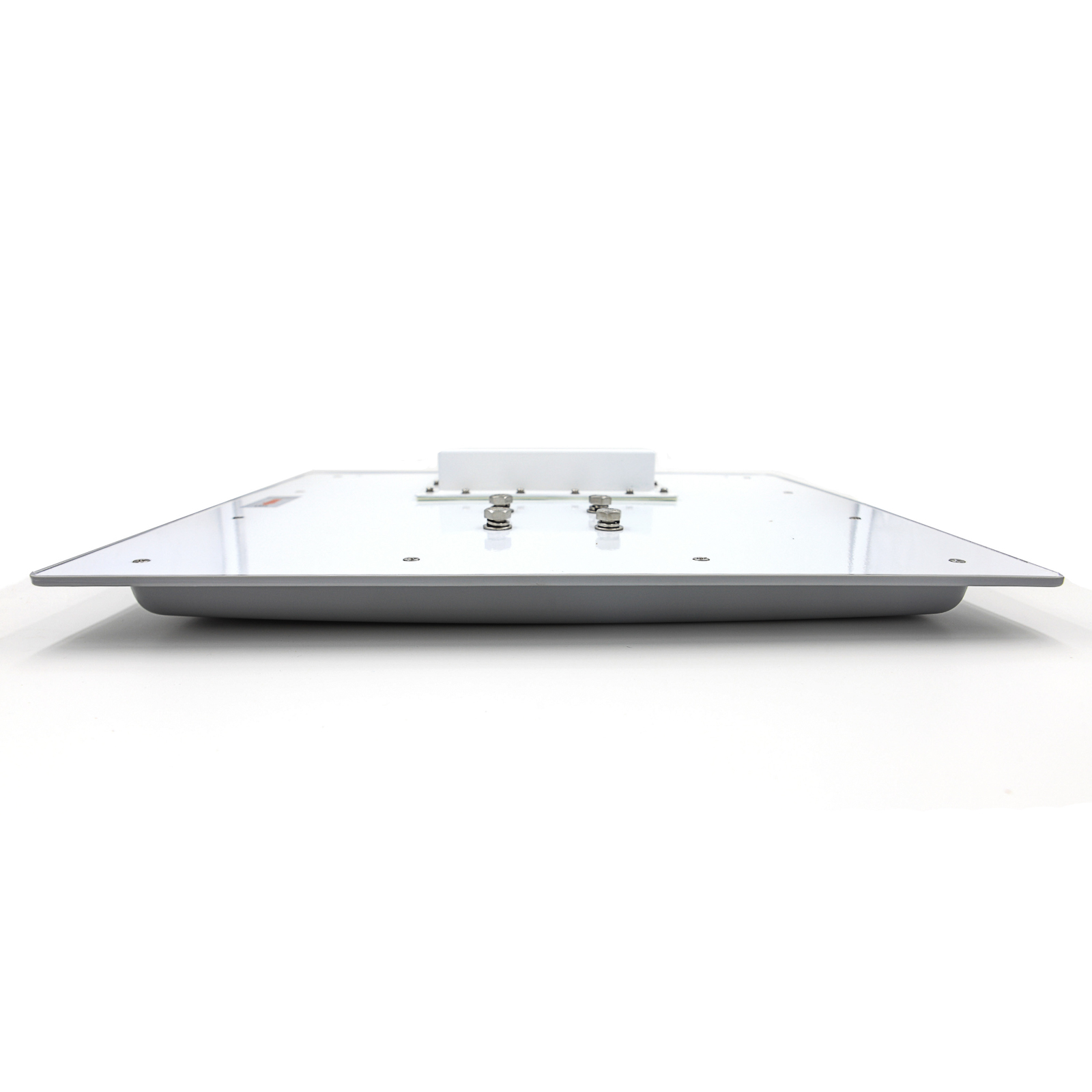

8 Installation
