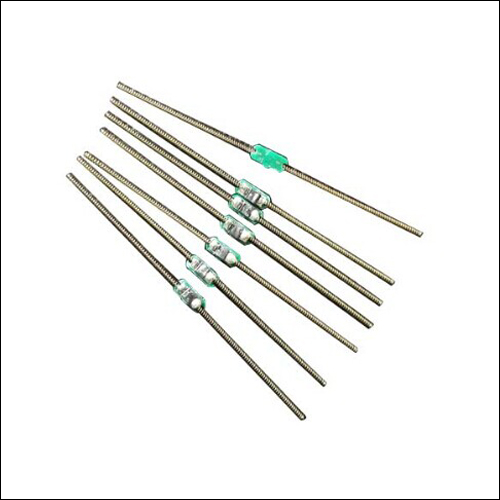

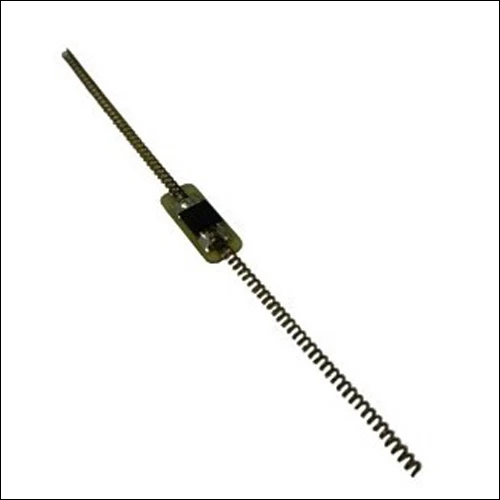

RFID UHF Spring TireTag
Description:
The RFID tag has been developed to be embedded within the tire during the manufacturing process, where it will last the lifetime of the tire.
The tag provides a unique identification number which can be tracked to prevent tyre theft and cloning, in addition to the conventional asset tracking benefits inherent to RFID.
This tag aslo is embedded other items in producing process. Such as trunk,box,etc,Its advantage is small size,resist at least 200℃,etc.
Features:
|
Model
|
JT-9020-2
|
Name
|
UHF Tire Smart Tag
|
|
Material
|
Steel wire
|
Color
|
Golden/White
|
|
Dimensions
|
84*1mm
|
Weight
|
0.22 g
|
|
Working Temp
|
-40℃～+200℃
|
Storage Temp
|
-40℃～+200℃
|
|
RFID Features:
|
|
RFID Standard
|
ISO/IEC 18000-6C (EPC Gen2)
|
|
Chip Type
|
Alien Higgs-3
|
|
EPC Memory
|
96 bits to 480 bits
|
|
User Memory
|
512 bits
|
|
Read Range
|
902-928 MHz
|
2.0-3.0m
|
|
865-868 MHz
|
2.0-3.0m
|
|
Other Features:
|
|
Data Storage
|
> 10 years
|
|
Re-write
|
100,000 times
|
|
Installation
|
Insert
|
|
Customization
|
Encoding, Designing,etc
|
|
Application
|
· Tire factory control,
· Tire asset tracking,
· Automobile factory tire tracking,
· Logistic vehicle management, etc.
|
