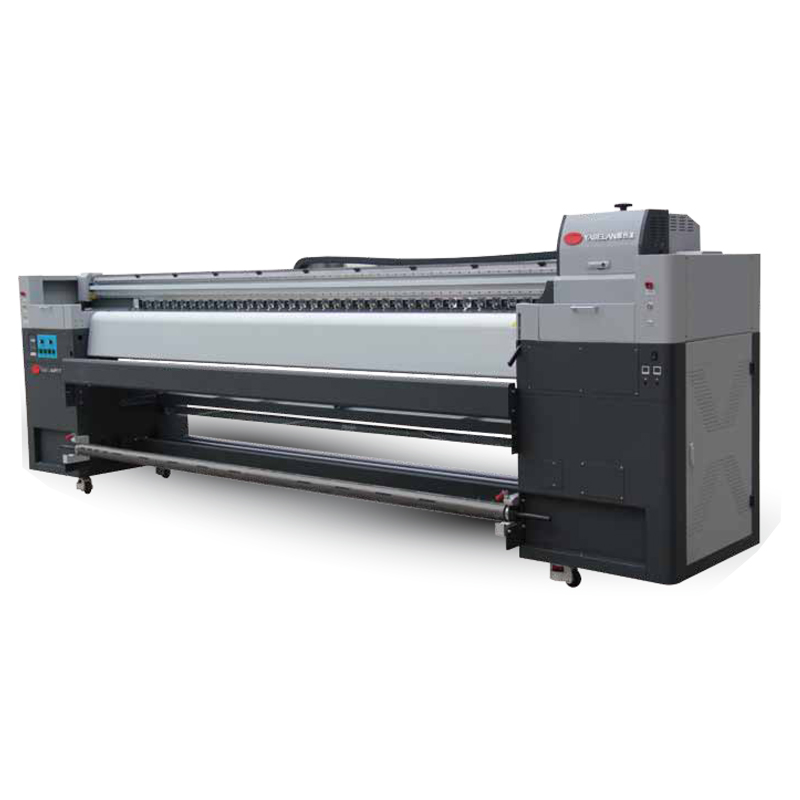

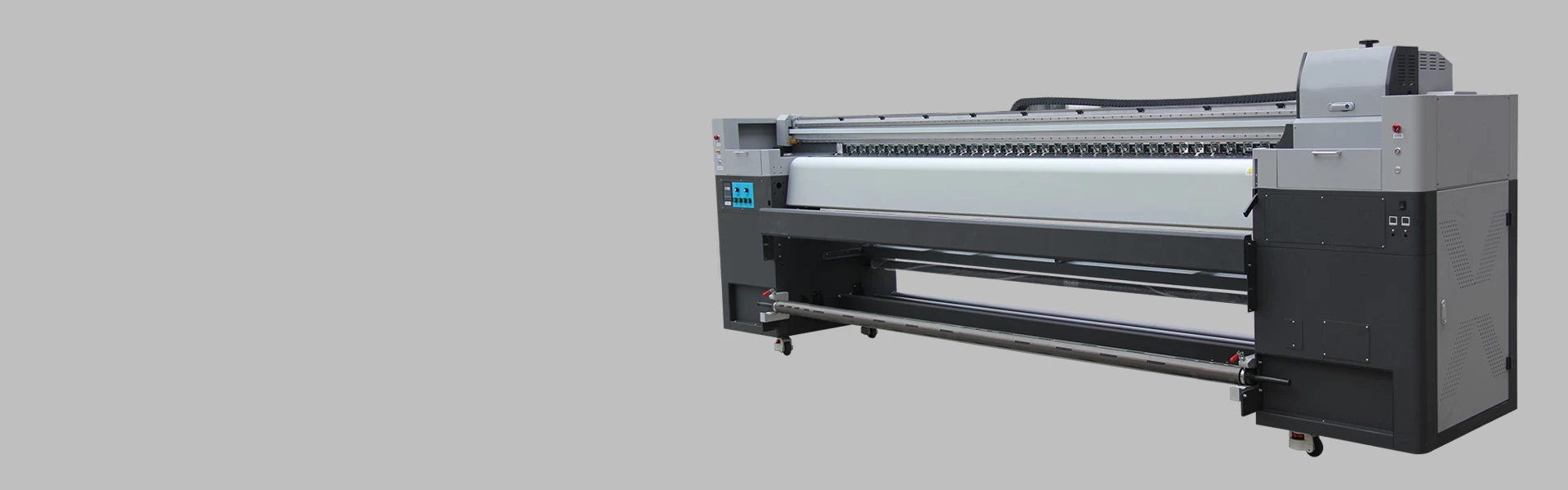

3.2m roll to roll uv printer, professional printing system for PVC film printing

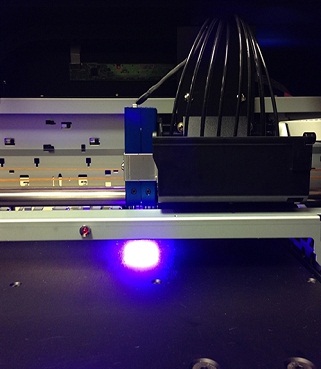

RICOH G5 industry print heads, high resolution with steady performance
|
Fuji/Panasonic servo motor
make sure of long lasting working life,
and high quality printing
|
|
|
Japanese original servo moter
make printing steady and long working life
|
|
|
|

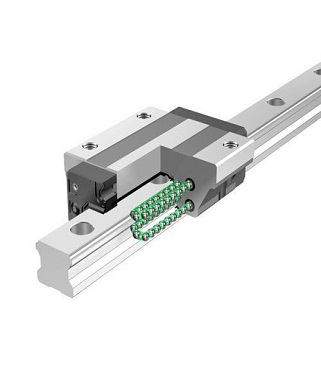

THK/Taiwan Hiwin Guide rail
High rigidity high bearing capacity,Smooth operation,no noise,low friction,famous brand in printing industry.
Long life span American 3M belt.
|
|
|
|
|
CISS with Ink shortage alarm
Continuous ink supply system with ink shortage warning,full waste ink warning.
|
|
|
|
|
|
|
|
|
|
Technical Parameters
|
|
Print Model
|
YSL-G320R
|
|
Print head
|
4 pcs of Ricoh Gen5
|
|
Printing Speed
(4 heads)
|
High speed Mode
|
720*600dpi
|
25㎡
|
|
Production Mode
|
720*900dp
|
18㎡
|
|
Quality Mode
|
720*1200dpi
|
13㎡
|
|
Maximium Printing Size
|
3200mm
|
|
Feeding System
|
Press roller
|
|
Max Thickness of Materials
|
Thickness of the Materials is 1-5mm
|
|
Ink
|
C·M·Y·K·W·V
|
|
Lamp
|
UV-LED ink
|
|
Computer Configuration
|
i7/8G/1TB/USB3.0
|
|
Operating System
|
Windows7/Windows8/Windows10
|
|
Supporting Format
|
PSD/EPS/TIFF/JPG/DWG/HPG/HGL ETC
|
|
RIP Software
|
Onyx/PrintFactory/Photoprint
|
|
The Size of the Machine
|
4900*1020*1500mm
|
|
The Size of the Package
|
5000*1100*1650mm
|
|
Power Supply
|
AC220±10%,Single Phase ,50/60Hz
|
|
The Environment
|
Temperature:20-28°C Humidity:45-47%RH
|
Applications
Sign printing, decoration pvc film, indoor decoration, etc.
