Ridge Cap Roll Forming Machine

Pretty appearance, durable using and so on

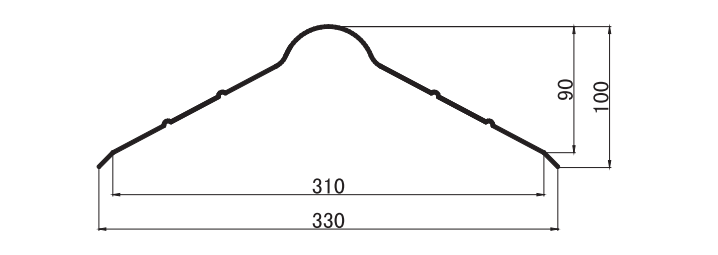

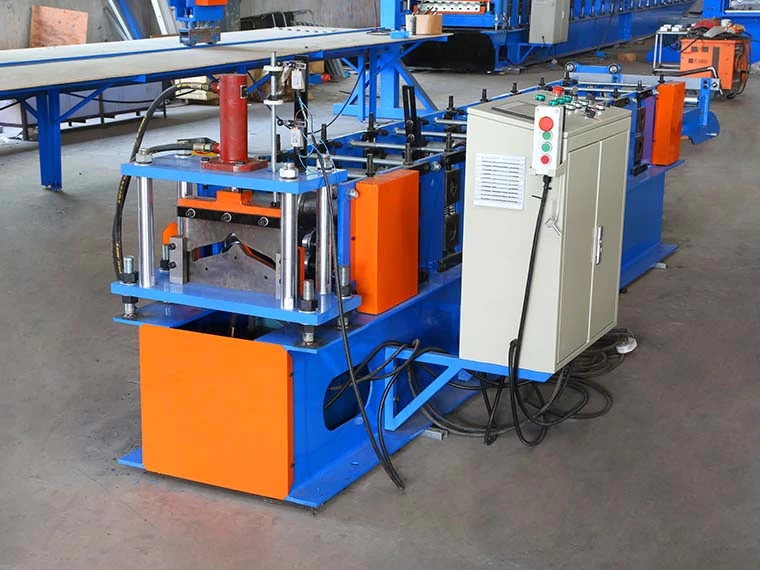

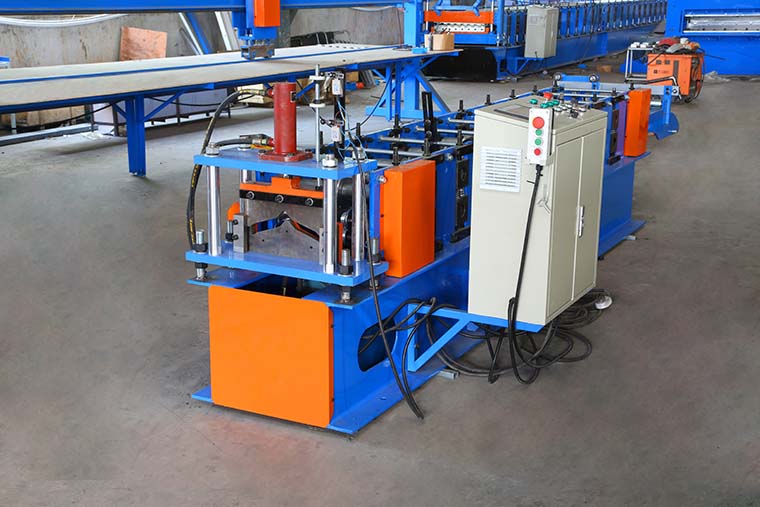

             YX100-330 Ridge Cap Roll Forming Machine


 Ridge Cap Roll Forming Machine



1.Main features of YX100-330 ridge cap machine


    The advantages of Ridge Cap machine are as follows:

    1.Widely used in many kinds of industrial factory, civilian buildings

    2. pretty appearance, durable using

    3.Instead using bending machine to make angel tile

    4.saving human resources, lower labor cost.


2.Detailed Images of YX100-330 ridge cap forming machine


    Machine Parts

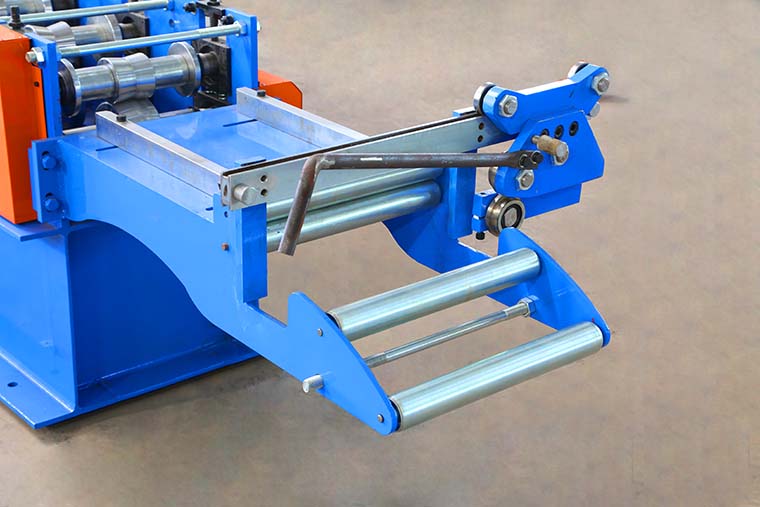

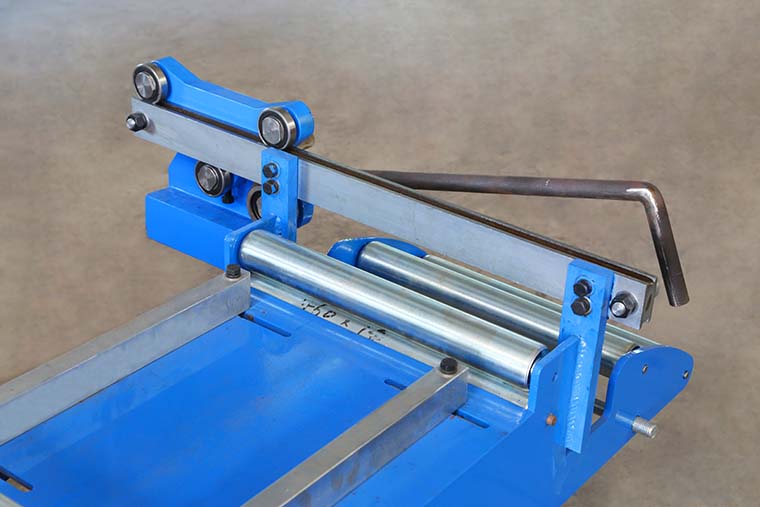

        1) YX100-330 ridge cap machine manual pre-cutter

        Brand: BMS    Original: China



 Ridge Cap Roll Forming Machine


Ridge Cap Roll Forming Machine

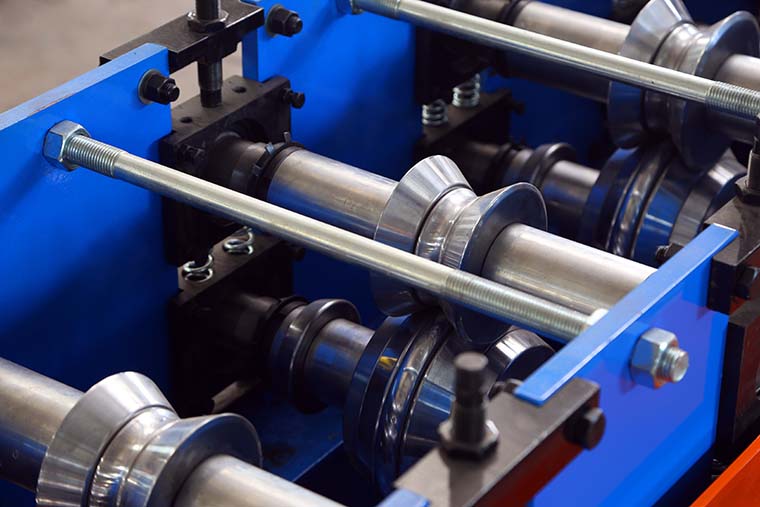

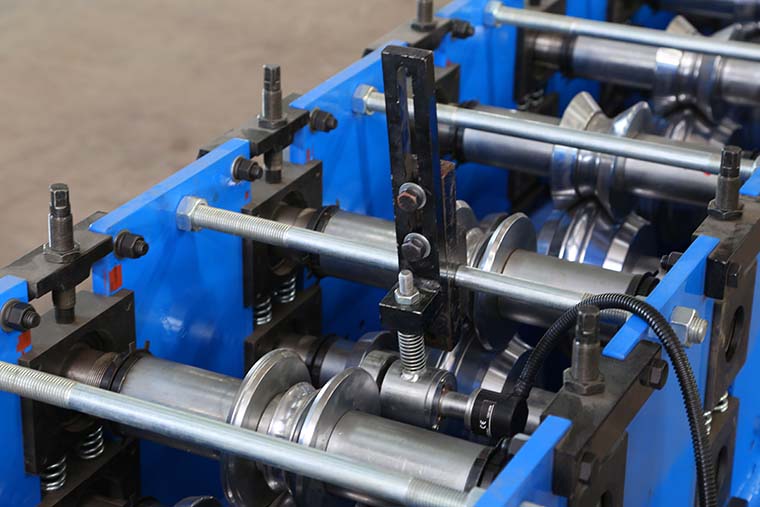

        2) YX100-330 ridge cap machine rollers

        Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding


 Ridge Cap Roll Forming Machine


Ridge Cap Roll Forming Machine

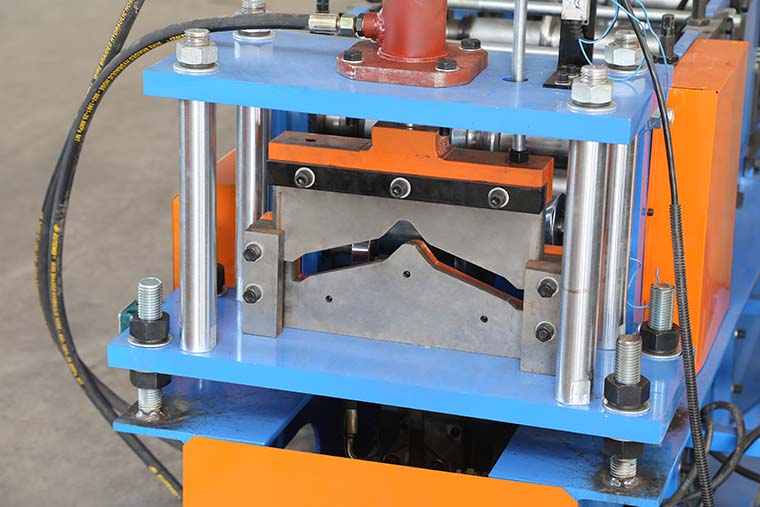

        3) YX100-330 ridge cap machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding

        Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa


 Ridge Cap Roll Forming Machine

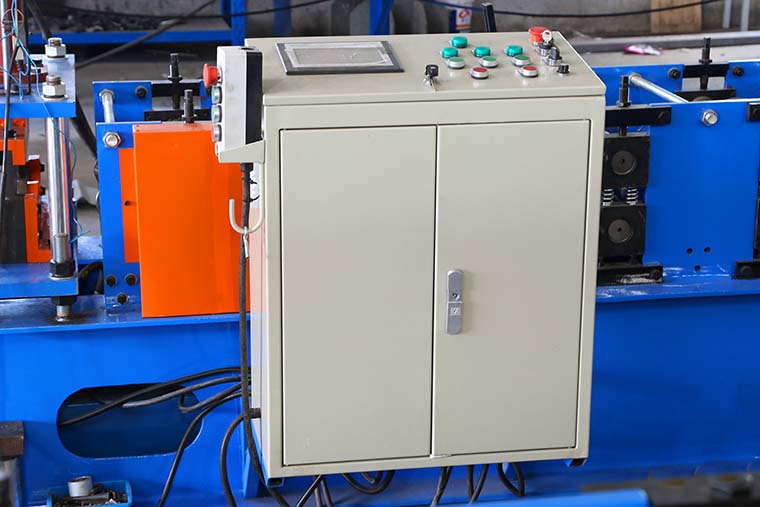

        4) YX100-330 ridge cap machine electronic control cabinet


 Ridge Cap Roll Forming Machine


        5) YX100-330 ridge cap machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop


        Max. feeding width: 508mm, coil ID range 470mm±30mm

        Capacity: Max. 3 Ton


        With 3 tons hydraulic decoiler for option




        6) YX100-330 ridge cap machine exit rack

        Un-powered,one unit



Other details of YX100-330 ridge cap machine

Suitable for material with thickness 0.4-0.6mm

Shafts manufactured from 45#,Main shaft diameter=φ55/75mm,precision machined

Motor driving,Gear chain transmission, 10 steps to form

Main motor=4KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of ridge cap machine



1. The warranty of YX100-330 ridge cap machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms of trade


1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
