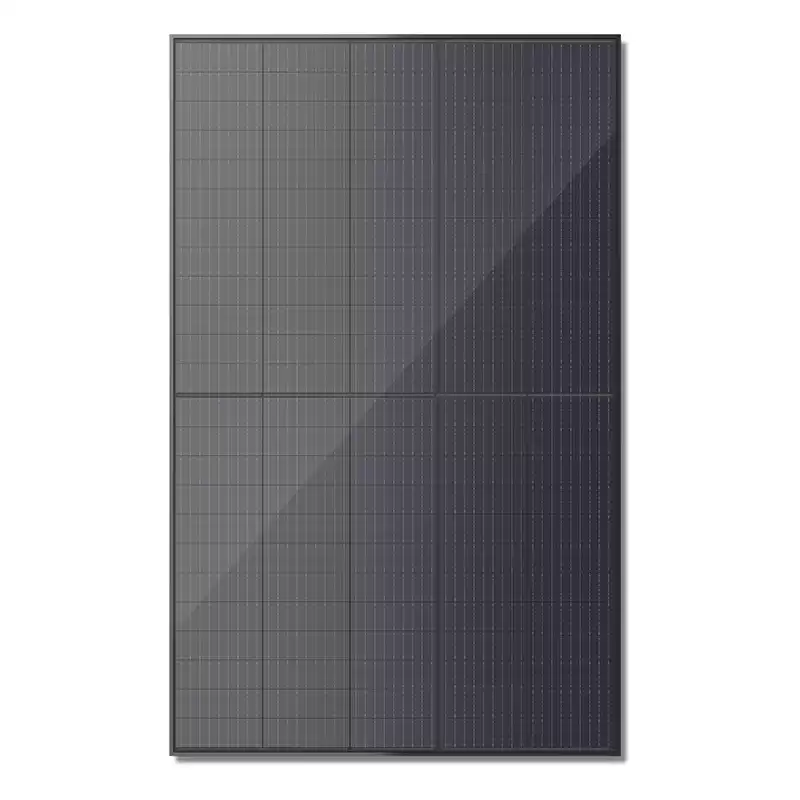

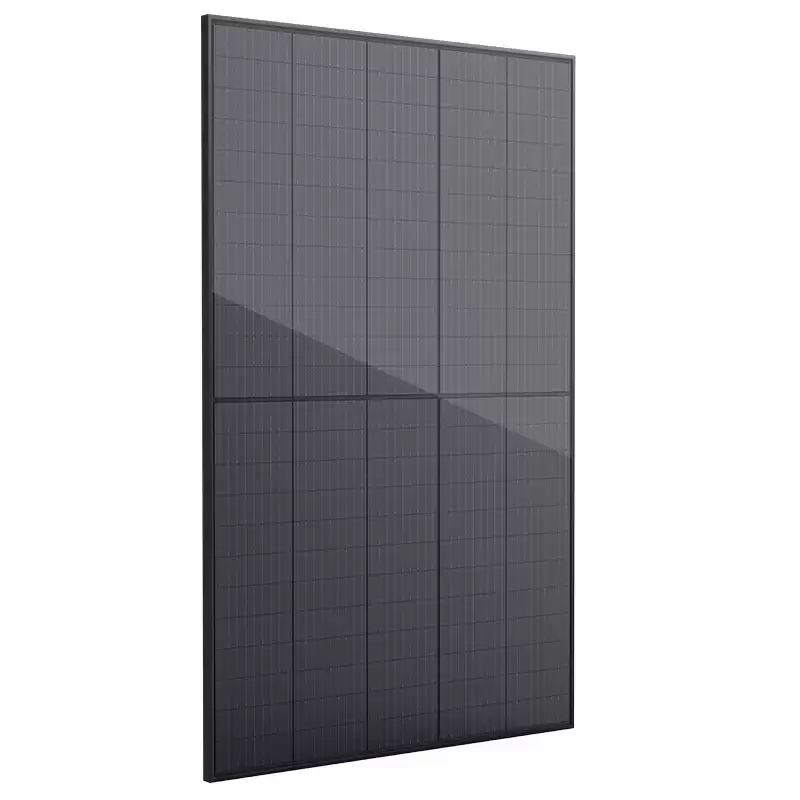

RISEN RSM108-9-430/435 BNDG N-type Monofacial Dual Glass Black Frame Solar Panel

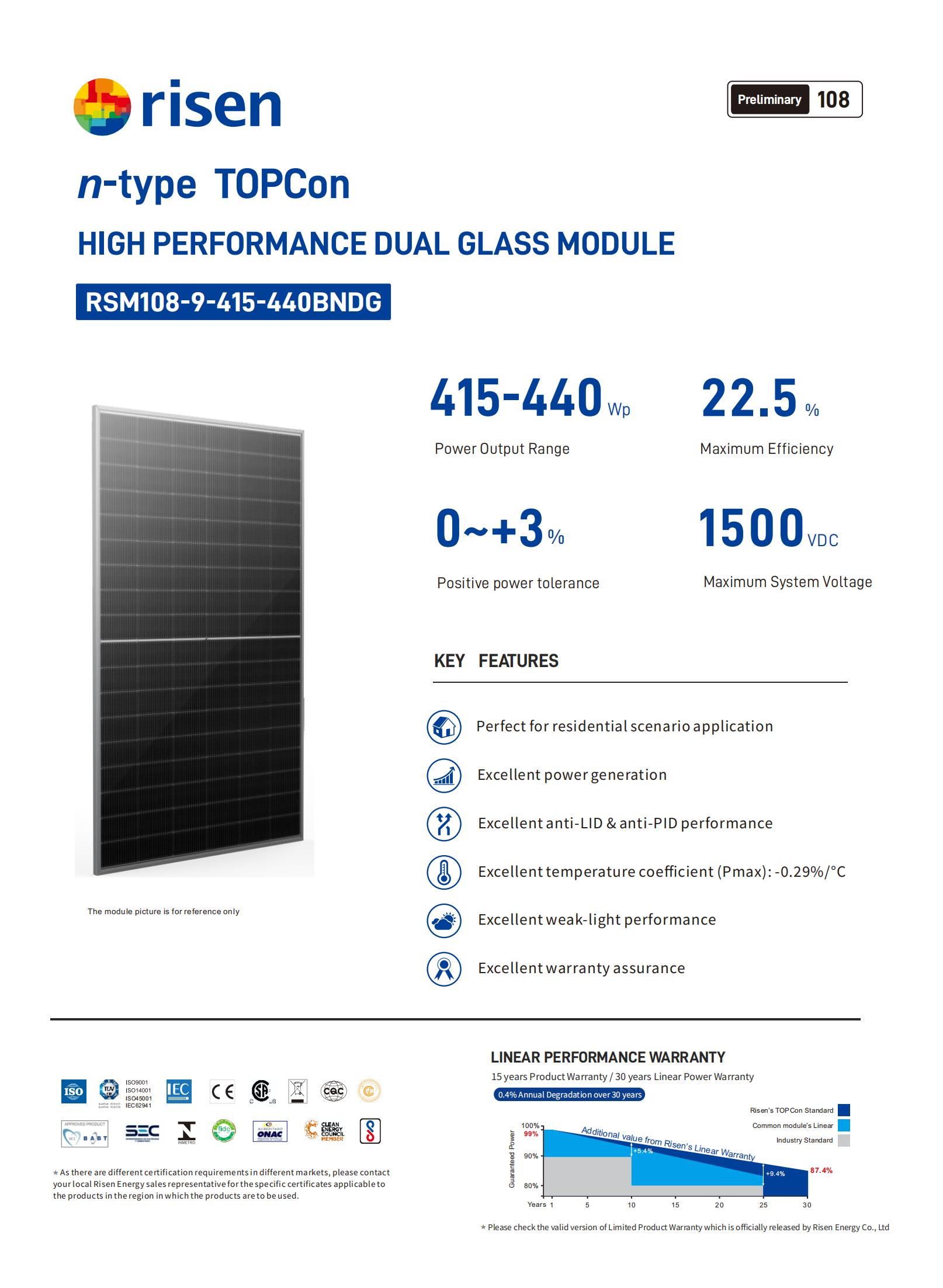

RISEN RSM108-9-415-440BNDG

n-type TOPCon

HIGH PERFORMANCE DUAL GLASS MODULE

·Perfect for residential scenario application

·Excellent power generation

·Excellent anti-LID & anti-PID performance

·Excellent temperature coefficient (Pmax): -. %/°C

·Excellent weak-light performance

·Excellent warranty assurance

Facebook Twitter Pinterest LinkedIn 分享
Specification
Mechanical Data
Solar Cells
n-type TOPCon
Cell Number
108 cells (6×9+6×9)
Dimensions
1722×1134×30mm
Weight
20.5kg
Superstrate
High Transmission, Low Iron, AR Coated Heat Strengthened Glass
Substrate
Heat Strengthened Glass
Frame
Anodized Aluminium Alloy, Black
Junction Box
Potted,IP68, 1500VDC, 3 Schottky bypass diodes
Cables
4.0mm², Positive(+)1200mm, Negative(-)1200mm (Connector Included ) or customized length
Connector
Risen Twinsel PV-SY02, IP68
Electrical Data(STC)
Model Number
RSM108-9-415-440BNDG
Rated Power in Watts-Pmax(Wp)
415
420
425
430
435
440
Open Circuit Voltage-Voc(V)
38.67
38.87
39.07
39.26
39.46
39.65
Short Circuit Current-Isc(A)
13.69
13.78
13.86
13.94
14.01
14.09
Maximum Power Voltage-Vmpp(V)
32.39
32.59
32.78
32.98
33.18
33.38
Maximum Power Current-Impp(A)
12.83
12.91
12.99
13.06
13.12
13.19
Module Efficiency (%)
21.3
21.5
21.8
22.0
22.3
22.5
TEMPERATURE & MAXIMUM RATINGS
NMOT
44°C±2°C
Temperature Coefficient of Voc
-0.25%/°C
Temperature Coefficient of Isc
0.046%/°C
Temperature Coefficient of Pmax
-0.29%/°C
Operational Temperature
-40°C~+85°C
Maximum System Voltage
1500VDC
Max Series Fuse Rating
30A
Limiting Reverse Current
30A
Product Description

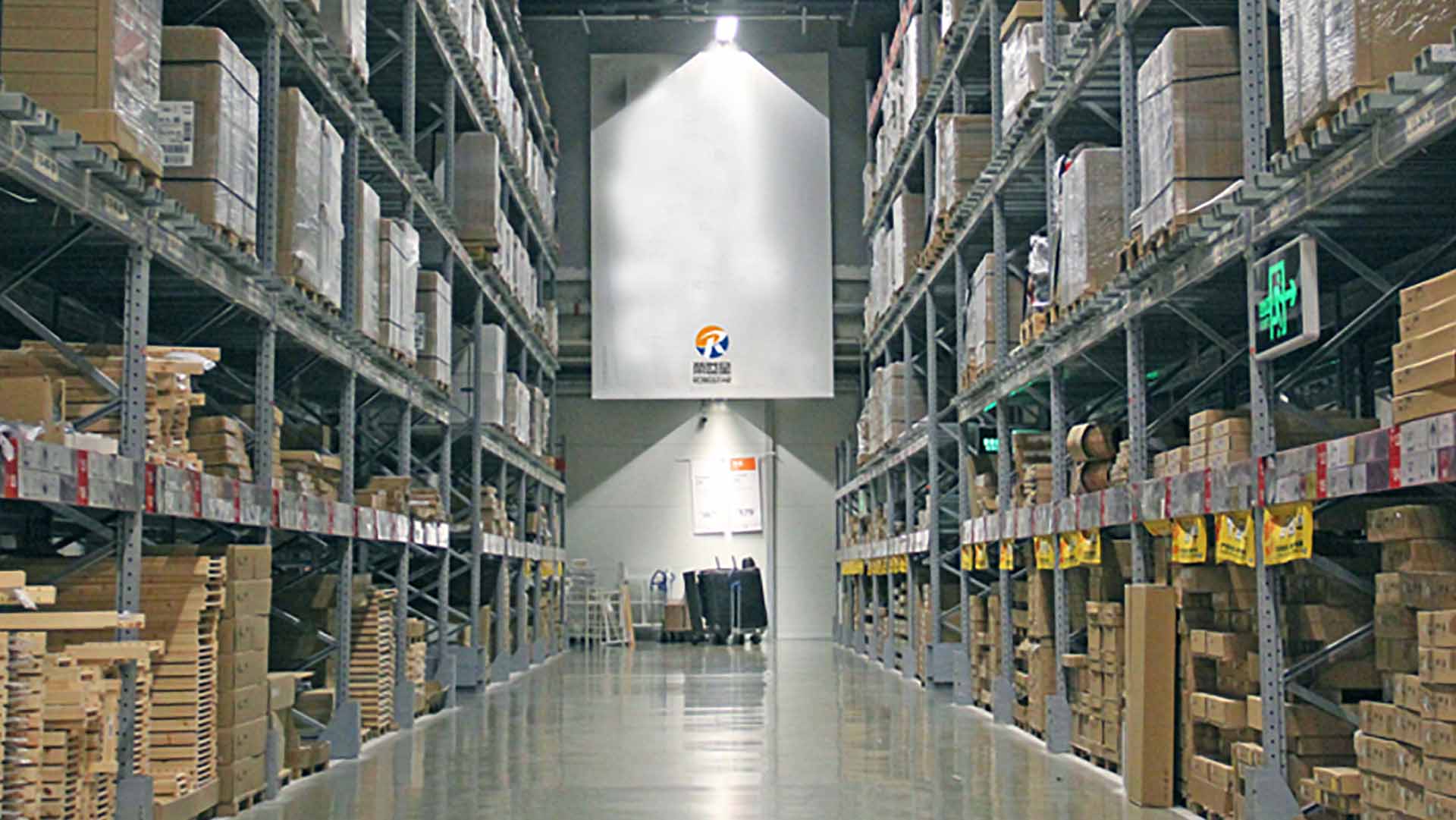

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
