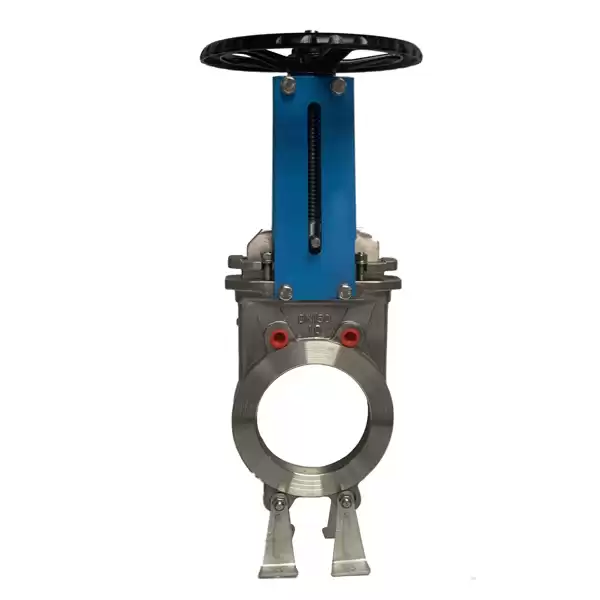

Risting Stem Knife Gate Valve DN150 PN10 CF8

MSS SP-81 Knife Gate Valve

DN150,PN10, CF8, SS304+EPDM, Gear Box

Manufacture STAVAL Factory Offers.


  • SeatSoft Seat, Metal Seat
  • End ConnectionWafer, Flange, Lug
  • ConstructionRising Stem, Non Rising Stem
  • Material RangeCarbon/Stainless/Alloy Steel,Bronze, Cast Iron
  • Pressure Range150LB ~ 300LB (PN10 ~ PN16)
  • Size Range2Inch ~ 80Inch (DN50 ~ DN2000)

Key Specification

Type

Knife Gate Valve

Size

DN150

Pressure

PN10

Construction

 Rising Stem, Bolt Bonnet

Connection

RF End

Body/Bonnet Material

CF8

Knife Material

SS304

Stem Material

A276 SS304

Seat Material

EPDM

Bolt/Nut

B7/2H

Design Standard

MSS SP-81

Face to Face Dimension

MSS SP-81

End Connection

ASMEB 16.5

Inspection & Test Std.

MSS SP-81

Temperature Range

-29℃~+80

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
