Road Construction Land Greening Drainage Plate Specifications:
| Item No. |
MP-S25A |
MP-S25B |
MP-S25C |
| Color |
Light green |
Dark green |
Black |
| Picture |
 |
 |
 |
| Size(mm) |
333x333x25 |
333x333x25 |
333x333x25 |
| Unit weight(g/m2) |
3150g/m2 |
3150g/m2 |
3150g/m2 |
| Material |
HDPE |
HDPE |
HDPE |
| Pressure strength(Kpa) |
1000KN |
835KN |
734KN |
| Hardness |
135 |
113 |
92 |
| Water Drainage |
95% |
95% |
95% |
| Vertical Circulating Capacity(cm3/s) |
30cm3/S |
30cm3/S |
30cm3/S |
| Loading Capacity |
1100SQM=1x20FT CONTAINER
2233SQM=1x40FT CONTAINER
2533SQM=1x40FT CONTAINER
|
1100SQM=1x20FT CONTAINER
2233SQM=1x40FT CONTAINER
2533SQM=1x40FT CONTAINER
|
1100SQM=1x20FT CONTAINER
2233SQM=1x40FT CONTAINER
2533SQM=1x40FT CONTAINER
|
| Package |
18pcs/bundle, 0.06m3/bundle |
18pcs/bundle, 0.06m3/bundle |
18pcs/bundle, 0.06m3/bundle |
| MOQ |
1x20FT CONTAINER |
1x20FT CONTAINER |
1x20FT CONTAINER |

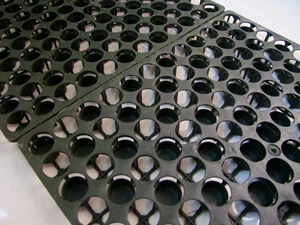

LEIYUAN Water Drainage Cell Panel to replace the drainage layer pebbles treatment not only save time,effort and energy, saving investment, but also reduce the load of the building. Good Drainage system for normal use and life cycle of civil construction and the building has an important role. Long and short cylindrical Drainage cell panel and geotextiles to form a drainage system, to form a water seepage, water and drainage systems.
Plastic Drainage Cell Panel light of its own weight, the roof structure will not increase the load. 100% recycled, not cause secondary pollution to the environment. Loading capacity per square can reach 80 tons weight, suitable for create a variety of landscape
Features and Benefits:
- Lightweight
- High compression strength
- Seepage proof
- Available in different sizes
- Cost save
- Water drainage and storage
- Easy installation
- No surface drains required
- Reduces surface temperature around building
- High load bearing 148.58t/m2 unconfined
- Replenishes water supply to landscaped areas
- Unique and easy to use interlocking system
- Promotes fast and excellent plant growth
- Strong structure can support heavy loads
- Retains a minimum of approximately 76L/m2 of perched water above the cells
HDPE Drainage Cell Application:
Roof greening
Bridge abutments
Underground
Road
Tunnels
Play ground
Retaining walls
Golf courses water drainage
Fire truck access paths
Fire lanes
Golf buggy
Trolley paths
Modern factory building
Noble living communities
Emergency vehicle access roads through fields
Plastic Drainage Cell Panel Construction:
Projects View:
Leiyuan Strength drainage cell panel: Good water feature, Long life service！
