SLR Bike Road Carbon Wheels
Key Features The Middle End Road Wheels

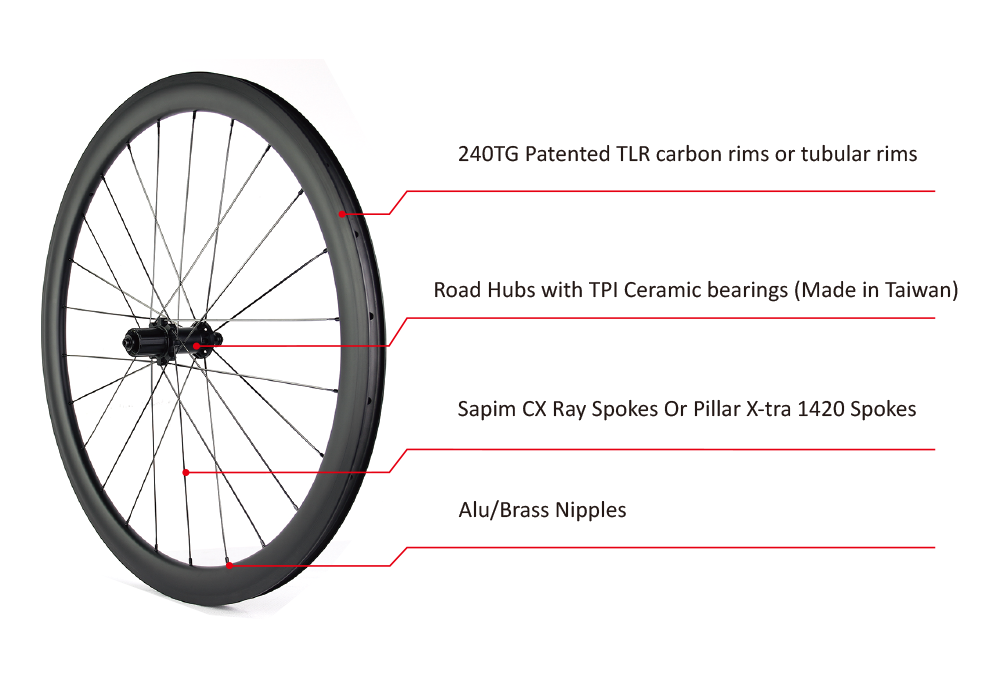

Road TLR carbon rims with patented resin formula, less than 0.1% braking failure
Patented layup schedule to allow as high as 180psi tire pressure
Easy tire mount and tubeless ready design
Aerodynamic profile design
Ceramic carbon racing wheels
WHEELS SPECS
|
Rim
|
700C RIM BRAKE TUBULAR FOR AERO&PERFORMANCE ROAD BIKES 33/44/55/88 mm Tubular Carbon Rims
700C HTG RIM BRAKE CLINCHER FOR AERO&PERFORMANCE ROAD BIKES 33/44/55/88 mm Clincher Carbon Rims
|
|
Hub
|
SLR Straightpull hubs (available in steel bearings and ceramic bearings)
Front 18h 5/100mm QR Rear 24h 5/130mm QR Shimano 11S, Campy 11S
|
|
Brake
|
Rim Brake
|
|
Spoke
|
PSR1420/CX-Ray 4.2g/PC
|
|
Nipple
|
External/internal alu nipples or brass nipples
|
|
Service Kit
|
Skewers & brake pads
|
|
Max.system weight
|
110-130 kg
|
|
Model (weight with CX Ray Spokes)
|
All Weight is w/t 5% tolerance
|
|
SLR-WTD33T (1183g)
|
SLR-WTD44T (1263g)
|
SLR-WTD55T (1323g)
|
SLR-WTD88T (1583g)
|
|
SLR-HTG33C (1483g)
|
SLR-HTG44C (1563g)
|
SLR-HTG55C (1623g)
|
SLR-HTG88C (1883g)
|
700C SLR ROAD WHEElS
|
 Rim SLR 700C Rim Brake
The most heat resistant and aerodynamic clincher rim for road rim brake, recommended for 700*25C tubeless tires,
also compatible with inner tubes.
 UD Matte Finish
 33/44/55/88 mm Tubular Carbon Rims
33/44/55/88 mm Clincher Carbon Rims
|
|
 Hub SLR Straightpull hubs
We use SLR Straightpull star rachet system, which supplies the most stable performance and best riding experience.
Front 20h 5/100mQR
Straight pull
Rear 24h 5/130mm QR Shi-mano 11S, Campy 11S
|
|
 Spoke PSR1420/CX-Ray
The lightest flat spoke from PSR1420/CX-Ray with aerodynamic characteristics and a very high stability.
super light weight, only 4.2g/pc
highest quality 18/10 stainless steel
patented cold forged technology to harden
the spokes and retains good ductility.
special precise process to shape the head
and thread provides additional material strength
|
|
 Nipple External/internal
External/internal alloy nipples or brass nipples
super light weight, only 0.4g/pc
patented pro lock technology prevent the
spoke-nipple connection from loosening.
highest quality material material and processing technology make a super finish and hard nipple,
without damages in wheel-building
|
|
 Rim Tape Tubeless Rim Tape
made in taiwan, high quality puncture-proof TPU tape for tubeless tires or normal clincher tires.
Eco-friendly TPU material passes EU standards
temperature range:-20 degree
|
|
 Brake pad Carbon Brake Pad
This is the best nipple from DT swiss with a pro Lock patented technology
super light weight, only 0.4g/pc
patented pro lock technology prevent the
spoke-nipple connection from loosening.
highest quality material material and processing technology make a super finish and hard nipple,
without damages in wheel-building
|

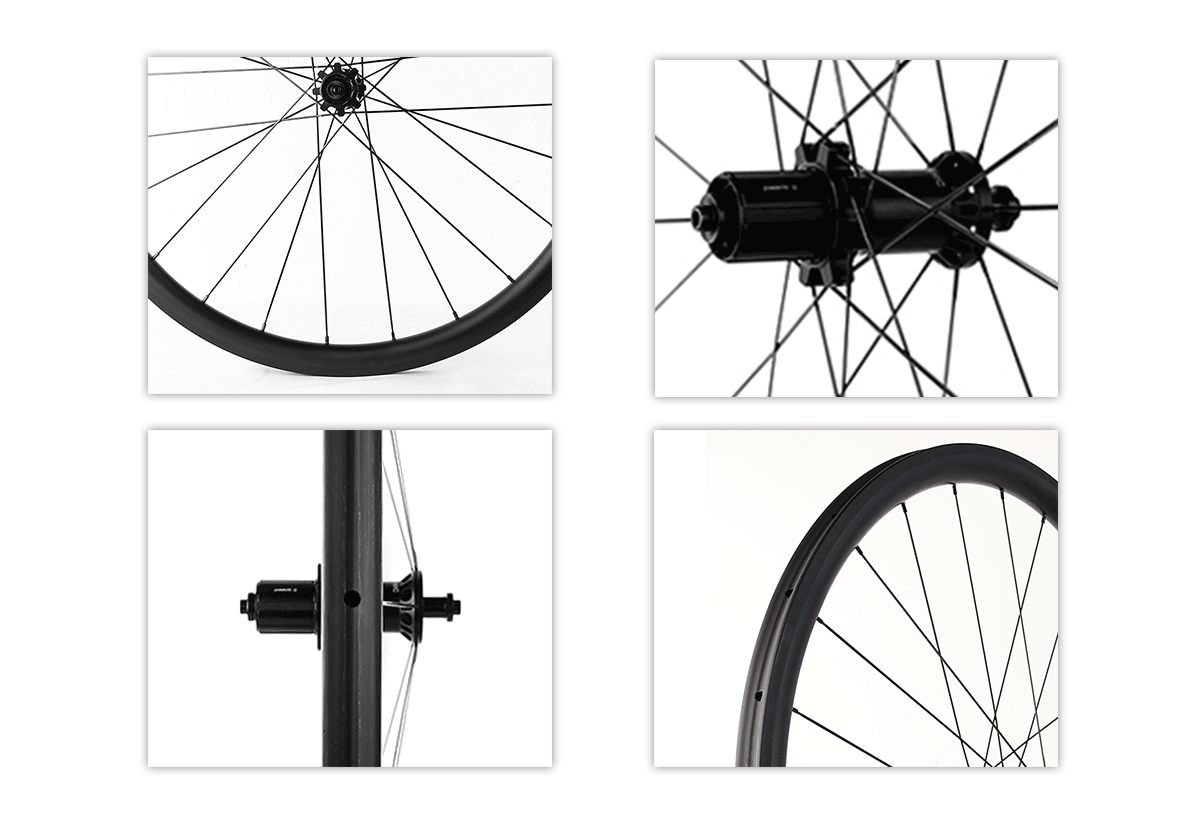

Product Pictures
Hand-built High Precision Carbon Wheels
Wheel Building Technology
All wheels are built in high precision machines via spoke tension trueing by Holland Mechanics Pro Truer.
The perfect allocation of spoke tension in every single spoke in
combination with a comparatively high spoke tension gives many advantages:
- higher radial, lateral and torsional stiffness
- less spoke tension loss over time
- longer durability
- less maintanance efforts like retrueing
Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
