Road Sweeper Kit
Street Sweeping Kit
Function:
Road Sweeper Kit (also called as Street sweeper kit, brush road sweeper kit, vacuum road sweeping system, Sweeper truck kit, road sweeper up structure, sweeper vehicle up body, Road sweeper truck accessory, Sweeper truck body structure) This Street sweeper kit has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working.
Specifications:
|
Street Sweeping Kit
(4 CBM dustbin + 1 CBM water tank)
|
|
General
|
Kit Brand
|
POWERSTAR
|
|
Chassis Brand
|
ISUZU, Hino, Nissan (Any brand)
|
|
Overall Dimension
|
According to Design
|
|
Chassis
|
Drive Type
|
4X2,6x4 (left hand drive or Right hand drive)
|
|
Tech Drawing
|
Necessary
|
|
Wheelbase/No. of axle
|
From 2600 mm to 5000 mm / 2
|
|
Tire Specification
|
7.00-16
|
|
Superstructure
|
Operation Panel
|
English
|
|
Dustbin Capacity
|
4 CBM (can be
optional)
|
|
Dustbin Material
|
Stainless Steel
|
|
Water Tank volume
|
1,000 Liters (can be
optional)
|
|
Water Tank Material
|
Stainless Steel
|
|
Sweeping Capacity
|
45,000 m³/h
|
|
Sweeping Speed
|
3-15 km/h
|
|
Max Sweeping Width
|
2800 mm~3500 mm
|
|
Brooms
|
2 sets at each side
|
|
Sweeping efficiency
|
≥96%
|
|
Garbage dump angle
|
50°
|
|
Max suction capacity
|
Suction density 2.0g/cm3
Suction fineness 100mm
|
|
Auxiliary Engine
|
ISUZU engine
77 HP (57 KW), super powerful
|
|
All standard accessories: Warning
lights, music alarm, basic tool kit, English manual……
|
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language
|

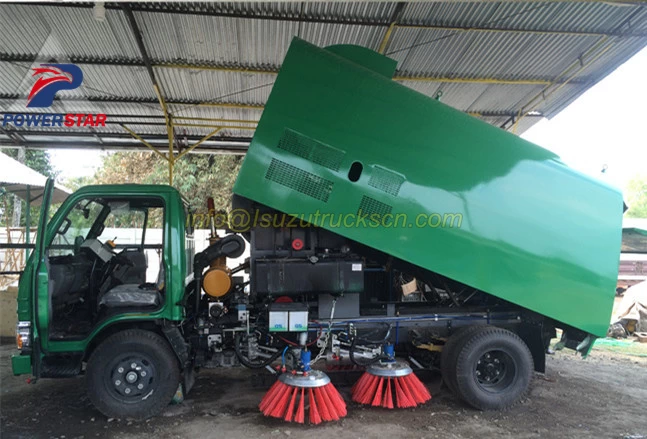

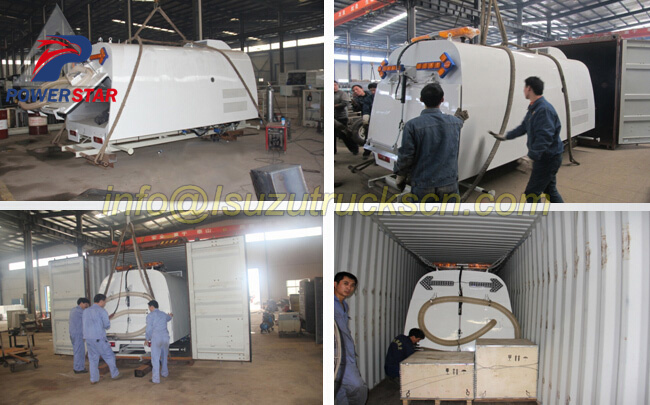

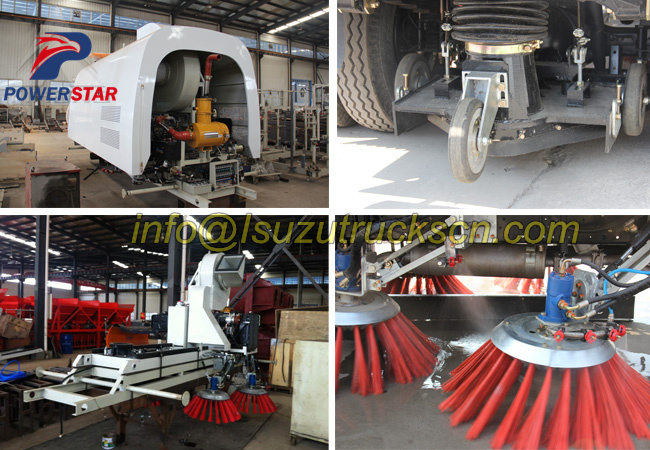

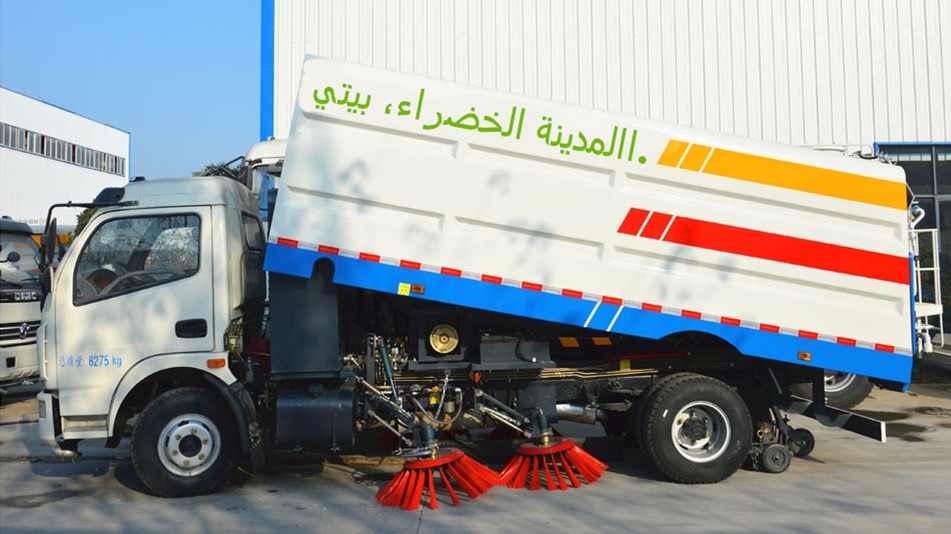

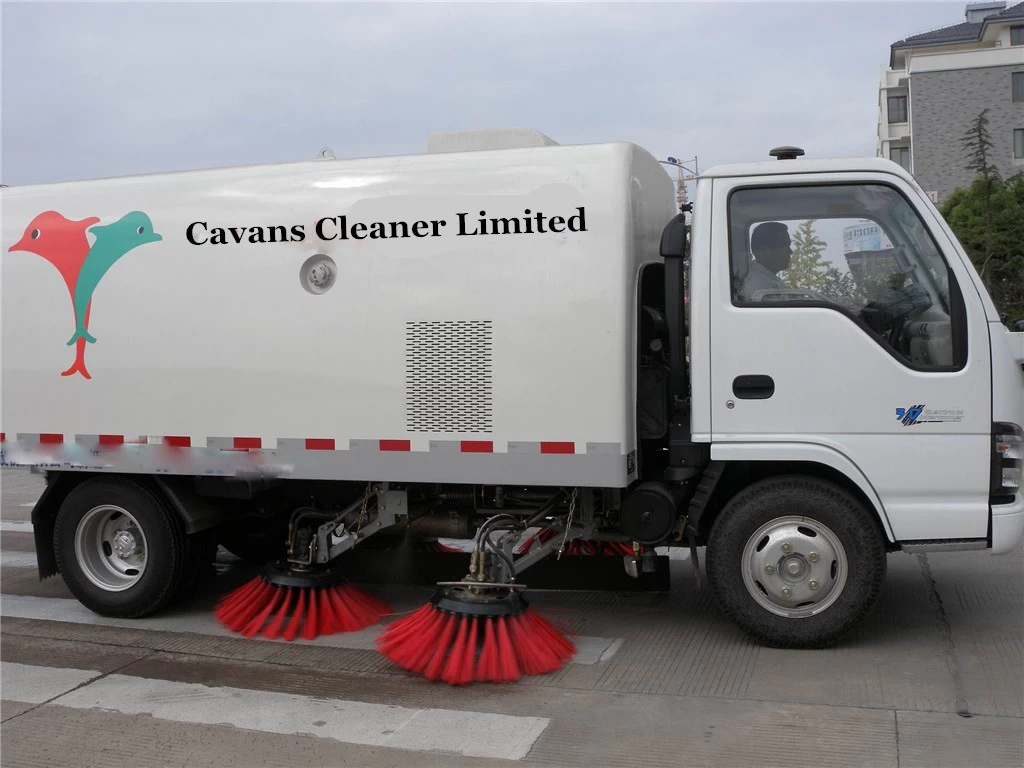

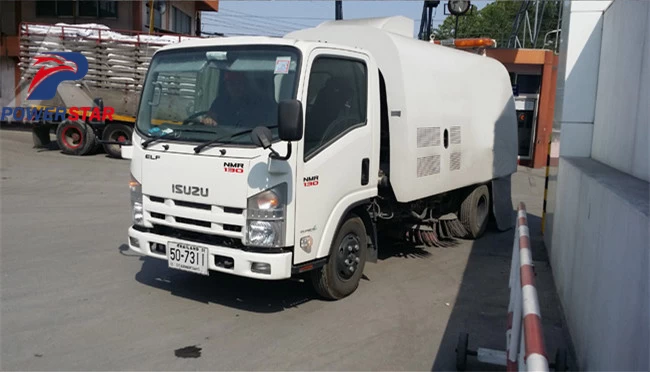

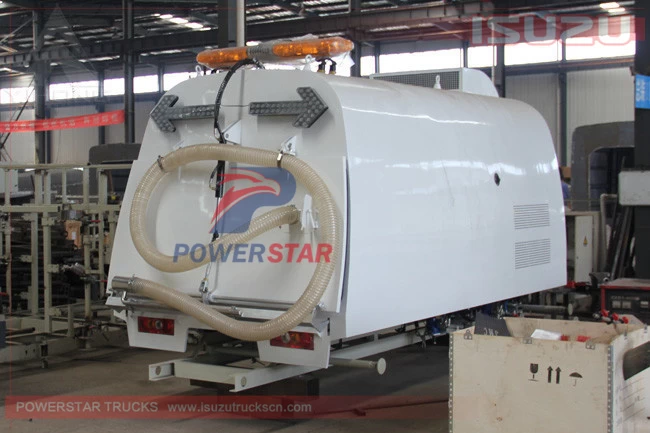

Detail Images

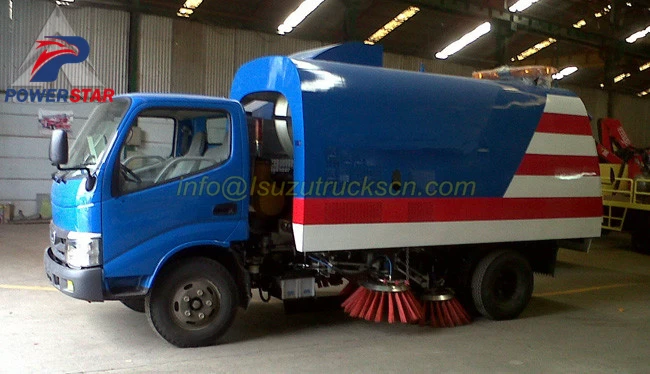

Street Sweeping Kit

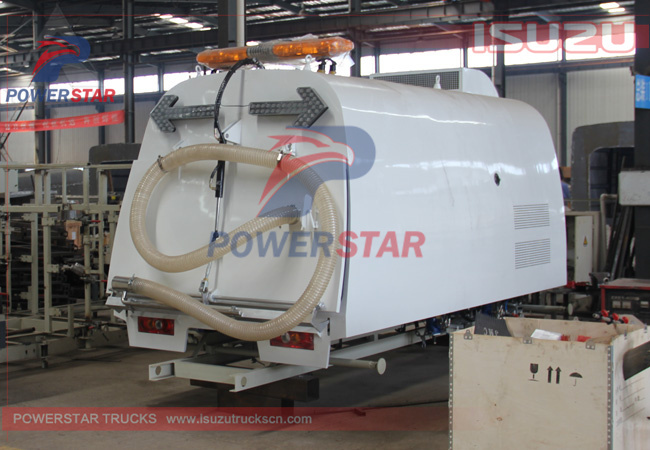

Street Sweeping Kit

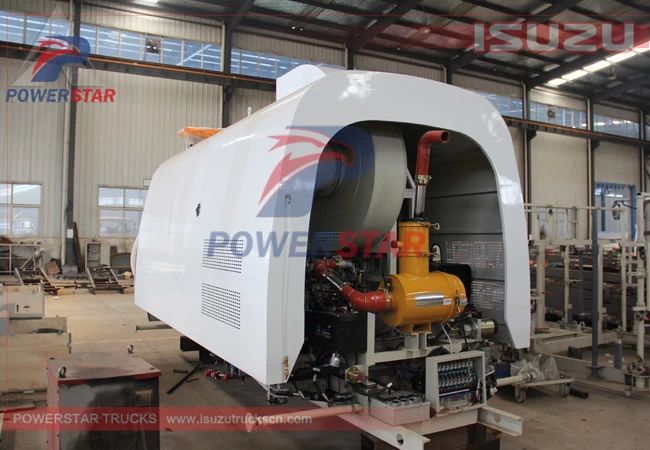

Street Sweeping Kit
World Clients inspection Powerstar Road Sweeper Truck
Road sweeper kit case for study
