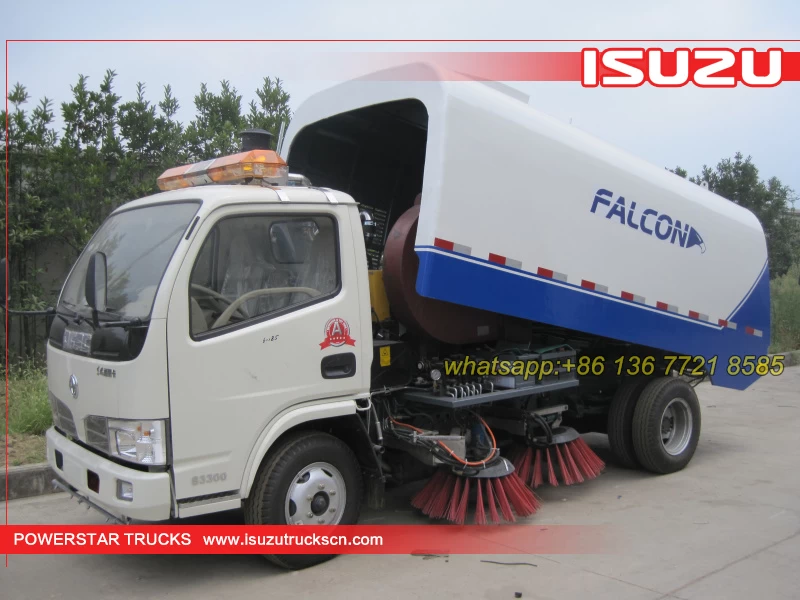

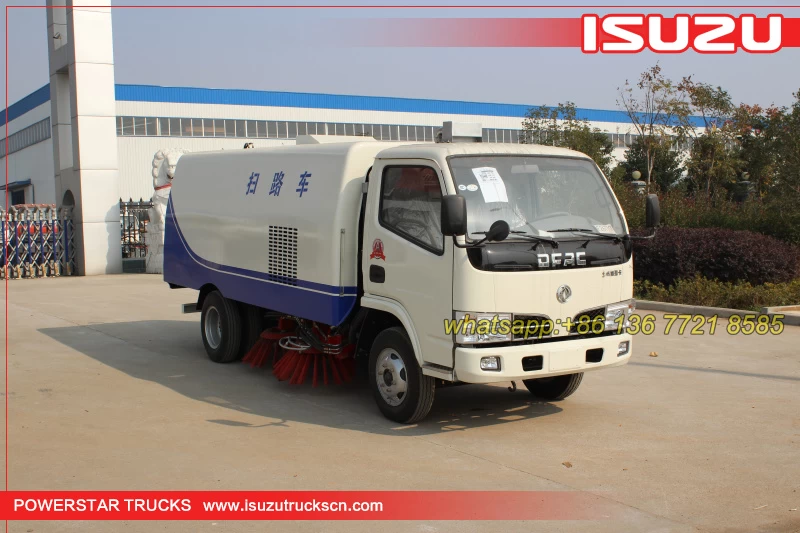

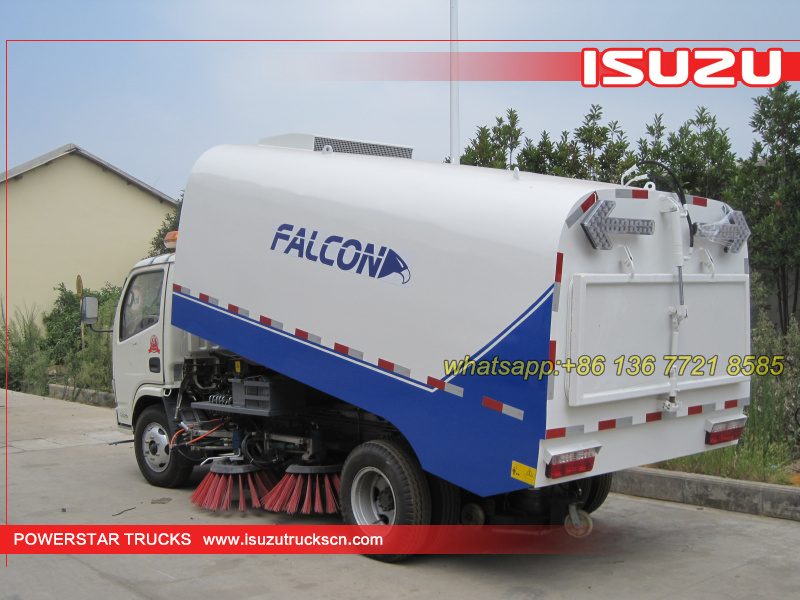

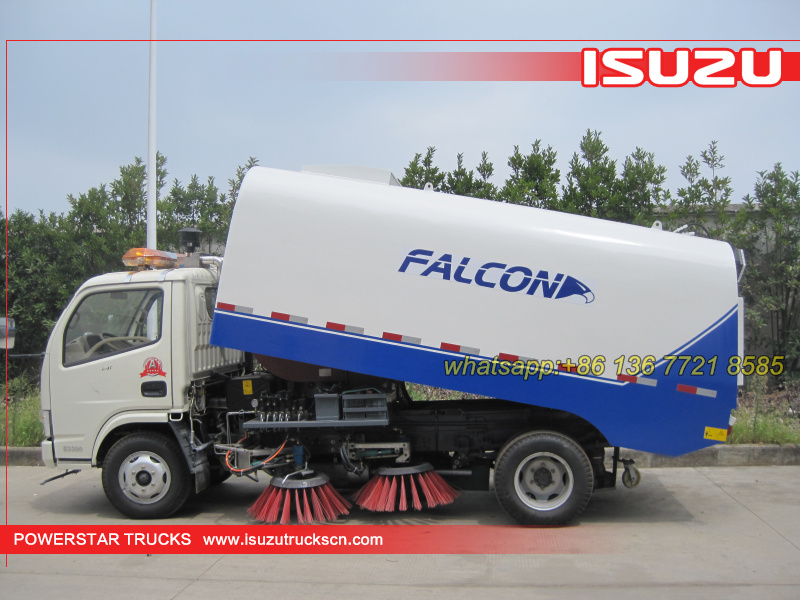

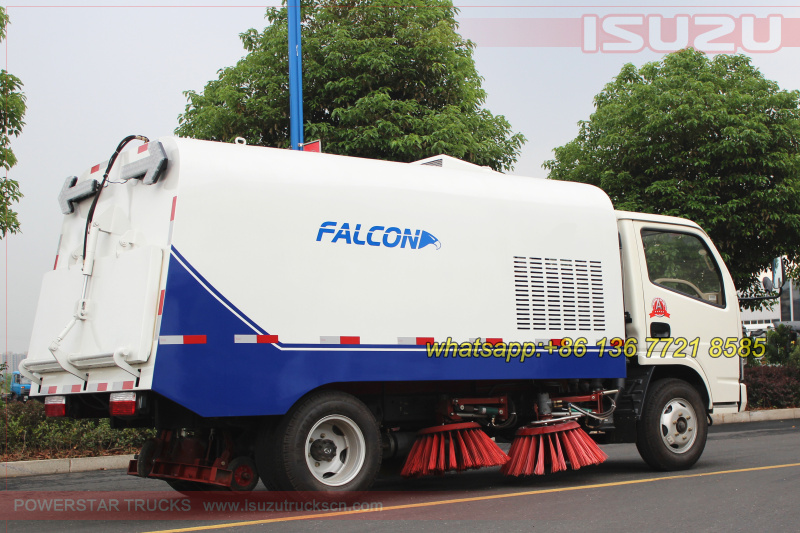

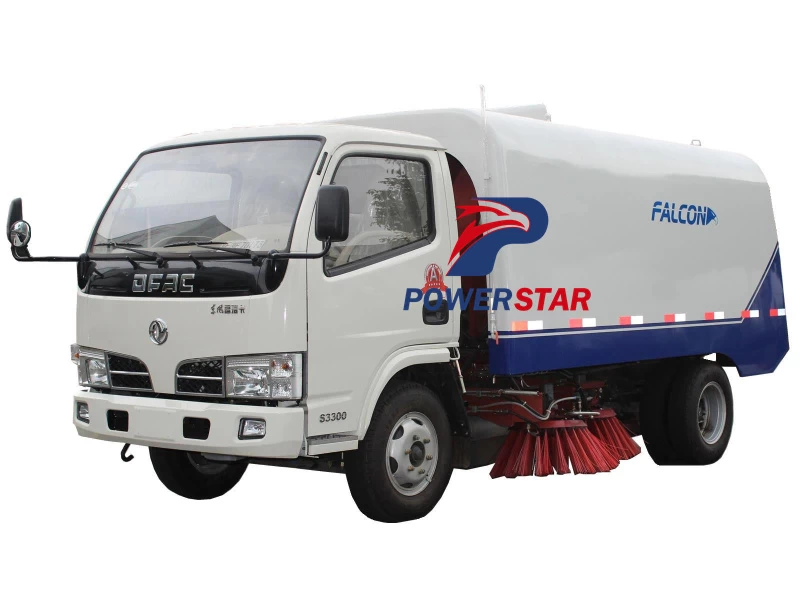

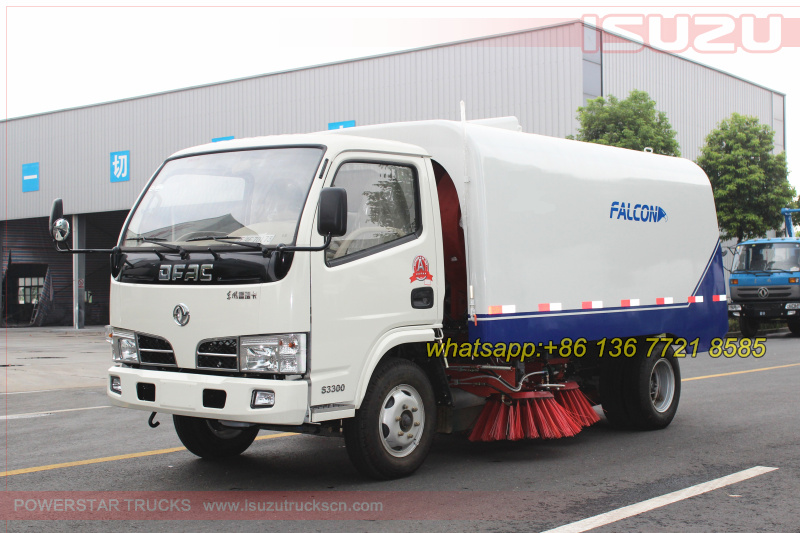

Street Sweeping Trucks DongFeng
Function:
Road Sweeper truck Dongfeng (also called as street sweeper truck, road sweeping vehicle, vacuum raod sweeper, multi functional road sweeper, dustbin road sweeper truck, sweeper trucks) This Isuzu street sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working.
Specifications:
Street Sweeping Truck DongFeng
(4 CBM dustbin + 1 CBM water tank)
|
General
|
Vehicle Brand
|
POWERSTAR
|
Chassis Brand
|
DONGFENG
|
Overall Dimension
|
5930 * 2000 * 2490 mm
|
GVW / Kerb Weight
|
8,000kg / 4,890kg
|
Cab
|
Cab Capacity
|
2 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
CHAOCHAI
|
Power
|
95 HP (70 KW)
|
Displacement
|
3856 ml
|
Emission Standard
|
Euro IV or V
|
Chassis
|
Drive Type
|
4X2, (left hand drive or Right hand drive)
|
Transmission
|
DFS 5 speed levers with 1 reverse
|
Wheelbase/No. of axle
|
3300 mm / 2
|
Tire Specification
|
7.00-16
|
Tire Number
|
6 tires and 1 spare tire
|
Max Speed
|
95 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Dustbin Capacity
|
4 CBM
|
Dustbin Material
|
Stainless Steel
|
Water Tank volume
|
1,000 Liters
|
Water Tank Material
|
Stainless Steel
|
Sweeping Capacity
|
45,000 m³/h
|
Sweeping Speed
|
3-15 km/h
|
Max Sweeping Width
|
3000 mm
|
Brooms
|
2 sets at each side
|
Sweeping efficiency
|
≥96%
|
Garbage dump angle
|
50°
|
Max suction capacity
|
Suction density 2.0g/cm3
Suction fineness 100mm
|
Auxiliary Engine
|
ISUZU engine
77 HP (57 KW), super powerful
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
Detail Images
 |
|
 |
One man easy control in Cab
|
|
Simple structure |
 |
|
 |
English Control panel
(can be your language)
|
|
High-performance air blower |
 |
|
 |

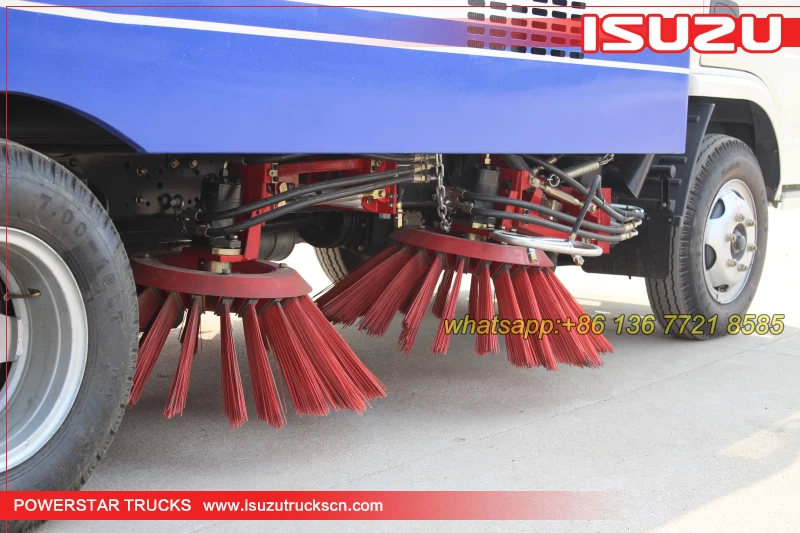

| Side brush (80mm) |
|

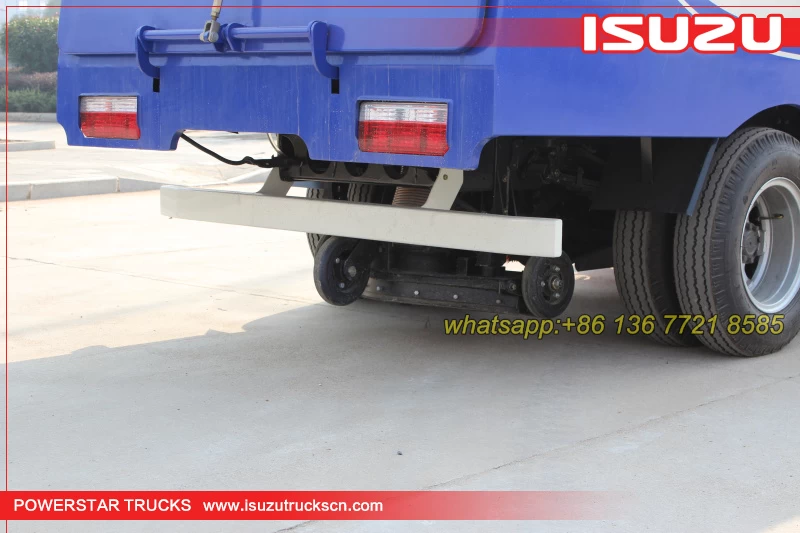

Suction port |
