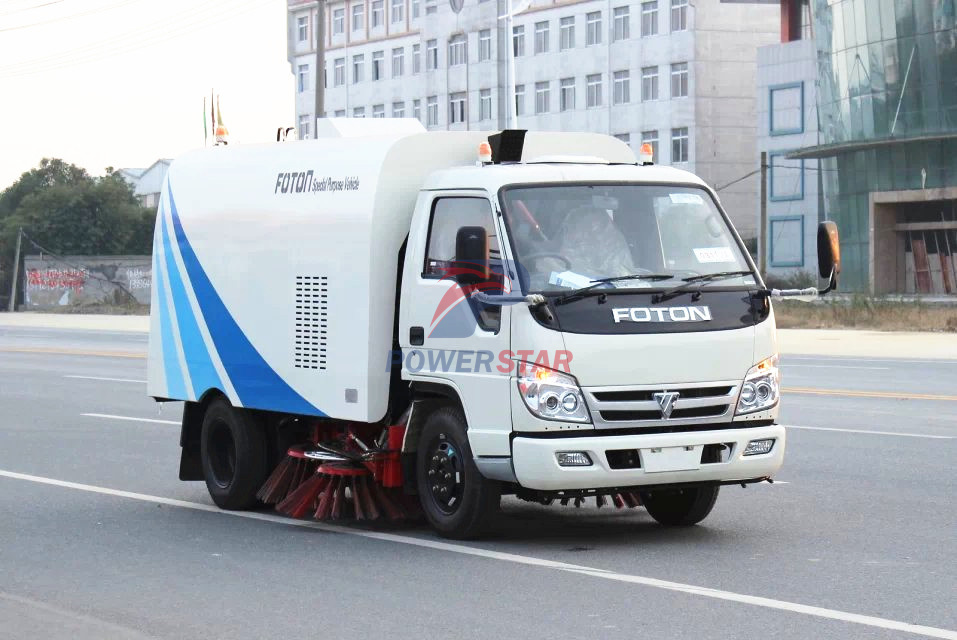

Right hand drive Road Sweeper Vehicle FOTON
Function:
Road Sweeper vehicle FOTON Forland (also called as road cleaning truck, road sweeper truck, street cleaning truck, truck mounted sweeper, road cleaner sweeper, street sweeping truck, vauum road sweeper truck, brush sweeper truck) This sweeper trukc has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working.
Specifications:
Street Sweeping vehicle FOTON
(4 CBM dustbin + 1 CBM water tank)
|
General
|
Vehicle Brand
|
POWERSTAR
|
Chassis Brand
|
FOTON (forland)
|
Overall Dimension
|
6130 * 2000 * 2490 mm
|
GVW / Kerb Weight
|
8,000kg / 4,890kg
|
Cab
|
Cab Capacity
|
2 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
XICHAI 490
|
Power
|
78 HP or 108 HP
|
Displacement
|
2771 ml
|
Emission Standard
|
Euro 2 or 3
|
Chassis
|
Drive Type
|
4X2, (left hand drive or Right hand drive)
|
Transmission
|
5 speed levers with 1 reverse
|
Wheelbase/No. of axle
|
3360 mm / 2
|
Tire Specification
|
7.00-16
|
Tire Number
|
6 tires and 1 spare tire
|
Max Speed
|
95 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Dustbin Capacity
|
4 CBM
|
Dustbin Material
|
Stainless Steel
|
Water Tank volume
|
1,000 Liters
|
Water Tank Material
|
Stainless Steel
|
Sweeping Capacity
|
45,000 m³/h
|
Sweeping Speed
|
3-15 km/h
|
Max Sweeping Width
|
3000 mm
|
Brooms
|
2 sets at each side
|
Sweeping efficiency
|
≥96%
|
Garbage dump angle
|
50°
|
Max suction capacity
|
Suction density 2.0g/cm3
Suction fineness 100mm
|
Auxiliary Engine
|
ISUZU engine
77 HP (57 KW), super powerful
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
Detail Images
 |
|
 |

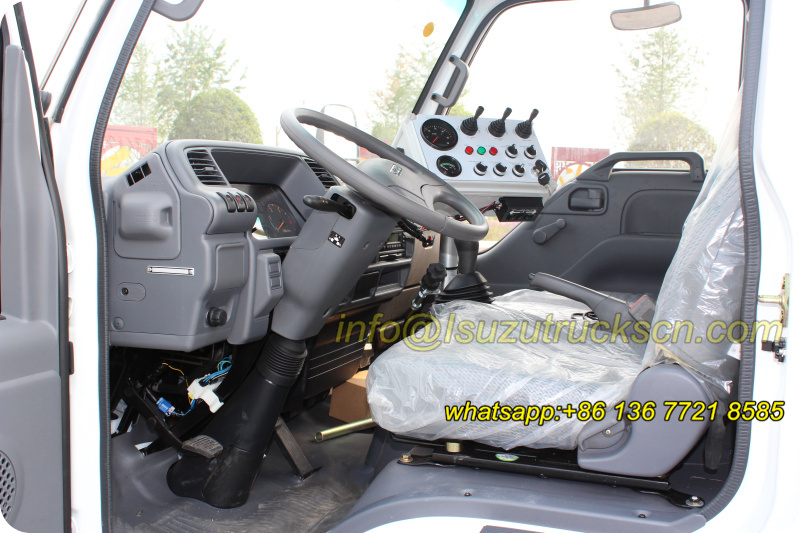

One man easy control in Cab
|
|

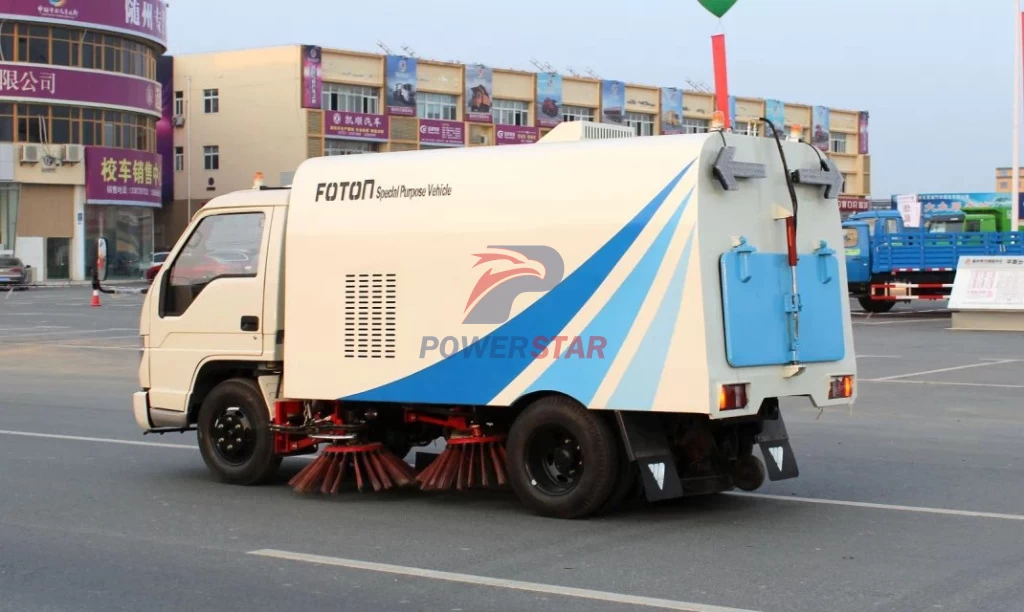

Simple structure |
 |
|
 |

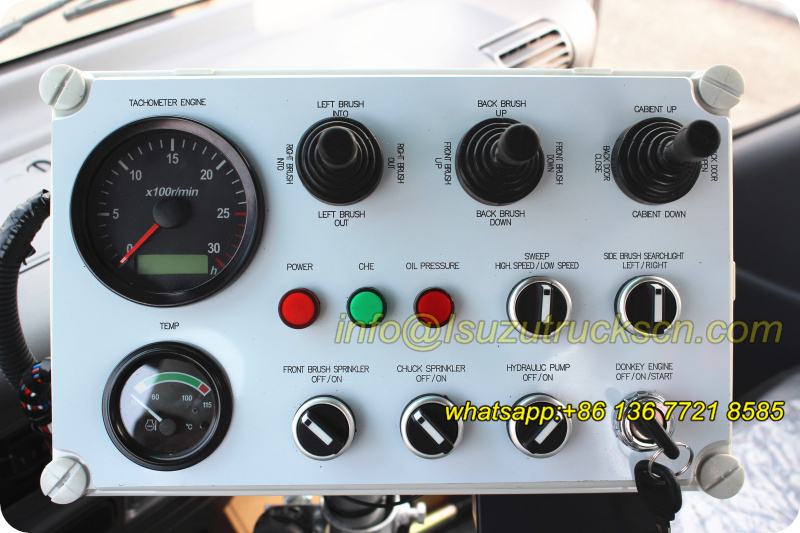

English Control panel
(can be your language)
|
|

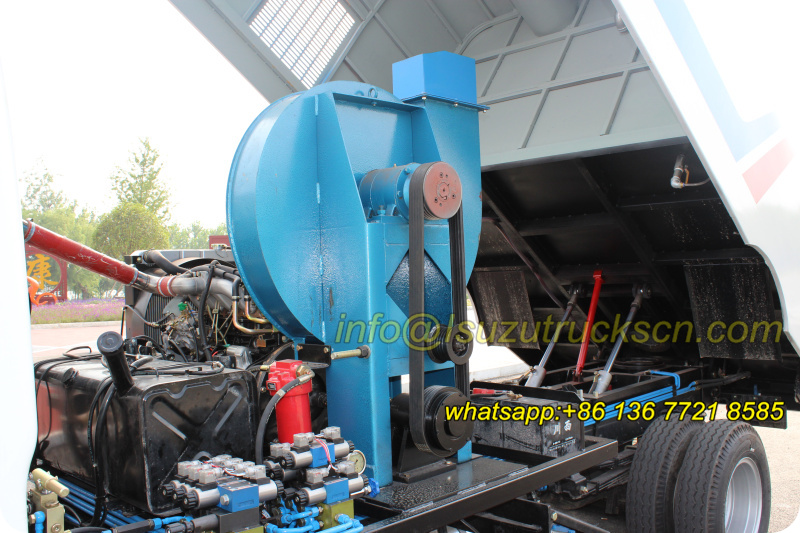

High-performance air blower |
 |
|
 |

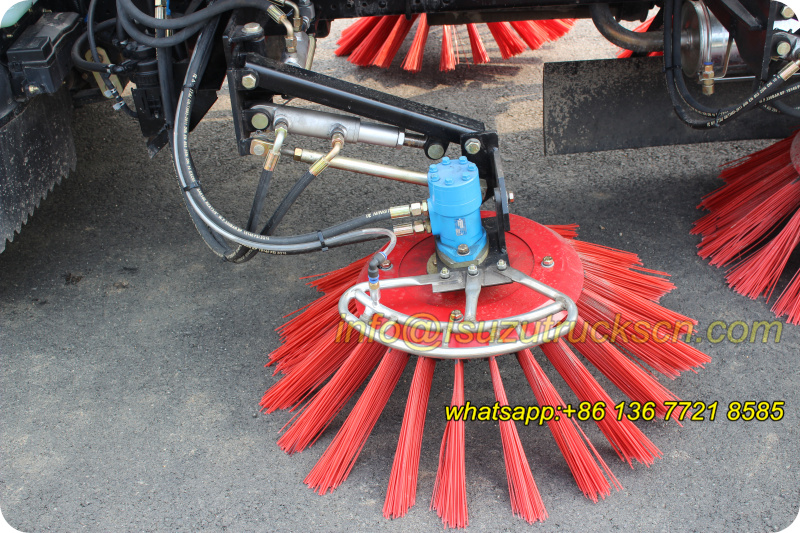

| Side brush (80mm) |
|

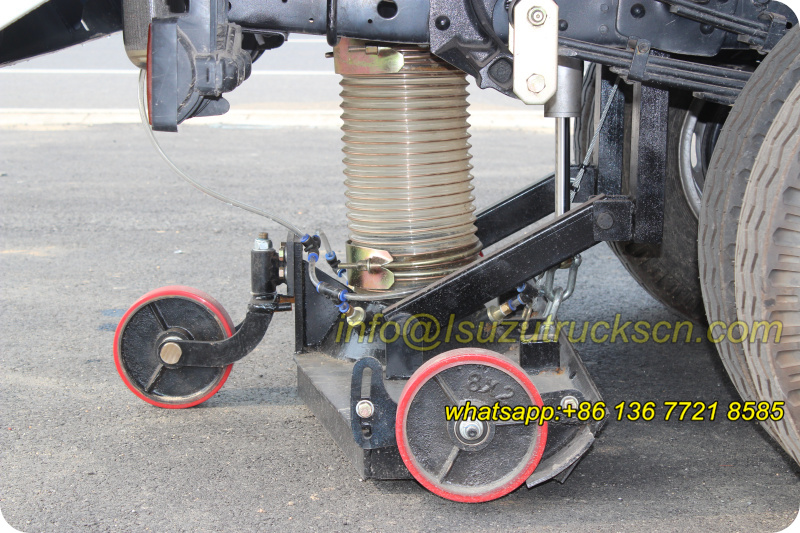

Suction port |
