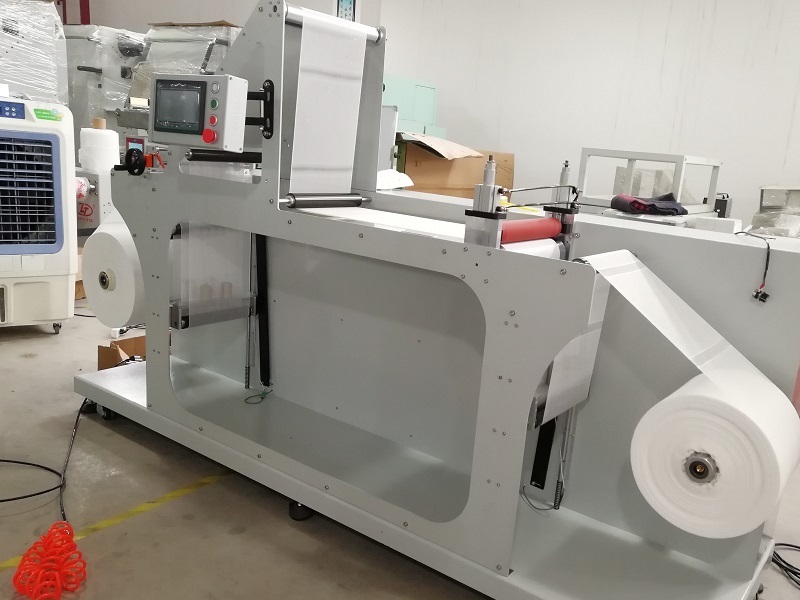

Roll Rewinding Machine

This customized Doctoring Rewinding Machine used for the medical gauze rewinding under the consistent tension by a Japanese professional enterprise.



Description details for OEM Doctoring Rewinding Machine

1. The feeding tension and rewinding tension are required to be consistent (range: 1-50 kg )

2.Increase the display screen to easily set the running line speed and the sliding distance during the stop

3.Servo control system ensuring perform the shutdown operation to avoid inertia recoil in high-speed operation


Special Specification for the table top Rewinding Machine

Speed :100 m / min

Power Supply: 380 v, three-phase, 2.5 kW

Roll diameter: Up to 800 mm

Core Diameter – 3” Unwind to 3” Rewind

Allowable weight: 80 kg

Three motors and frequency inverter

Gross Weights: 650 kg

Machine size : 900 x 1700 x 2700 mm

Features for the Aluminum Foil Rewinding Machine

  • The Meter Counter
  • Uniform speed function
  • Automatic tension control
  • Dust removal function
  • inspecting bench
  • Electrostatic removal
  • web guiding device

Detail images for the Doctoring Rewinding Machine

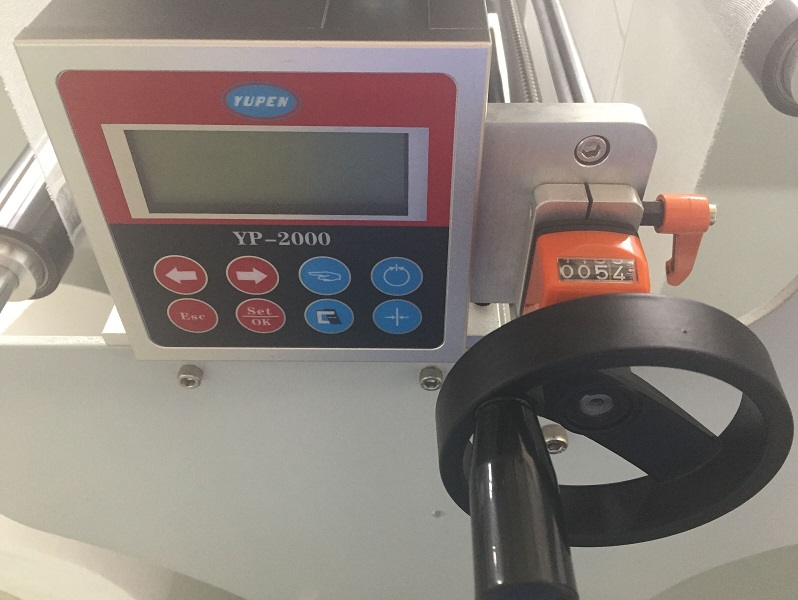

 Deviation Correction distance controller for the deviation-correction Rewinding Machine

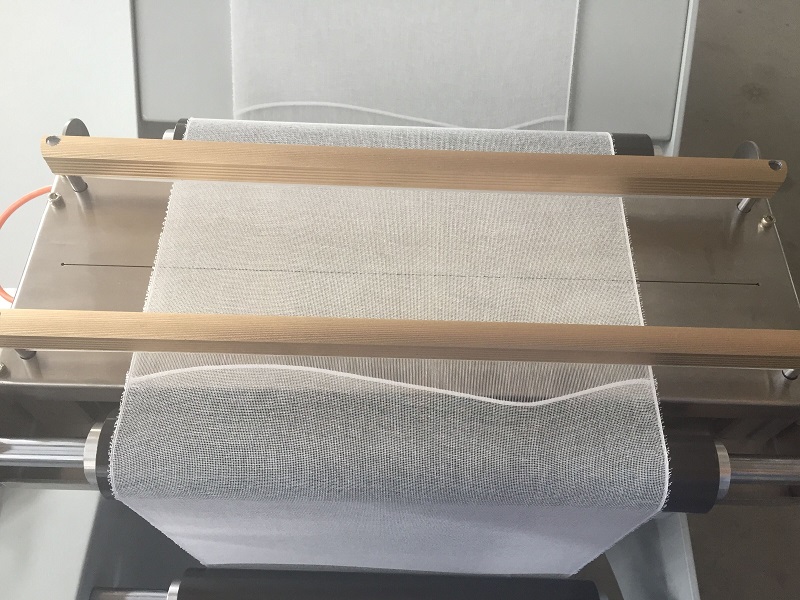

Anti-scratch Splicing Station



What're your demands of the Roll Rewinding Machine?

What's your special material do you rewind?
