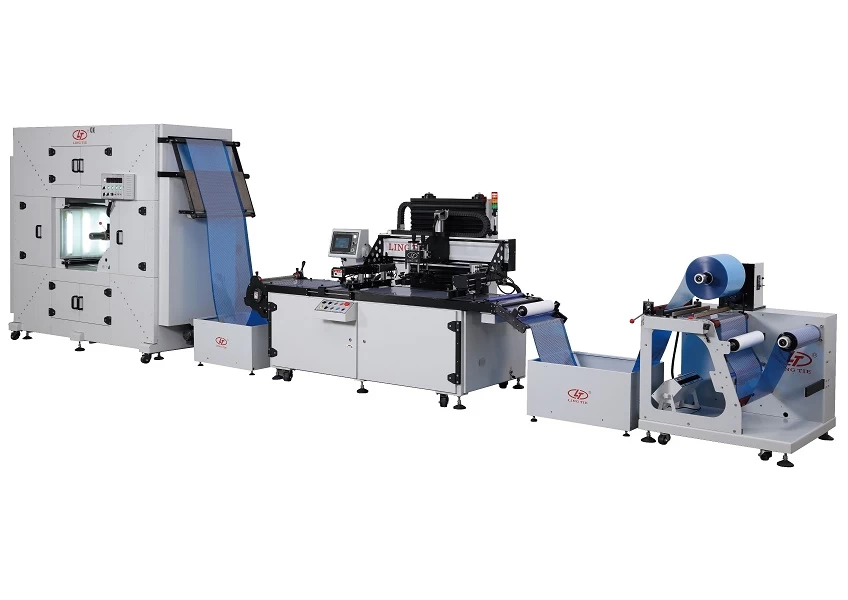

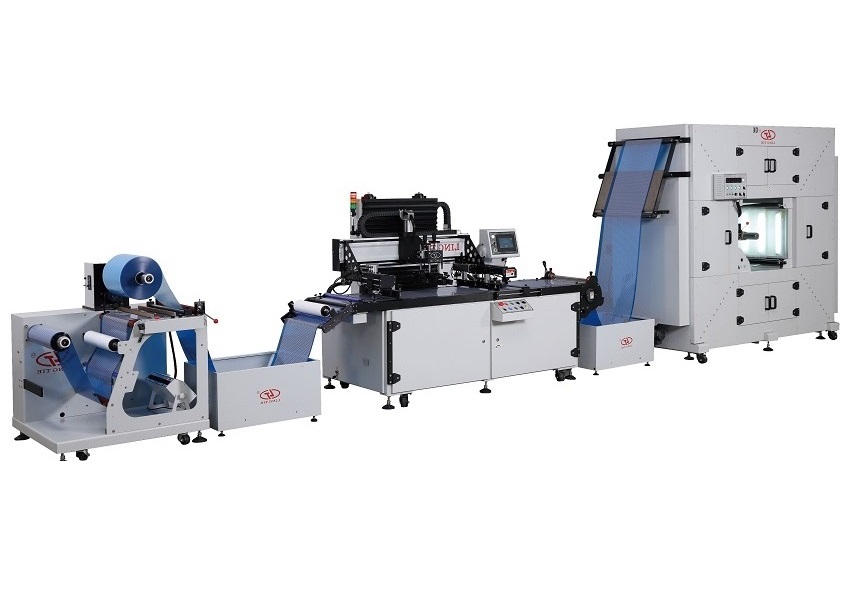

Product Name: Roll to Roll Automatic Screen Printing Machine

1) Air shafts for unwinding and rewinding of printing materials.
2) The machine with tension control, dust cleaning, static eliminator, protective film peel off, web-guide. Hole punch and laminator available for option.
3) Splicer for easy film connection, film pitch feeding and printing head stroke by servo-motors with high precision.
4) Vacuum table, aluminum frame vertical up-down by pneumatic, automatic correct operation reminding when an error occurs.
5) Automatic register system with high precision, automatic stop when film material run out.
6) 3 sensors for the automatic register in X-Y directions and Mitsubishi PLC for machine control.
7)Printing head horizontal movement by Yaskawa servo motor to keep printing high precision.

Application:

1, Roll to roll automatic screen printing machine is a professional equipment for packaging industry (such as wine box, gift box, cosmetics boxes, paperboard printing), electronic processing industry, printing circuit board logo, instrument panel logo, computer keyboards, polyester film, adhesive composite surface, printing a variety of graphic, reflective materials, printing transparent color logo.

 2, it is also widely used in PET, PVC, PC, to warm the film, electric film, transfer film, transfer paper, other different thickness paper, nameplate panel, PCB / FPC, cell phone buttons, 3M glue, membrane switch, Solar cells, glass, trademark laser, scratch cards, stickers and other materials, screen printing and IMD / IML in-mold decoration plastics and other industries.

Specification

• Max.web width   720 mm
• Max.printing size    700 x 600 mm
• Max.aluminium frame size    1000 x 1000 mm
• Printable Substrate thickness     0.02--0.5 mm
• Printing speed range    0--2500 impression/h
• Air Source           0.4-0.6 mpa
• Powder 220v, 3KW, 15A
• Dimensions 3000 x 1400 x 1700 mm

FAQ

Are you a factory or a distributor in China?

• We are a professional factory for 15-years

2, What kind of ink does your screen printing machine use?

• All kinds of ink can print, like the solvent ink, water-based ink and plastical

3, What's your full automatic screen printing machine speed?

• 10-20 meter/ minute & 600-1200 meter/ hour

4, How many kinds of material could be printed on?

• Film & paper is OK, such as PET, PVC, PE, BOPP, PP

5, What's the material thickness & breadth range?

• the thickness range: 0.02 -0.5 mm
• the breadth range: 310-1600mm

6,  What other kinds of service can you offer?

• We can offer screen film, screen ink supplier and various ancillary equipment and accessories
• After-sales service is maintenance, not repair
• High requirement and High demand label, you can give to Lingtie Brand fully automatic screen printer
