Roller Working Length 300mm and 600mm, Hydraulic Three Roller Mill Machine Suitable for Various Viscosity Material with Optional Alloy and SiC Roller Material

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164



  • Warranty Two years limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

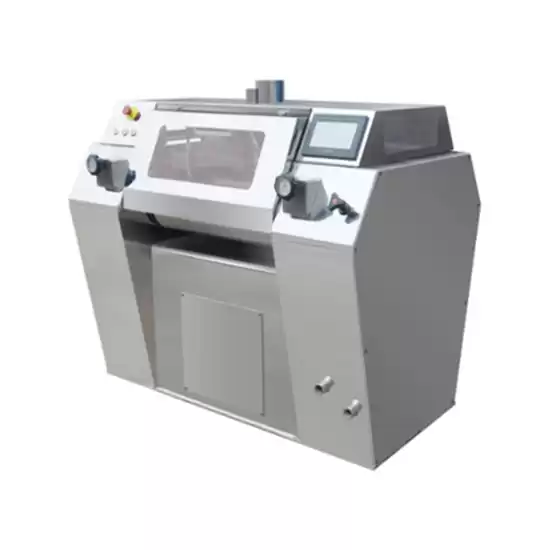

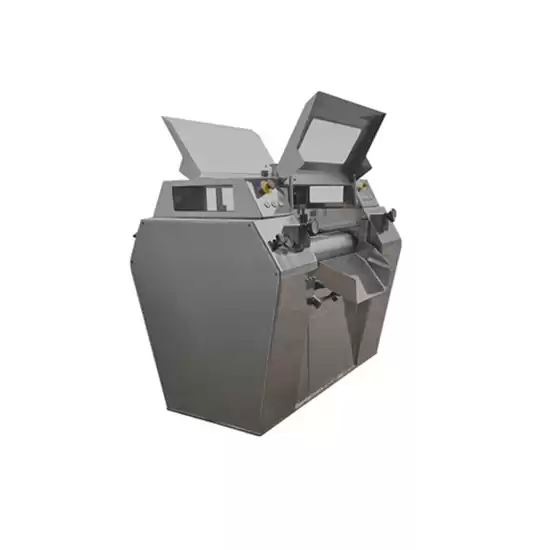

Roller Working Length 300mm and 600mm, Hydraulic Three Roller Mill Machine Suitable for Various Viscosity Material with Optional Alloy and SiC Roller Material



Hydraulic three roller mill is a new product which suit for various viscosity material. The cooling effect of this series of machine is triple or more than traditional hydraulic three roller mill, it can make the speed of operation higher, and the maximum speed can reach 800 rpm or more, so that this machine can meet the high shear forces, as well as demand for high productivity. The roller is driven by hydraulic system, and the gap adjustment device with high precision can be customized. This machine adopts PLC man-machine interface control system, which can remotely connect with the ERP.

three roller mill


Character

●Taiwan hydraulic pressure station, the United States Parker hydraulic joints, Germany BENTELER precision seamless tube ensure the stability of the system.
●Germany Siemens PLC system makes the product more accurately to be controlled(optional).

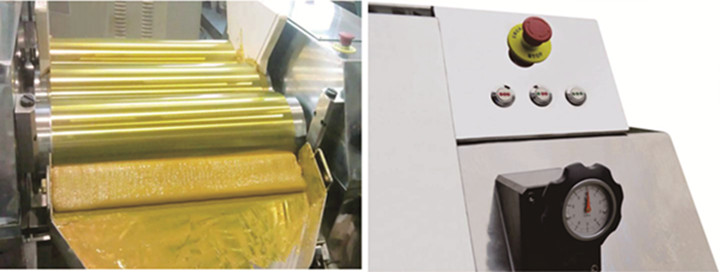

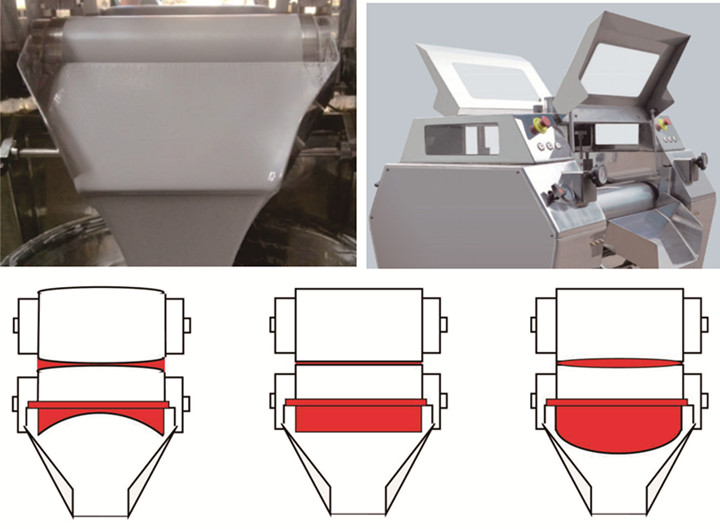

●The rollers pressure and rollers gap can be set and controlled, so as to realize the stable and consistent quality.
●Adopting manual gap adjusting makes the machine produce without human influence in low pressure.
●No metal contamination type and super- cooling type; (option).
●Multiple safety monitoring and protection systems.

Application

It is widely used in CNT, High value metal paste, New Ceramic material, Electronics conductive paste, cosmetic, pigment, solar pasty, etc.


Configuration table

○Optional

Explosion-proof

Material of roller

SiC

Alloy

Material of bofy frame

Stainless steel

Carbon steel

Chamber

Inverter control

Level sensor

Hydraulic

Control-panel

PLC



Model

DYS200-300

DYS200-600

Roller diameter

200mm

200mm

Roller working lenth

300mm

600mm

Speed ratio

1:3:9

1:3:9

OutputL/h

100~150

200~300

Main motor power

7.5KW/11KW

18.5KW/22KW

Weight of machine

1400Kg

1800Kg

Overall dimension

1050*1300*1000

1350*1300*1000

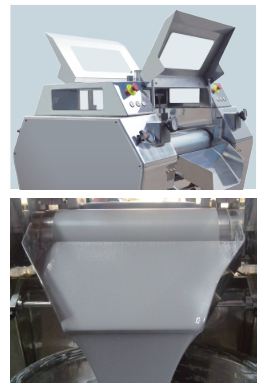

roller





 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
