PCB CCL Panel Cut machine Copper Clad Laminate Separate device Machine

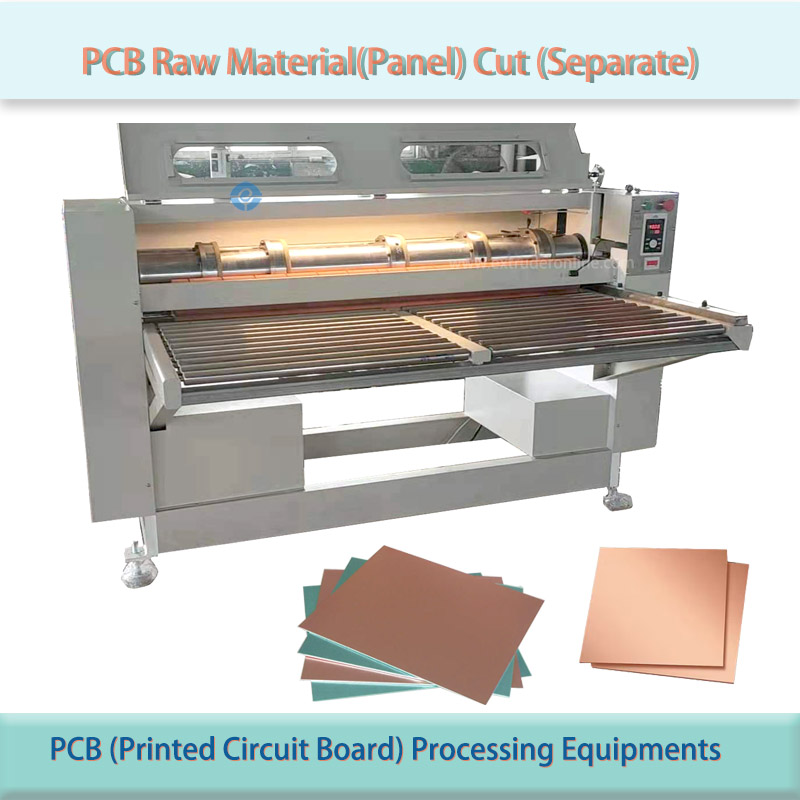

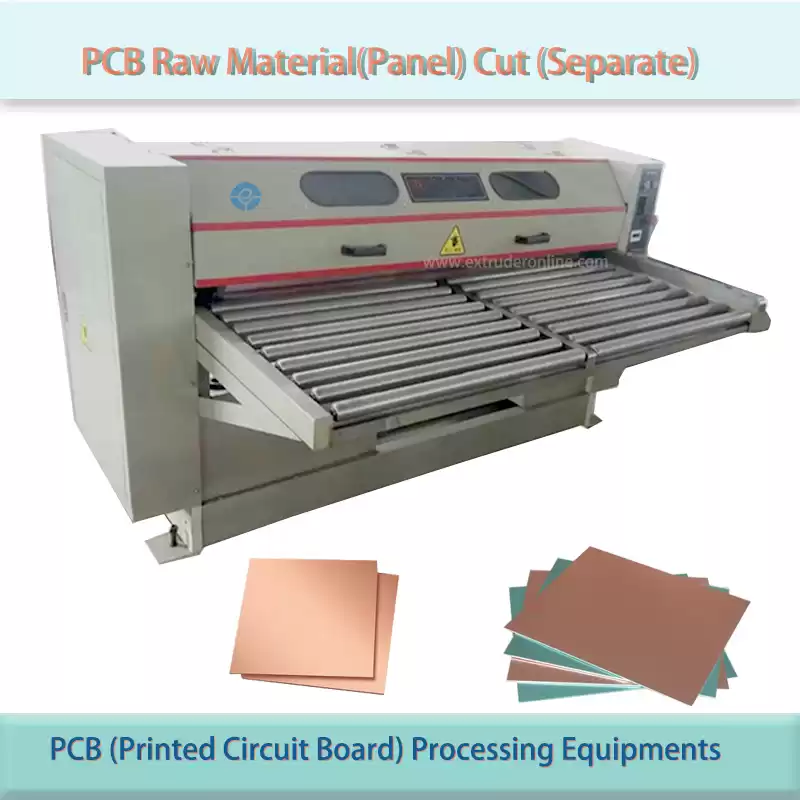

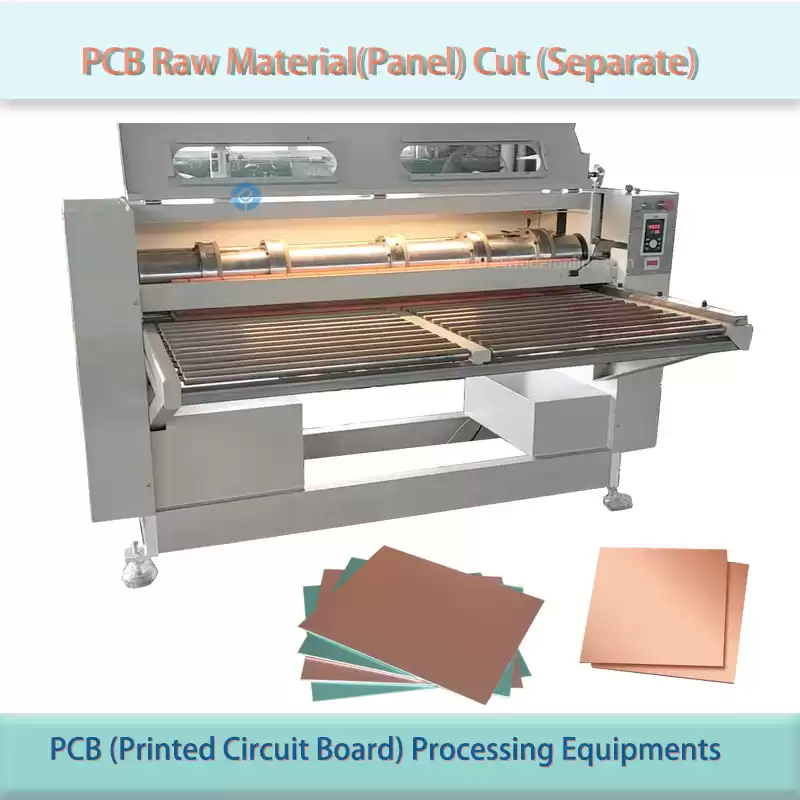

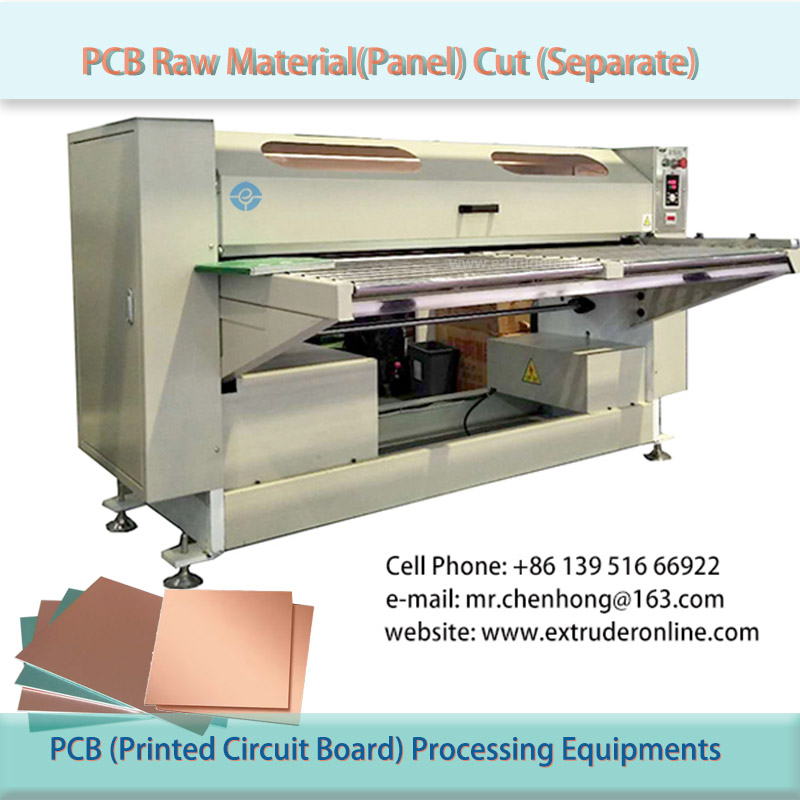

PCB Raw Material(Panel) Cut (Separate) Machine

Roller Shearing Type PCB Cutting Machine

HS CODE:  8465920000 OR 8479899990

Brand: JZ

Model: GJ-1600

Power: 2.2KW

Purpose: Used for large size of PCB cut into small size pieces which requested by the user.

Advantage:

*. Multi-tool cutting by top & bottom direction, size precision, easy to adjust the knives;

*. Workpiece by counting display, inverter controls the speed of transportation. Firmed structure and long life design.

Technical Data:

Cutting speed: 0-8 meters/Min.

Thickness is: 0.6-3.0mm, for aluminum PCB, need special blade(knife).

Knife size:  Φ200mm*  Φ150mm*15mm

Effective Cut size: Width: 120mm-1400mm ,     Length: 200mm-1600mm

Blade Numbers: 10PCS

Power: AC 380V, 3 phase, 50Hz; 2.2KW

Dimension: 2500mm*2000mm*1000mm
