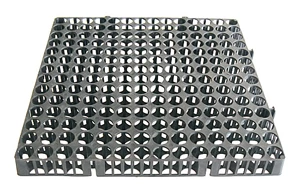

Roof Top Drainage Panel System

Waterproof Drainage Panel (Roof Drainage Panel) has the character of high resistant to pression, anti-corrosion, acid-base resistance and chemical to corrode, the roots of plants sting, does not decompose, so it has a long service life.


  • Press Strength734KN
  • Total Volume0.06m3/bundle
  • Size333X333X30mm
  • ColorBlack
  • MaterialHDPE

Roof Top Drainage Panel System Specifications:

 Item No.  MP-S30A  MP-S30B  MP-S30C
 Color  Light green  Dark green  Black
 Picture  Roof Top Drainage Panel System  Roof Top Drainage Panel System  Roof Top Drainage Panel System
 Size(mm)  333x333x30  333x333x30  333x333x30
 Unit weight(g/m2)  3150g/m2  3150g/m2  3150g/m2
 Material  HDPE  HDPE  HDPE
 Pressure strength(Kpa)  1000KN  835KN  734KN
 Hardness  135  113  92
 Water Drainage  95%  95%  95%
 Vertical Circulating Capacity(cm3/s)  30cm3/S  30cm3/S  30cm3/S
 Loading Capacity

 1100SQM=1x20FT CONTAINER

 2233SQM=1x40FT CONTAINER

 2533SQM=1x40FT CONTAINER

 1100SQM=1x20FT CONTAINER

 2233SQM=1x40FT CONTAINER

 2533SQM=1x40FT CONTAINER

1100SQM=1x20FT CONTAINER

2233SQM=1x40FT CONTAINER

2533SQM=1x40FT CONTAINER

 Package  18pcs/bundle, 0.06m3/bundle  18pcs/bundle, 0.06m3/bundle  18pcs/bundle, 0.06m3/bundle
 MOQ  1x20FT CONTAINER  1x20FT CONTAINER  1x20FT CONTAINER

Drainage Plate

LEIYUAN Drainage Panel System to replace the drainage layer pebbles treatment not only save time,effort and energy, saving investment, but also reduce the load of the building. Good Drainage system for normal use and life cycle of civil construction and the building has an important role. Long and short cylindrical Drainage Panel and geotextiles to form a drainage system, to form a water seepage, water and drainage systems.



Roof Drainage Panel light of its own weight, the roof structure will not increase the load. 100% recycled, not cause secondary pollution to the environment. Loading capacity per square can reach 80 tons weight, suitable for create a variety of landscape.

Drainage Plate

Strength Drainage Plate Application:

Roof greening

Bridge abutments

Underground

Road

Tunnels

Play ground

Retaining walls

Golf courses water drainage

Fire truck access paths

Fire lanes

Golf buggy

Trolley paths

Modern factory building

Noble living communities

Emergency vehicle access roads through fields

Drainage Plate

Features and Benefits:

Lightweight

High compression strength

Seepage proof

Available in different sizes

Cost save

Water drainage and storage

Easy installation

No surface drains required

Reduces surface temperature around building

High load bearing 148.58t/m2 unconfined

Replenishes water supply to landscaped areas

Unique and easy to use interlocking system

Promotes fast and excellent plant growth

Strong structure can support heavy loads

Retains a minimum of approximately 76L/m2 of perched water above the cells

Drainage Plate

Strength Drainage Plate Construction:

Drainage Panel System


Drainage Plate

Strength Drainage Plate Projects View:

Foundation Drainage Panels

Leiyuan Strength Drainage Plate: Good water feature, Long life service!
