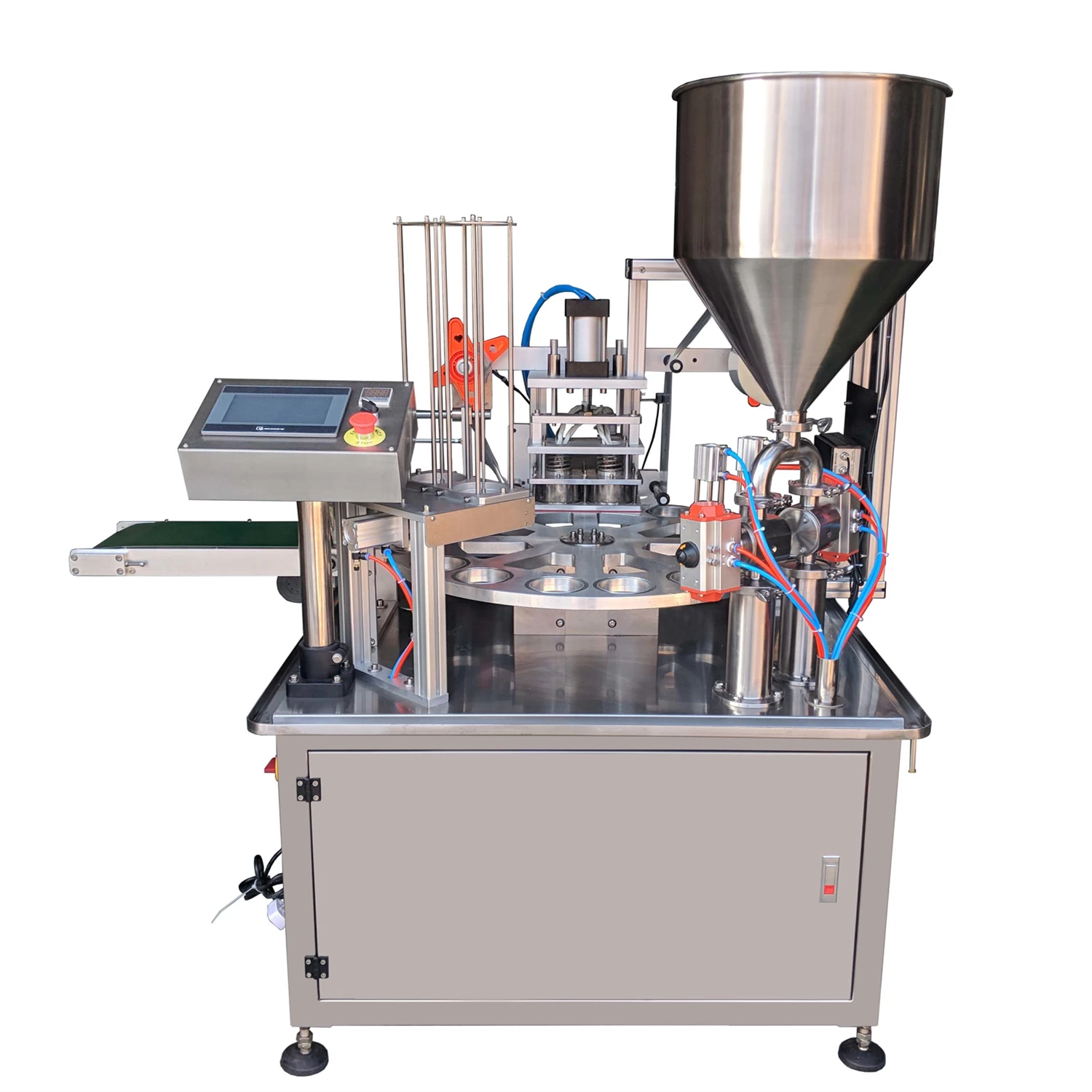

Rotary Cup Filling and Sealing machine for yogurt water cup

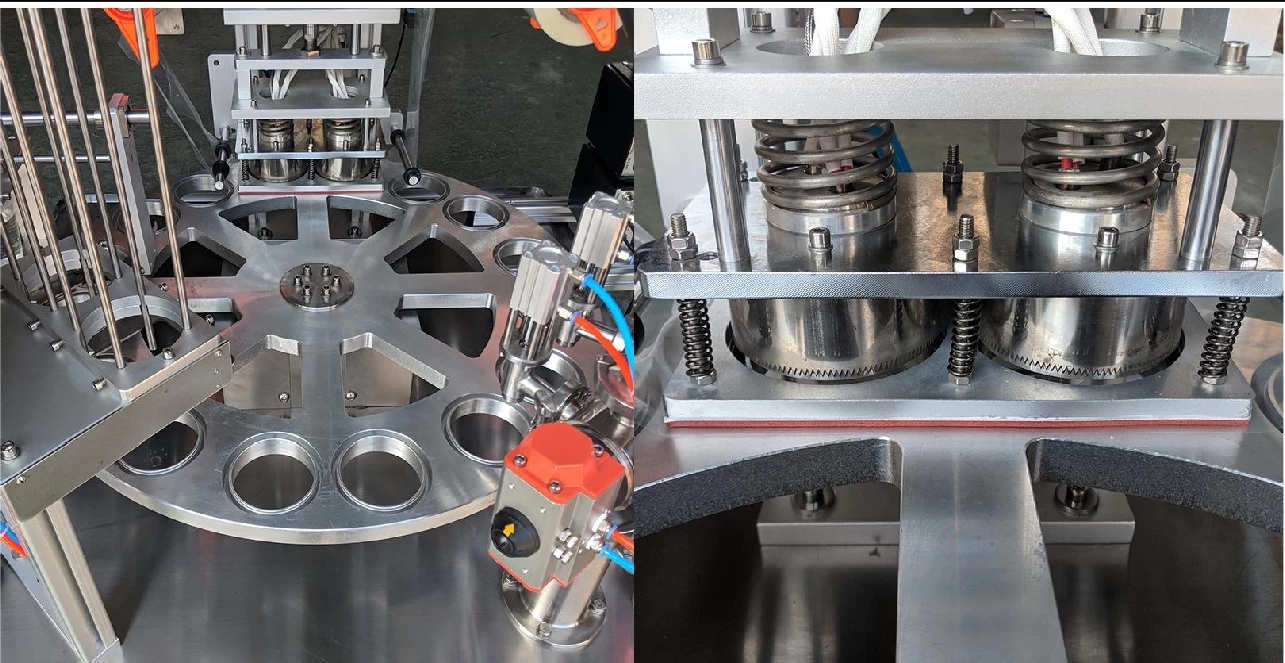

The piston filling system has high precision and firm sealing.This Rotary Cup Filling and Sealing machine is suitable for all kinds of viscous materials, widely used in Food, daily chemical and other industries, is the ideal cup/box Product filling and sealing equipment.



Rotary Cup Filling and Sealing machine

Customized And OEM Service Available

Cup filling and sealing machine

Product description:


Automatic filling and sealing machine, is the company's own r & d and production of automatic filling and sealing equipment, the whole Cup filling and sealing machine Stainless steel 304 manufacturing, touch screen human-machine interaction, simple and user-friendly operation, and a variety of fault warning functions.


Application:


This Filling and Sealing machine adpots to automatic packaging of many kinds of Cup filling liquid paste, particles, powders and other products:

Cup paste: such as mineral water, yogurt, fresh milk, jelly, fruit juice, milk tea, seasoning sauce, sweet paste, etc.

Cup granules: such as popcorn, peanuts, rice, candy, etc.

Cup powder: such as coffee powder, flour, coconut powder, etc.



Tips: Rotary Cup Filler And Sealer except the basic filling and sealing function, other functions of the machine can be increased or decreased according to the requirements, and can be customized cup boxes of various sizes!


Principle of packaging:


This machine is a Full-automatic filling and sealing machine, which can automatically pour the cup through the bottom controller and various pneumatic electronic accessories.

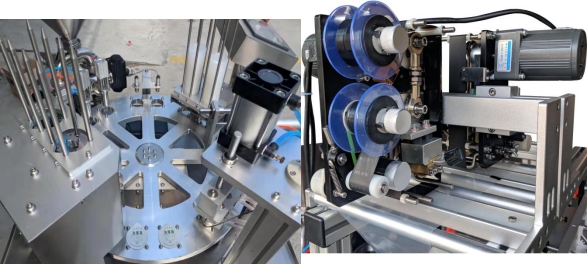

1.Ultraviolet sterilization (optional), 2.automatic filling, 3.automatic sealing, 4.automatic code table (optional), 5.automatic sealing (optional), 6.automatic delivery of finished products to the assembly line, to achieve mass production.


Product parameters:


Modle

MZH-1000 (1 to1)

MZH-2000(1 to 2)

Packing speed

1000Cup/hour

2000Cup/hour

voltage

110V/220/380V

110V/220/380V

power

1KW

1.6KW

pressure

0.4-0.6MPA

0.4-0.6MPA

size

100*100*175cm

120*120*175cm

weight

300KG

380KG

filling capacity

10-300ml

10-300ml(Or customized


according to the cup capacity)

cup diameter

Customized according to customer requirements


Customized according to customer requirements
