Rotary Lobe Pumps For Starch Adhesive

Bonve Rotary lobe pump has the ideal solution for pumping starch adhesive for the paper and corrugating industries.





Rotary Lobe Pumps For Starch Adhesive


More often than not, when you check your front door, there’s another package waiting-usually in form of a cardboard box. The creation of cardboard boxes and other paper products relies on starch-based adhesives to hold things together. Bonve Rotary lobe pump has the ideal solution for pumping starch adhesive for the paper and corrugating industries.

In any case, the reliability of pump operation and low maintenance costs have become the most basic requirements. Bonve lobe pumps are widely used and recognized in the paper industry, thanks to the modular design, qualified material used, reliable sealing, no shearing, no pulsation, less wearing parts, and low maintenance.


starch adhesive Lobe Pump


About Starch Adhesive:

1.Raw starch is derived from plant.

2.Plants include corn, wheat, and potatoes.

3.Mixed in equipment commonly referred to as a starch kitchen.

4.Tend to be shear - thickening.


Industries of Starch Adhesive:

1.Corrugating adhesives

2.Bookbinding

3.Sizing & finishing of textiles

4.Paper cartons

5.Paper

6.Paperboard

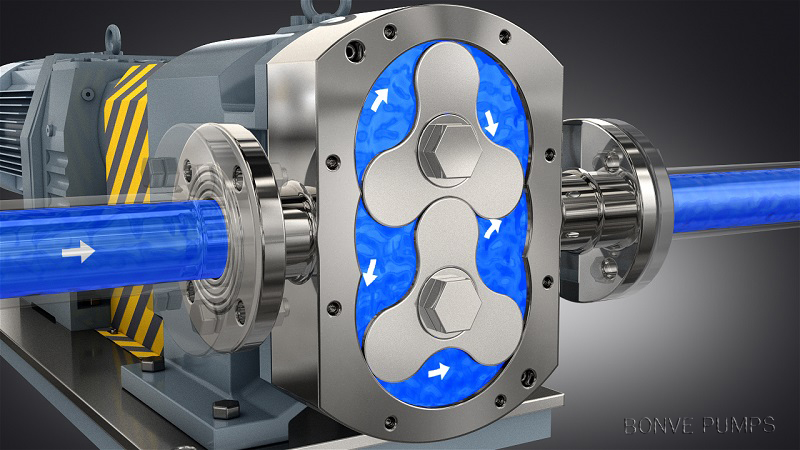

Working Principle


starch adhesive Lobe Pump


Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.


Bi-wing rotor diagram


starch adhesive pump for paper industry


Tri-lobe rotors diagram


starch adhesive pump for paper industry

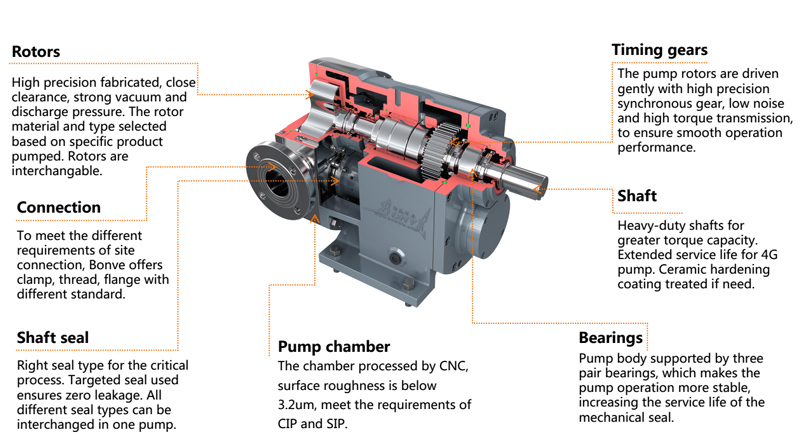

Structure Details

starch adhesive pump for paper industry

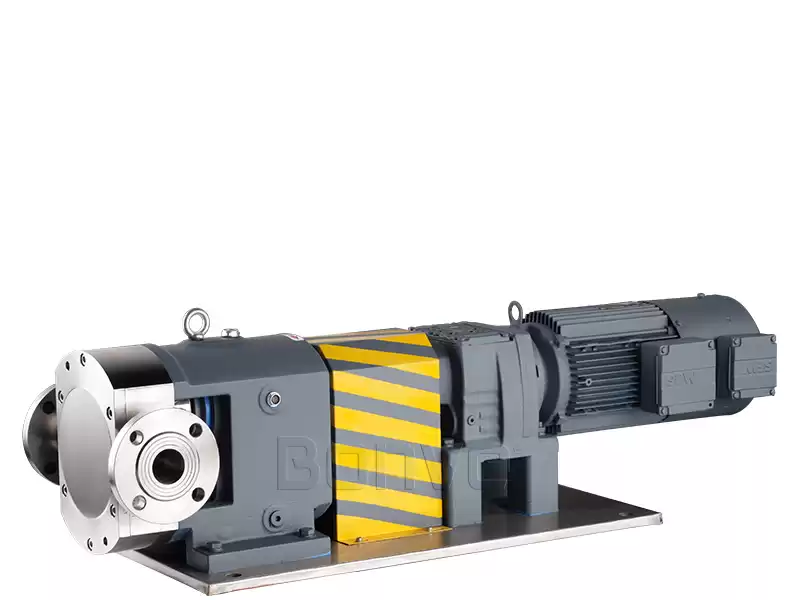

Complete Pump Structure


Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and baseplae. With your order, bare shaft pump or complete pump is supplied.


rotary lobe pumps for paper industry

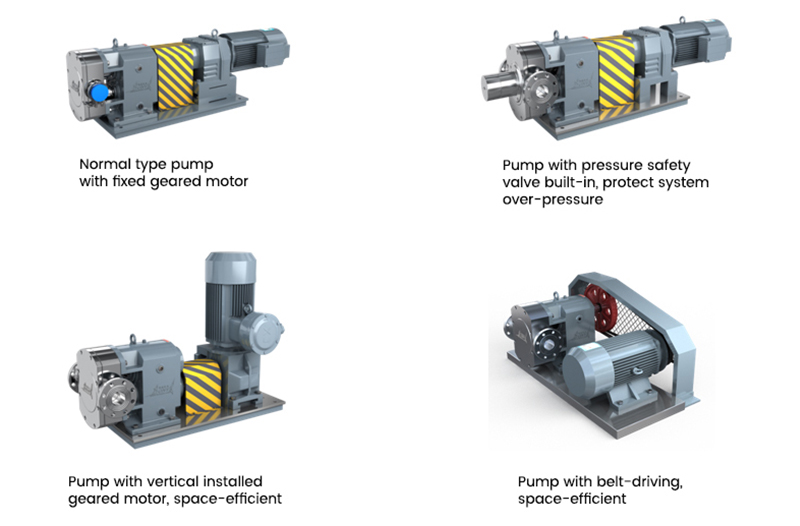

Complete Pump Types


rotary lobe pumps for paper industry



Pump Technical information at glance


Performance

• Flow rate up to approx. 500,000 l/h

• Operation pressure up to 15 bar

• Suction head up to 9 mWC

• Product Viscosity: Up to 1,000,000 mPas

• Temperature Resistance: up to 250°C

• PH: 1-14


Design Structure

• Rotor type: Single-wing Rotors, Bi-wing(Butterfly)Rotors, Tri-lobe Rotors, Multi-impeller Rotors

• Seal type: Single-face Balanced Mechanical Seal, Double-face Water-cooled Machine Seal, Metal Bellows Mechanical Seal

• Flow direction: left↔ right, up↔ down

• Port connection: Clamp, thread and flange in different standards

• Installation type: Fixed, fixed with adjustable feet, mobile

• Pump Colors: Blue, Grey, White

• Heating or cooling jacket as per request

• Driving type: Fixed speed geared motor, variable speed geared motor, , Further materials on request


Materials

• Pump housing and cover: stainless steel AISI 316, 316L

• Mechanical Shaft Seals: Tungsten carbide, Silicon carbide, Further materials on request

Sealing Materials of O-rings: Viton, EPDM, Further materials on request



Technical Parameters


Model

Displace

-ment

RPM

Flow rate

Dis. Pre.

Power

Vacuum

Port size

Max

viscosity

(L/r)

(r/min)

(m³/h)

(Mpa)

(kW)

(Mpa)

(mm)

(cp)

25BV12-05

0.06

10-1000

0-0.5

0-1.2

0.37-1.1

-0.080

25

1,500,000

40BV12-2

0.15

10-1000

0-2

0-1.2

0.75-2.2

-0.080

40

1,500,000

50BV12-5

0.32

10-800

0-5

0-1.2

1.5-4

-0.085

50

1,500,000

65BV12-10

0.65

10-600

0-10

0-1.2

2.2-7.5

-0.085

65

1,500,000

80BV12-20

1.74

10-500

0-20

0-1.2

4-15

-0.095

80

1,500,000

90BV12-30

2.60

10-500

0-30

0-1.2

5.5-22

-0.095

100

1,500,000

100BV12-40

3.65

10-500

0-40

0-1.2

7.5-30

-0.095

100

1,500,000

125BV12-50

4.60

10-500

0-50

0-1.2

7.5-37

-0.095

125

1,500,000

140BV12-70

6.10

10-500

0-70

0-1.2

11-45

-0.095

150

1,500,000

150BV12-80

7.63

10-500

0-80

0-1.2

11-55

-0.095

150

1,500,000

200BV12-120

11.56

10-400

0-120

0-1.2

15-75

-0.095

200

1,500,000

250BV12-150

14.22

10-400

0-150

0-1.2

18.5-90

-0.095

250

1,500,000

300BV12-200

20.80

10-300

0-200

0-1.2

22-110

-0.095

300

1,500,000

350BV12-300

32.60

10-250

0-300

0-1.2

45-160

-0.095

350

1,500,000

400BV12-400

50.40

10-250

0-400

0-1.2

55-200

-0.095

400

1,500,000


Note:
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.
