Rotary type paper tray lid sealing machine

Rotary type paper tray lid sealing machine is  pneumatic type rotary sealing machine,suit for sealing PP/PET/PS/PVC..., rectangular,square or round kinds tray/cup,possible add with filler,conveyor.



Product Item:Rotary type paper tray lid sealing machine

Description

Rotary type paper tray lid sealing machine belong to automatic container packing machine, the whole machine is made of stainless steel 304. Simple and reasonable structure, sealing of high efficiency and easy operation; Suitable for various sizes of plastic cup, plastic trays and special-shaped plastic containers heat sealing, it's widely used in pharmaceutical, cosmetic and food industries.

Advantage:
1, the whole machine adopts 304 stainless steel and aluminum alloy material, according to  requirements of the GMP for food;
2, adopts pure electric drive and air supply, suitable for small businesses, restaurant, hotel, shop supermarket and canteen management place;
3, LCD display control  sealing time, photoelectric sensor film location tracking, after sealing design accuracy;
4, automatic sealing process, saving manpower, improve the sealing quality.
5, different material, different thickness of a thermal sealing material all can use;
6, optional code printer, timing roll of film and mold replaceable,easy to remove and install new mold;
7, can be used with a variety of equipment collocation, such as liquid filling machine, paste filling machine, filling packing line etc.;

8,  special size and shape of tray can be customize mold.

9,feeder conveyor or finish sealed container out conveyor options.

Technical parameters

Technical Specifications

Model

LD801R

Voltage(V)

AC110-220V/50-60Hz

Power(W)

500-1000W

tray  size (mm)

50-250mm

Packing speed(pcs/hour)

800-1000

Sealing materials

PP,PE,PET,PS and etc.

Working temperture

0-300 ℃

Air pressure range

0.5-0.8Mpa

Gross Weight(kg)

250kg

Package Size(mm)

1150*1150*1550mm



Pictures:

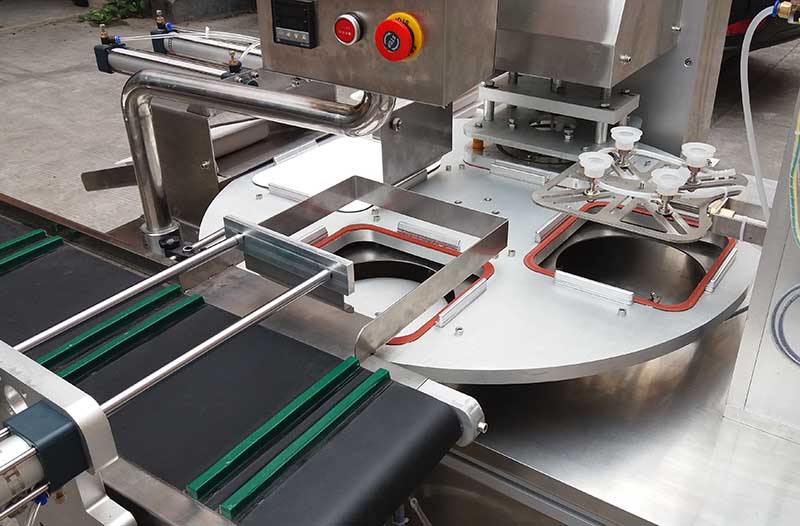

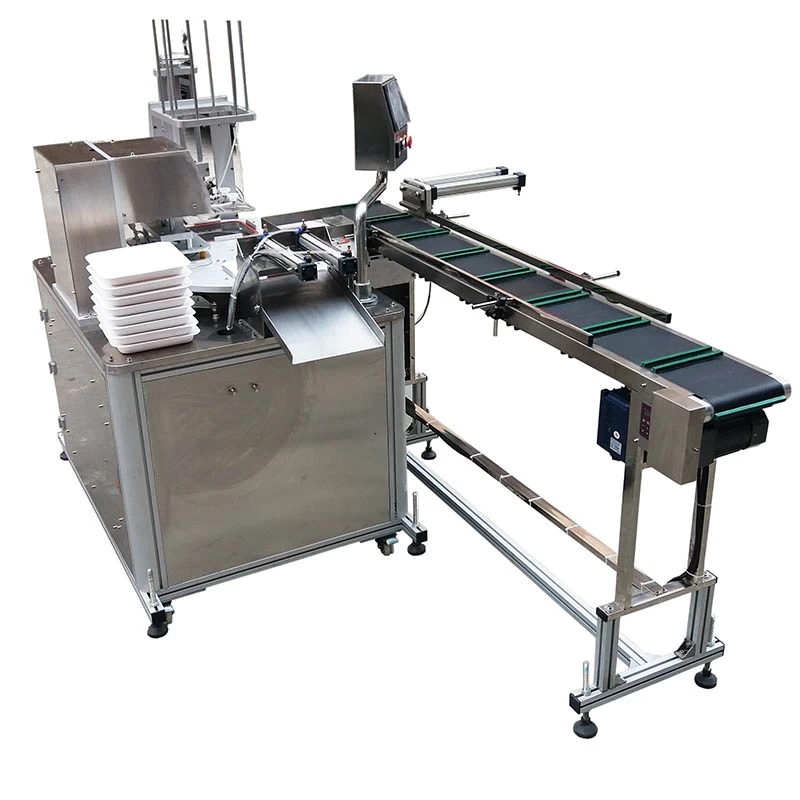

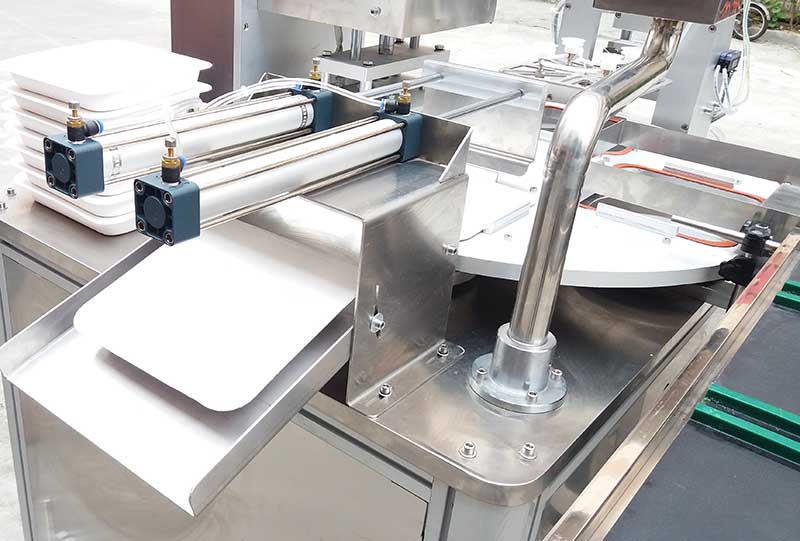

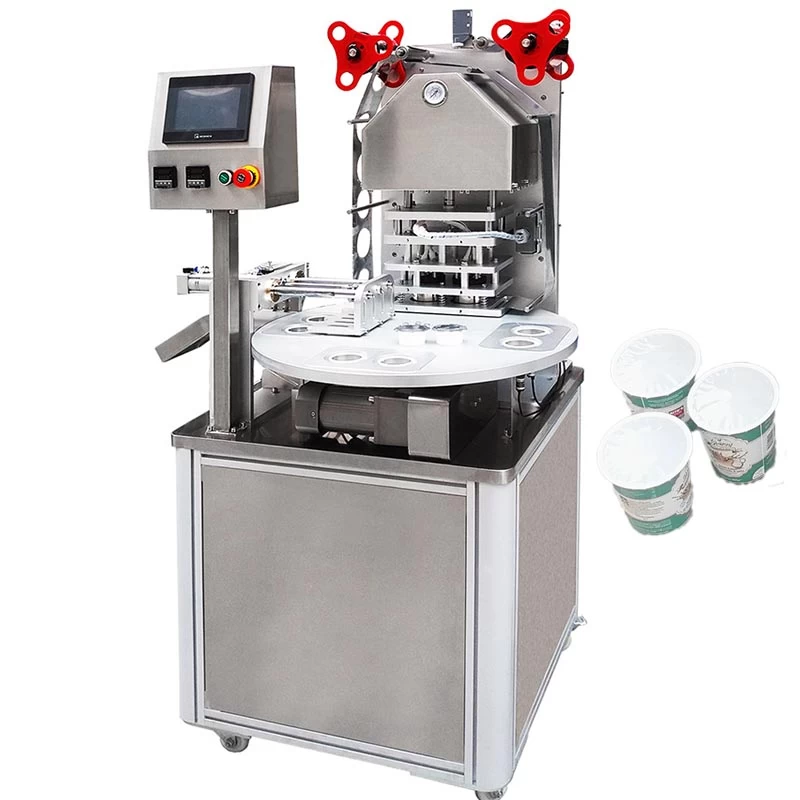

rotary sealing machine with conveyorRotary type paper tray lid sealing machinepaper tray top sealing machine
