Feature:

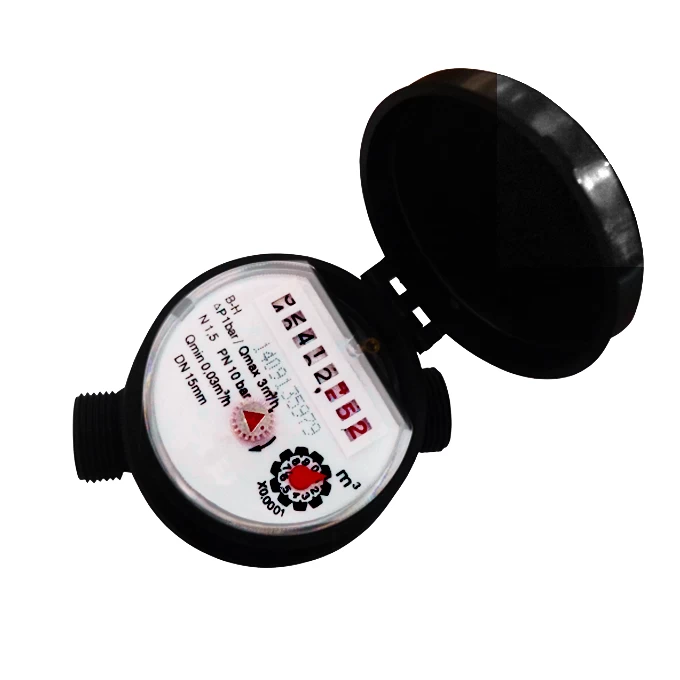

Single-jet, velocity water meter
Measuring accuracy conform to ISO 4064 R80 standard
Completely plastic shell, solid and robust design,
long service guaranteed
Magnetic drive, Resistance to exterior magnet interference
dry-dial, 360 degree rotating registers
keep the reading clear in a long term service
Available with different length on request. Available in hot water meter on
request
Single Jet water meter working principle:
The single jet meter
consists of bronze, brass, or an alloy body. Inside there is a measuring
impeller and a camera slightly offset from the center. Water flow connection.
Water entering the box enters the impeller chamber through one hole. Water
flows through the tangential wheels to maintain the rotating shaft. This rotation
drives the clutch on the magnetic field recording head.
Description
Completely
plastic shell, solid and robust design, long service guaranteed.
High
quality materials fiberglass reinforced polymerization amine,corrosion
resistance.
Pole
ring magnet polymer coating as protection against deposits.
The
measuring mechanism can be exchanged.
Anti-magnet.
Inside
calibration device.
Large
measuring range high flow accuracy.
Steady
curve characteristics.
Measuring
accuracy is up to ISO4064, Class B.
Models
1.single jet
vane wheel dry-dial cold water meter
2.LXDGR-15E~25E
Application
single jet vane wheel dry-dial water meter to record the total
volume of water passing through the pipelines.

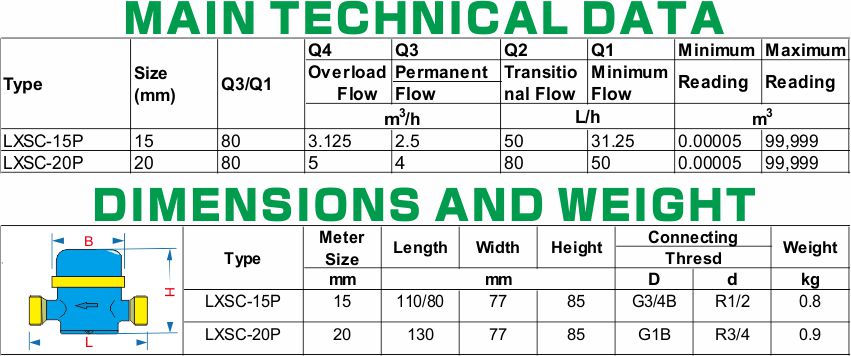

Metrological requirements
|
Temperature class:cold water:
|
T30 ,hot water:T30/90
|
|
Water
pressure class:
|
MAP10,MAP16 on request
|
|
Pressure-loss
class:
|
Δp63
|
|
upstream
velocity fields Sensitivity class:
|
U0
|
|
downstream
velocity fields Sensitivity class:
|
D0
|
|
Maximum
permissible error
|
|
|
In the lower
zone(Q1≤Q) :
|
±5%
|
|
In the upper
zone(Q2≤Q≤Q4):
|
±2% for cold water meter ,
|
|
|
±3% for hot water meter
|
|
Certificates:
|
ISO4064|ISO9001|ISO14001
|
