Could do customized machine according to customers' requirement.

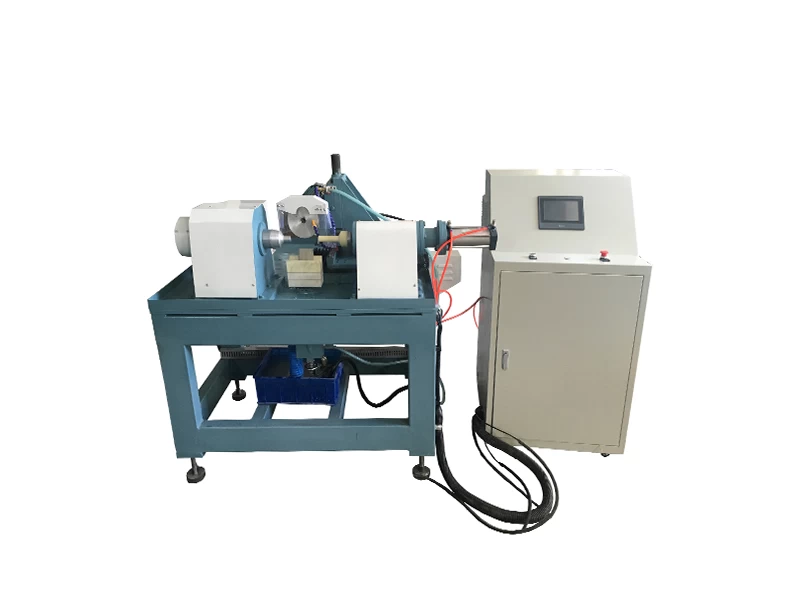

This machine is a simple edge grinder to adapt to the market, to solve the customer to round glass edge grinding.

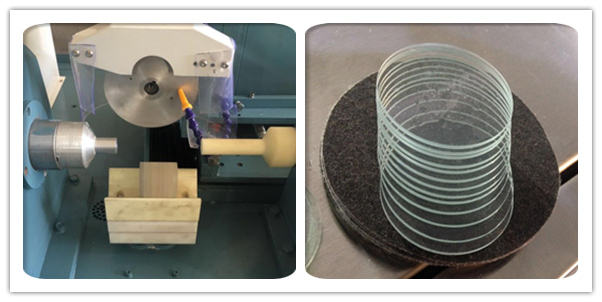

This machine could grind round glass, and adopts stepless speed-regulating motor to drive the glass to rotate, and the hydraulic cylinders on both sides press and hold the glass. Uniform rotation process, grinding wheel close to the glass, to achieve edging effect.

Machine Parameter

Grinding head Power 2.2KW

Stepless speed-regulating motor 2840rpm

Glass Dimension 1530*1000*1400mm

Weight: 500kgs

Processing Parameter

Grinding diameter range 8-100mm (Or Customized)

Glass thickness 1.6-1.7mm

Accuracy : ±0.05mm (total could hold thick 50mm lenses)

Configure

PLC: Panasonic , Japan

Touch Screen: Kenco

Electrical components: The GreatWall of CHINT

Frequency conversion motor: domestic

Guideway: Taiwan

Lead screw: Taiwan

Proximity switch: research Technology

Grinding wheel: domestic high quality
