NEW NANO GRAPHENE CARBON RIMS
|
Toray T700/T800 carbon fiber
|
Regular Resin
Add 5% strength
|
 Regular Prepreg
|
vs
|
Toray T700/T800 carbon fiber
|
Graphene Resin
Add 15%-20% Strength
|
Graphene Prepreg
|
We offer upgraded options for the RSD mtb rims
|

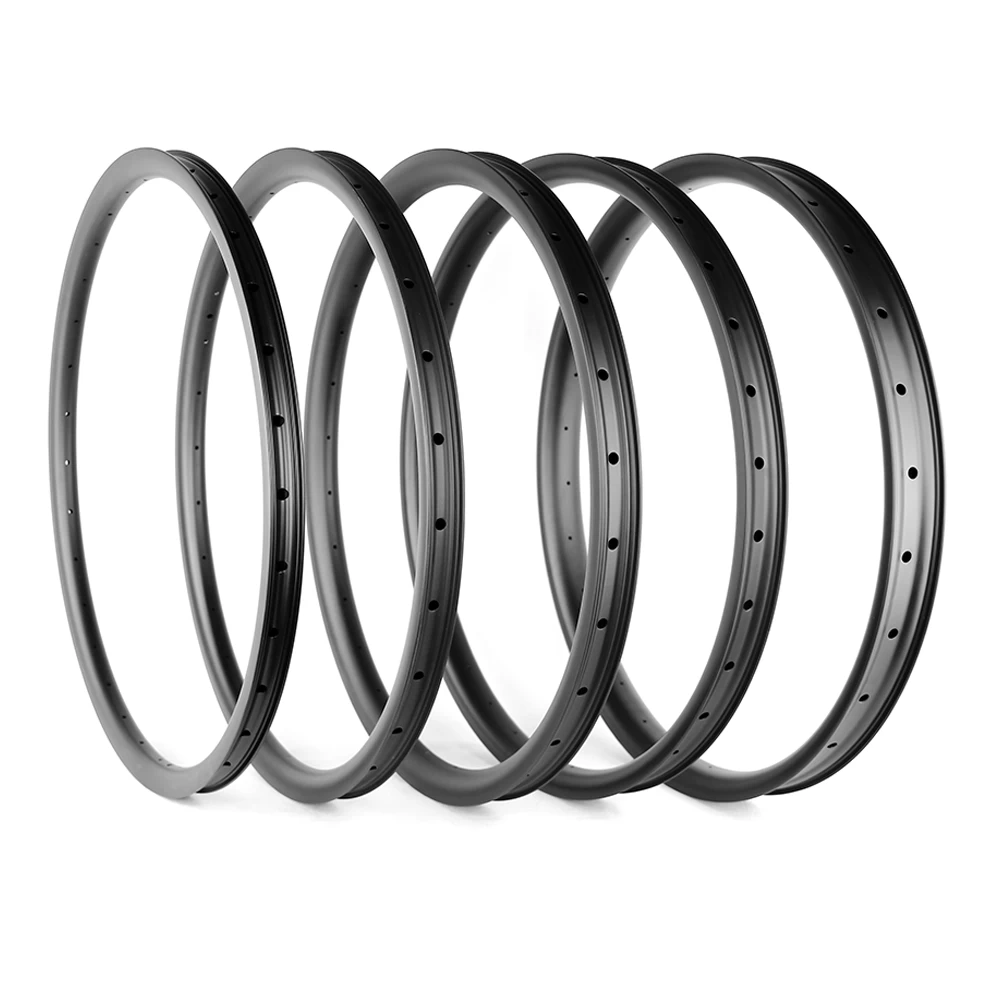

29ER RSD SYMMETRY NEW NANO Graphene MTB RIMS
|
|
Modle
|
RSD930XC-GP
|
RSD933XC-GP
|
RSD933-TR-GP
|
RSD938TR-GP
|
RSD942TR-GP
|
|
Rim
|
|
|
|
|
|
|
Weight
|
330+/-10g
|
340+/-10g
|
380+/-10g
|
425+/-10g
|
450+/-10g
|
|
Finish
|
UD
|
UD
|
UD
|
UD
|
UD
|
|
Prepreg
|
T700
|
T700
|
T700
|
T700
|
T700
|
|
Max. Rider Weight
|
100kg|220lbs
|
100kg|220lbs
|
100kg|220lbs
|
100kg|220lbs
|
115kg/250lbs
|
|
Max. Tire Pressure
|
40PSI|2.7bars
|
40PSI|2.7bars
|
40PSI|2.7bars
|
35PSI|2.4 bars
|
35PSI|2.4 bars
|
Rec. Tire Size
|
2.1-2.5"
|
2.2-2.6"
|
2.2-2.6"
|
2.3-2.8"
|
2.4-3.0"
|
Rim Chart
|
|
|
|
|
|
Profile
|
26mm
|
28mm
|
28mm
|
30mm
|
25mm
|
OD
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
|
Dimension
|
621*24mm
|
621*27mm
|
621*27mm
|
621*32mm
|
621*36mm
|
|
ERD
|
592mm
|
587mm
|
587mm
|
584mm
|
595mm
|
|
Terrain
|
Cross Country
|
TRAIL
|
TRAIL
|
TRAIL
|
TRAIL
|
|
650B RSD SYMMETRY NEW NANO Graphene MTB RIMS
|
|
Modle
|
RSD730XC-GP
|
RSD733XC-GP
|
RSD733-TR-GP
|
RSD738TR-GP
|
RSD742TR-GP
|
|
Rim
|
|
|
|
|
|
|
Weight
|
320+/-10g
|
330+/-10g
|
360+/-10g
|
410+/-10g
|
420+/-10g
|
|
Finish
|
UD
|
UD
|
UD
|
UD
|
UD
|
|
Prepreg
|
T700
|
T700
|
T700
|
T700
|
T700
|
|
Max. Rider Weight
|
100kg|220lbs
|
100kg|220lbs
|
100kg|220lbs
|
100kg|220lbs
|
115kg/250lbs
|
|
Max. Tire Pressure
|
40PSI|2.7bars
|
40PSI|2.7bars
|
40PSI|2.7bars
|
35PSI|2.4 bars
|
35PSI|2.4 bars
|
Rec. Tire Size
|
2.1-2.5"
|
2.2-2.6"
|
2.2-2.6"
|
2.3-2.8"
|
2.4-3.0"
|
Rim Chart
|
|
|
|
|
|
Profile
|
26mm
|
28mm
|
28mm
|
30mm
|
25mm
|
OD
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
|
Dimension
|
621*24mm
|
621*27mm
|
621*27mm
|
621*32mm
|
621*36mm
|
|
ERD
|
555mm
|
550mm
|
550mm
|
547mm
|
558mm
|
|
Terrain
|
Cross Country
|
TRAIL
|
TRAIL
|
TRAIL
|
TRAIL
|
With Graphne Nano Mesh Filling Technology
Add 20%+ Strength or reduce 15% weight
Testing Chart
Testing Results
Conclusion
To carbon composite products, the normal epoxy resin system only supplies 5% strength contribution. The main function of resin is for moulding and curing. With Graphene nano mesh filling technology, the resin system's strength could be raised about 20%. It means to a carbon part with a certain weight, we can make it same strength&less weight or same weight&more strength.
