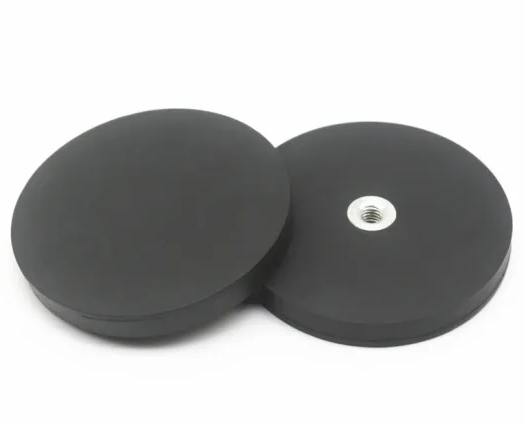

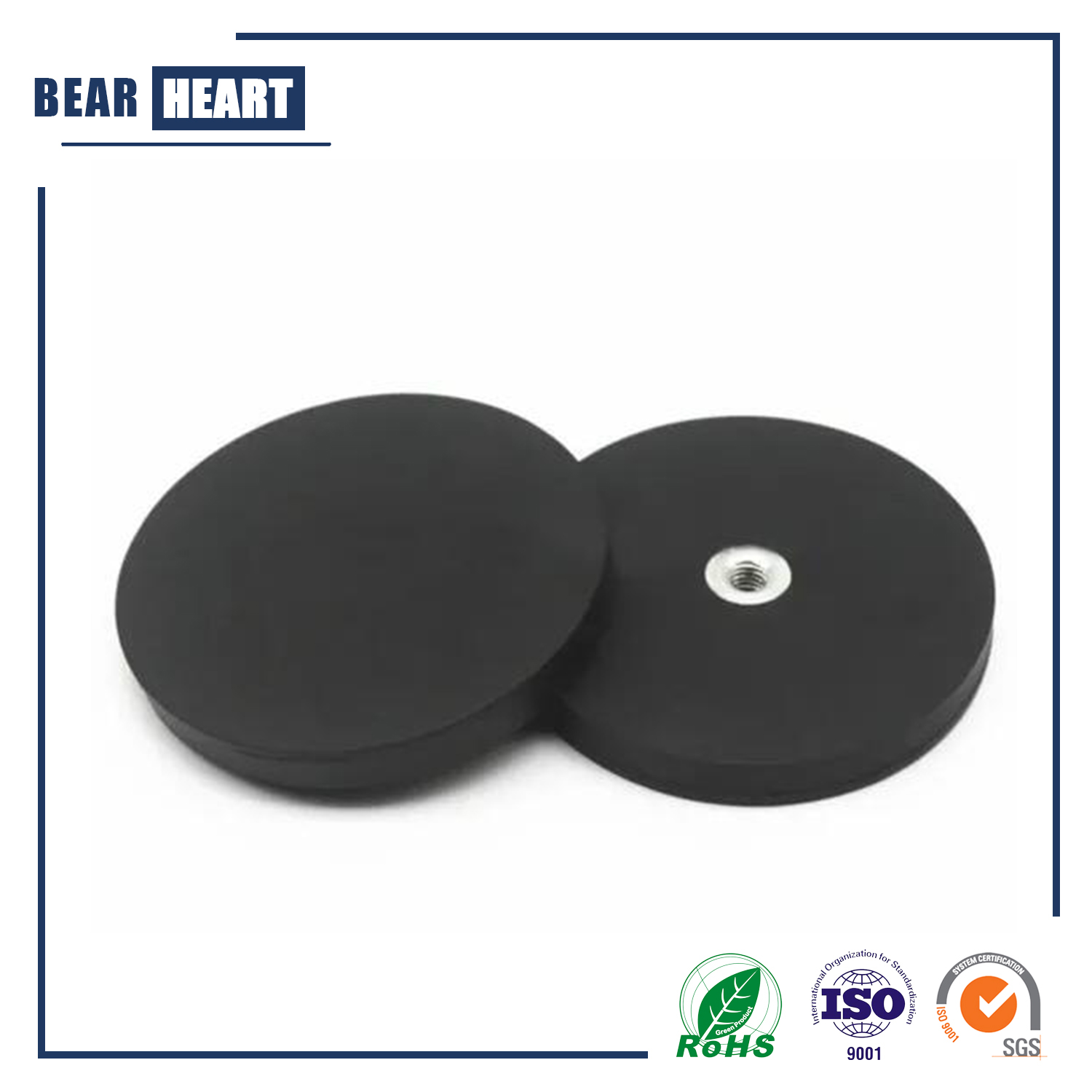

Rubber Coated Magnets For Holding Base

Rubber Coated Neodymium POT Magnet is composed of neodymium magnets and Q235 steel base, then coated by eco-friendly rubber processing. The rubber coating acts as a protection for the Neodymium Magnet against chipping and exposure to liquids. Rubber coated neodymium magnets are used in many holding applications. If you require a specific size, please contact us online or send email for your custom magnet request.

Products Details

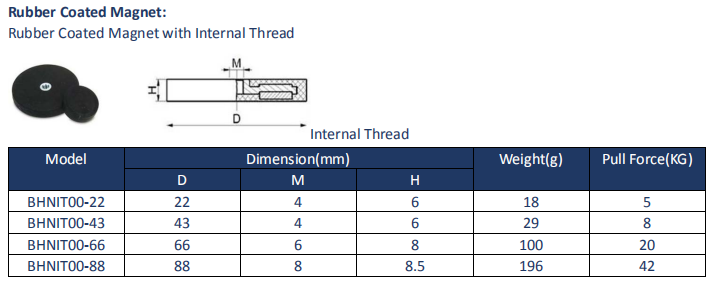

Product name: Rubber Coated Magnet

Coating Thickness: 0.04” thickness;

Color: black

Coating: Rubber

Features: Highly corrosion resistant, increase friction

Material: NdFeB magnet + iron plate + TPE

Finishing: Rubber sealed technology

Magnet performance: N35~N52

Working temperature: -40~80℃

Mold sizes: φ22, φ31, φ36, φ43, φ66, φ88/ or customized size

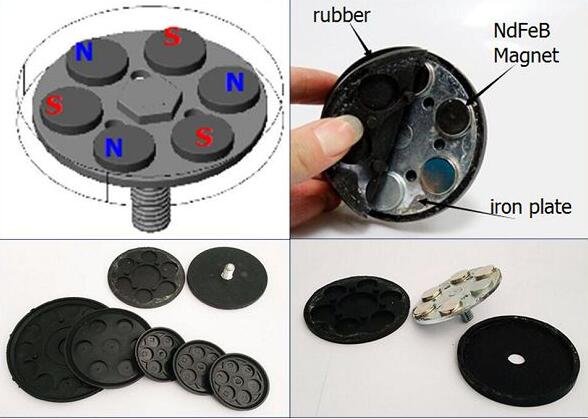

The manufacturing process of the pot magnet:

(1): Manufacture the Neodymium magnet

(2): Manufacture the part of Iron

(3): The magnet is tightly fixed on the surface of the iron-on (by some method)

(4): Injection molding by the Black Rubber together

Package & Shipping

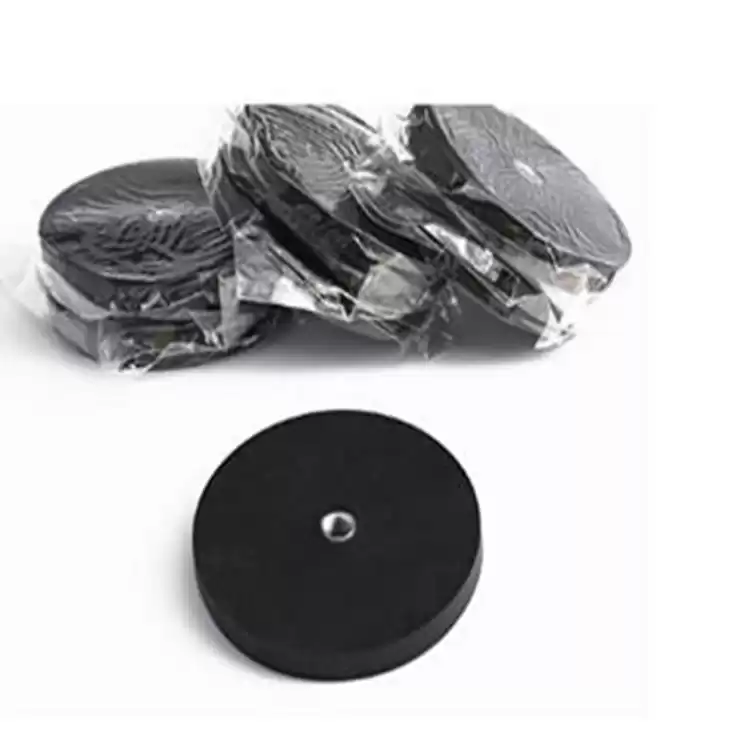

1. The plastic gasket will be put between strong and big magnets, easy for separation.

2. white box for numerous of magnets.

3. 8-12 white boxes per carton (size 34x26x20cm), filled with white foam.

4. Each pallet at least 10 cartons, match shipment standard.

Application

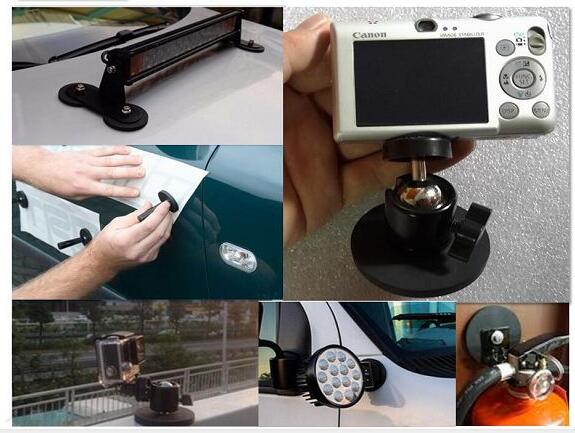

Rubber coated pot magnets are often placed to create a fixing or hanging point. The rubber coating provides for superior slide resistance due to greater friction between the rubber and steel surface to which the magnet is bonded.

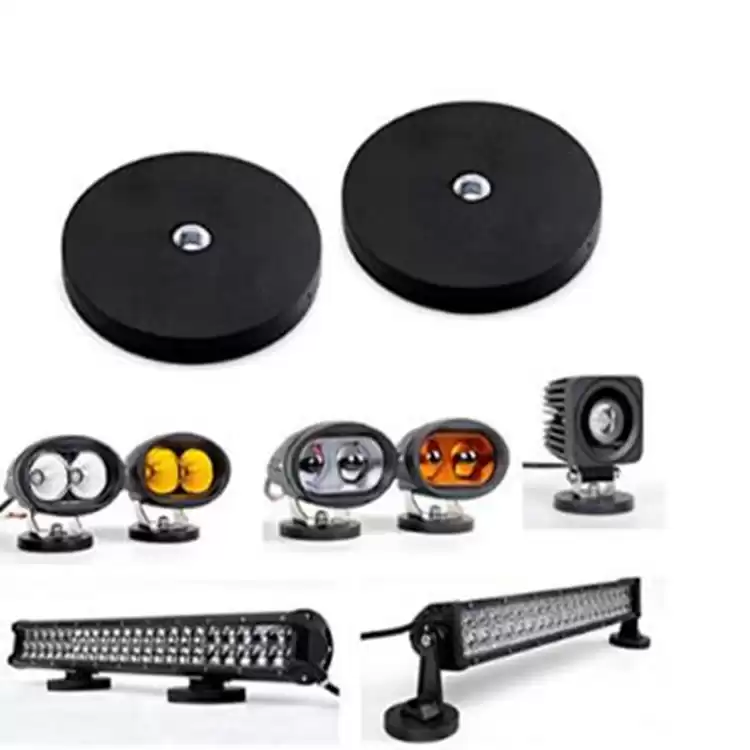

Used in window dressing, door/cupboard, and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, etc.
