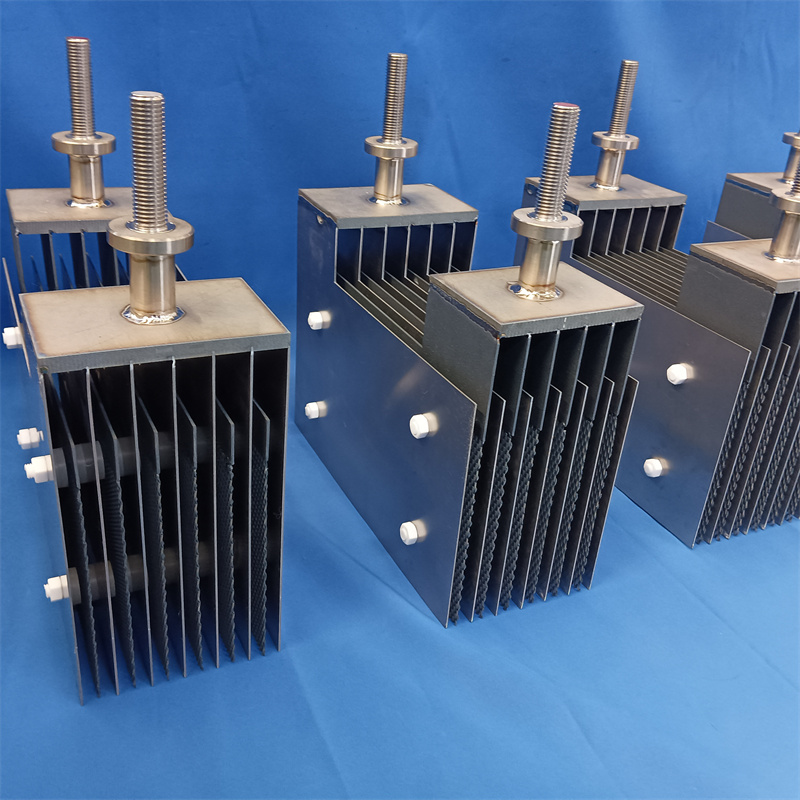

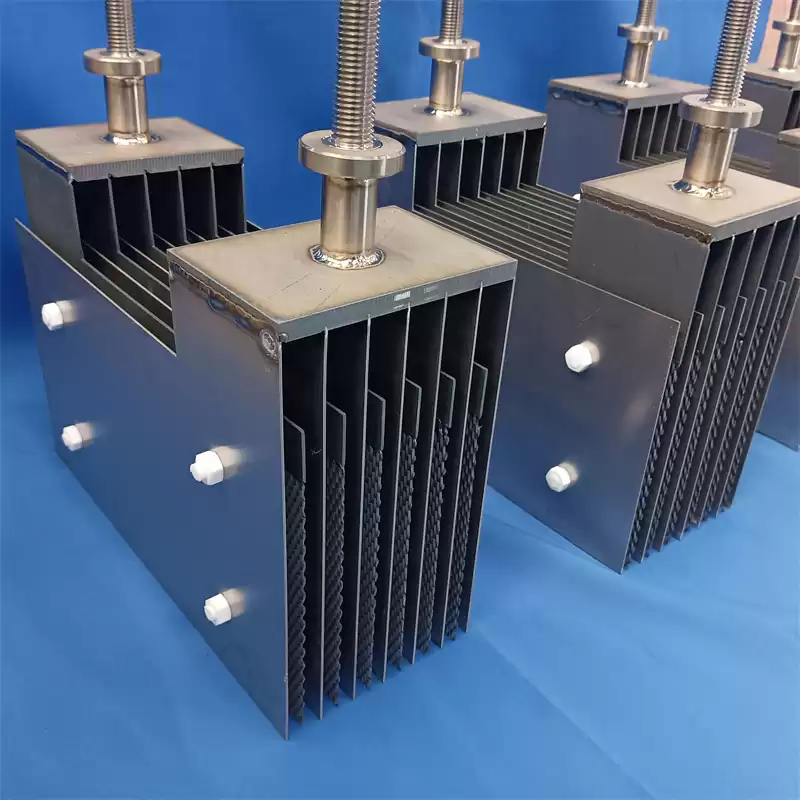

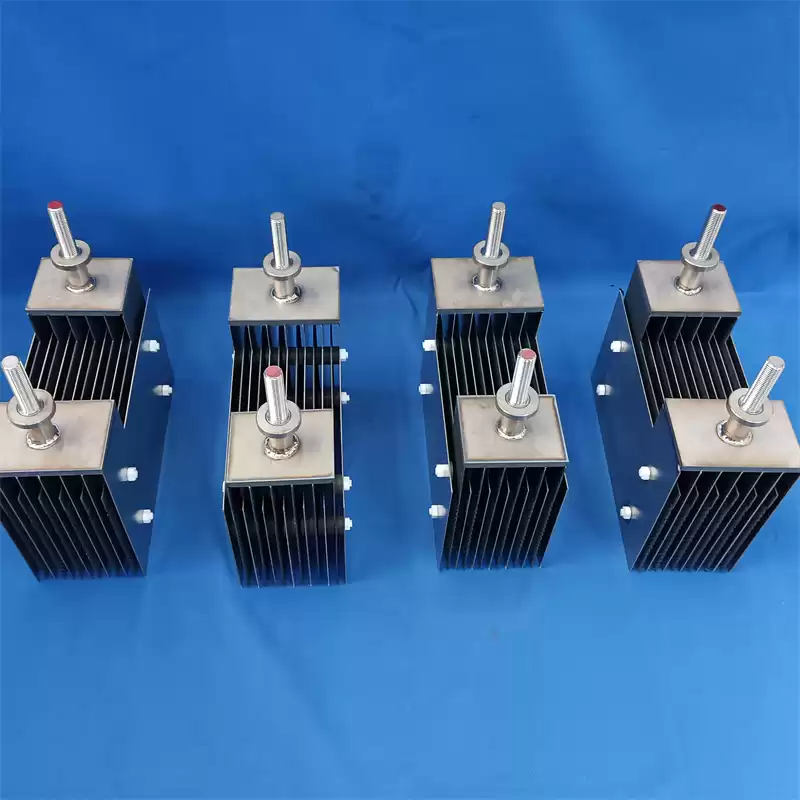

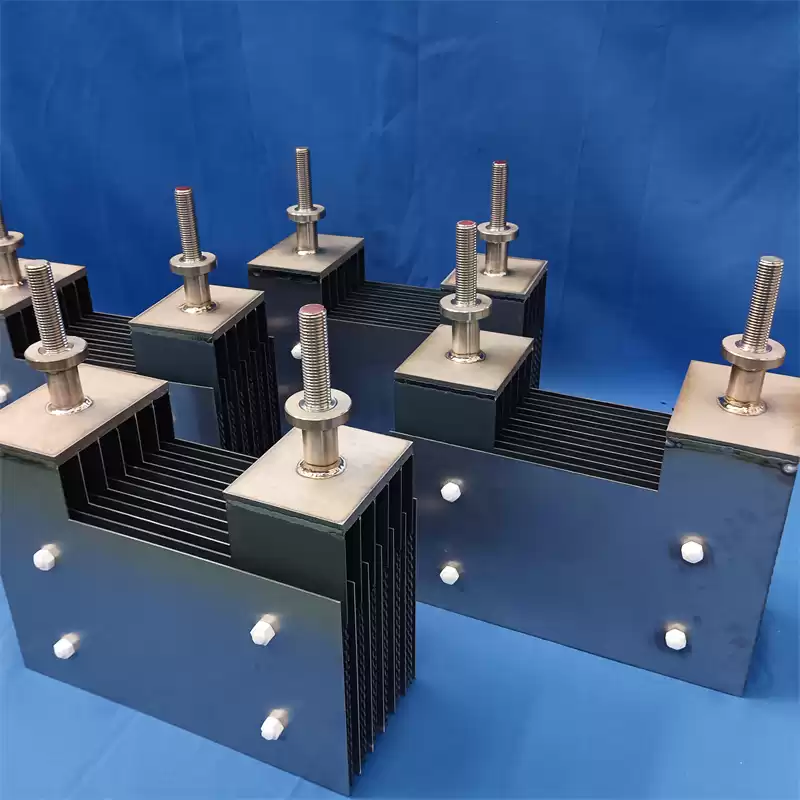

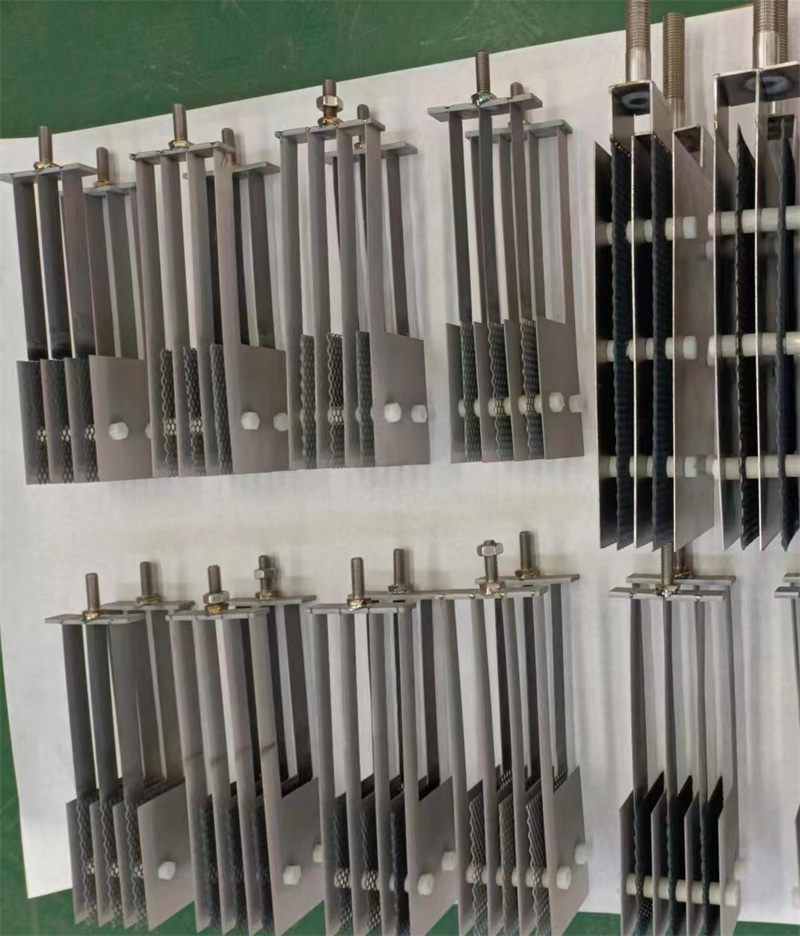

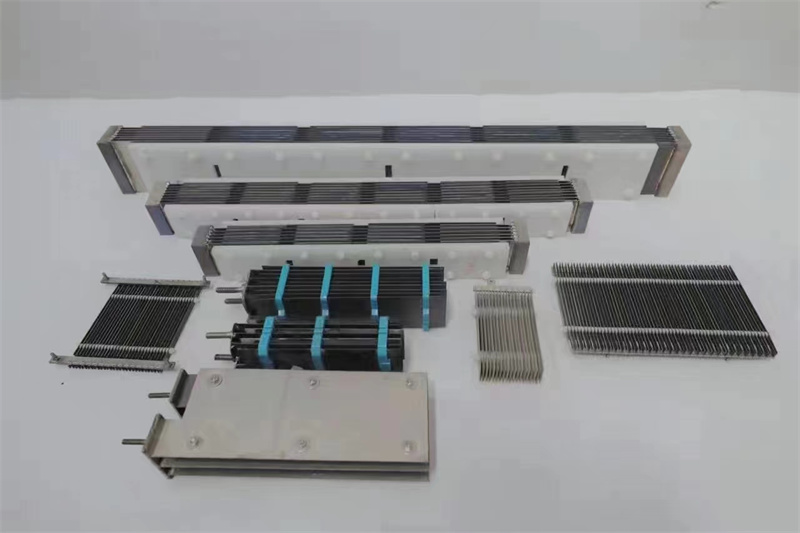

Ruthenium Iridium coating Pure Titanium Electrode For Water Treatement

Coating titanium anode is also referred to as Mixed Metal Oxide (MMO) titanium anode and Dimensionally Stable Anode (DSA), as well as Dimensionally Stable Electrode (DSE).

By brushing precious metal coating on the titanium substrate, it can have a good electric catalytic activity and electrical conductivity.


  • life time3~5years
  • PH level1~14
  • Coating Thickness1~10 Um
  • DimensionCustomized
  • CoatingRu+Ir
  • Input Voltage14~16V
  • Input current30-40A
  • Chlorine Production100g/h

Ruthenium Iridium coating Pure Titanium Electrode For Water Treatement

Introduction:

Titanium anode is remarkable for its stability in size, which guarantees that the distances between electrolytic electrodes remain unchanged during production. Besides, it requires lower operating voltage and power consumption than other electrodes, reducing electric power consumption by 10~20%.



In addition, titanium anode exhibits superior anti-corrosion capability and a long working life, as well as can overcome graphite and lead anode dissolution in electrolyte, ensuring electrolytic product won't be contaminated. With a high current density, small overpotential and excellent catalytic activity, the titanium anode could effectively enhance production efficiency, and avoid short circuit of lead anode after deformation. It also stands out for its easy shaping and high degree of refinement, and the titanium substrate can be recycled for reuse. Furthermore, its lower overpotential allows for the surface of electrodes and electrode bubbles to be easily excluded, thus efficiently lowering the voltage of electrolytic cells.


This product's surface is evenly coated in black and highly durable. It boasts low chlorine-evolution potential, a long service life, and high current efficiency. The DC current range is between 2000A/㎡ and 10000A/㎡. Its working temperature range is from 25℃ to 80℃. Different metal coatings are available, such as Ruthenium, Ruthenium plus Iridium, Ruthenium plus Iridium plus Tin, and Rare earth plus Ruthenium. The coating thickness can be between 2μm and 10μm depending on the amount of Ruthenium used, which ranges from 8g/㎡ to 35g/㎡. It's suitable for working in an environment of PH 0-14, in temperatures of up to 100℃, or even in seawater without being affected by corrosion.


 Technical Parameters:

Capacity Flange diameter Cell Diameter Length Input Current Input Voltage Inlet&outlet Diameter Flow
50g/h 140mm 80mm   420mm      30-40A 7-8V 32.3mm 7-10L/H
100g/h 140mm 80mm   670mm      30-40A 14-16V 32.3mm 12-20L/H
200g/h 170mm 110mm   670mm      60-80A 14-16V 32.3mm 25-40L/H
350g/h 200mm 130mm   670mm        90-120A 14-16V 32.3mm 45-70L/H
500g/h 200mm 140mm 760mm     90-130A 21-24V 32.3mm 62-100L/H
800g/h 240mm 160mm 970mm     120-160A 28-32V 63.3mm 100-160L/H
1000g/h 240mm 160mm 970mm     135-180A 28-32V 63.3mm 125-200L/H
1500g/h 240mm 160mm 1390mm     280-360A 21-24V 63.3mm 160-260L/H
2000g/h 240mm 160mm 1780mm     280-360A 38-32V 63.3mm 210-340L/H
3000g/h 240mm 190mm 1780mm     400-500A 28-32V 63.3mm 320-520L/H
4000g/h 310mm 230mm 2130mm     520-700A 28-32V 110.6mm 500-800L/H
5000g/h 310mm 230mm 2130mm    650-800A 28-32V 110.6mm 650-1000L/H

Manufacturing Process

Applications:

The chlor-alkali industry involves many different processes. Such processes include the diaphragm alkali legal system, the production of chlorine dioxide through electrowinning, acidic water electrolysis, electrochemical production of chlorine from sea water, sterilization of power plant circulating water alga with chlorine, electrowinning of metals in chloride systems, ionized water electrolysis, and electrodialysis.


These processes are all common components of the chlor-alkali industry and are regularly employed to produce different types of chlorine related products. Each process can be adjusted to meet specific needs in order to create higher quality and more efficiently produced chlorine related products.
