S06 overload protector motor thermal protector for various motors

S06 motor protector is small in size, easy to install, sensitive to temperature and can act quickly, and is usually used in various motor products.



S06 thermal protector for various motors and electrical tools

S06 thermal protector is also called motor protection circuit breaker.Widely used in electrical tools and various motors.The thermal protector is a good motor protection device, it can prevent the motor from overheating and prolong the service life of the motor.S06 snap disc temperature switch is small in size but it is extremely sensitive to temperature, accurate and reliable.

Features

Longer service life.

Small size and easy for mounting.

Precise temperature control.

Small current effect,no large temperature difference due to over current.

Specifications

Item No.

S06

Nominal switching temperature (NST) in 5°C

60 °C - 250 °C

Tolerance (standard)

±3K/±5K/±8K/±10K

Reset temperature range

-30K±15K

Max.operating voltage

500VAC/60VDC

Working current

250VAC, 6A

Cycles at 250VAC/3.0A cosφ1.0

10000

Cycles at 250VAC/6.3A cosφ1.0

3000/N

Cycles at 250VAC/4.0A cosφ0.45

1000/N

Cycles at 250VAC/1.0A cosφ0.45

10000/N

Contact resistance(lead length 55mm)

<50mΩ/N

Insulation voltage

1.5KV

Insulation sleeve length“a”

>15mm

Diameter“d”

<8.9mm

Height“h”

<4.6mm

Lead wire-electric

UL3398 AWG22 300V 150℃

Lead wire-teflon

UL10362 AWG22 600V 250℃

Lead wire-silicone

UL3135 AWG24 600V 200℃

Outgoing line length-standard

L1=L4=520±10mm

L2=L3=200±5mm

L5=L6=55±5mm

Applications

Electric blankets Electric tools Grinders Heating pads
Lawn mowers Water Pumps Snowplows Vacuum cleaners

Product display

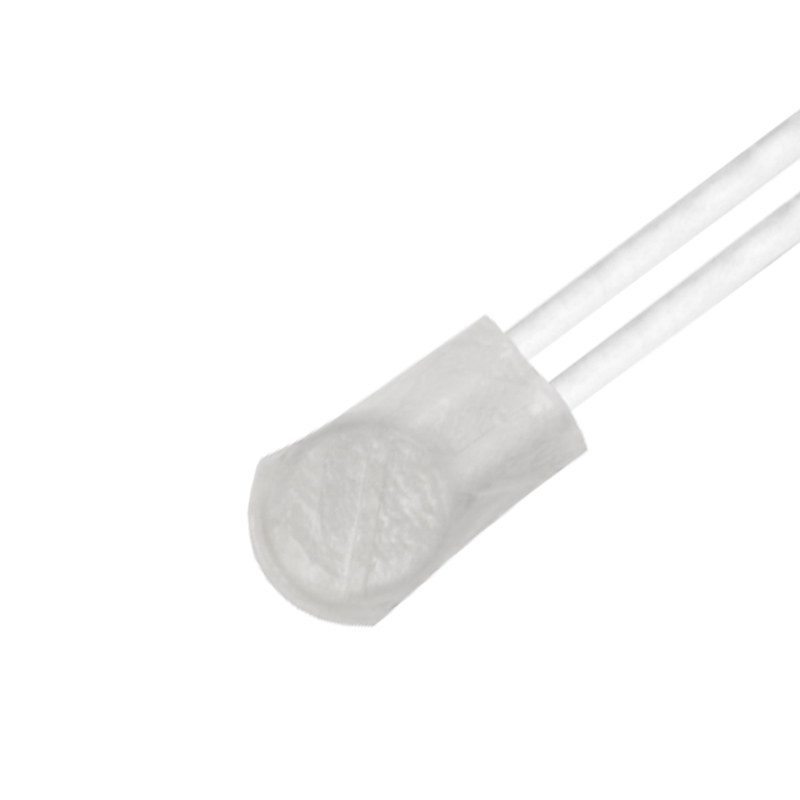

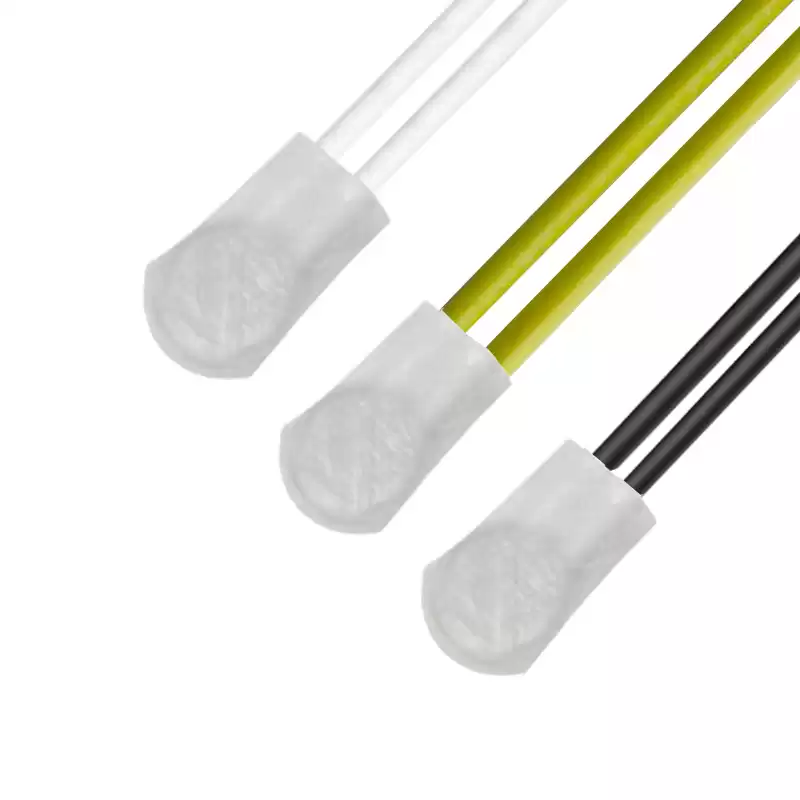

S06 thermal protector

Size details

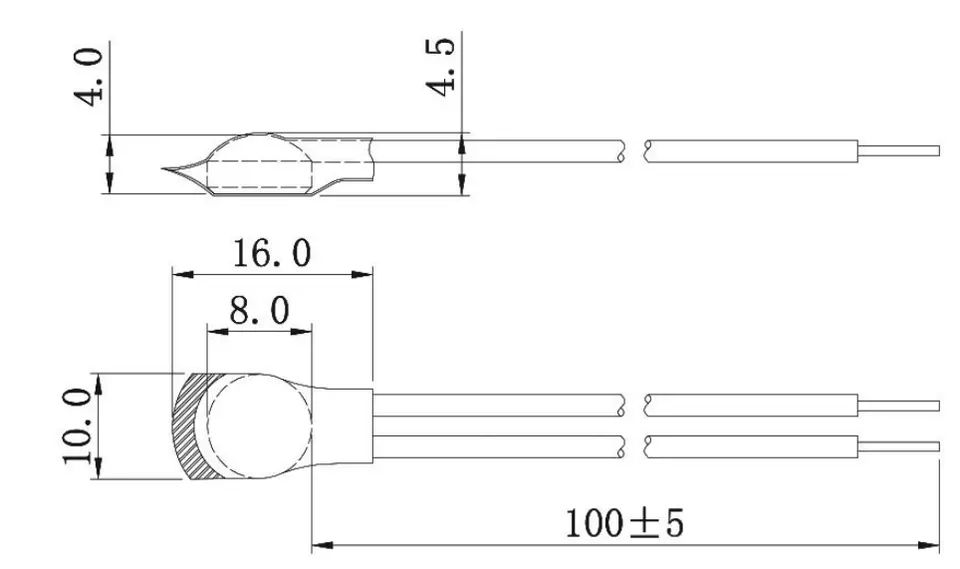

S06 thermal protector drawing

Packing & Delivery

Packing:

Packed in standard export cartons.

If you have special packing requirements,please feel free to discuss with us,thank you.

Delivery time:

Delivery time for small orders:7-15 days.

Delivery time for special requirements orders:15-30 days.

thermal protector transportation

FAQ

Q:Are you a product supplier or a factory?

A:Yes, we are a factory. Located in Nanjing, Jiangsu Province. We've been making them for 12 years.

Q:How can I get a free sample?

A:We can provide 5-10 pcs samples for free, but the overseas shipping cost will in your side.

Q:What is the shipping term of bimetal thermal protector?

A:The bimetallic thermal switches we produce are all small size, so the mode of transportation should be subject to the order quantity. For a single order of more than 50,000 pieces, sea transport is the most economical option.If the order quantity of thermal switches is less than 10000 pieces each time, express delivery is the best way, because the weight of 10000 pieces will be less than 50Kg, which is the minimum order quantity of air freight. If the quantity is between 10,000 and 50,000 PCS,express or air transport can be chosen freely according to the weight of different thermal switches.

Q:What parameters should I provide when I want to buy a thermal protector?

A:If you want to buy a thermal protector, please prepare these parameters:

1. Rated voltage, rated current.

2. Operating temperature and rest temperature of thermal protectors.

3. Length of lead wire, color, type and temperature resistance.

4. Application of thermal protector.

5. Mounting requirements if needed, including dimensional requirements.
