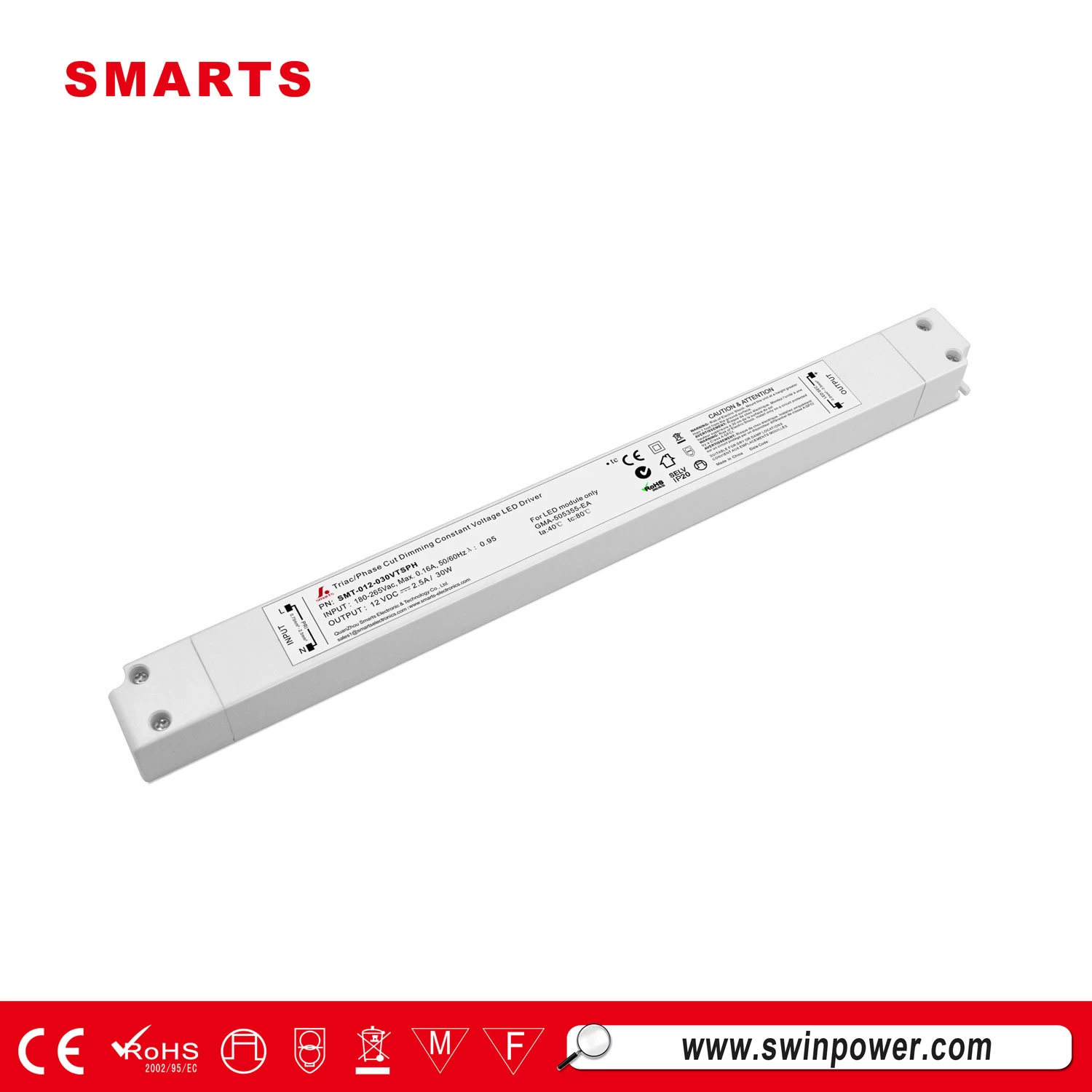

SAA ultra slim 12v 30w waterproof IP20 triac dimmable led driver

This SMT-012-030VTSPH is triac dimmable led driver, 12 volt constant voltage single output. All series are from 30 watt to 100 watt for selection.


  • Size260*30*18.5mm
  • Dimming modeTriac dimmable
  • Working ModeCV
  • Output Current2.5A
  • Output Voltage12VDC
  • Input Voltage200-240
  • CertificationSAA,CE,ROHS

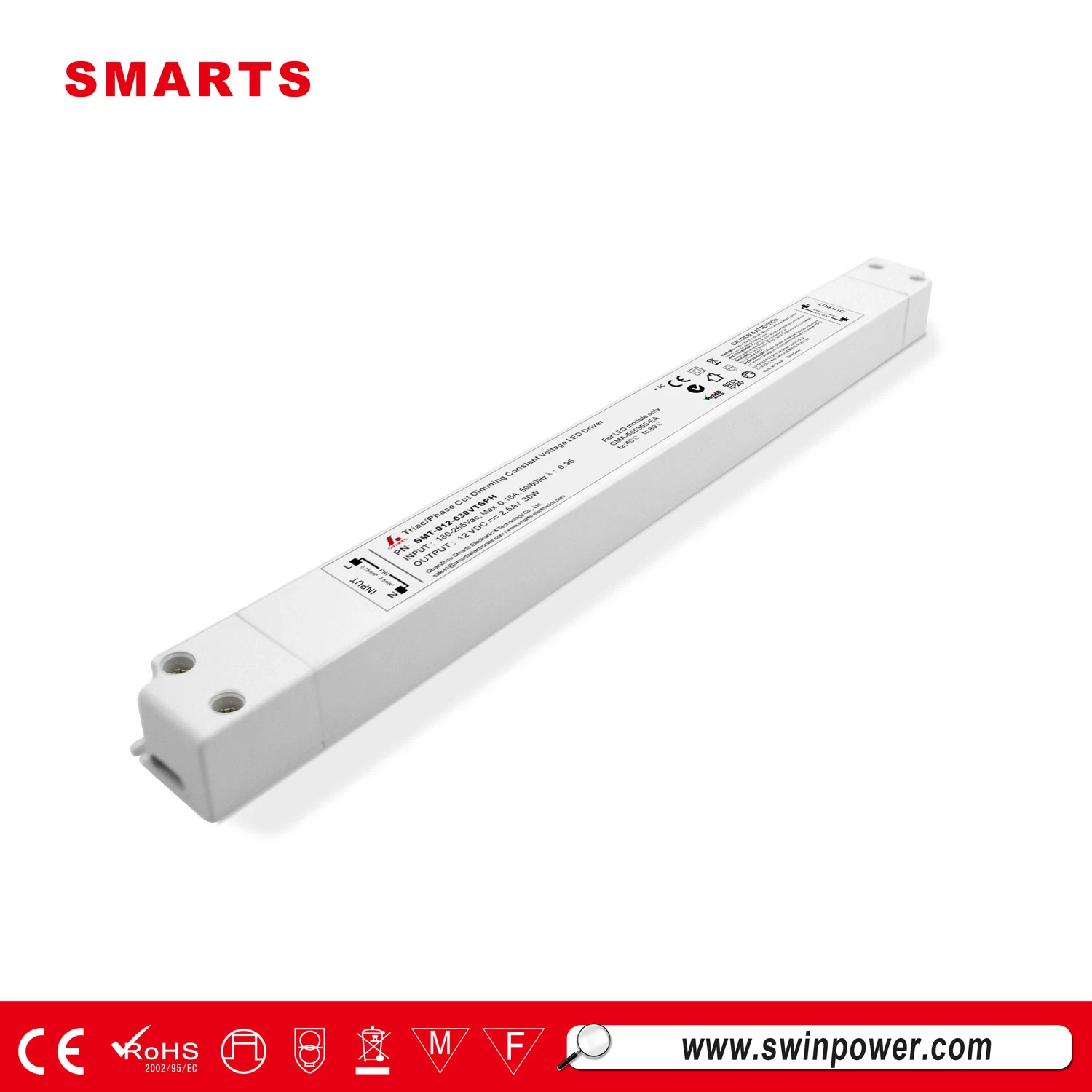

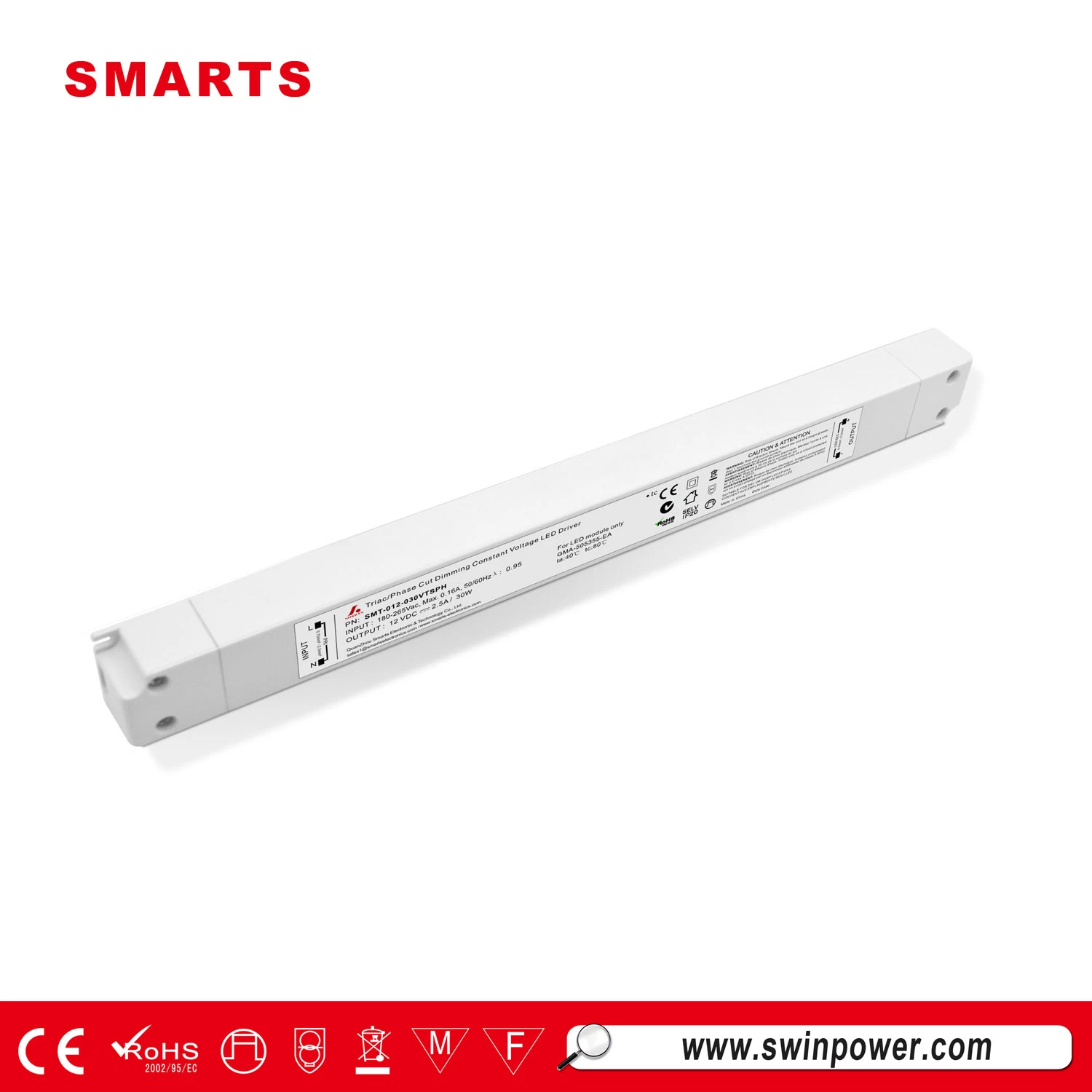

SAA ultra slim 12v 30w waterproof IP67 triac dimmable led driver


Smarts electronic new product slim triac dimmable led driver is really ultra slim which the size of this 12v 30w is 260*30*18.5mm. There is 12 volt and 24 volt for selection. 200-240v input voltage, 30w, 36w 60w,100w for choose. IP20 design for indoor dry or damp environment installations. Work with leading edge and trailing edge triac dimmers available.


  Specification

model

SMT-012-030VTSPH

SMT-024-030VTSPH

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

200-240 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

>79%

>81%

AC CurrentTyp.

0.5A/100VAC  /  0.13A/277VAC

Inrush CurrentTyp.

7A, 50%, 420us

Leakage current

<0.27mA/200VAC; 0.25mA/240VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.35Kg

Size

260*32*20mm (L*W*H)

packing

50PCS/CTN



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver



  Dimming Operation

  • Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
  • Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better.
  • Please try to use dimmers with power at least 1.5 times as the output power of the driver.

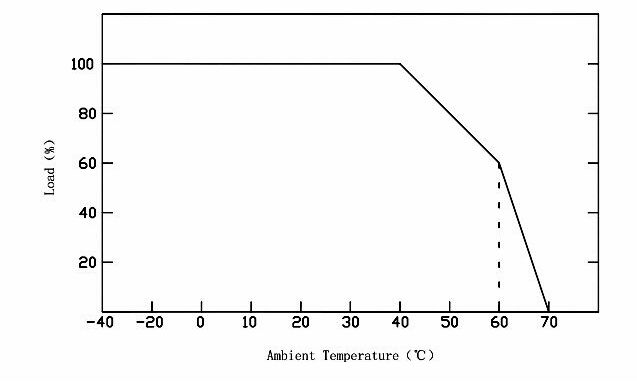

 Derating Curve


12v 30w slim led driver

  • Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.



 What do you mean by constant voltage source?

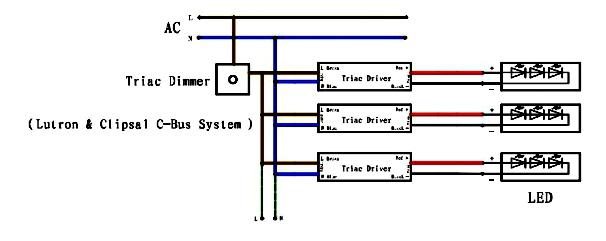

A constant voltage source is a power source which provides a constant voltage to a load, even despite changes and variance in load resistance. In other words, the voltage which a constant voltage source provides is steady, even if the resistance of the load varies. Hence how to connect the triac dimmable constant voltage with led driver? Please see as below:


triac dimmable led driver

triac dimmable led driver
