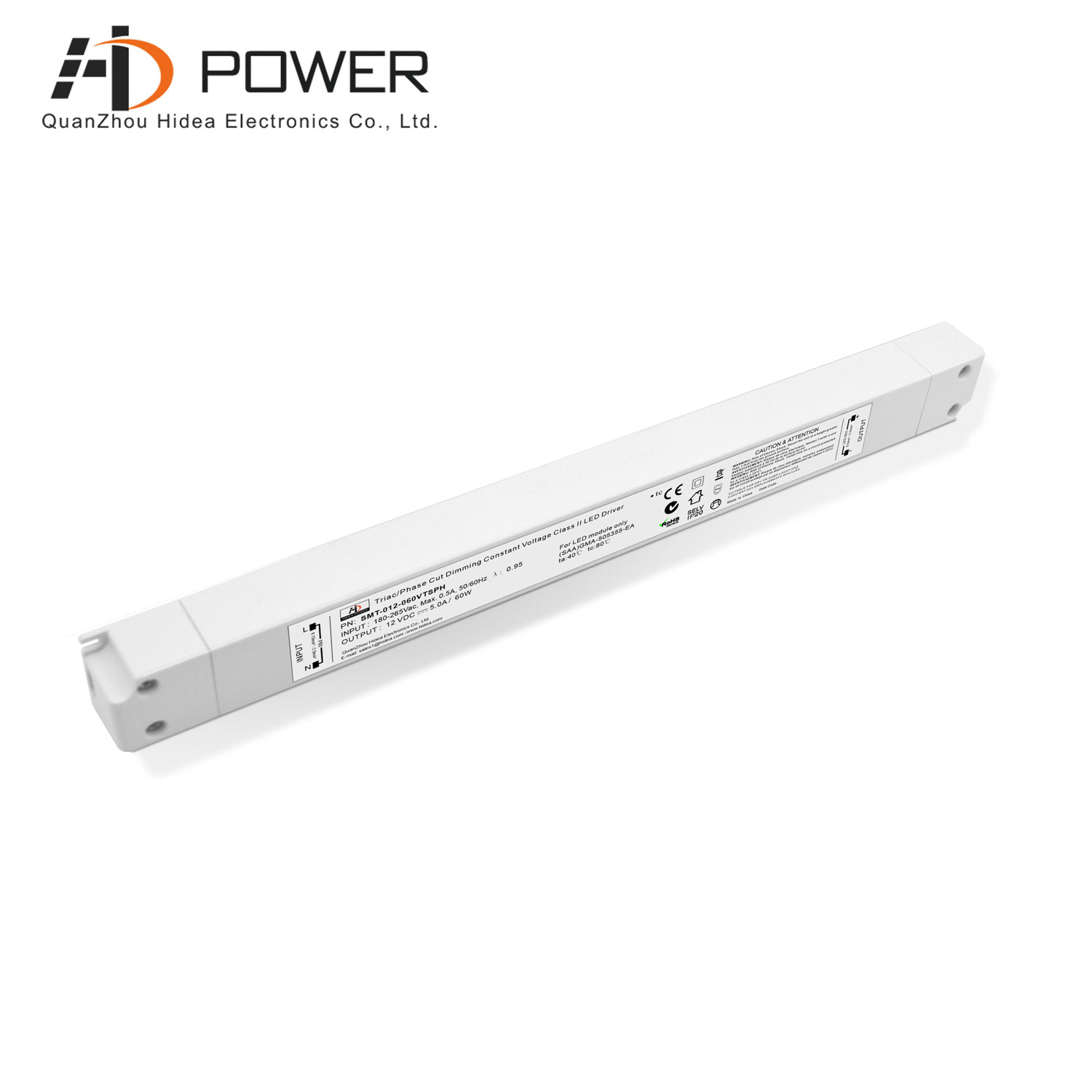

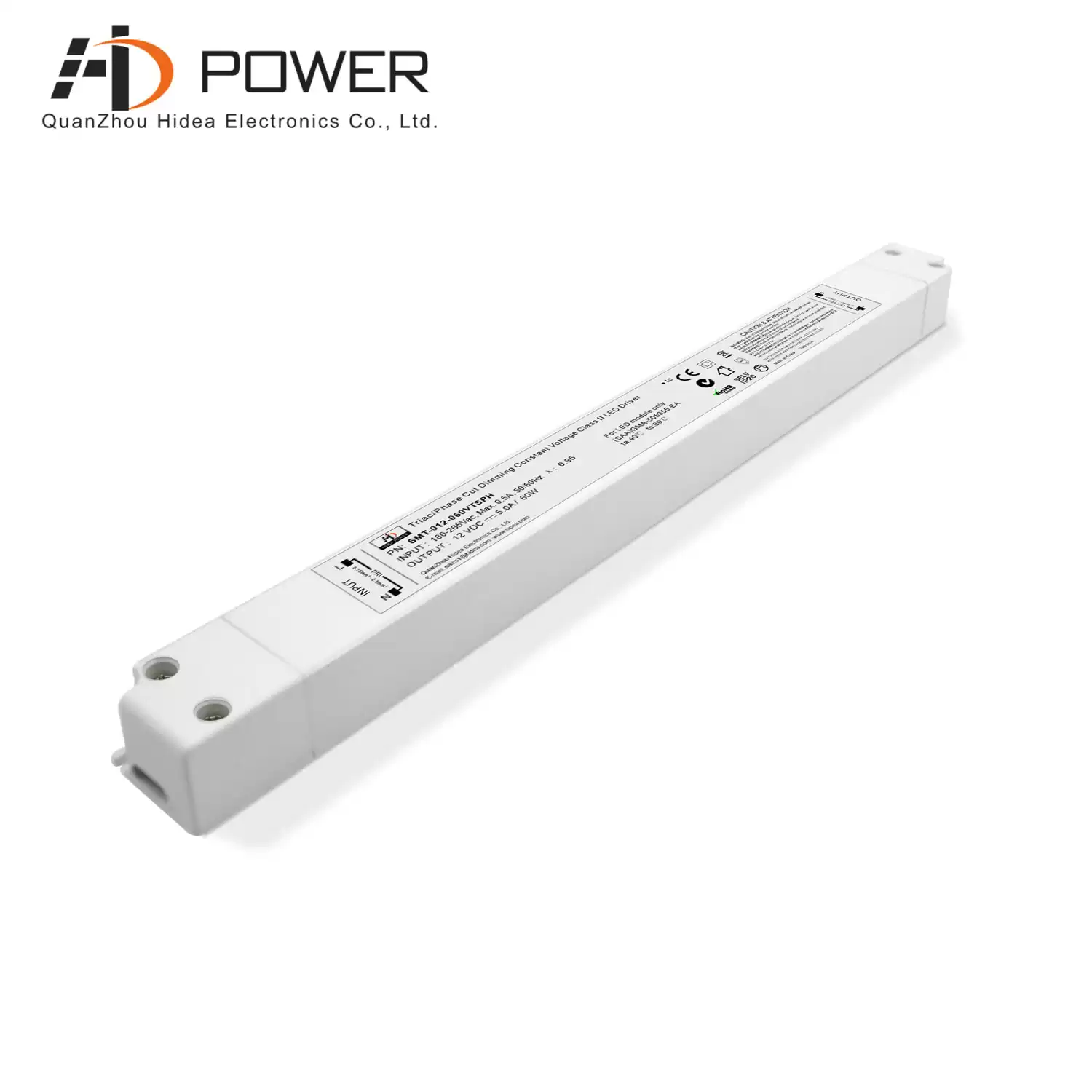

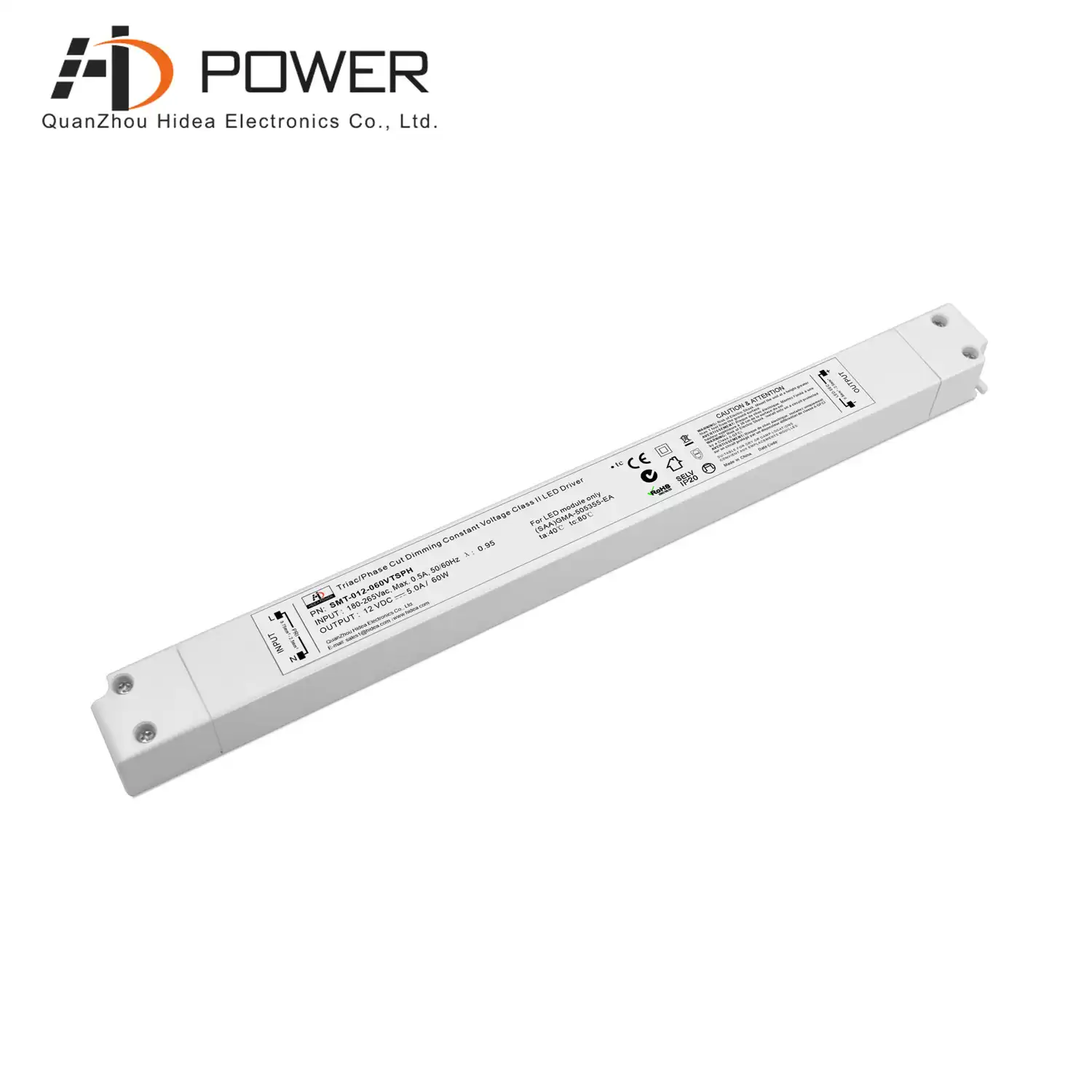

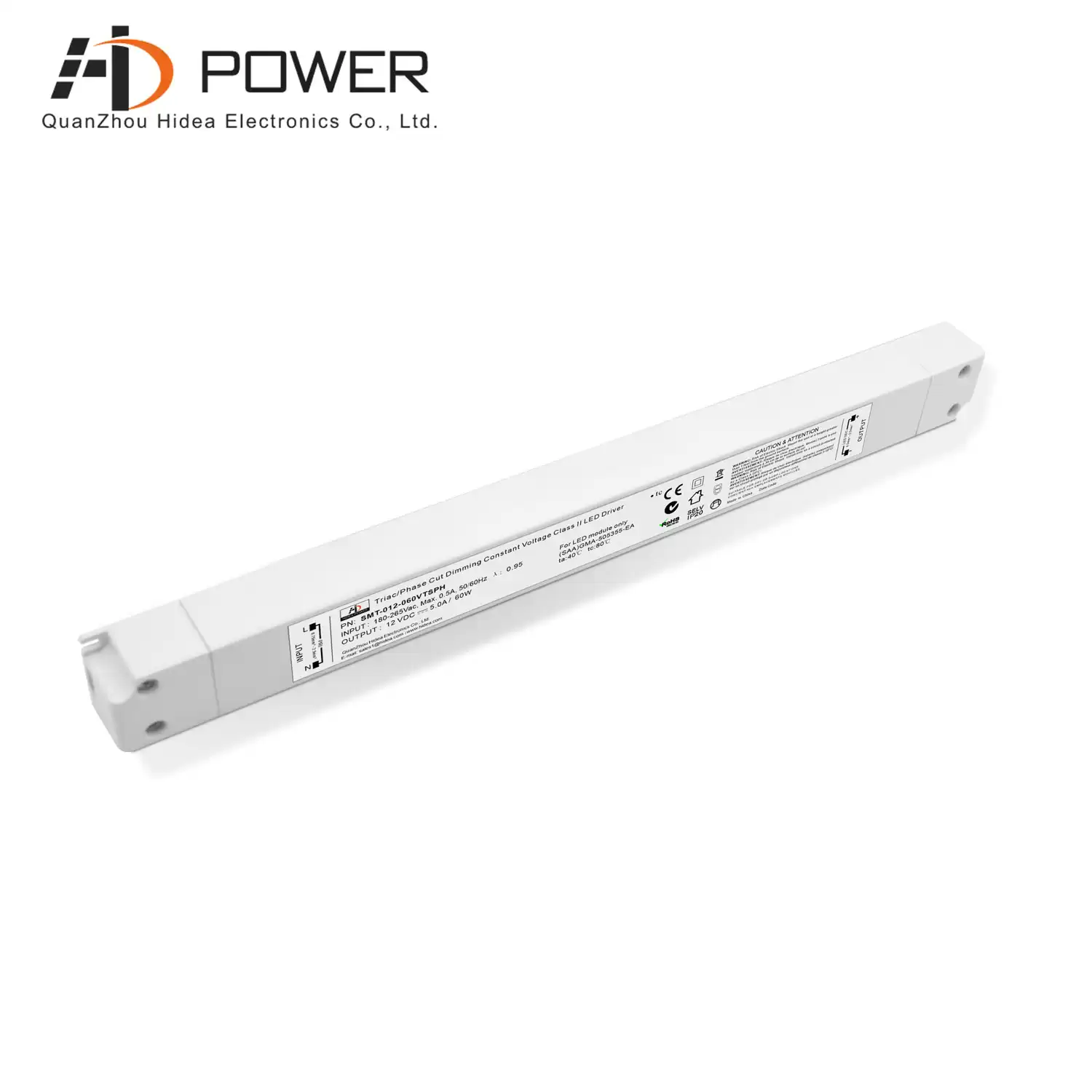

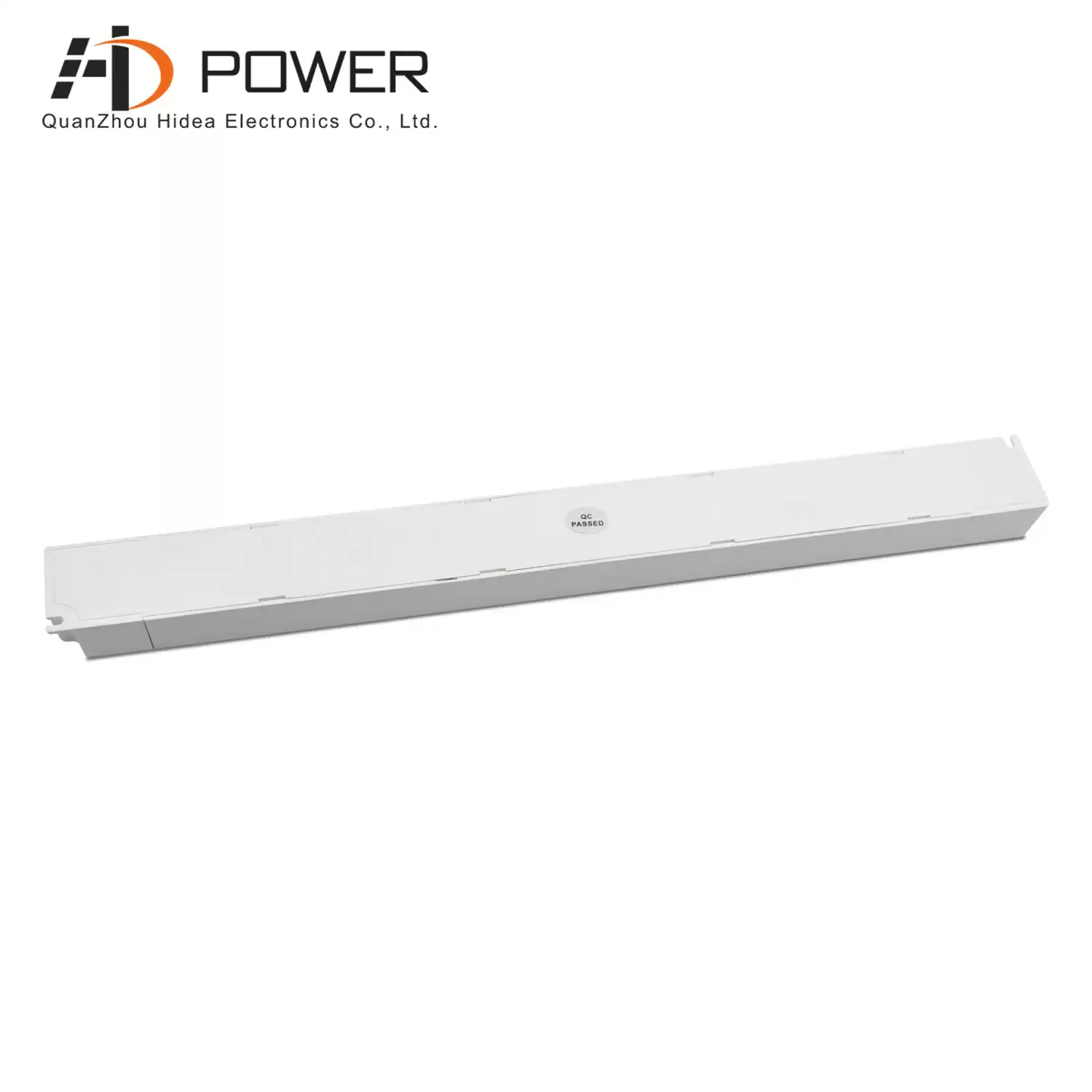

SAA ultra slim triac dimmable led power supply led driver 60w 12v/24v plastic shell
hidea power slim size Series triac dimming led driver has strong compatibility, with 30W, 36W, 60W, 100W for users to choose, can achieve flicker free dimming,
Specification
|
model
|
SMT-012-060VTSPH
|
SMT-024-060VTSPH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
Rated power
|
60W
|
60W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
220-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.98@220VAC
|
|
Full Load Efficiency(Typ.)
|
>84%
|
>85%
|
|
AC Current(Typ.)
|
0.37A/220VAC
|
|
Inrush Current(Typ.)
|
50A,50%,136us@230VAC
|
|
THD(Typ. )@ full load
|
<20%
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Protection Class
|
II
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Weight
|
0.25Kg
|
|
Size
|
300*30*18.5mm (L*W*H)
|
|
packing
|
330*330*130mm/50PCS/CTN G.W.:13.60KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Related Products
|

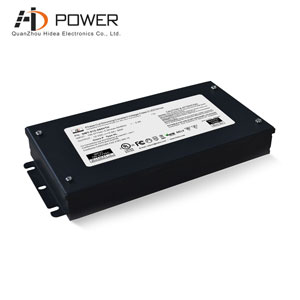

The 60W triac dimming led driver is UL-certified with 100-277vac input voltage and integrated junction box and power supply. It is easy to install and suitable for large commercial and super lighting projects
Mode：SMT-012-060VTHW
Dimming Mode : triac dimming
Output Power :60W
intput voltage：100-277Vac
Size：188*92*26mm L*W*H）
|
