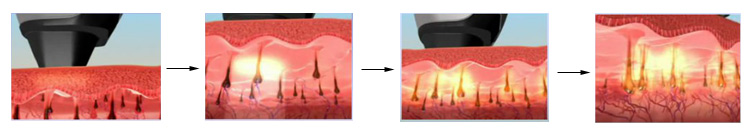

Working principle
Diode laser machines uses 808 nm, specifically effective to hair follicle melanocytes without damage around tissues. The laser light is often absorbed by hair shaft as well as follicles of hair in the melanin, and transformed into heat, thus raising the hair follicle temperature. When the temperature improves high enough to irreversibly injury the hair follicle structure, which disappear after a period of organic physiological processes of hair follicles and thus reach the purpose of long lasting hair removal.
Parameters of 808nm laser diode machine
|
Laser type
|
808nm Diode Laser hair removal machine
|
|
Wavelength
|
808nm+/- 10nm
|
|
Pulse Width
|
25ms~950ms
|
|
Working Frequency
|
1Hz~10 Hz
|
|
Energy Fluence
|
0~70J/cm2
|
|
Beam Type
|
Collimated
|
|
Cooling System
|
Micro Channel + TEC +Sapphire + Air + Water Cooling
|
|
Laser Window
|
13mm*13mm
|
|
Laser Cooling Liquid
|
Purified Water
|
|
Handpiece Flow Rate
|
3.5~4.5 L/min
|
|
Handle Life Span
|
5.000.000 shots
|
|
Environment Temperature
|
5~28 C
|
|
Environment Moisture
|
< 80%
|
|
Input VAC
|
220VAC /50 - 60 Hz(110VAC optional)
|

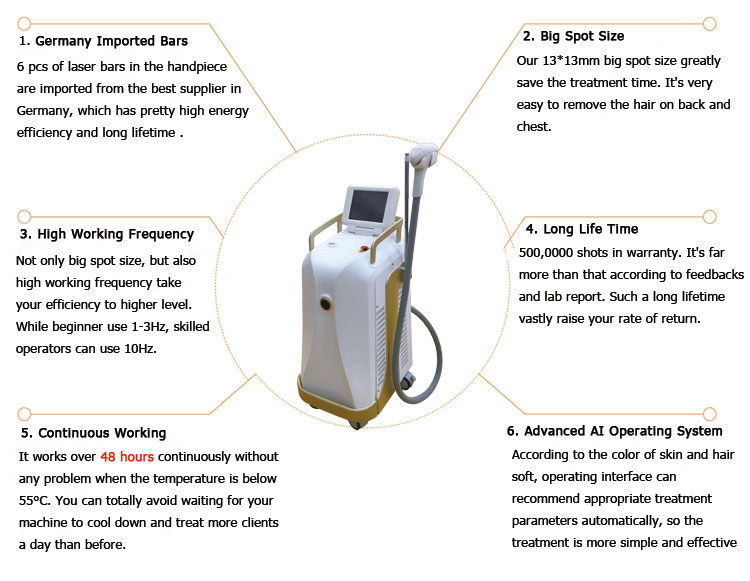

Advantages
1. Germany Imported Diode Laser Bars
6 pcs of laser bars in the handpiece are imported from the best supplier in Germany, which has pretty high energy efficiency and long lifetime .
2. Big Spot Size
Our 13*13mm big spot size greatly save the treatment time. It's very easy to remove the hair on back and chest.
3. High Working Frequency
Not only big spot size, but also high working frequency take your efficiency to higher level. While beginner use 1-3Hz, skilled operators can use 10Hz.
4. Strong and Safe Cooling System
Cooling is pretty important for a diode laser laser hair removal system. We use Micro channel cooling technology, semiconductor cooling system and upgraded filtration system which will alarm when the ion contend is more than 5.It will protect water circulation and handle system.
5. Long Life Span
500,0000 shots in warranty. It's far more than that according to feedbacks and lab report. Such a long lifetime vastly raise your rate of return.
6. Continuous Working
It works over 48 hours continuously without any problem when the temperature is below 55°C. You can totally avoid waiting for your machine to cool down and treat more clients a day than before.
7. Advanced AI Operating System
According to the color of skin and hair soft, operating interface can recommend appropriate treatment parameters automatically, so the treatment is more simple and effective
Functions
. Painless and permanent hair removal
. Remove hair on whole body
. Remove hair of any Color Skin

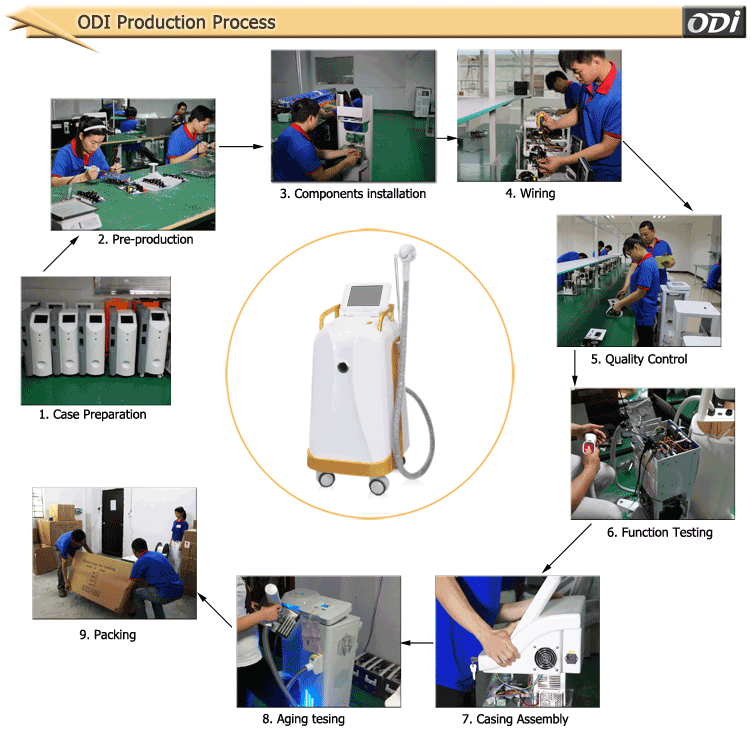

Production Process
. ODI Laser have a group of skilled engineers, technicians and production of high quality staff and a sound and stringent production line, which always offer the newest and high quality machines for you.
. ODI Laser promise that all of beauty machines must be tested well before sending out.
