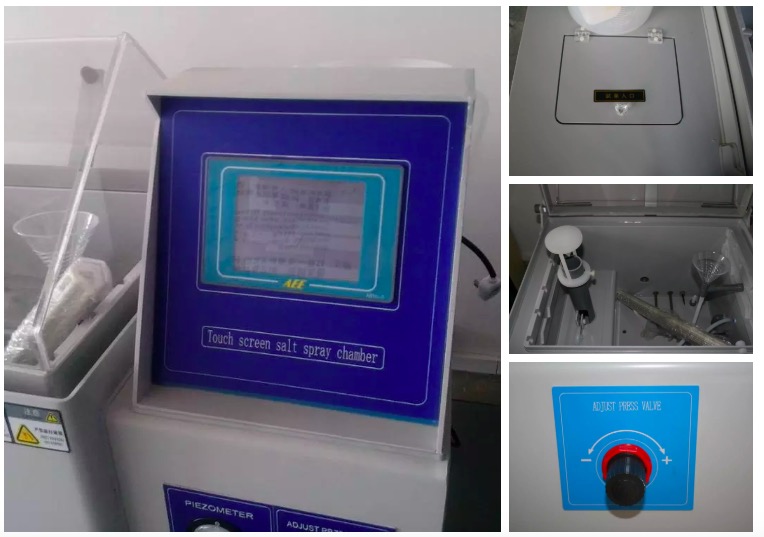

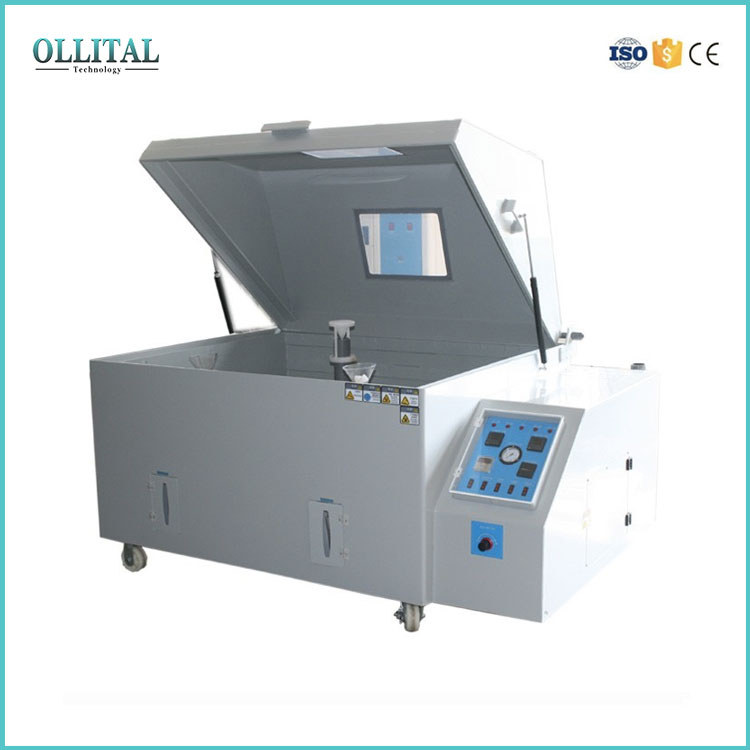

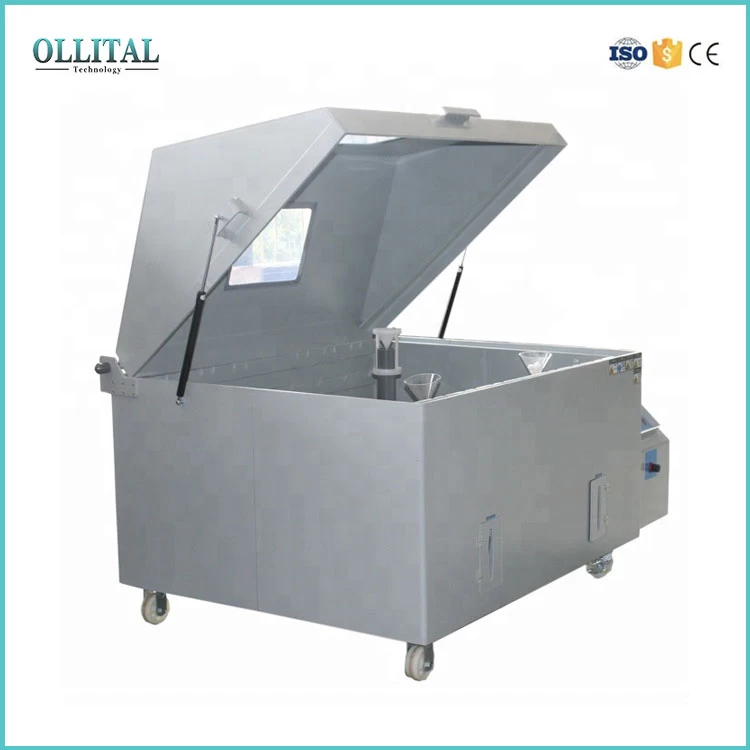

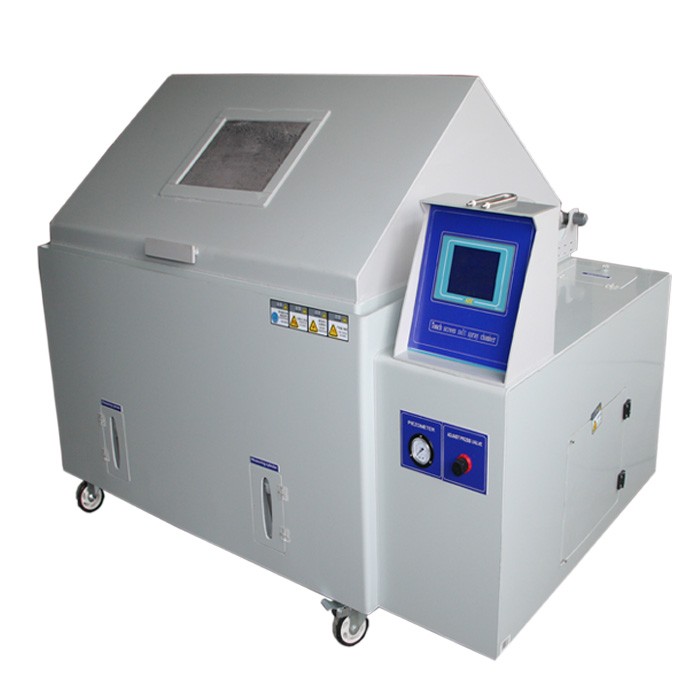

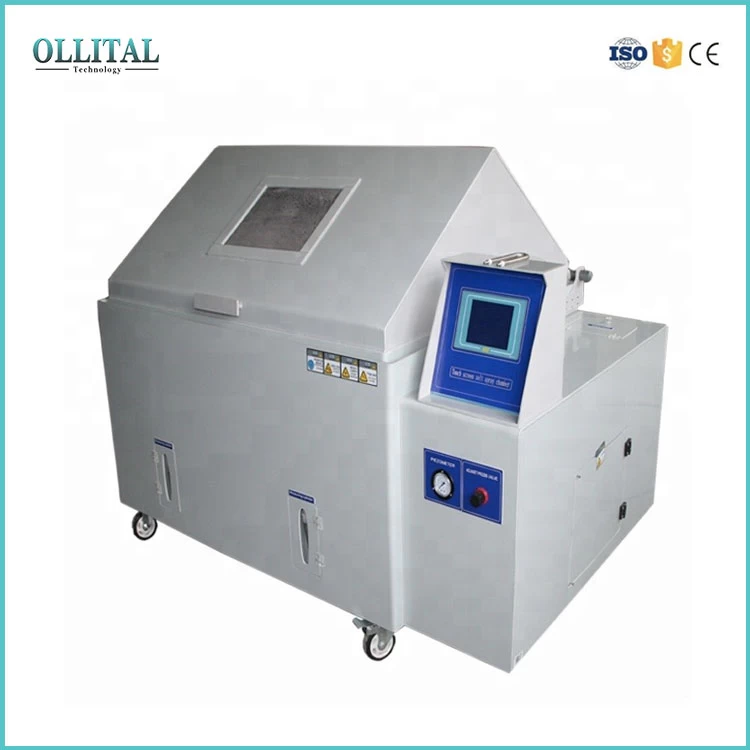

Salt Fog Humidity Cyclic Corrosion Test Chamber
Salt fog humidity cyclic corrosion test chamber is used to check corrosion resistance of materials and surface coatings. Usually, the materials to be tested are metallic (although stone, ceramics, and polymers may also be tested) and finished with a surface coating which is intended to provide a degree of corrosion protection to the underlying metal.
|
|
|
|
|
|
Test area size(W*H*D)
|
60*45*40cm
|
|
|
|
Exterior size(W*H*D)
|
107*58*103cm
|
|
|
|
Box temperature
|
|
|
Air saturation barrel tempe.
|
RT~63C, +/-0.5C
|
|
Brine tank temperature
|
RT~50C, +/-0.5C
|
|
Saturated air pressure
|
0.8~2.0kg/m2
|
|
Mist volume
|
0.5~3.0ml/80cm2/h
|
|
Salt solution
|
6.5~7.2PH
|
|
PH value of copper acerate
|
3.0~3.2PH
|
|
Exterior materials
|
P.V.C & P.P
|
|
Interior materials
|
P.V.C & P.P
|
|
Spraying system
|
Air acid (base) liquid
|
|
Heating system
|
SUS# Stainless steel high speed heater
|
|
Controller
|
Hydrometer, salt meter, mist conlector, glass bar
|
|
Other components
|
Digital electronic indicator +SSR+PID
|
|
Safety devies
|
Overheat protection circuit breaker, dehydration and over-heat prevention mechanism, over-load indicator.
|
|
Power supply
|
AC 1 phase 110V; AC 1 phase 220V; AC 3 phase 380V 50/60Hz
|
|
Customization service
|
Available
|
