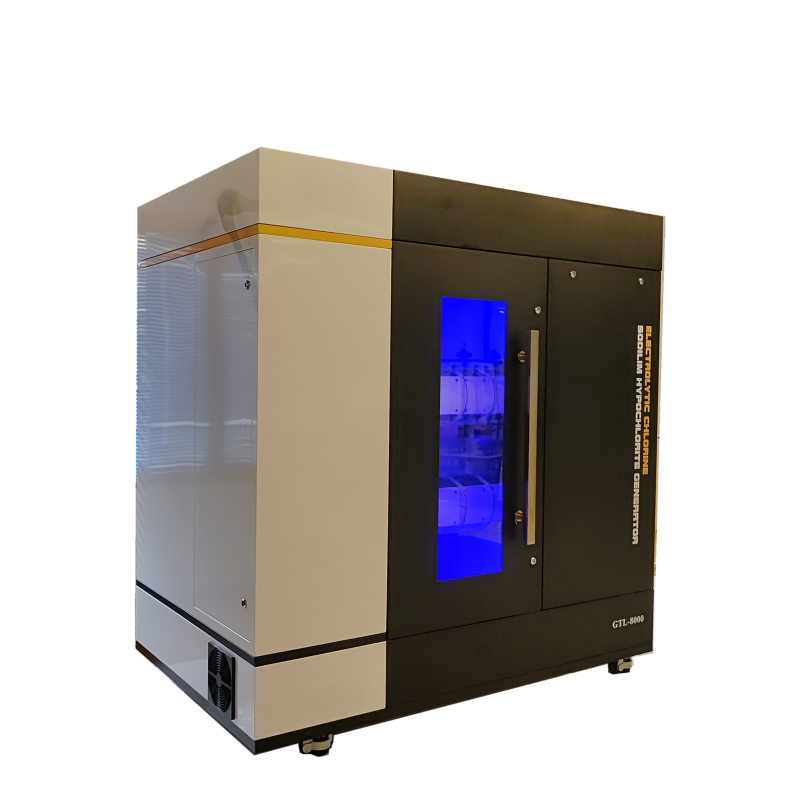

Salt Water Type PLC Control Sodium Hypochlorite Generator for Drinking Water Plant

Purevita's unique salt water electrolysis technology offers an eco-friendly, safe and economical solution for water disinfection. Using only salt, water, and electricity, our customized electrolytic cells produce sodium hypochlorite on site and on demand, eliminating the need for transporting hazardous chemicals.

  • Chlorine concentration8000ppm
  • AdditiveSalt
  • Salt Consumption3.5kg/hr per cl2
  • Power Consumption4kw/hr per cl2
  • ApplicationDrinking water treatment
  • ControlPLC control/full automatic
  • Output Flow1250L/h
  • Capacity10kg/h
Facebook Twitter Pinterest LinkedIn 分享

Salt Water Type Sodium Hypochlorite Generator for Drinking Water Plant

Purevita Sodium Hypochlorite Generator

Salt Water Type PLC Control Sodium Hypochlorite Generator for Drinking Water Plant utilize electrolysis to generate sodium hypochlorite from brine, resulting in a solution with a concentration of 0.8%. This low-concentration sodium hypochlorite offers several distinct advantages:

    1. Minimal Maintenance Requirements: The 0.8% sodium hypochlorite solution produced by Purevita is non-aggressive and low in minerals. This characteristic eliminates the need for extensive cleaning and de-scaling of injection nozzles, streamlining operational maintenance.

    2. Stability and Longevity:
      Unlike conventional sodium hypochlorite solutions that can lose up to 20% of their chlorine content during storage, Purevita’s solution remains stable over months without requiring additives. This stability ensures consistent chlorine levels for effective disinfection.

Safety and Operational Efficiency:
Produced in close proximity to the process, the direct storage and dosing of sodium hypochlorite by Purevita systems minimize the risk of accidental spillage and exposure to operating personnel, enhancing overall safety protocols.

Main Features:



Raw Materials: Utilizes only salt or seawater, which are safe and convenient for transportation and storage, without volatility or toxicity concerns.

Electrode Connection: Employs a bipolar electrode connection mode, minimizing heat generation and reducing sodium hypochlorite salt and power consumption.



Efficiency Standards:

Salt consumption < 3.5kg / kg Cl2

AC Power consumption < 4kw / kg Cl2

Control System: Equipped with Siemens PLC and touch screen for full automatic control, ensuring operational precision and ease of use.



Longevity: Extended lifespan of critical components:

    • Cathode life > 20 years
    • Machine life > 15 years

These features collectively make sodium hypochlorite disinfection a robust choice for water treatment facilities seeking effective, safe, and sustainable disinfection solutions.

Specification



  GTL-5000 GTL-8000 GTL-10000 GTL-15000 GTL-20000
Chlorine Capacity 5Kg/hr 8Kg/hr 10Kg/hr 15Kg/hr 20Kg/hr
Water treatment Capacity(At 1ppm dosing) 100mld 160MLD 200MLD 300MLD 400MLD
Salt Consumption 3.5kg/kg Cl2 3.5kg/kg Cl2 3.5kg/kg Cl2 3.5kg/kg Cl2 3.5kg/kg Cl2
Power Consumption 4.0kw/ kg Cl2 4.0kw/ kg Cl2 4.0kw/ kg Cl2 4.0kw/ kg Cl2 4.0kw/ kg Cl2
Concentration of HYPO 5000~8000ppm 5000~8000ppm 5000~8000ppm 5000~8000ppm 5000~8000ppm
Production Flow Rate 625~1000 L/hr 1000~1600L/hr 1250~2000L/hr 1875~3000L/hr 2500~4000L/hr



Advantage



Eliminate delivery & handling of hazardous chemicals
Handle only salt
Generate on site for on-demand or residual storage
No exhaust gases as with conventional sodium hypochlorite solutions in dosing pumps
Eliminate injection point scaling associated with commercial sodium and calcium hypochlorite
Considerable Health & Safety benefit to operators



Applications
