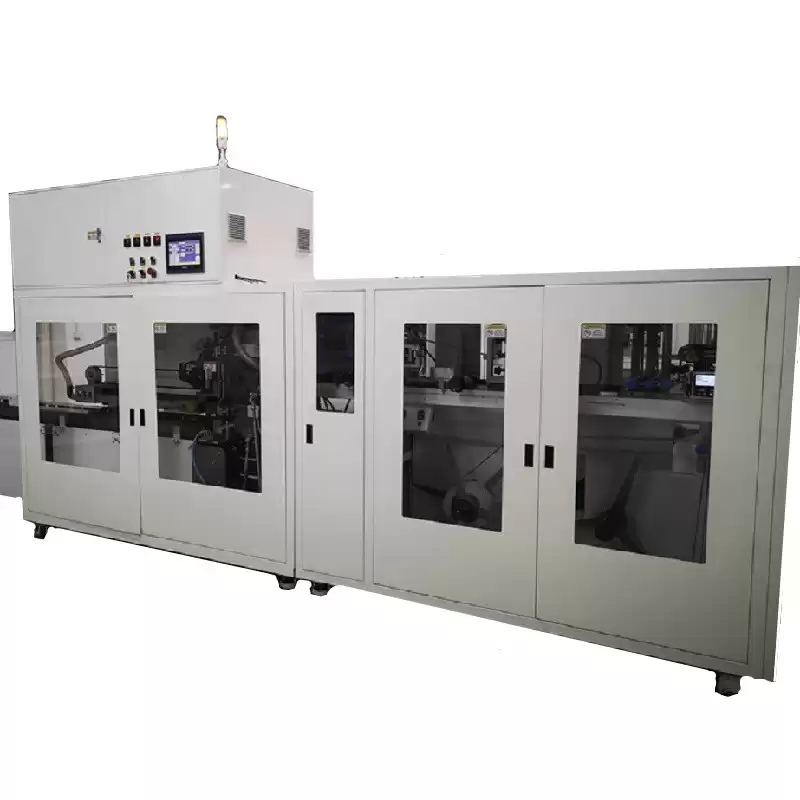

STC-S50-W Automatic Sanitary Napkin Packaging Machine
STC-S50-W Automatic Packaging Machine for Sanitary Napkins can realize the quantitative automatic bagging packaging for sanitary napkins. It is composed of the processes of layering feeding, automatic pushing, bag roll automatic running, online bag making, automatic printing code, automatic bagging, automatic sealing, finished product discharging, automatic waste suction and so on. It forms a complete set of production processes of automatic feeding, packaging and discharging.
Feature
1.The whole machine is composed of automatic feeding unit, packing unit and bag supply unit.
2.Independent drive with full servo, short response time; Equipped with medium bus PLC, the performance is more stable when running at high speed.
3.Online bag-making, bagging and sealing are all completed automatically, which greatly improves the production efficiency.
4.Adopt 10 inch LCD touch screen, easy to operate when setting parameters and changing.
5.With bag drop detection, do not push the material in the case of unsuccessful bag opening, and automatically getting bag .
6.The sealing of bag making adopts omron temperature control system to control the heating tube. The temperature stability deviation is ± 1 ° to ensure the success rate of bag making.
7.It has the function of material inspection. When there is no material, the bag can be taken waiting for material.
8.Connect to front and rear equipments.
Technical Parameter
|
Outer roll diameter
|
≤φ600mm
|
|
Inner roll diameter
|
φ76-φ80mm
|
|
Packing speed
|
45-60PCS/min（according to product）
|
|
Package film thickness
|
0.03-0.07mm
|
|
Package film material
|
PE Double-sided heat sealing film (recommended)、OPP、Various composite heat sealing films
|
|
Product packaging specification
|
L100-200mm；W70-110mm；H30-100mm
|
|
Power
|
12.5Kw
|
|
Package qualification rate
|
≥98%
|
|
DIM
|
5400mm×1200mm×2100mm
|
|
Supply power
|
380V 50HZ
|
|
Air pressure
|
6kg/cm2，0.45m3/ min
|
|
Net weight
|
3000Kg
|

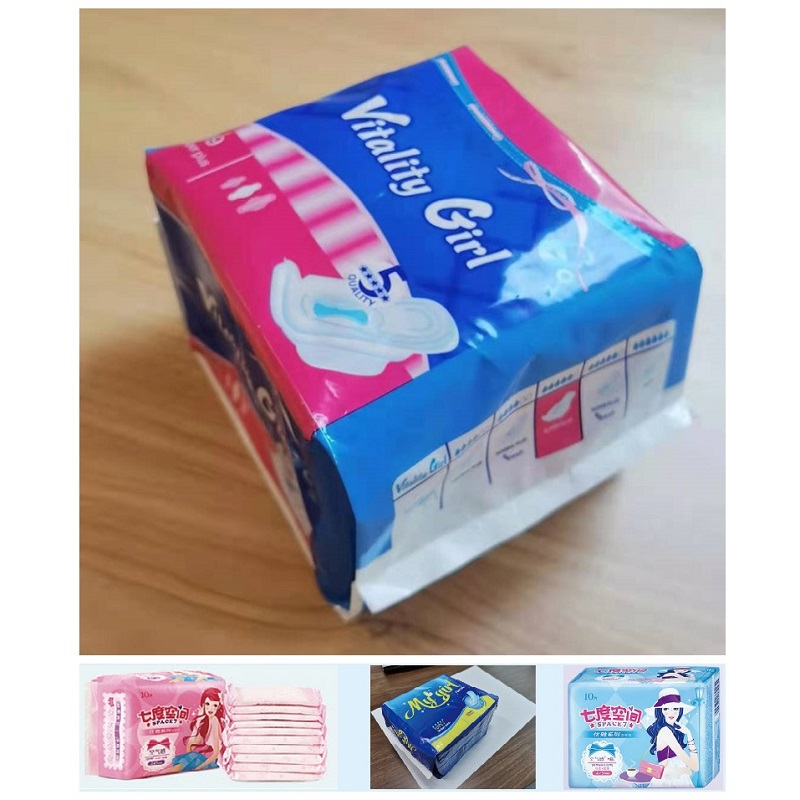

Application
