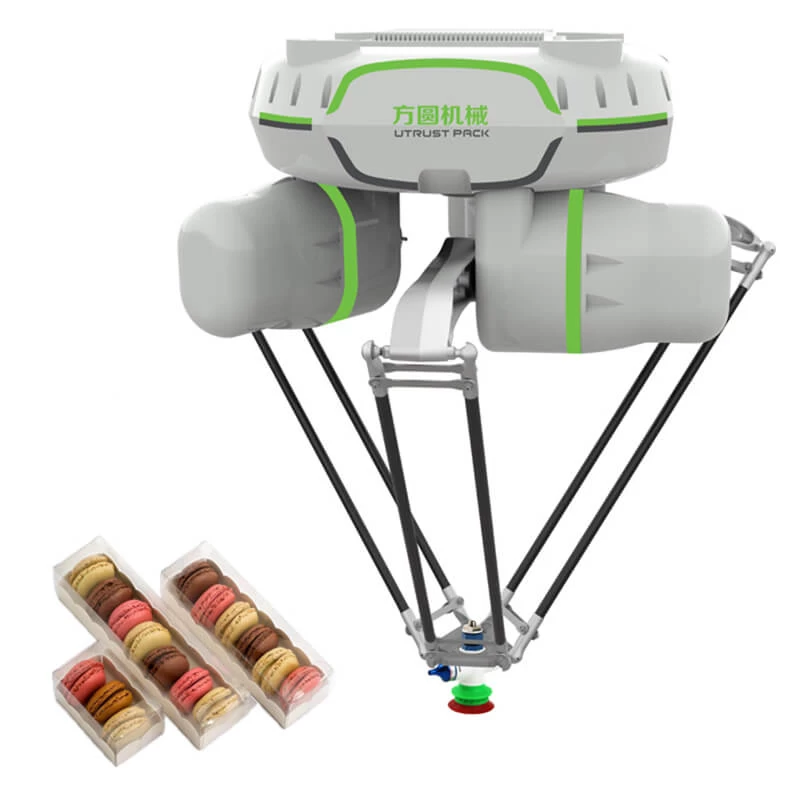

Save Labour Cost Cookies Pick Place Robot / 3 Axis Pick and Place Robot

Save Labour Cost Cookies Pick Place Robot / 3 Axis Pick and Place Robot

Maximum Pick-up Height: the maximum descending distance from the center of the origin position vertical

downward during the pickup process.
Rated Load: the maximum load of the robot under the best performance and normal operation of the robot
Max Load: the maximum load of the robot which is exceeding the rated load. If it go beyond the rated load,
the robot performance index will be affected, the wear problem of the motor, wearing parts, driven arm,
intermediate shaft will be much more seriously



Save Labour Cost Cookies Pick Place Robot / 3 Axis Pick and Place Robot

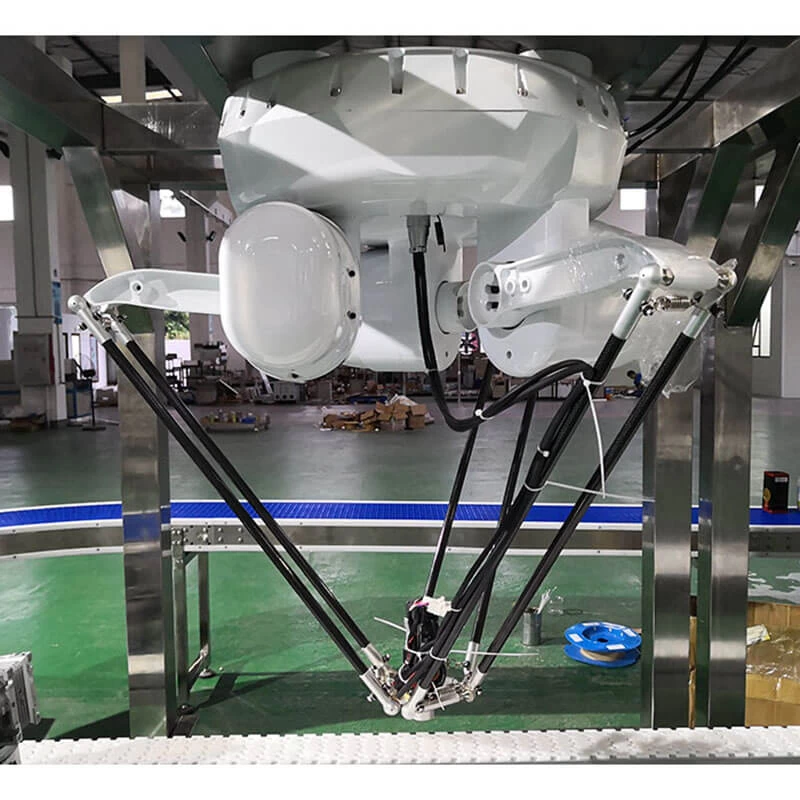

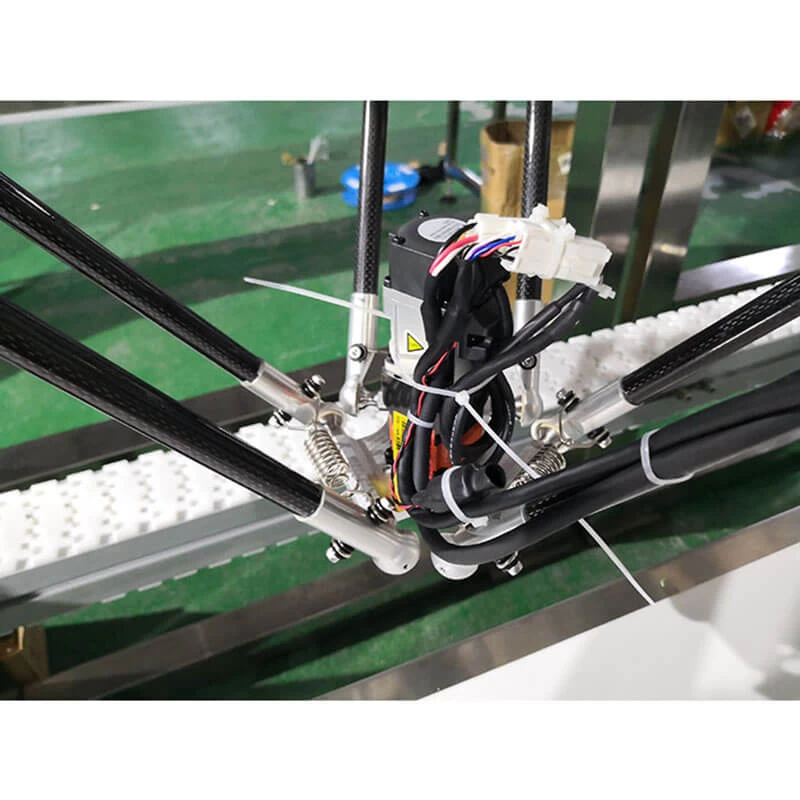

Details--4 Axis Pick Place Delta Robotic Arm

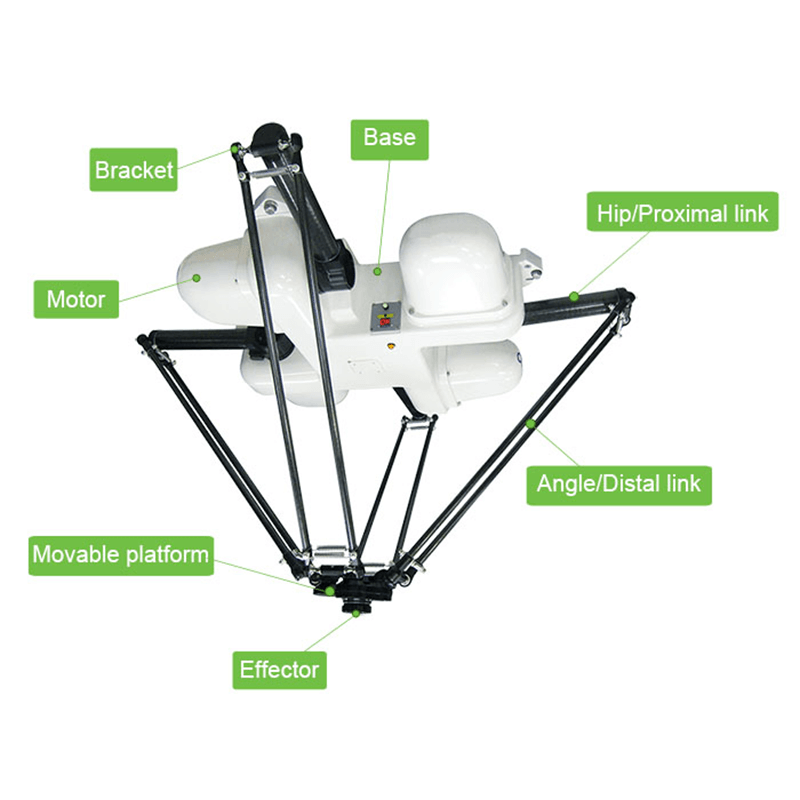

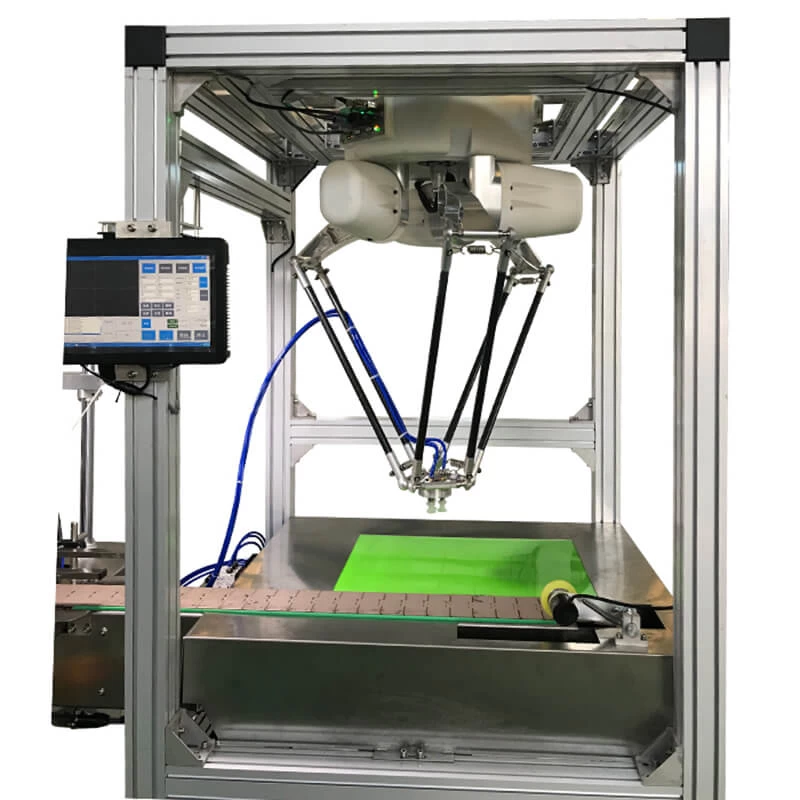

Delta robot arm

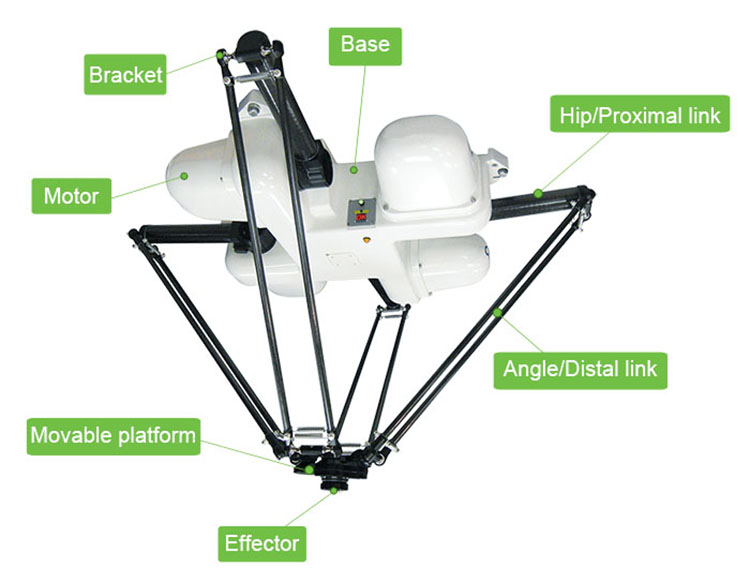

Parallel robotic arm

Technical Parameter--High Efficiency Pick and Place Parallel Link Robot


Model
UT-400
UT-800
Axis
4 4
Movement  diameter (mm)
400
800
Max pick-up height (mm)
120
410
Payload (kg)
0.5
3
Max load (kg)
3
5
Repeatability (mm)
±0.1
±0.1
Angle Positioning accuracy (°) ±0.1
±0.1
Beats times/min
160
280
IP Class
IP54
IP54
Installation
tabletop
overhead mounting
Power supply (v)
AC 380/220
AC 380/220
Weight (kg)
16
64
Dimension (mm)
605*605*482
1000*1000*718

Specification--Delta Robot Arm For Goods Sorting

1/ Strong material : mainly made of carbon fiber and aluminum alloy composition.


2/ High accuracy: target identifying, motion tracking, picking and placing the target object to the designated position.

3/Max Load: the maximum load of the robot which is exceeding the rated load. If it go beyond the rated load, the robot performance index will be affected, the wear problem of the motor, wearing parts, driven arm, intermediate shaft will be much more seriously

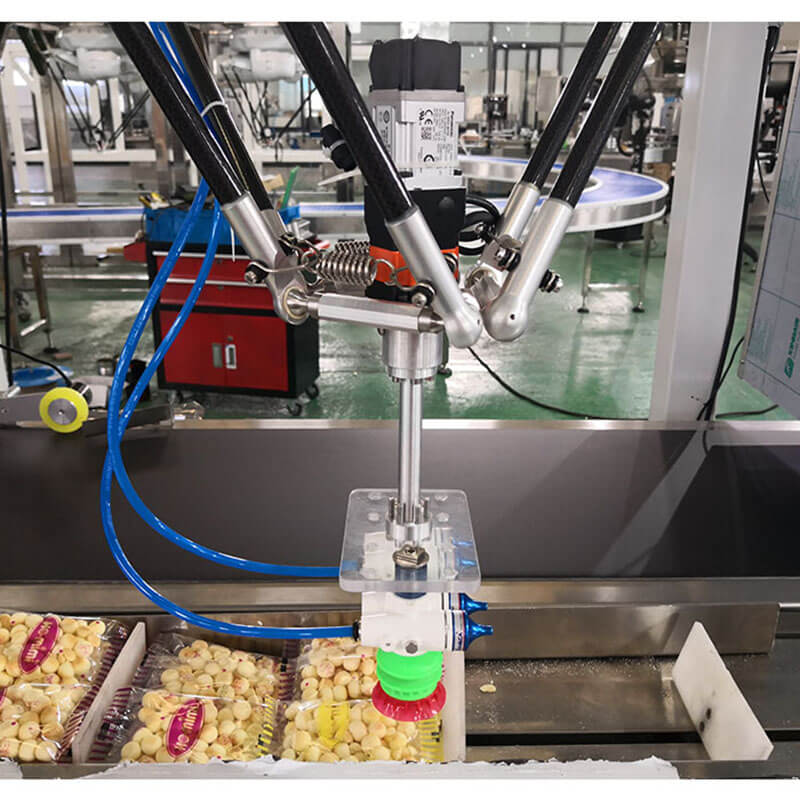

Application

4 axis robot

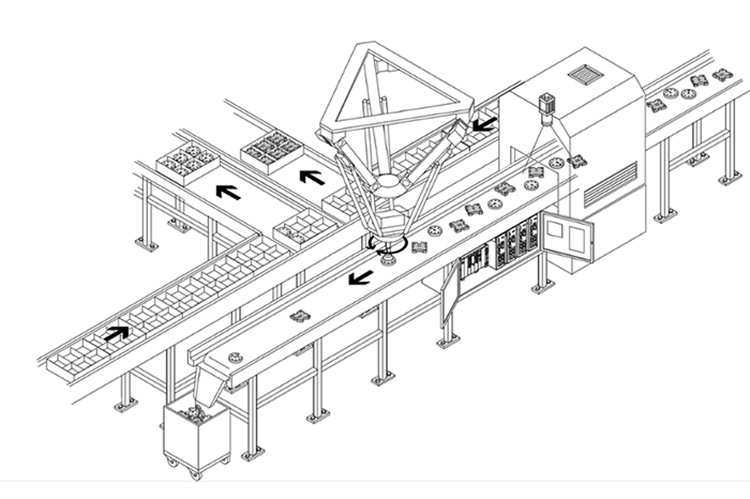

Parellel manipulator for goods sorting


Contact Us

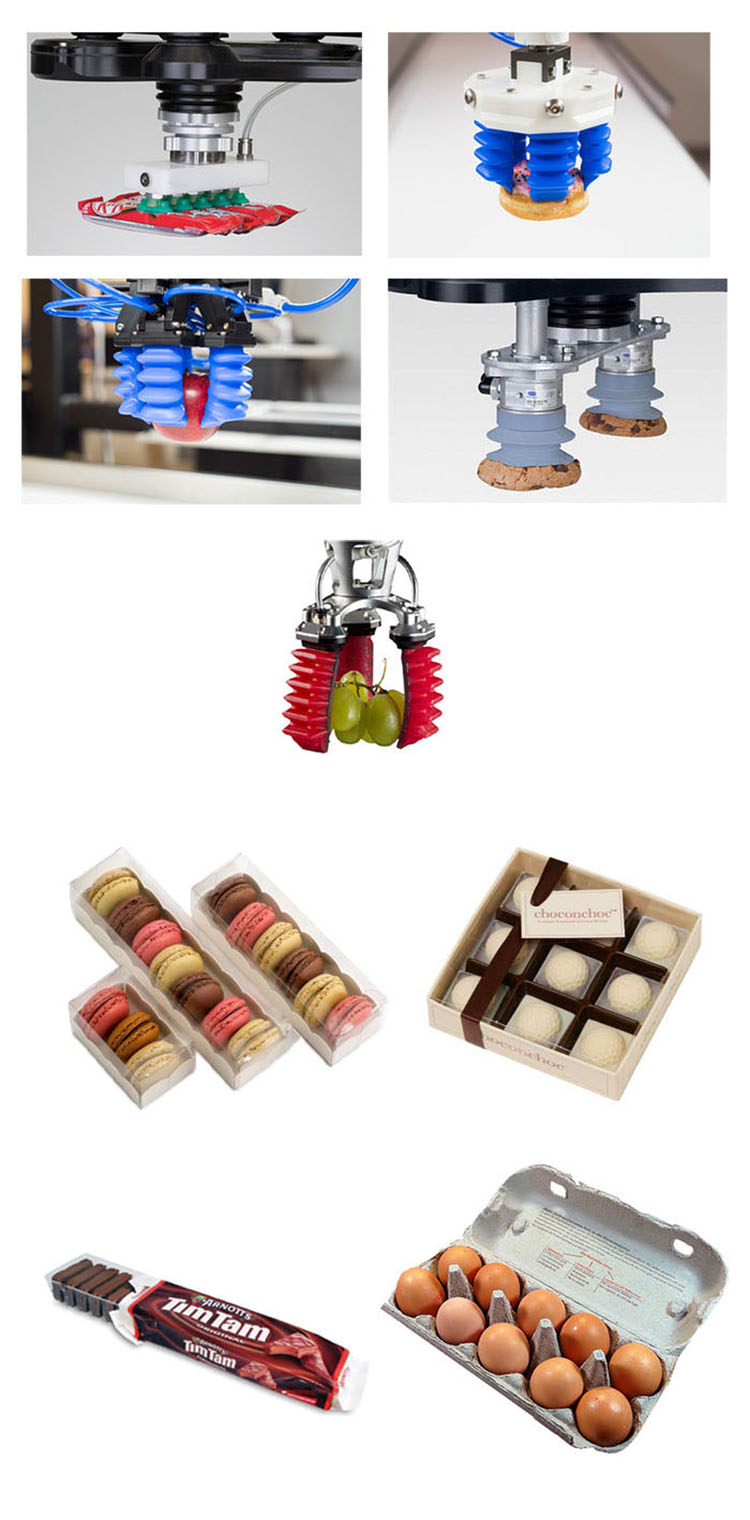

4 axis delta robot gripper
