Saw Resonator SMD ACSR S20R

Features
Ceramic Seam-Welded Package

Excellent Reliability

Ultra Miniature Package

Suitable for Surface Mount Technology and IR Reflow Process

For application in wireless communications system


Applications
Pager, Cordless Phone, GPS, FRS, Cable Modem, RKE, ISM, GSM, EGSM, DCS, PCS, CDMA, W_CDMA, SONET, Wireless Microphone, Industry Remote Control

Facebook Twitter Pinterest LinkedIn 分享

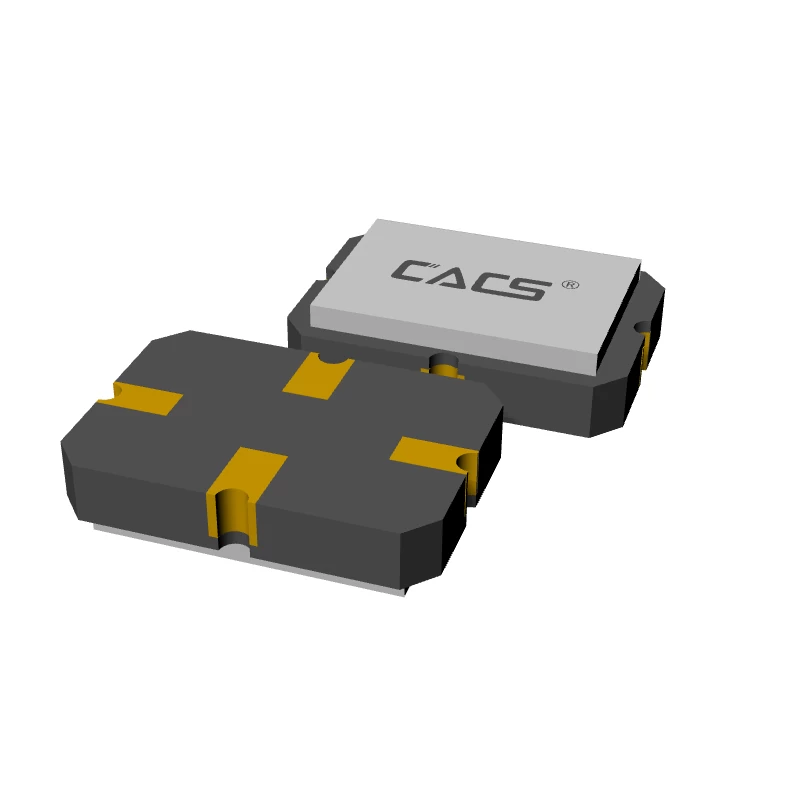

SAW Resonator 5.0x 3.5mm

RoHS Compliant Lead-free soldering


Electrical Specification

DC Voltage VDC

10V

AC Voltage Vpp

10V 50Hz/60Hz

Operation temperature

-40℃ to +85℃

Storage temperature

-45℃ to +85℃

Source Power

0dBm


Item Unites Minimum Typical Maximum
Center Frequency MHz 433.845 433.92 433.995
Insertion Loss dB   1.6 2.2
Quality Factor Unload Q   8300 12000  
50Ω Loaded Q   1000 2000  
Temperature Turnover Temperature ℃ 10 25 40
Stability Freq.temp.Coefficient ppm/℃   0.032  
Frequency Aging ppm/yr   <±10  
DC. Insulation Resistance MΩ 1    
RF Equivalent RLC Model Motional Resistance R1 Ω   18 26
Motional Inductance L1 μH   79.82  
Motional Capacitance C1 fF   1.685  
Transducer Static Capacitance C0 pF   2.3

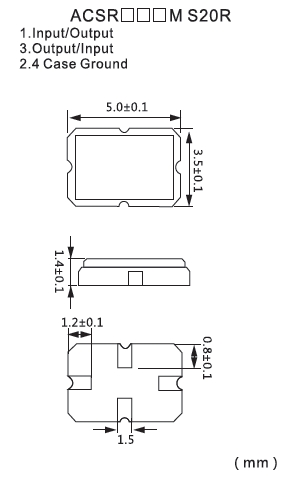

Dimension
