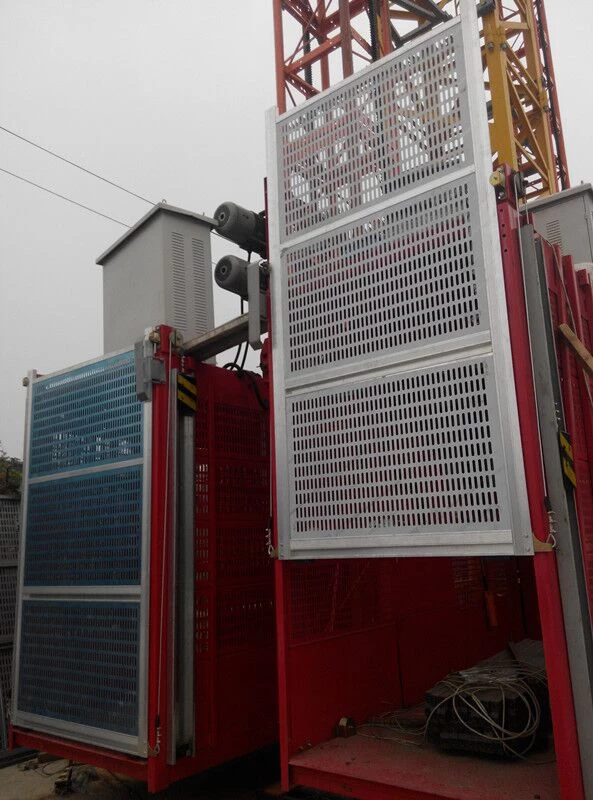

SC Series 1t & 1.6t & 2& Double cage Passenger Hoist for Construction
Double cage passenger hoist--SC100/100,SC160/160, SC200/200
Main Parameters of SC100/100, SC160/160, SC200/200 Building lift:
Model
|
SC100/100
|
SC160/160
|
SC200/200
|
Height (m)
|
100
|
100
|
100
|
Rated Loading Capacity (kg)
|
2*1000
|
2*1600
|
2*2000
|
Rated Lifting Speed (m/min)
|
33
|
33
|
33
|
Motor Power (kw)
|
3*11
|
3*11
|
3*11
|
Inner Dimension of Cage (m)
|
3*1.3*2.25
|
3*1.5*2.25
|
3*1.5*2.25
|
650mm Mast Section Dimension (mm)
|
650*650*1508
|
650*650*1508
|
650*650*1508
|
*Standard cage dimension is 3.2x1.5x2.5,other available cage dimension(LxWxH)(m)
2.5x1.3x2.5; 3x1.3x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5;4.0x1.5x2.5;4.2x1.5x2.5 special dimension can be made according to requirement of customer.
* Capacity ,lifing speed etc can be selected according to requirement of customer.
*Standard mast section is 650x650x1508mm,or can be made according to requirement of customer.
*Motor/reducer option:GJJ motor(Chinese);Nord motor special for GJJ(Germany)
*Tie-in type I apply for the height <=150m
*The hoist over 200 meters with counter weight is not recommended
Introduction of our double cage building hoist:
Passenger hoists are widely used at the sites of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry, which is convenient for transport of both material and human.
1. Lifting speed:33m/min
2. Max Lifting height: 150m
3. Start-up current: 270A
4. Working current: 70 A
5. Motor power:3*11kw
6. The recommended cage dimension (L*W*H) ( m) of construction hoist: 2.0*1.0*2.5, 2.5*1.3*2.5, 3.0*1.3*2.5, 3.2*1.5*2.5, 3.7*1.5*2.5, 4.2*1.5*2.5. and The cage Size also can be made according to your reuquirement.
7. Perfect safety device for the hoist, Mainly including: Anti-falling safety device, upper and lower travel limit, upper and lower finial limit, cage door electrical and mechanical interlock device, anti-roof collapse device, anti-doffing safety hook, buffer spring, overloading protective device, etc.
