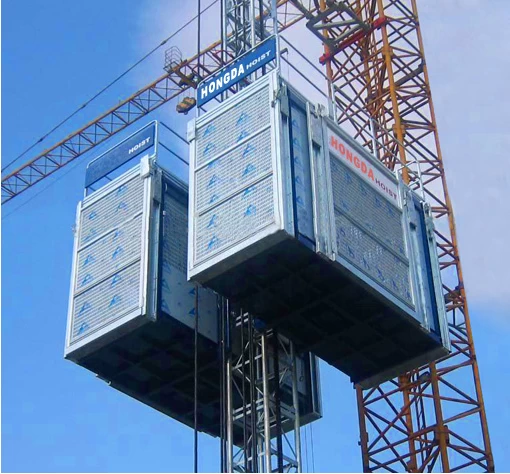

SC200/200GZ VF Frequency convertible Rack and Pinion Construction hoist
SC200/200 construction hoist, rack and pinion construction hoist
1. What is the details of our construction lifting hoist ?
--Loading capacity: 1000kg-2700kg
--Available in 2 or 3 sets of driving device
--Mast Section Dims: 650mm*650mm*1508mm
--A variety of construction lifts can be designed and manufactured specially according to customer’s requirement.
2. What is the specification of our SC200/200 construction hoist ?
| Item |
SC200/200GZ VF Frequency convertible Construction hoist |
| Model |
SC200/200GZ |
| Rated capacity/per cage |
2000kg |
| Lifting speed |
0-63m/min |
| Cage size |
3.2*1.5*2.5m |
| Motor power |
3*15kw |
| Speed ratio |
1:16 |
| Invertor Power |
45 kw |
| Safety device |
SAJ40-1.2 |
| Mast section size |
0.65*0.65*1.508m |
| Max. Installation height |
450m |
| Cable type |
Cable basket/cable trolley |
| Doorsill height |
450/960mm
|
3. What is the advantage of our rack and pinion construction hoist ?
VF (Viriable Frequency) Techlology is adopted
Stepless speed regulation from 0-63m/min
Max. Installation height is 450 m
Tracted by cable pulley, with protector.
Stable performance, simple structure, Flexible handling, direct start, strong adaptability
Cage inside is spacious and comfortable.
OEM service is available
Remarkable energy saving
Excellent safety assurance.
Price is competitive.
Commercial Terms
MOQ: 1set
Tradeterms: FOB (Qingdao) or as per your request
Theabroad market: MiddleEast, South Asia, Africa, Russia, etc.
Deliverytime: 10-15 days after receiving 30% advanced payment
Termsof Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Package:nude in 1*40"HQ containers for basic height (50m)
Warranty:12 months
Our Service
----timely delivery, in time shipping notice
----1 year warranty of products quality and full set ofspare parts
----training installation, guidance of operation and maintenance
----engineers have rich experience, can solveall your problems
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
Looking forward your kindly inquiry and hope to help your strong business in near future!
