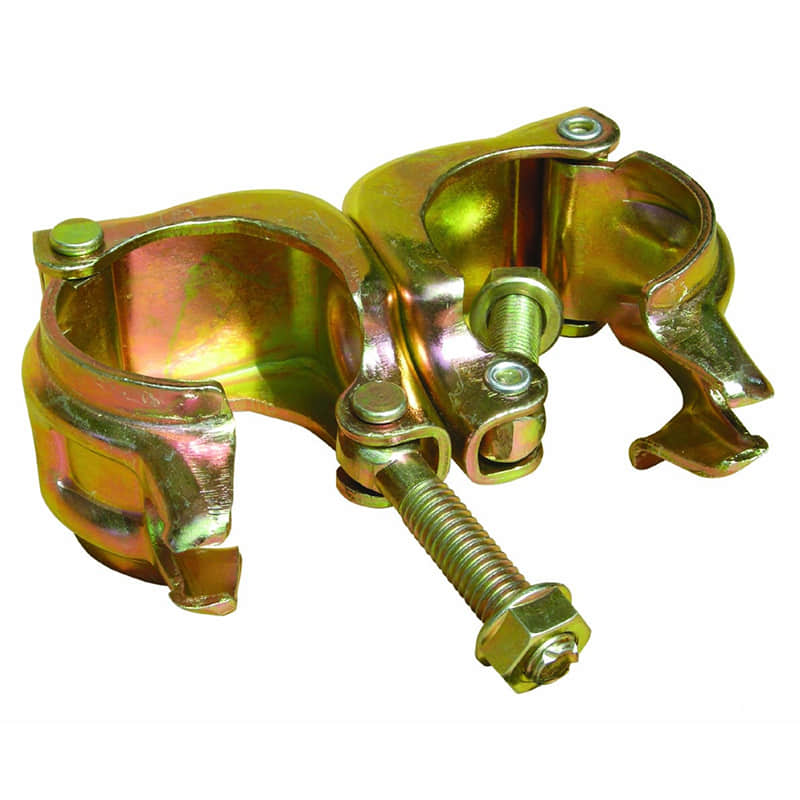

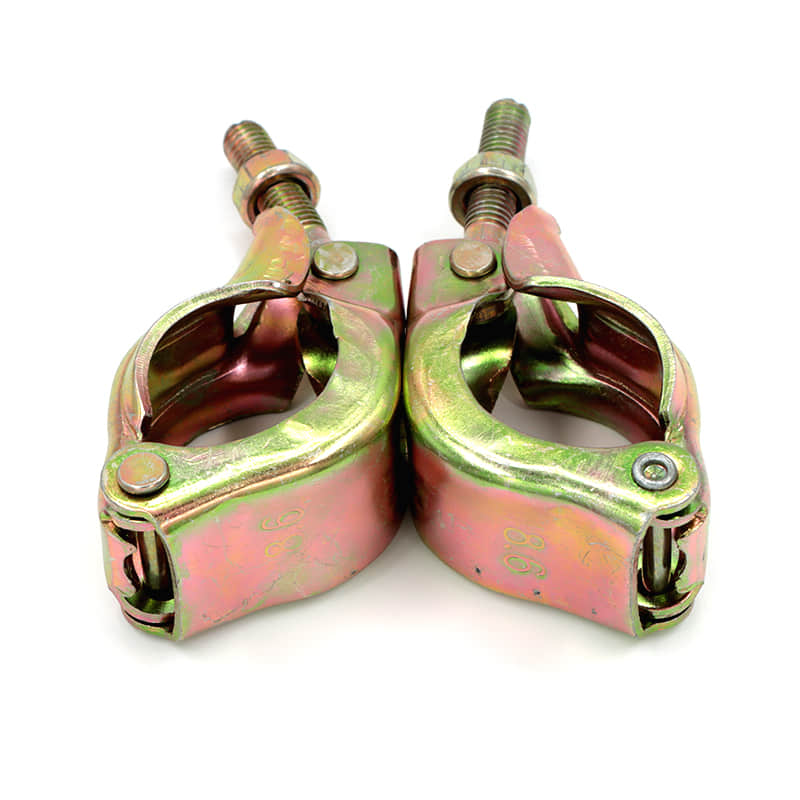

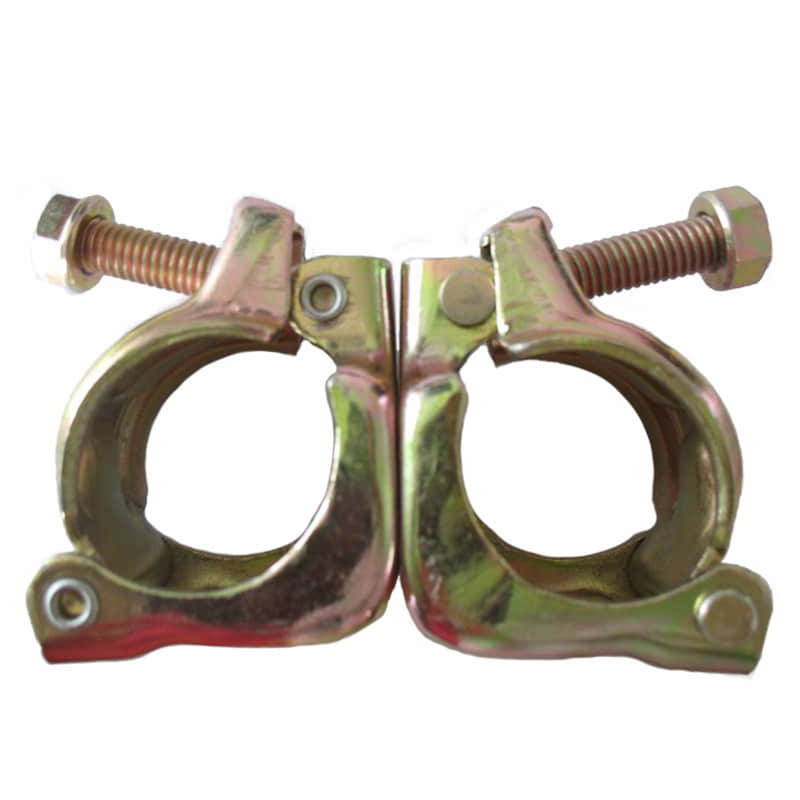

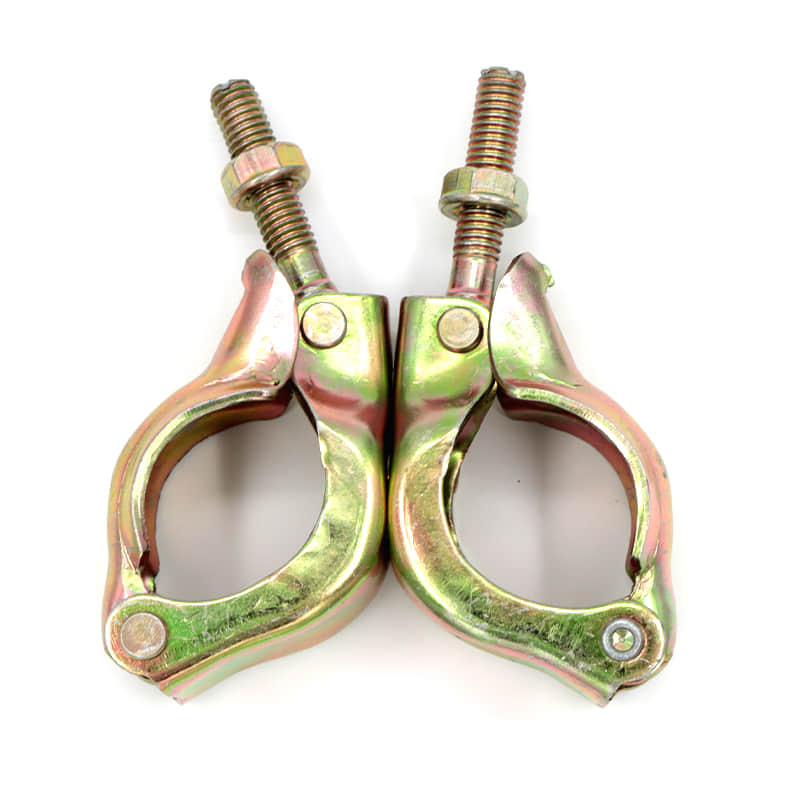

Scaffolding Parts JIS Type Pressed Swivel Coupler

As a trusted swivel coupler supplier, we offer high-quality, durable connectors designed for scaffolding and formwork applications. Available in a variety of sizes and finishes, and compliant with industry standards such as EN 74-1 and ANSI/SSFI SC100-5. Contact us today for cost-effective solutions and timely delivery of quality swivels for your next project.



Pressed Steel Swivel Coupler Manufacture



      A Pressed Swivel Coupler clamp serves as a vital component used on scaffolding system applications to interconnect two steel tubes at any angle, giving scaffolding design flexibility. The scaffolding swivel clamp are fabricated of pressed steel, giving them enough strength to support relatively heavy loads while remaining lightweight.

AJ building provides you with couplers of different types, sizes, and surface treatments, all of which comply with industry standards such as EN74-1/BS1139.









Features Of Scaffolding Clamp Swivel





  • # Swivel
    Clamp scaffolding swivel provide for a full 360-degree rotation/swivel, providing ample opportunity to interconnect tubing in various directions.
  • # Pressed Steel
    The swivel couplers are constructed with pressed steel, which is strong enough to support heavy loads and large enough to rival the weight of the tubing.
  • # Rust Resistance
    For structural longevity, scaffold swivel coupler are often treated with zinc or similar substances to resist rust.









Pressed Swivel Coupler Types & Specifications



Swivel Coupler is divided into two types: double swivel coupler and single swivel coupler. It is generally suitable for scaffolding pipes with a diameter of 48.3mm. The tensile strength and compressive strength are usually between 6.25kN and 9kN. We can customize the product size according to your project needs, such as 42mm, 60mm, etc.









Customize Your Swivel Coupler



Swivel fasteners can be finished with different surface treatments such as electro-galvanizing, hot-dip galvanizing, painting and powder coating, so you can get it in the color you like. You can also print your logo on the product.



Electro-Galvanized:

  • Provides basic rust protection and is suitable for dry environments.



Hot-Dip Galvanized:

  • High corrosion resistance and is suitable for wet or highly corrosive environments.



Paint Coating:

  • A variety of colors are available depending on specific project requirements, adding visual management functions.



Powder Coating:

  • Enhanced wear and impact resistance, providing longer service life.









Swivel Coupler Applications:

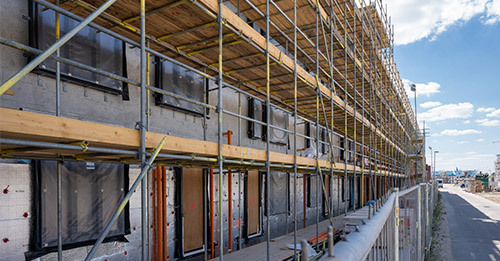

■ Complex scaffolding construction

Irregular structural support for curved buildings (such as domes, bridges), industrial equipment maintenance, shipyards, etc.



■ Concrete formwork engineering

Precise angle fixation of curved beams, columns, and special-shaped concrete components.



■ Temporary facilities and stage erection

Quick assembly and layout adjustment of concert stages, exhibition halls, and temporary stands.



■ Heavy equipment fixing

Multi-angle bundling and reinforcement of factory machinery and transported goods.
