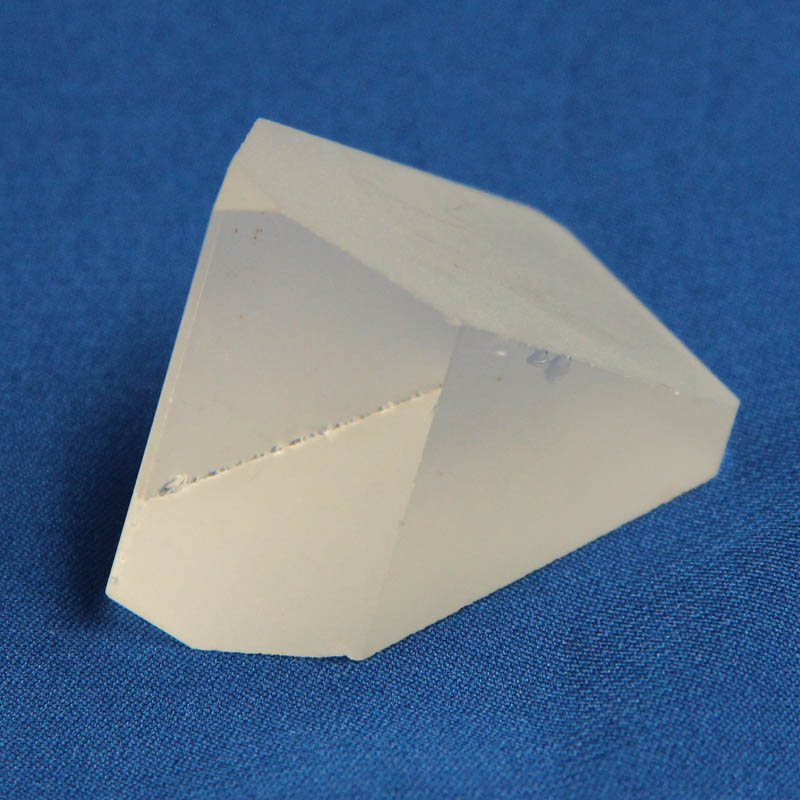

BK7 and Fused Silica Glass Schmidt Prisms

Schmidt Prisms Schmidt prisms are used to invert and revert an image to angle of 45°. The 45° deviation makes Schmidt prisms useful in eyepiece assemblies and imaging systems requiring a path bend. 1. Ray Deviation of 45° 2. Right Handed Image 3. Combine with Half-Penta Prism to Create Pechan Prism
