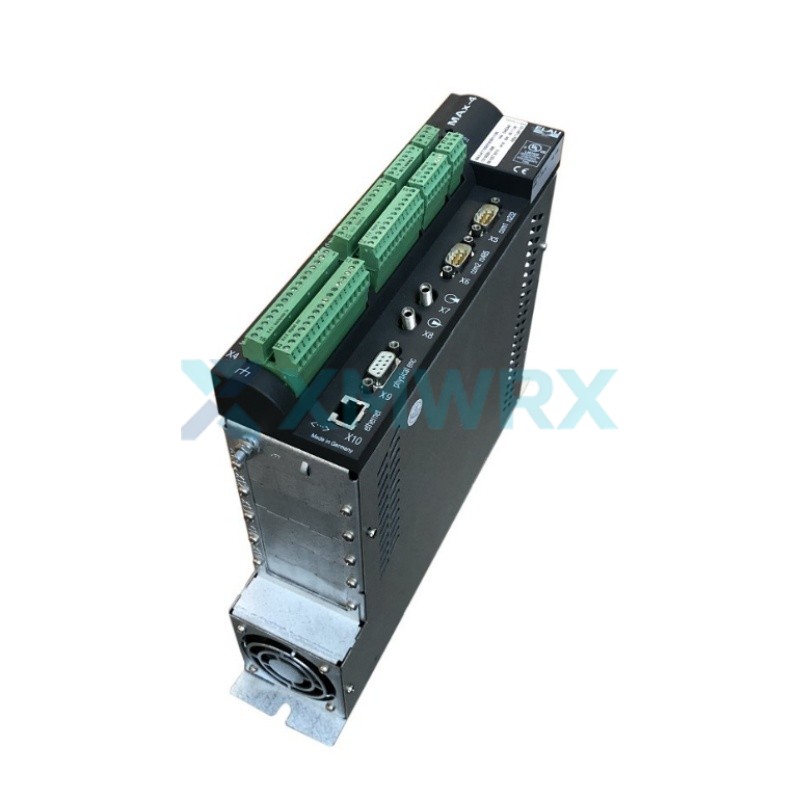

MAX-4/11/03/016/08/1/1/00 is a compact motion controller from Schneider Electric's ELAU PacDrive MAX-4 series. It features a 32-bit hard real-time floating-point processor and only 16KB of program storage. The "08" in the model name indicates support for up to 8-axis servo synchronous linkage; the suffix "1/1" indicates that it has complete digital I/O and analog signal channels, eliminating the need for additional expansion modules to acquire tension and pressure signals. It uses a SERCOS III servo bus with VDM series servo drives, making it suitable for small-scale bag-making, labeling, and pharmaceutical sealing equipment with up to 8 axes. The VxWorks hard real-time system has a minimum motion cycle of 250μs, stably completing mainstream motion processes in small to medium-sized equipment such as electronic cams, synchronous feeding, and simple flying shears. It is suitable for automated equipment with simple control logic and a small number of axes.
Frequently Asked Questions
Q: Does the MAX-4/11/03/016/08/1/1/00 have built-in analog input channels? Does it require an expansion module to acquire sensor signals?
A: It has 2 built-in analog inputs and 2 analog outputs, and is also equipped with multiple digital inputs and outputs. It can directly connect to tension and pressure analog sensors without the need for additional analog expansion modules.
Q: What communication interfaces does the MAX-4/11/03/016/08/1/1/00 have, and what external devices can it connect to?
A: It integrates multiple interfaces including SERCOS servo bus, Ethernet, Profibus DP, CANopen, and RS485, allowing connection to HMI touchscreens, host industrial computers, third-party frequency converters, and digital sensor acquisition modules.
Q: What debugging and diagnostic functions does the MAX-4/11/03/016/08/1/1/00 have?
A: The built-in 8-channel software waveform oscilloscope allows for real-time observation of servo operation waveforms, automatically saves complete fault logs, and, in conjunction with the machine's indicator lights, quickly troubleshoots bus, servo, and I/O point faults.
